Elevated levels of IL-6 and IL-9 in the sera of patients with AAA do not correspond to their production by peripheral blood mononuclear cells

Hamid Aria; Mehdi Kalani; Hossein Hodjati; Mehrnoosh Doroudchi

doi:10.1016/j.artres.2017.12.007

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Volume 21, Issue C, March 2018, Pages 43 - 52

Elevated levels of IL-6 and IL-9 in the sera of patients with AAA do not correspond to their production by peripheral blood mononuclear cells

Authors

Hamid Aria^a, Mehdi Kalani^b, Hossein Hodjati^c, Mehrnoosh Doroudchi^a^{, *}

^aDepartment of Immunology, School of Medicine, Shiraz University of Medical Sciences, Iran

^bDepartment of Immunology, Professor Alborzi Clinical Microbiology Research Center, Nemazee Hospital, Shiraz University of Medical Sciences, Shiraz, Iran

^cDepartment of Vascular Surgery, School of Medicine, Shiraz University of Medical Sciences, Shiraz, Iran

^*Corresponding author. Memory T cell Laboratory, Department of Immunology, School of Medicine, Shiraz University of Medical Science, P.O. Box: 71345-3119, 71348-45794, Shiraz, Iran. Fax: +98 71 32351575. E-mail address: mdoroud@sumc.ac.ir (M. Doroudchi).

Corresponding Author

Mehrnoosh Doroudchi

Received 2 October 2017, Revised 24 December 2017, Accepted 30 December 2017, Available Online 11 January 2018.

DOI: 10.1016/j.artres.2017.12.007 How to use a DOI?
Keywords: Abdominal Aortic Aneurysm (AAA); IL-9; IL-10; PBMC; Serum
Abstract: Background: Abdominal Aortic Aneurysm (AAA) is the stable local dilatation of abdominal aorta. AAA is an inflammatory condition in which cytokines may play a pathogenic role.

Methods: Peripheral Blood Mononuclear cells (PBMCs) were isolated from 5 men, with confirmed diagnosis of AAA and aortic dilation greater than 5.5 cm, and 5 men with normal/insignificant angiography, CT-Scan and Ultrasonography results. The supernatant of PBMCs, rested overnight in RPMI containing 10%-FBS, removed to measure IL-2, IL-4, IL-5, IL-6, IL-9, IL-10, IL-13, IL-17A, IL-17F, IL-21, IL-22, IFN-γ and TNF-α using a commercial fluorescent-labeled bead assay.

Results: The mean serum IL-6 and IL-9 levels were significantly higher in patients than controls (P = 0.007 and P = 0.007, respectively). PBMCs from patients produced lower levels of IL-6 and IL-9 compared to controls but the differences were not significant. While serum TNF-α level was not different between groups, its production by PBMCs of patients was significantly lower than controls (P = 0.047). The mean serum levels of IL-10 and IFN-γ in patients were marginally higher than controls (P = 0.055, P = 0.055, respectively). Mean serum IL-2 level was not different between the groups but its production by PBMCs of patients was significantly higher than the control group (P = 0.047).

Conclusions: Our study showed alteration in the levels of cytokines from inflammatory, Th1, Th2 and Th17 subtypes in the sera of patients with AAA. The production of IL-6, IL-9, IFN-γ and IL-10, however, was not solely attributed to the PBMCs. Therefore, participation of other cells in the tissue or blood should be considered in their production.
Copyright: © 2018 Association for Research into Arterial Structure and Physiology. Published by Elsevier B.V. All rights reserved.
Open Access: This is an open access article distributed under the CC BY-NC license.

Introduction

Abdominal Aortic Aneurysm (AAA) is one of the most common forms of deadly atherosclerotic events.¹ AAA is defined as the stable local dilatation of abdominal aorta with a diameter of more than 3 cm or an increase in diameter of more than 50% relative to normal.² Smoking, family history, higher age and male gender are other known factors to correlate with the disease incidence.^3,4 AAA is often asymptomatic but rupture of aneurysm is a major risk of death with a mortality rate of 85–90%.^5,6 Although the prevalence of abdominal aortic aneurysms has been rising until mid 1990s, it seems that in recent years its prevalence has been decreasing. In a recent study in Sweden, ultrasonographic screening for 65-year old men showed a decrease of prevalence from 4–8% to 2.2% over the five years.⁷ Abdominal aortic aneurysms cause 13,000 deaths annually in the United States.⁸ Shirani et al. reported that 2.9% of CABG candidates in Iran appear to have abdominal aortic aneurysms.⁹

Smoking is a major risk factor for AAA where nicotine increases the expression of ICAM-1 and VCAM-1 and induces IL-1β and TNF-α production by macrophages in the aortic wall.¹⁰ Also, cigarette smoke components increase the expression of MMP-2 and MMP-9.¹¹ AAA is an inflammatory condition in which inflammatory cells, including T lymphocytes, penetrate into various vascular layers and secrete cytokines and inflammatory chemokines. Infiltration of the vascular wall with lymphocytes and macrophages is followed by destruction of elastin and collagen in the media and adventitia layers by proteases such as matrix metalloproteinases, and smooth muscle cell loss, which decreases the thickness of media associated with new angiogenesis.¹² Currently, AAA is known as an sterile inflammatory disease, in which inflammatory response is induced by an internal stimuli such as damage associated molecular patterns (DAMP) or risk signals (such as S100A8/9 and Hmgb1), recognized by receptors on innate immune and other cells.¹³ Atherosclerosis and high blood pressure are also associated with AAA.¹⁴

Excessive accumulation of LDL and cholesterol crystals, and secretion of post-cell death stress proteins such as S100A8/9 and Hmgb1 trigger inflammasome activation and cytokines production by aortic wall macrophages.^15,16 The accumulation of inflammatory cells, including CD4+ T cells, B cells and macrophages has been observed in the aortic lesions of AAA.¹⁷ The secretion of cytokines can lead to the production of matrix metalloproteinases and cathepsin that through destruction of the aortic wall, inflammation, and loss of smooth muscle cells lead to aneurysm and rupture.¹⁸ Despite the close association between aneurysm and atherosclerosis, AAA is now known as a degenerative process that involves all layers of the vascular wall, especially media and adventitia with abundant inflammatory cells in lesions. Another important difference between these two diseases is the predominant Th1 cytokine response in atherosclerosis and Th2 cytokine response in AAA.¹⁹ In both diseases cytokines produced by T helper cells determine the outcome of arterial inflammation. Increased levels of IL-1, IL-6, TNF-α and IFN-γ and their role in the pathogenesis of AAA have been shown.²⁰ On the other hand, human studies have shown that Th2 (IL-4, IL-5) cytokines and IL-10 are predominant in AAA lesions, while in the atherosclerotic lesions Th1 (IL-2, IFN-γ) cytokines are abundant.²¹ Interestingly, both Th1 and Th2 cytokine genes and transcription factors are expressed in AAA²² and both Th1 and Th2 cytokines can induce or stop expression of specific MMPs according to different conditions.²³ It is suggested that Th1 cytokines may participate in the formation of atherosclerotic lesion in early stages while Th2 cytokines participate in the further development of aneurysm.^24,25

In addition to Th1 and Th2, other immune inflammatory cytokines are reported to play a role in either of the diseases. Previous studies have reported elevated plasma levels of IL-9 in patients with acute coronary syndrome and atherosclerosis.^26,27 In AAA, IL-17A seems to have a pathogenic role, since AAA progression significantly decreases in Il-17A−/− and- Il-23−/− rats.²⁸ The IL-10 immunosuppression, however, works against the progression of AAA suggested by more sensitivity of IL-10−/− mice to AngII induced AAA.²⁹ Interestingly, IL-10 shows a significant increase in aneurysm-affected tissue.³⁰

Method and material

Patients with abdominal aortic aneurysm were diagnosed by the collaborator vascular surgeon, based on clinical and paraclinical indices. Five AAA patients were included in this study; all of them were male (100%), with an average age of 70.40 ± 6.76 years, who were listed for surgery due to their acute state. The control group was selected from among the patients referred for angiography and surveying cardiac disorders, which in addition to the normal results of echocardiography, sonography and CT scan, had normal/insignificant angiography results and no signs of AAA were observed. Control group consisted of 5 men with an average age of 71.80 ± 4.65 years. 30 ml blood was collected from both groups after informed consent. Plasma samples were isolated and stored at −80 °C until next used. Lymphodex™ (Inno-Train, Germany) concentration gradient method was used to isolate PBMCs from blood. Then, the PBMCs of the patients and control groups were incubated for 48 h at 37 °C, 5% CO2 and 95% moisture in the RPMI plus 10% FBS culture medium. After incubation, the supernatant was removed to measure the cytokines. Cytokines were measured by LEGENDplex panel (Biolegend, United States) using fluorescent-labeled beads. The panel allowed simultaneous measurement of 13 cytokines from different T helper and inflammatory subtypes. In this assay, beads with different sizes labeled with different antibodies against cytokines were used. Beads are differentiated by size and internal fluorescence intensities. Capture beads were mixed and incubated with a sample containing target cytokines specific to the capture antibodies, then they bound to the specific capture beads. There are reporter fluorochromes (PE and FITC) in this assay that help identify the signal. Since the beads were differentiated by size and internal fluorescence intensity on a flow cytometer, cytokine-specific populations were segregated and PE fluorescent signal quantified. The concentration of a particular analyte was determined using a standard curve generated in the same assay. The measured cytokines included IL-2, IL-4, IL-5, IL-6, IL-9, IL-10, IL-13, IL-17A, IL-17F, IL-21, IL-22, IFN-γ and TNF-α, which are produced by Th1, Th2, Th17, and other T helper subsets, respectively. The serum and PBMC produced cytokines in each patient and control individual is shown in Table 1.

Cytokines	Group	Mean ± SD	P value
TNF-α	Case	3.31 ± 0.69	0.44
TNF-α	Control	5.21 ± 3.26	0.44
IL-6	Case	65.35 ± 58.30	0.007
IL-6	Control	6.23 ± 3.06	0.007
IL-10	Case	13.61 ± 13.96	0.055
IL-10	Control	2.02 ± 1.00	0.055
IFN-γ	Case	71.04 ± 34.24	0.09
IFN-γ	Control	32.04 ± 9.34	0.09
IL-2	Case	13.81 ± 9.23	0.99
IL-2	Control	11.20 ± 3.64	0.99
IL-13	Case	4.89 ± 2.28	0.22
IL-13	Control	3.46 ± 1.22	0.22
IL-5	Case	2.49 ± 1.15	0.055
IL-5	Control	1.32 ± 0.50	0.055
IL-9	Case	10.53 ± 7.75	0.007
IL-9	Control	2.39 ± 0.87	0.007
IL-4	Case	1.25 ± 0.57	0.99
IL-4	Control	1.00 ± 0.00	0.99
IL-17A	Case	38.25 ± 14.80	0.28
IL-17A	Control	29.98 ± 4.47	0.28
IL-17F	Case	1.31 ± 0.54	0.44
IL-17F	Control	1.00 ± 0.00	0.44
IL-21	Case	24.22 ± 6.42	0.06
IL-21	Control	16.11 ± 4.93	0.06
IL-22	Case	40.02 ± 7.90	0.84
IL-22	Control	34.03 ± 11.75	0.84

Significant of bold values indicate P < 0.05.

Table 1

Serum level of cytokines in patients and controls.

To analyze the data, both individual cytokines and group of cytokines based on the subsets were considered. Inflammatory group of cytokines included IL-6 and TNF-α, and anti-inflammatory cytokine was IL-10. Th1 group of cytokines included IL-2, and IFN-γ and Th2 group of cytokines included IL-4, IL-5, IL-9 and IL-13 and Th17 cytokines included IL-17A, IL-17F, IL-21 and IL-22.

SPSS software (version 16) was used to analyze the collected data. Data on age and level of cytokines in patients and controls were reported as mean ± standard deviation. Chi square test (χ²) was used to test the statistical differences of discontinuous variables such as gender between two groups. Mann Whitney U test was used to test the statistical differences between continuous variables such as age and cytokines levels between control and patient groups. The data were also analyzed by One-Way Anova test. In all of the tests, statistical differences less than 0.05 were considered significant.

Results

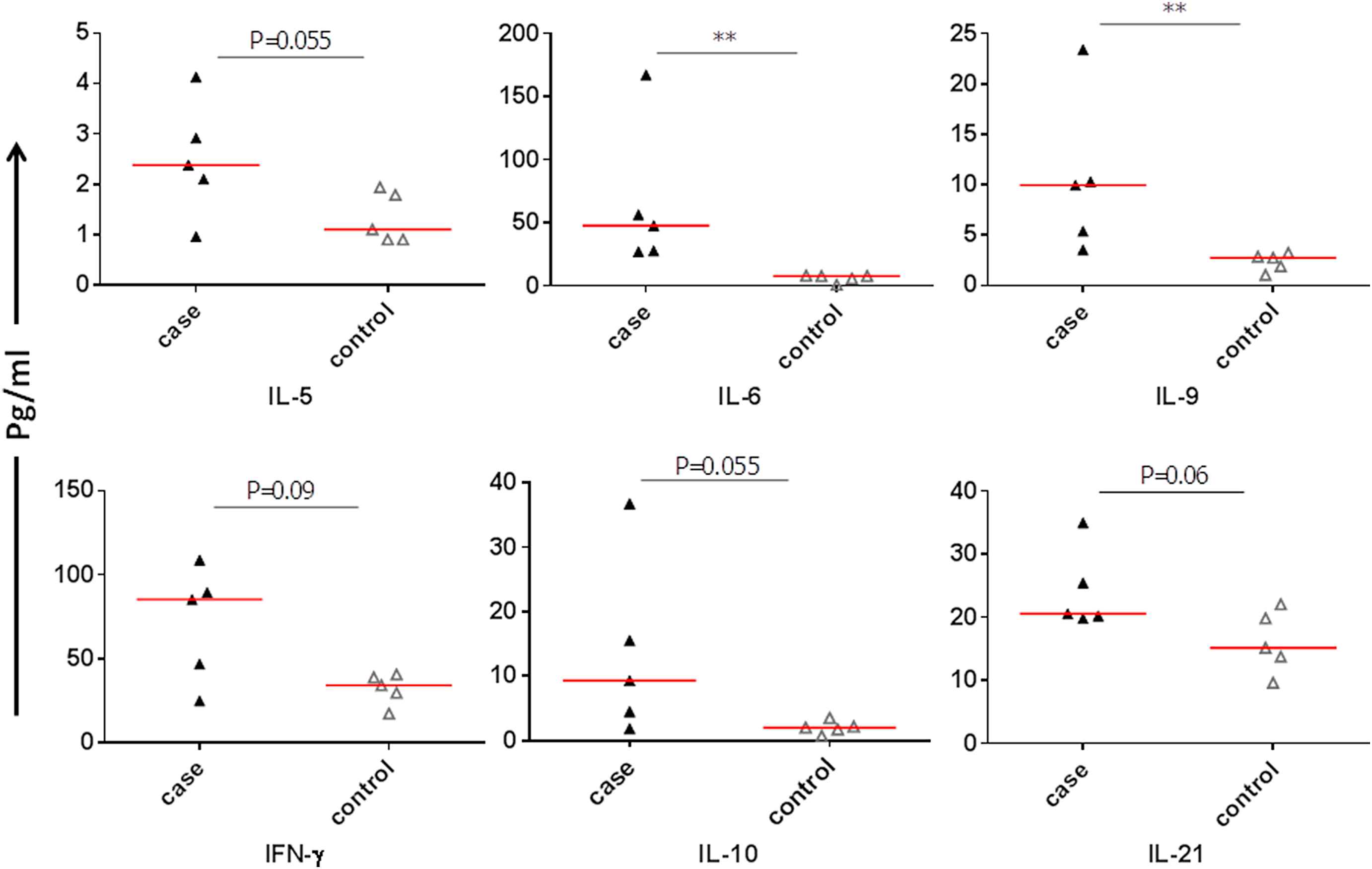

Comparison of individual serum cytokines between patients and controls

There was no significant difference in mean serum TNF-α level in patients compared to controls (P = 0.44). The mean serum IL-6 and IL-9 levels were significantly higher in patients than controls (P = 0.007 and P = 0.007, respectively; Fig. 1). The mean serum IL-10, IFN-γ, IL-5 and IL-21 levels in patients were marginally higher than controls (P = 0.055, P = 0.055, P = 0.09 and P = 0.06, respectively; Fig. 1). There were no significant differences in mean serum IL-2, IL-13, IL-4, IL-17A, IL-17F and IL-22 levels in patients compared to controls (P = 0.99, P = 0.22, P = 0.99, P = 0.28, P = 0.44, P = 0.84). The mean ± SD of each cytokine is shown in Table 2. One-Way Anova test confirmed that the differences between cases and controls regarding serum IL-9 (P = 0.048) and IFN-γ (P = 0.040) were significant and the differences in IL-6 and IL-21 did not reach the significant level (P = 0.053 and P = 0.056, respectively).

Cytokines	Case or control	Mean ± SD	P value
TNF-α	Case	18.47 ± 21.18	0.047
TNF-α	Control	252.34 ± 293.64	0.047
IL-6	Case	7693.84 ± 7602.24	0.80
IL-6	Control	11,474.20 ± 6412.58	0.80
IL-10	Case	374.91 ± 368.36	0.055
IL-10	Control	1632.91 ± 1169.48	0.055
IFN-γ	Case	96.58 ± 161.63	0.08
IFN-γ	Control	499.43 ± 773.79	0.08
IL-2	Case	38.73 ± 56.89	0.047
IL-2	Control	5.74 ± 2.89	0.047
IL-13	Case	5.96 ± 2.81	0.30
IL-13	Control	4.59 ± 2.26	0.30
IL-5	Case	1.16 ± 0.36	0.99
IL-5	Control	1.00 ± 0.00	0.99
IL-9	Case	267.98 ± 273.84	0.13
IL-9	Control	10,927.50 ± 9649.70	0.13
IL-4	Case	1.00 ± 0.00	0.99
IL-4	Control	1.00 ± 0.00	0.99
IL-17A	Case	16.66 ± 9.98	0.99
IL-17A	Control	14.62 ± 7.86	0.99
IL-17F	Case	4.70 ± 8.29	0.99
IL-17F	Control	1.00 ± 0.00	0.99
IL-21	Case	10.84 ± 4.92	0.15
IL-21	Control	17.27 ± 7.84	0.15
IL-22	Case	50.50 ± 22.39	0.99
IL-22	Control	50.20 ± 8.72	0.99

Significant of bold values indicate P < 0.05.

Table 2

Level of cytokines produced by PBMCs in patients and controls.

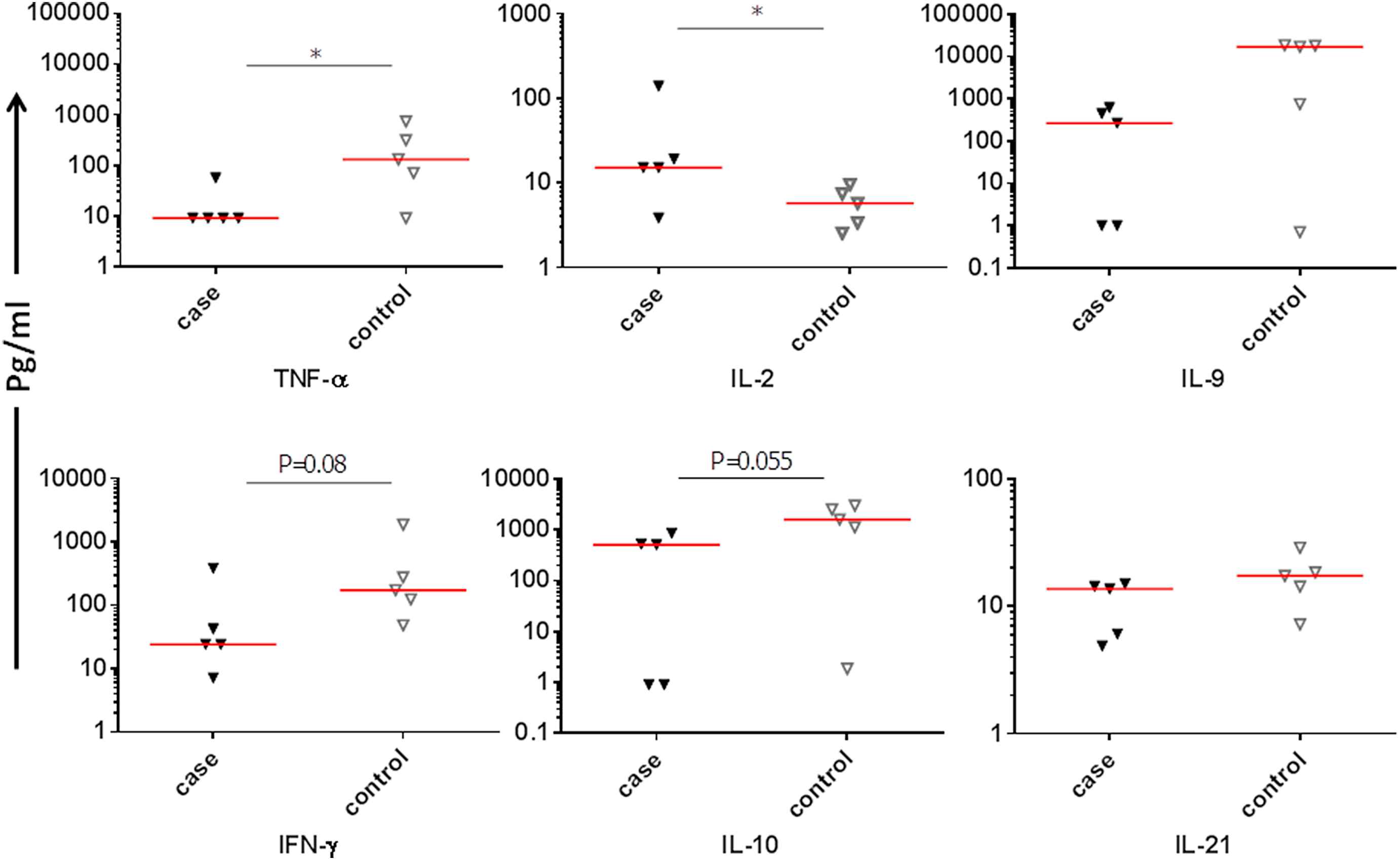

Comparison of individual cytokines produced by PBMCs in the absence of antigenic stimulation between patients and controls

TNF-α production by PBMCs of patients was significantly lower than control group (P = 0.047). IL-2 production by PBMCs of patients was significantly higher than the control group (P = 0.047; Fig. 2). The production of IL-10 IFN-γ and IL-21 by patient PBMCs were non-significantly (P = 0.055, P = 0.08 and P = 0.15, respectively; Fig. 2) less than that of the control group. PBMCs from patients produced lower level of IL-9 while control PBMCs produced large amounts of IL-9 but the difference did not reach the significant level (P = 0.13). IL-6, IL-13, IL-5, IL-4, IL-17A, IL-17F and IL-22 production by PBMCs were not different between the two groups (P = 0.80, P = 0.30, P = 0.99, P = 0.99, P = 0.99, P = 0.99 and P = 0.99, respectively). The mean ± SD of each cytokine is shown in Table 3. Again One-Way Anova test confirmed that the difference between cases and controls regarding serum IL-9 (P = 0.039) was significant.

		C1	C2	C3	C4	C5	P1	P2	P3	P4	P5
TNF-a	Serum	10.26	6.80	3.00	3.00	3.00	3.00	3.00	3.00	3.00	4.55
TNF-a	PBMC	131.85	70.65	9.00	736.49	313.73	9.00	9.00	9.00	56.37	9.00
IL-6	Serum	7.92	1.00	8.33	7.92	5.98	47.84	167.17	27.31	56.53	27.92
IL-6	PBMC	14,342.00	14,342.00	3.03	14,342.00	14,342.00	1.55	1.00	8113.92	15,756.00	14,596.74
IL-10	Serum	1.74	3.50	0.70	2.17	2.02	1.88	36.79	15.56	9.32	4.50
IL-10	PBMC	1121.53	2973.30	1.86	2497.93	1569.93	0.90	0.90	501.51	849.77	521.51
IFN-g	Serum	38.86	17.19	29.57	34.03	40.55	24.82	46.81	89.47	108.77	85.36
IFN-g	PBMC	275.45	124.65	48.34	1875.77	172.94	24.21	7.16	24.21	384.85	42.48
IL-2	Serum	13.47	12.26	11.48	13.88	4.91	9.59	13.47	29.04	4.32	12.66
IL-2	PBMC	2.56	7.44	5.77	9.60	3.37	15.28	3.89	15.28	19.22	139.99
IL-4	Serum	1.00	1.00	1.00	1.00	1.00	1.00	1.00	2.28	1.00	1.00
IL-4	PBMC	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00
IL-5	Serum	1.10	0.90	1.94	0.90	1.79	2.10	0.96	4.13	2.38	2.92
IL-5	PBMC	1.00	1.00	1.00	1.00	1.00	0.91	0.90	0.90	0.90	1.81
IL-9	Serum	1.95	3.26	1.08	2.79	2.88	3.57	23.40	9.96	10.32	5.41
IL-9	PBMC	750.66	18,186.15	0.70	18,547.74	17,152.24	1.00	1.00	449.90	620.55	267.49
IL-13	Serum	4.10	3.99	2.33	4.88	2.04	1.31	5.35	7.58	5.59	4.66
IL-13	PBMC	2.25	6.11	3.60	7.75	3.25	8.90	3.59	4.24	3.92	9.17
IL-17A	Serum	32.92	23.22	29.40	34.99	29.40	19.22	30.39	54.89	35.51	51.25
IL-17A	PBMC	2.71	16.19	11.78	23.24	19.19	33.35	6.93	12.91	16.81	13.33
IL-17F	Serum	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.32	2.25	1.00
IL-17F	PBMC	1.00	1.00	1.00	1.00	1.00	1.00	1.00	1.00	19.54	1.00
IL-21	Serum	22.08	9.66	15.18	19.86	13.78	20.59	19.86	34.97	20.22	25.47
IL-21	PBMC	14.33	17.42	7.23	28.90	18.48	13.74	6.09	14.42	15.09	4.90
IL-22	Serum	45.73	42.04	20.40	39.57	22.41	38.95	30.81	40.81	52.47	37.09
IL-22	PBMC	36.06	59.54	49.50	52.02	53.90	62.79	44.07	38.99	82.19	24.49

Table 3

Serum and PBMC produced cytokines (Pg/ml) in each patient and control individual.

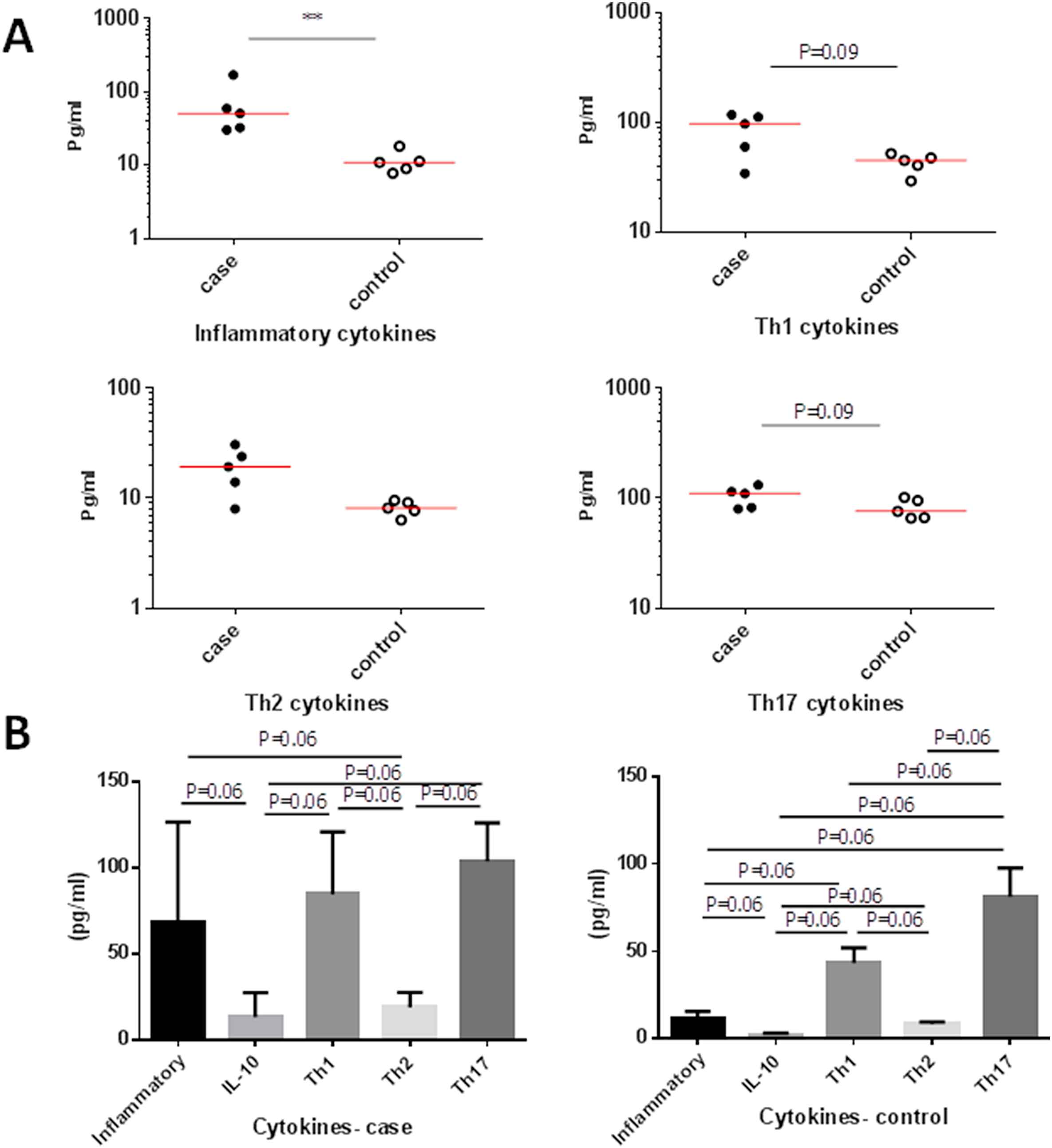

Comparison of serum inflammatory, anti-inflammatory, Th1, Th2 and Th17 cytokines between AAA patients and controls

When cytokines were categorized based on their prototype function, the mean level of IL-6 plus TNF-α as inflammatory cytokines was significantly higher in AAA patients (68.66 ± 58.06 Pg/ml) than in control subjects (11.44 ± 4.03 Pg/ml, P = 0.007) (Fig. 3A).

Difference in IL-10 mean level between patients (13.61 ± 13.91 Pg/ml) and controls (2.02 ± 1.00 Pg/ml, P = 0.055) was only marginally significant (Fig. 3A).

Despite the observed increase of total Th1 cytokines in patients, the mean IL-2 and IFN-γ, did not show significant difference between patients (84.86 ± 36.23 Pg/ml) and controls (43.24 ± 8.72 Pg/ml, P = 0.09) (Fig. 3A).

The difference between the mean total of Th2 cytokines including IL-4, IL-5, IL-9 and IL-13 in patients (19.18 ± 8.77 Pg/ml) and controls (8.18 ± 1.26 Pg/ml, P = 0.055) was also marginally significant (Fig. 3A).

In spite of the observed increase in the mean total of Th17 cytokines including IL-17A, IL-17F, IL-21 and IL-22 in patients, the differences between patients (103.80 ± 22.42 Pg/ml) and controls (81.13 ± 16.56 Pg/ml, P = 0.09) did not reach the significant level (Fig. 3A).

Comparison of inflammatory, anti-inflammatory, Th1, Th2 and Th17 levels of serum cytokines in each of the studied groups

The level of inflammatory cytokines (68.06 ± 58.66 Pg/ml) was higher than IL-10 (13.61 ± 13.96 Pg/ml, P = 0.06), less than Th1 cytokines (84.86 ± 36.23 Pg/ml, P = 0.81), more than Th2 cytokines (19.18 ± 8.77 Pg/ml, P = 0.06) and less than Th17 cytokines (103.81 ± 22.42 Pg/ml, P = 0.43) in patients group (Fig. 3B).

The level of IL-10 (13.61 ± 13.96 Pg/ml) was marginally lower than Th1 (84.86 ± 36.23 Pg/ml, P = 0.06), Th2 (19.18 ± 8.77 Pg/ml, P = 0.12) and Th17 cytokines (103.81 ± 22.42, P = 0.06) in patients group (Fig. 3B).

Th1 cytokines (84.86 ± 36.83 Pg/ml) were higher than Th2 (19.18 ± 8.77 Pg/ml, P = 0.06) and less than Th17 cytokines (103.81 ± 22.42 Pg/ml, P = 0.12). The level of Th2 cytokines (19.18 ± 8.77 Pg/ml) was lower than Th17 cytokines (103.81 ± 22.42 Pg/ml, P = 0.06) in patients group.

The level of inflammatory cytokines (11.44 ± 4.03 Pg/ml) was only marginally higher than that of IL-10 (2.02 ± 1.00 Pg/ml, P = 0.06), less than Th1 (43.24 ± 8.72 Pg/ml, P = 0.06), not different than Th2 (8.18 ± 1.26 Pg/ml, P = 0.18) and less than Th17 cytokines (81.12 ± 16.55 Pg/ml, P = 0.06) in controls group (Fig. 3B).

The level of IL-10 (2.02 ± 1.00 Pg/ml) was marginally lower than Th1 (43.24 ± 8.72 Pg/ml, P = 0.06), Th2 (8.18 ± 1.26 Pg/ml, P = 0.06) and Th17 cytokines (81.12 ± 16.55 Pg/ml, P = 0.06) in controls group.

Th1 cytokines (8.72 ± 43.24 Pg/ml) were higher than Th2 (8.18 ± 1.26 Pg/ml, P = 0.06) and less than Th17 cytokines (81.12 ± 16.55 Pg/ml, P = 0.06). The level of Th2 cytokines (8.18 ± 1.26 Pg/ml) was lower than that of Th17 cytokines (81.12 ± 16.55, Pg/ml, P = 0.06).

Comparison of inflammatory, anti-inflammatory, Th1, Th2 and Th17 cytokines produced by PBMCs between AAA patients and controls

The mean total level of IL-6 and TNF-α as inflammatory cytokines was non-significantly higher in controls (11,726.55 ± 6553.78 Pg/ml) than in AAA patients (7712.31 ± 7614.81 Pg/ml, P = 0.54) (Fig. 4A).

Difference in mean IL-10 level between patients (374.91 ± 368.36 Pg/ml) and controls (1632.91 ± 1169.47 Pg/ml, P = 0.055) was only marginally significant (Fig. 4A).

Despite the observed increase of total Th1 cytokines in patients, the mean IL-2 and IFN-γ did not show a significant difference between patients (135.31 ± 164.51 Pg/ml) and controls (505.17 ± 775.78 Pg/ml, P = 0.27) (Fig. 4A).

The difference between the mean total of Th2 cytokines including IL-4, IL-5, IL-9 and IL-13 inpatients (276.03 ± 272.77 Pg/ml) and controls (10,934.09 ± 9651.28 Pg/ml, P = 0.15) did not reach the significant level (Fig. 4A).

There was no difference in the mean total of Th17 cytokines including IL-17A, IL-17F, IL-21 and IL-22 between patients (82.72 ± 37.91 Pg/ml) and controls (83.09 ± 20.76 Pg/ml, P = 0.99) (Fig. 4A).

Comparison of the level of inflammatory, anti-inflammatory, Th1, Th2 and Th17 produced cytokines by PBMCs in each of the studied groups

The level of inflammatory cytokines (7714.31 ± 7614.81 Pg/ml) was marginally higher than IL-10 (374.91 ± 368.36 Pg/ml, P = 0.06), Th1 cytokines (135.31 ± 164.51 Pg/ml, P = 0.31), Th2 (276.03 ± 272.77 Pg/ml, P = 0.12) and Th17 cytokines (82.72 ± 37.91 Pg/ml, P = 0.31) in patients group but none of the differences reached the significant level (Fig. 4B).

The level of IL-10 (374.91 ± 368.36 Pg/ml) was not significantly different than Th1 (135.31 ± 164.51 Pg/ml, P = 0.31), Th2 (276.03 ± 272.77 Pg/ml, P = 0.31) and Th17 cytokines (37.71 ± 82.72 Pg/ml, P = 0.31) in patients group (Fig. 4B).

The level of Th1 cytokines (135.31 ± 164.51 Pg/ml) was not significantly different than Th2 (276.03 ± 272.77 Pg/ml, P = 0.31) and Th17 cytokines (82.72 ± 37.91 Pg/ml, P = 0.81). The level of Th2 cytokines (276.03 ± 272.77 Pg/ml) was not significantly different than Th17 cytokines (37.91 ± 82.72 Pg/ml, P = 0.31) in patients group (Fig. 4B).

The level of inflammatory cytokines (11,725.55 ± 6553.78 Pg/ml) was higher than IL-10 (1632.91 ± 1169.47 Pg/ml, P = 0.06), but not different than Th1 (505.17 ± 775.78 Pg/ml, P = 0.12), Th2 (10,934.09 ± 9651.28 Pg/ml, P = 0.81) and Th17 cytokines (83.09 ± 20.76 Pg/ml, P = 0.12) in controls group (Fig. 4B).

The level of IL-10 (1669.91 ± 1169.47 Pg/ml) was higher than that of Th1 cytokines (775.78 ± 505.17 Pg/ml, P = 0.12), less than Th2 (10,934.09 ± 9651.28 Pg/ml, P = 0.18) and Th17 cytokines (83.09 ± 20.76 Pg/ml, P = 0.12) in controls group but none of the differences reached the significant level (Fig. 4B).

Th1 cytokines levels (505.17 ± 775.78 Pg/ml) were lower than Th2 (10,934.09 ± 9651.28 Pg/ml, P = 0.12) and higher than Th17 cytokines (83.09 ± 20.76, Pg/ml, P = 0.12). The level of Th2 cytokines (10,934.09 ± 9651.28 Pg/ml) was greater than the Th17 cytokines (83.09 ± 20.76 Pg/ml, P = 0.12) in controls group but none of the differences reached the significant level (Fig. 4B).

Discussion

In the current study, contrary to blood, IFN-γ and IL-10 were found to be produced in higher levels by healthy PBMCs than that of patients. The higher concentrations of these cytokines in patients’ sera, therefore, show that the main sources of these cytokines are not peripheral blood mononuclear cells. In the case of IL-10, previous studies have shown that this cytokine is produced in large quantities in AAA.¹² Interestingly, IL-10 also shows a significant increase in aneurysm within the tissue.³⁰ Recruitment of neutrophils to the site of aneurysm and release of elastase from neutrophil granules stimulates the expression of IL-10 in the leukocytes.²¹ Our finding of higher IL-10 levels in the serum but not in PBMCs is in accordance with the possible role of neutrophils and other cells in the production of this cytokine in AAA. Considering the immunosuppressive role of IL-10 it has been suggested that rupture of aneurysm, in advanced disease stages, induces an inflammatory response followed by an IL-10 compensatory response.³¹

Based on previous reports, IFN-γ is greatly induced in atherosclerosis,³⁰ and it increases the process of plaque formation and its size.³² The results of the various studies are contradictory, and some suggested that IFN-γ has a protective role in AAA.³³ However, some studies have also shown an increase in IFN-γ expression in AAA lesions.³⁴ The results of our study showed that IFN-γ levels in the sera of patients were more than controls, but control’s PBMCs produced more IFN-γ. Therefore, it seems that IFN-γ sources in patients were cells other than PBMCs. Based on previous reports^35,36 endothelial and smooth muscle cells are alternative sources of these cytokines. Interestingly, the proinflammatory cytokine, TNF-α, was reduced both in patients’ sera and PBMCs. It is well established that TNF-α production at the onset of the endothelial injuries and atherosclerosis process induces macrophages and other leukocytes recruitment, thereby accelerating inflammation and activating MMPs.³⁷ However, a defect in the ability of mononuclear cells to produce TNF-α in chronic inflammatory diseases in elder subjects is already suggested.³⁸ Moreover, it is possible that the role of TNF-α at different stages of AAA is different.³⁹ On a scale of AAA progression, our patients were in the advanced stages and therefore, it is possible that chronic stimulation of innate cells has reduced their potential in producing TNF-α and/or other factors have taken over in the disease inflammatory process.

We observed that patients’ PBMCs produced higher levels of IL-2 compared to controls while the level of this cytokine in the sera of both groups was somewhat similar. This finding is not surprising, as IL-2 is being known to exert its role in autocrine or paracrine manner. Moreover, our finding is in accordance with the results obtained in animal studies where treatment with IL-2 is shown to reduce the severity of AAA in angiotensin II mice models.⁴⁰

In our study, serum IL-6 levels were higher in patients than controls; however, there was no significant difference in the production of this cytokine by PBMCs between the two groups. It is therefore logical to conclude that cellular sources other than PBMCs are involved in the production of IL-6 during AAA. It is known that aortic explants from AAA patients contribute to a large production of IL-6 and IFN-γ.⁴¹ A previous study has also shown the aortic production of IL-6 and recruitment of monocyte to the aortic dissections of AngII C57BL/6J mice by tunica adventitia cells.⁴² The recruitment of monocytes and their differentiation to macrophages as well as their interaction with fibroblasts in tunica adventitia creates a milieu of inflammatory cytokines and chemokines which are directly involved in vascular inflammation, ECM remodeling, and aortic destabilization.⁴²

IL-6 is a multifunctional inflammatory cytokine which stimulates the production of acute phase reactants from liver cells, activates endothelial cells, increases coagulation, and proliferation and differentiation of lymphocytes, and contributes to the development of atherosclerosis.⁴³ In addition, IL-6 can play a role in the differentiation of Th17 cells and therefore contribute to the pathogenicity of AAA.⁴⁴ A recent study on IgG4-associated aortic aneurysms showed that IL-6 and CD34 at the level of mRNA were expressed together, resulting in IL-6 being produced by endothelial and mesenchymal cells in the adventitia layer.⁴⁵

Another cytokine that was increased in the sera of patients was IL-5. This finding is consistent with findings of another study which showed high levels of IL-5 in AAA disease.²¹ On the other hand, some studies have shown that IL-5 may play a protective role in atherosclerosis through induction of natural antibodies. Natural antibodies bind to oxidized phospholipids and phospholipoproteins, thereby preventing oxLDL absorption by macrophages.⁴⁶

A remarkable finding of our study was the production of IL-9 in the sera of patients. This was opposed to the huge production of IL-9 by control’s PBMCs. This was accompanied by the great deviation of PBMCs from control individuals towards Th2 subtype. Therefore, we suggest that the source(s) of serum IL-9 are cells other than PBMCs. Therefore, our results can be an indication of the role cells other than Th2 may play in the pathogenesis of AAA. Currently, it is known that mast cells, eosinophils, innate lymphoid cells (ILCs) and NKT cells produce IL-9.⁴⁷ In previous studies, it is shown that IL-9 increases the expression of VCAM-1 by endothelial cells of the mouse aorta, thereby increasing recruitment and infiltration of inflammatory cells to atherosclerotic lesions which exacerbates atherosclerosis.⁴⁸ It is also shown that the fibroblast in the AAA lesion upregulate the expression of IL-9 receptor.⁴⁹ In addition, it has been shown that IL-9 induces inflammatory responses and is involved in the induction of Th17 differentiation and enhancing the function of natural Tregs.⁵⁰

In contrast to the study by Liao et al. that found reduced cytokines in AAA patients,⁵¹ our study showed an elevation of several cytokines from all families of cytokine subsets including inflammatory, Th1, Th2 and Th17 types of cytokines in the sera of patients with AAA. This cytokine storm was not a sole result of peripheral blood mononuclear cells activation and other cellular sources can and may be involved in their production as suggested by our results on the PBMCs cytokine production. It is however necessary to point out that our study is only a preliminary work, which describes new findings to be investigated more thoroughly in larger sample sizes. The limitations of our study were limited sample size and inclusion of patients with dilation of aorta more than 5.5 cm, which should be considered in the following approaches.

Conflict of interest statement

The authors have no conflict of interest.

Acknowledgements

This work was performed as a part of Hamid Aria dissertation as a requirement for graduation as a M.Sc. of Immunology from Shiraz School of Medicine (Shiraz, Iran). This project was financially supported by a grant (94-11101) from Shiraz University of Medical Sciences, Shiraz, Iran. No writing assistance was utilized in the production of this manuscript.

Appendix A

Supplementary data

Supplementary data related to this article can be found at https://doi.org/10.1016/j.artres.2017.12.007.

References

1.JA Curci and RW Thompson, Variable induction of experimental abdominal aortic aneurysms with different preparations of porcine pancreatic elastase, J Vasc Surg, Vol. 29, 1999, pp. 385.

2.A Hirsch, Z Haskal, and N Hertzer, Society for Cardiovascular Angiography and Interventions; Society for Vascular Medicine and Biology; Society of Interventional Radiology; ACC/AHA Task Force on Practice Guidelines, ACC/AHA guidelines for the management of patients with peripheral arterial disease (lower extremity, renal, mesenteric, and abdominal aortic): a collaborative report from the American Associations for Vascular Surgery/Society for Vascular Surgery, Society for Cardiovascular Angiography and Interventions, Society for Vascular Medicine and Biology, Society of Interventional Radiology, and the ACC/AHA task force on practice guidelines (writing committee to develop guidelines for the management of patients with peripheral arterial disease)—summary of recommendations, J Vasc Interv Radiol, Vol. 17, 2006, pp. 1383-1397.

3.I Hinterseher, G Tromp, and H Kuivaniemi, Genes and abdominal aortic aneurysm, Ann Vasc Surg, Vol. 25, 2011, pp. 388-412.

4.D Sidloff, P Stather, N Dattani, M Bown, J Thompson, R Sayers, et al., Aneurysm global epidemiology study: public health measures can further reduce abdominal aortic aneurysm mortality, Circulation, Vol. 129, No. 7, 2014, pp. 747-753.

5.H Kuivaniemi and JR Elmore, Opportunities in abdominal aortic aneurysm research: epidemiology, genetics, and pathophysiology, Ann Vasc Surg, Vol. 26, 2012, pp. 862-870.

6.H Kuivaniemi, N Sakalihasan, FA Lederle, GT Jones, J-O Defraigne, N Labropoulos, et al., New insights into aortic diseases: a report from the third international meeting on aortic diseases (IMAD3), Aorta, Vol. 1, 2013, pp. 23.

7.S Svensjö, M Björck, M Gürtelschmid, KD Gidlund, A Hellberg, and A Wanhainen, Low prevalence of abdominal aortic aneurysm among 65-year-old Swedish men indicates a change in the epidemiology of the disease, Circulation, Vol. 124, 2011, pp. 1118-1123.

8.S Sidney, WD Rosamond, VJ Howard, and RV Luepker, The “heart disease and stroke statistics—2013 update” and the need for a national cardiovascular surveillance system, Am Heart Assoc, Vol. 127, No. 1, 2013, pp. 21-23.

9.S Shirani, M Shakiba, M Soleymanzadeh, H Bakhshandeh, and M Esfandbod, Ultrasonographic screening for abdominal aortic aneurysms in Iranian candidates for coronary artery bypass graft surgery, Arch Iran Med, Vol. 12, 2009, pp. 383-388.

10.PP Lau, L Li, AJ Merched, AL Zhang, KW Ko, and L Chan, Nicotine induces proinflammatory responses in macrophages and the aorta leading to acceleration of atherosclerosis in low-density lipoprotein receptor−/− mice, Arterioscler Thromb Vasc Biol, Vol. 26, 2006, pp. 143-149.

11.K Stolle, A Berges, M Lietz, S Lebrun, and T Wallerath, Cigarette smoke enhances abdominal aortic aneurysm formation in angiotensin II-treated apolipoprotein E-deficient mice, Toxicol Lett, Vol. 199, 2010, pp. 403-409.

12.G Ailawadi, JL Eliason, and GR Upchurch, Current concepts in the pathogenesis of abdominal aortic aneurysm, J Vasc Surg, Vol. 38, 2003, pp. 584-588.

13.H Kono, Y Kimura, and E Latz, Inflammasome activation in response to dead cells and their metabolites, Curr Opin Immunol, Vol. 30, 2014, pp. 91-98.

14.H Lu, DL Rateri, D Bruemmer, LA Cassis, and A Daugherty, Involvement of the renin–angiotensin system in abdominal and thoracic aortic aneurysms, Clin Sci, Vol. 123, 2012, pp. 531-543.

15.EK Koltsova, Z Garcia, G Chodaczek, M Landau, S McArdle, SR Scott, et al., Dynamic T cell–APC interactions sustain chronic inflammation in atherosclerosis, J Clin Investig, Vol. 122, 2012, pp. 3114.

16.D Steinberg and JL Witztum, Oxidized low-density lipoprotein and atherosclerosis, Arterioscler Thromb Vasc Biol, Vol. 30, 2010, pp. 2311-2316.

17.AE Koch, GK Haines, RJ Rizzo, JA Radosevich, RM Pope, PG Robinson, et al., Human abdominal aortic aneurysms. Immunophenotypic analysis suggesting an immune-mediated response, Am J Pathol, Vol. 137, 1990, pp. 1199.

18.DA Vorp, PC Lee, DH Wang, MS Makaroun, EM Nemoto, S Ogawa, et al., Association of intraluminal thrombus in abdominal aortic aneurysm with local hypoxia and wall weakening, J Vasc Surg, Vol. 34, 2001, pp. 291-299.

19.K Shimizu, RN Mitchell, and P Libby, Inflammation and cellular immune responses in abdominal aortic aneurysms, Arterioscler Thromb Vasc Biol, Vol. 26, 2006, pp. 987-994.

20.J Juvonen, H-M Surcel, J Satta, A-M Teppo, A Bloigu, H Syrjälä, et al., Elevated circulating levels of inflammatory cytokines in patients with abdominal aortic aneurysm, Arterioscler Thromb Vasc Biol, Vol. 17, 1997, pp. 2843-2847.

21.U Schönbeck, GK Sukhova, N Gerdes, and P Libby, TH2 predominant immune responses prevail in human abdominal aortic aneurysm, Am J Pathol, Vol. 161, 2002, pp. 499-506.

22.JH Lindeman, H Abdul-Hussien, AF Schaapherder, JHV Bockel, JHVD Thüsen, DL Roelen, et al., Enhanced expression and activation of pro-inflammatory transcription factors distinguish aneurysmal from atherosclerotic aorta: IL-6-and IL-8-dominated inflammatory responses prevail in the human aneurysm, Clin Sci, Vol. 114, 2008, pp. 687-697.

23.P Carmeliet, L Moons, R Lijnen, M Baes, V Lemaitre, P Tipping, et al., Urokinase-generated plasmin activates matrix metalloproteinases during aneurysm formation, Nat Genet, Vol. 17, 1997, pp. 439-444.

24.P Libby, G Sukhova, RT Lee, and ZS Galis, Cytokines regulate vascular functions related to stability of the atherosclerotic plaque, J Cardiovasc Pharmacol, Vol. 25, 1995, pp. S9-S12.

25.DR Greaves, T Häkkinen, AD Lucas, K Liddiard, E Jones, CM Quinn, et al., Linked chromosome 16q13 chemokines, macrophage-derived chemokine, fractalkine, and thymus-and activation-regulated chemokine, are expressed in human atherosclerotic lesions, Arterioscler Thromb Vasc Biol, Vol. 21, 2001, pp. 923-929.

26.Y-z Lin, B-w Wu, Z-d Lu, Y Huang, Y Shi, H Liu, et al., Circulating Th22 and Th9 levels in patients with acute coronary syndrome, Mediat Inflamm, Vol. 2013, 2013.

27.I Gregersen, M Skjelland, S Holm, KB Holven, K Krogh-Sørensen, D Russell, et al., Increased systemic and local interleukin 9 levels in patients with carotid and coronary atherosclerosis, PLoS One, Vol. 8, 2013. e72769.

28.AK Sharma, G Lu, A Jester, WF Johnston, Y Zhao, VA Hajzus, et al., Experimental abdominal aortic aneurysm formation is mediated by IL-17 and attenuated by mesenchymal stem cell treatment, Circulation, Vol. 126, 2012, pp. S38-S45.

29.H Ait-Oufella, Y Wang, O Herbin, S Bourcier, S Potteaux, J Joffre, et al., Natural regulatory T cells limit angiotensin II–induced aneurysm formation and rupture in mice, Arterioscler Thromb Vasc Biol, Vol. 33, 2013, pp. 2374-2379.

30.VA Davis, RN Persidskaia, LM Baca-Regen, N Fiotti, BG Halloran, and BT Baxter, Cytokine pattern in aneurysmal and occlusive disease of the aorta, J Surg Res, Vol. 101, 2001, pp. 152-156.

31.J Wallinder, E Skagius, D Bergqvist, and AE Henriksson, Early inflammatory response in patients with ruptured abdominal aortic aneurysm, Vasc Endovasc Surg, Vol. 44, 2010, pp. 32-35.

32.SC Whitman, P Ravisankar, H Elam, and A Daugherty, Exogenous interferon-γ enhances atherosclerosis in apolipoprotein E−/− mice, Am J Pathol, Vol. 157, 2000, pp. 1819-1824.

33.DK Dalton, S Pitts-Meek, S Keshav, IS Figari, A Bradley, and TA Stewart, Multiple defects of immune cell function in mice with disrupted interferon-g genes, Science, Vol. 259, No. 5102, 1993, pp. 1739-1741.

34.C Galle, L Schandene, P Stordeur, Y Peignois, J Ferreira, JC Wautrecht, et al., Predominance of type 1 CD4+ T cells in human abdominal aortic aneurysm, Clin Exp Immunol, Vol. 142, 2005, pp. 519-527.

35.WT Gerthoffer and CA Singer, Secretory functions of smooth muscle: cytokines and growth factors, Mol Interv, Vol. 2, 2002, pp. 447.

36.A Vernier, M Diab, M Soell, G Haan-Archipoff, A Beretz, D Wachsmann, et al., Cytokine production by human epithelial and endothelial cells following exposure to oral viridans streptococci involves lectin interactions between bacteria and cell surface receptors, Infect Immun, Vol. 64, 1996, pp. 3016-3022.

37.W Xiong, J MacTaggart, R Knispel, J Worth, Y Persidsky, and BT Baxter, Blocking TNF-α attenuates aneurysm formation in a murine model, J Immunol, Vol. 183, 2009, pp. 2741-2746.

38.D Van Duin, S Mohanty, V Thomas, S Ginter, RR Montgomery, E Fikrig, et al., Age-associated defect in human TLR-1/2 function, J Immunol, Vol. 178, 2007, pp. 970-975.

39.K Hamano, T-S Li, M Takahashi, T Kobayashi, B Shirasawa, H Ito, et al., Enhanced tumor necrosis factor-α expression in small sized abdominal aortic aneurysms, World J Surg, Vol. 27, 2003, pp. 476-480.

40.K Yodoi, T Yamashita, N Sasaki, K Kasahara, T Emoto, T Matsumoto, et al., Foxp3+ regulatory T cells play a protective role in angiotensin II–induced aortic aneurysm formation in MiceNovelty and significance, Hypertension, Vol. 65, 2015, pp. 889-895.

41.Z Szekanecz, MR Shah, WH Pearce, and AE Koch, Human atherosclerotic abdominal aortic aneurysms produce interleukin (IL)-6 and interferon-gamma but not IL-2 and IL-4: the possible role for IL-6 and interferon-gamma in vascular inflammation, Inflamm Res, Vol. 42, 1994, pp. 159-162.

42.BC Tieu, C Lee, H Sun, W LeJeune, A Recinos 3rd, X Ju, et al., An adventitial IL-6/MCP1 amplification loop accelerates macrophage-mediated vascular inflammation leading to aortic dissection in mice, J Clin Investig, Vol. 119, 2009, pp. 3637.

43.J Hartman and WH Frishman, Inflammation and atherosclerosis: a review of the role of interleukin-6 in the development of atherosclerosis and the potential for targeted drug therapy, Cardiol Rev, Vol. 22, 2014, pp. 147-151.

44.X Ju, T Ijaz, H Sun, S Ray, W Lejeune, C Lee, et al., Interleukin-6–signal transducer and activator of transcription-3 signaling mediates aortic dissections induced by angiotensin II via the T-helper lymphocyte 17–interleukin 17 axis in C57BL/6 MiceSignificance, Arterioscler Thromb Vasc Biol, Vol. 33, 2013, pp. 1612-1621.

45.S Kasashima, A Kawashima, Y Zen, S Ozaki, F Kasashima, M Endo, et al., Upregulated interleukins (IL-6, IL-10, and IL-13) in immunoglobulin G4-related aortic aneurysm patients, J Vasc Surg, 2017. pii: S0741-5214(17)30354-3.

46.JL Witztum, CJ Binder, M-Y Chou, L Fogelstrand, K Hartvigsen, PX Shaw, et al., Natural antibodies in murine atherosclerosis, Curr Drug Targets, Vol. 9, 2008, pp. 190-195.

47.L Jia and C Wu, Differentiation, regulation and function of Th9 cells, T helper cell differentiation and their function, Springer, 2014, pp. 181-207.

48.W Zhang, T Tang, D Nie, S Wen, C Jia, Z Zhu, et al., IL-9 aggravates the development of atherosclerosis in Apoe−/− mice, Cardiovasc Res, Vol. 106, 2015, pp. 453-464.

49.M Tilson, C Fu, S Xia, D Syn, Y Yoon, and T McCaffrey, Expression of molecular messages for angiogenesis by fibroblasts from aneurysmal abdominal aorta versus dermal fibroblasts, Int J Surg Investig, Vol. 1, 2000, pp. 453-457.

50.W Elyaman, EM Bradshaw, C Uyttenhove, V Dardalhon, A Awasthi, J Imitola, et al., IL-9 induces differentiation of TH17 cells and enhances function of FoxP3+ natural regulatory T cells, Proc Natl Acad Sci, Vol. 106, 2009, pp. 12885-12890.

51.M Liao, C-L Liu, B-J Lv, J-Y Zhang, L Cheng, X Cheng, et al., Plasma cytokine levels and risks of abdominal aortic aneurysms: a population-based prospective cohort study, Ann Med, Vol. 47, 2015, pp. 245-252.

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Journal: Artery Research
Volume-Issue: 21 - C
Pages: 43 - 52
Publication Date: 2018/01/11
ISSN (Online): 1876-4401
ISSN (Print): 1872-9312
DOI: 10.1016/j.artres.2017.12.007 How to use a DOI?
Open Access: This is an open access article distributed under the CC BY-NC license.

Cite this article

ris enw bib

TY  - JOUR
AU  - Hamid Aria
AU  - Mehdi Kalani
AU  - Hossein Hodjati
AU  - Mehrnoosh Doroudchi
PY  - 2018
DA  - 2018/01/11
TI  - Elevated levels of IL-6 and IL-9 in the sera of patients with AAA do not correspond to their production by peripheral blood mononuclear cells
JO  - Artery Research
SP  - 43
EP  - 52
VL  - 21
IS  - C
SN  - 1876-4401
UR  - https://doi.org/10.1016/j.artres.2017.12.007
DO  - 10.1016/j.artres.2017.12.007
ID  - Aria2018
ER  -

download .riscopy to clipboard
