2.1. Template Method

Template method is the most straightforward method for generating the morphology-controlled HCPs. Template method could be divided into hard template and soft template method. The hard template method generally contains three steps: Firstly, the uniformed hard templates are prepared by the scalable method. Secondly, follow the common synthetic approaches, such as hydrothermal method and sol–gel method, the hybrid polymers are prepared to generate the materials that coexisted with the template. The hyper crosslinking is processed during or after this procedure. Finally, these templates are removed by the suitable method to avoid the damage to the targeted materials, in some reported research, the hard template also coexisted with these polymers [25]. In the template method for fabricating of the HCPs, we should precisely choose a suitable template with the ordered and qualified shapes. Thus far, various materials such as silica [26–28], graphene [29], Fe₃O₄ [30,31], gold [32], and ZnO [33] are all used as the hard template to control the morphologies of HCPs. The hollow structure is the most fascinating morphologies. The sacrificing and etching of 0D and 1D templates can directly generate the hollow morphologies with the controlled inner shape and size, meanwhile, the shell can protect the inner space from the outer environment. Tan et al. firstly reported synthesizing of the hollow spheres and hollow rods by using the template method (Figure 3a). The spherical and rod-liked silica were firstly synthesized and modified with characteristic groups, the polymerization and crosslinking process were further induced to the surface of modified silica [27,28]. The spherical and rod-liked HCPs were generated by etching with the HF to remove the silica template, main problems with this method are the waste of hard templates, and the possible danger in the use of toxic HF acid. These void and hollow spaces inside of the HCPs structures could accommodate guest compounds, increase the diffusion rate, and give surface functionality. So, HCPs with hollow morphologies could be used in various applications, such as nanoreactors, energy storage materials, and reaction catalysts. Also, Tan et al. [34,35] examined the performances of these synthesized hollow particles as the platform for various applications, such as catalysts, sensors, and drug carriers. The hollow HCPs process multiply functionality and could be functionalized as the effective acid-base catalysts (Figure 3b) [36]. Not only silica, Son also showed the hollow spheres with thin shells could directly utilized as the template for engineering the HCPs. Further, the HCPs with BINOLs phosphoric acid could directly be deposited on this template, and they showed good catalytic performance as a heterogeneous catalytic system [37], when H-CMPL@HCP-BP was used as the catalyst, the yield of PCLs at 150°C could reach 97%. The hollow HCPs precursors also could be transferred to the hollow porous carbon spheres by pyrolyzing at the inert condition. This method also be used to generate the hollow hybrid HCPs materials, for example, Tan et al. [38] reported the hollow HCPs fabricated with NH₂ groups were synthesized and used as template for Pt nanoparticles. This hybrid systems exhibit excellent catalytic activity and recyclability potential. Following this template approach, Wu et al. [39] prepared crosslinked polystyrene spheres, the carbonyl bridges between polystyrene nanoparticles forms unique network-type microporosity. The Fe₃O₄ supraparticle is an important template that no need to be removed, Guo et al. prepared the nanoscale porous organic polymer composite which consisting of Fe₃O₄ nanoparticles as the core and porous polymer as the outer shell. In this approach, the Fe₃O₄@PS microspheres are firstly synthesized, after then the poly[Vinylbenzyl Chloride (VBC)-co-Divinylbenzene (DVB)] network were blended with the Polystyrene (PS) shell. By varying the feed ratio of the VBC and DVB monomer in the hyper cross-linking treatment, the mesopores could tuned from 4 to 30 nm, these precisely adjustable channels could be used to confine the platinum metal (Pt) nanoparticles. Therefore, the final composite shows excellent catalytic activities in the hydrogenation applications [30].

Figure 3

Hard template method for fabricating of the morphology-controlled HCPs. (a) Scheme for the fabrication of the hyper crosslinked hollow spheres [42]. Copyright 2015. Adapted with permission from Springer Nature. (b) Scheme for the fabrication of the acid base bifunctionalized hyper crosslinked hollow spheres. (c) Energy dispersive X-ray analysis (EDX) mapping results of the bifunctionlized hollow hyper crosslinked hollow spheres [24]. Copyright 2008. Adapted with permission from the American Chemical Society.

In conclusion, the hard template is the most direct solution to form the hollow morphologies, but this method is complex and inflexible. In some related approach, hard template no need to be removed, and will coexist with the HCP polymer frameworks. For example, Pandey et al. reported the Fe₃O₄ could be used as the hard template, the VBC could be deposited on this template, after further amination, the highly cross-linked hybrid materials could be generated. In this approach, the encapsulated Fe₃O₄ nanoparticles retained super paramagnetic properties, and hydrated anions were absorbed in this hybrid hydrophobic polymers [31]. Compared with other approach, hard template no need post removal and coexisted with these polymers in this method, which presented an important role for generating the morphology-controlled hybrid HCPs, but their types are often limited by the hard templates.

Compared with the hard template method, the soft template is easier to be removed or coexisted with the final products. By using the surfactants, biological molecules, and synthetic polymers, the self-assembly occurs during or after the polymerization process. Wu et al. reported a facile method for generating the pH/temperature responsible, hyper crosslinked polymeric spheres. The hairy functional blocks were growing on the polymer spheres by utilizing the surface-initiated atom transfer radical polymerization method [40]. The suspension polymerization method is often used in the soft template approach. Wu et al. showed the monodisperse, hyper-crosslinked poly(4-chloromethylstyrene) nanospheres (xPCMS) could further be functionalized with carbazole dithioester and maleic anhydride, the soft template could be introduced to the surface of spheres to produce the poly(2-(dimethylamino)ethyl methacrylate) shell by Reversible Addition–Fragmentation Chain Transfer (RAFT) polymerization. This all-in-one porous polymer adsorbents showed unimpeded adsorption performance, the visible fluorescence quenching could be used for detecting the pollutants, also, the organic micropollutants could be removed with super-rapid speed [41], xPCMS exhibited rapid organic micropollutant adsorption (98% and 100% of its equilibrium uptake within 10 s and 2 min, respectively).

Huang and Rzayev firstly reported the bottlebrush copolymers could self-assembly into cylindrical shapes in solutions. Following the cross-linking method, the shapes and size of original bottlebrush macromolecules could be preserved after etching of the core (Figure 4a and 4b). In this approach, the hierarchical organic polymeric tubular networks with micro-, meso- and macroporous pores could be directly obtained [42]. The various functional groups, such as amine, amino, sulfonic acid, porphyrin, and thiol could be in situ or post fixed to the tubular networks by this soft template approach [43,44]. Huang et al. [45] also showed that the Fe and Oxo-vanadium could supported by this microporous organic nanotube. After then, Wu et al. firstly reported using of the self-assembly and hyper crosslinking method for generating the hollow polymeric spheres. The poly (methyl methacrylate)-b-polystyrene diblock copolymer was first self-assembled into uniformed core–shell spheres, and further transform to the hollow carbon nanospheres by the followed hyper crosslink process (Figure 5) [46]. The design of the block copolymer and the interaction with the catalyst are not simple. Also, Huang et al. reported the polylactide-b-polystyrene could be used for fabricating of the hollow polymer spheres (Figure 4a and 4b). Unlike the self-assembly mechanism produced by Wu et al. Huang proposed the byproduct HCl, which generated in the Friedel–Crafts reactions, could change the dissolution capability of polylactide chain, thus the spherical micelle-like intermediate could be generated, after the polylactide be degraded, the hollow polymer spheres were eventually formed [24]. From the above research results, we can conclude the composition of blocked or branched polymer chains play a key role on the morphology forming of the HCPs. Not only the composition, but the solvents also can induce the morphologies transformation, Qiao et al. showed the polarity of the solvent has a dramatic effect upon the oleophobic/oleophilic interaction. The final morphologies could tailor from the aggregated particles to hollow spheres and even the mesoporous bulk by simply adjusting of the solvent composition. The hollow morphologies give the cavity inside of the spheres, which could be used as containers or reactors [47]. During the solution state, the micropores could swell in concert with the mesopores, although the reactant can penetrate through the micropores of porous skeleton, but the mesopores could dramatically shorten the diffusion pathway. So that the polymers with mesopores, especially the nanotubes and nanospheres with small sizes and ordered channels often show compatible activities than the corresponding disordered polymers [48].

Figure 4

Soft template method for fabricating of the morphology-controlled HCPs. (a) Scheme for the fabrication of the hyper crosslinked tubes by using the bottlebrush copolymers. (b) Transmission Electron Microscope (TEM) analysis of the hyper crosslinked tubes [42]. Copyright 2011. Adapted with permission from the American Chemical Society. (c) Scheme for the fabrication of the hyper crosslinked hollow spheres by using the block copolymers; (d) TEM analysis of the hyper crosslinked hollow spheres [24]. Copyright 2017. Adapted with permission from the American Chemical Society.

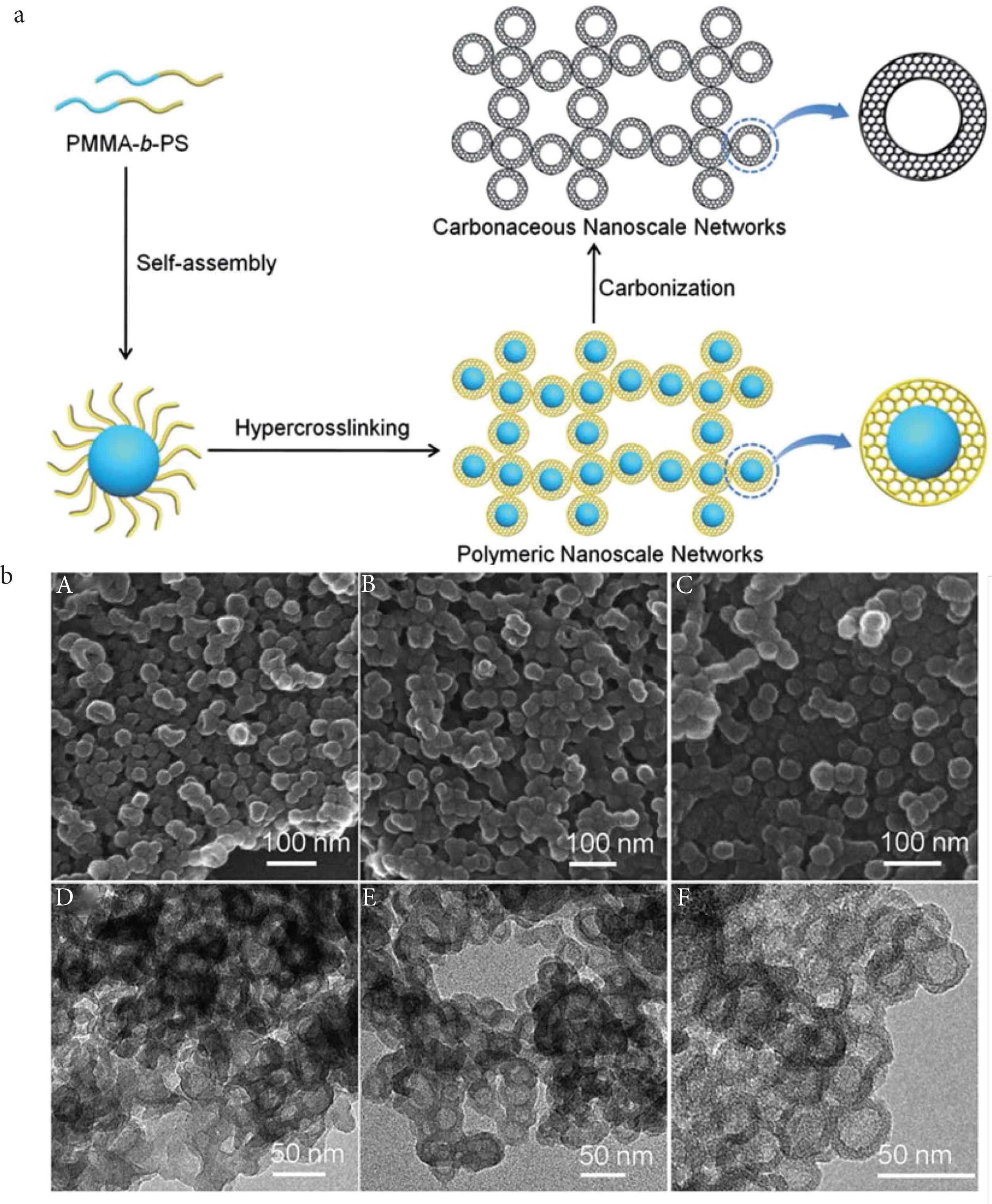

Figure 5

Soft template method for fabricating of the morphology-controlled HCPs. (a) Scheme of preparation of hollow polymer spheres from block copolymer self-assembly and further carbonization. (b) SEM and TEM images of the polymer networks assembled by with different molecular compositions [46]. Copyright 2014. Adapted with permission from the Royal Society of Chemistry.

Nanosheets are another interesting morphology that could be generated by the polymers. Commonly, these polymeric shapes are difficult to be obtained by template method, Zhuang et al. show the trithiocarbonate functionalized graphene oxide could be used as 2D raft agent. The poly(VBC-co-DVB) precursor resin was grafted, the hyper crosslinking reaction was carried out for benzyl chloride groups, and then the well-defined 2D nanosheets were generated [29]. Compared with unadorned HCPs obtained without the graphene template, these polymers exhibited improved thermal stability, high surface area, and could be used as carbon precursor for energy storage. Another soft chemistry synthetic strategy based on the Friedel–Crafts alkylation is developed for the phenolic resin. This resin with uniformed mesopores could be generated by using the F127 as the soft template, follow the hyper crosslinking and solvent extraction, the ordered surface intervals could be observed in the final polymeric sheet. The well-defined interval together with the organic functional groups make these polymers effective for carbon capture [49].

Hard template method in principle can be used to prepare any kind of the HCPs, the void size and the shape of the particles are determined by the kinds of hard templates. Therefore, hard template is considered as the most popular and straightforward method. The template can be removed completely and no contributions to the final products, but the toxic etching solvent are often required in the hard template approach for generating of the hollow morphologies. To solve this problem, soft template method also been generated. The interaction between the soft template itself, soft template and catalyst should be firstly predicted, and then we can control the morphologies of the final products by adjusting their interactions, however, sophisticated polymer design should be pay on the soft template preparation. In some approaches, although no need to remove the hard template, but the resultant is organic/inorganic HCP contained hybrid materials. To get the pure morphology-controlled HCP materials, the hard and soft template methods are both inconvenient.

2.2. Template Free Method

In the practical applications, due to the ease to handle, low production cost, and easy for scaling up, synthesizing of the nanomaterials without using any template is preferred. The template-free approaches for generating HCPs morphologies are rarely be reported. The heterogeneous coating or doping, template removal and design are eliminated in these methods, making it more convenient for scale up the quantized product. We guess that these strategies are the frontier and direction for generating the morphology-control of HCPs. The spherical morphologies are the most fundamental shapes in the HCPs area, due to the general nature of C-C coupling process, the morphology forming together with the linking of the covalent bonds, which is difficult for controlling the mesopores and macropores, especially the uniform mesoporous morphologies.

The general morphologies by the directly hyper crosslinking polymerization were firstly reported by Cooper et al [7]. The coarser, nodular morphologies are the most situations when subject to the Scanning Electron Microscope (SEM) analysis, and sometime, the HCPs particles without obvious features were also appeared. The sphere is the most fundamental shape that generated by the template-free method. Sherrington et al. synthesized monodisperse porous hyper-cross-linked nanospheres by using the template-free method. Firstly, the gel-type spherical polystyrene precursors with typically ~400 nm diameter were synthesized by the surfactant-free emulsion polymerization, and then hyper crosslinking were happened between the vinyl group [50]. Huang et al. reported an easy template-free approach to fabricate of the polymeric microspheres. By using the zinc chloride as the Friedel–Crafts catalyst, the chloromethyl methyl ether as the crosslinker agent, and the dichloromethane as the solvent, the 3D interconnected polymeric spheres with the micro-, meso-, and macropores formed botryoid networks. Also, these spheres could further be pyrolyzed and formed carbon counterparts, which afford excellent capacitive performance in the supercapacitor test [33]. Jiang et al. found a series of 1D hypercrosslinked polymer nanotubes could be generated by the FeCl₃ catalyzed Friedel–Crafts reaction of the aromatic hydrocarbons. The monomer concentration and mechanical agitation were found play crucial roles in the morphology forming, nevertheless, the formation mechanism is still unclear [20]. After then, Zhang et al. reported a newly developed dual oil phase system to synthesize of the tubular nanofibers. In this new approach, the conventional Dichloro-p-xylene (DCX) was firstly dissolved in the 1,2-dichloroethane and further transferred to the polydimethylsiloxane to form an oil phase suspension system. Compare with the traditional reaction system, this system could confine the hyper crosslinking in the oil phase droplet to keep the balance of the system. The author guess DCX or Lewis acid catalysts may form the crystal and act as the self-template simultaneously in the reaction. The substituent position, the number of the substituents, and the type of the substituent halogens all have impact on the final polymer morphologies. The disadvantage of the method is that the Brunner–Emmet–Teller measurements (BET) surface area of the obtained polymers is relatively low [51]. Hu et al. also follow this method to constructed multiple-structured tubular carbon nanofibers@TiO₂ hybrid composite. The desirable design in the microstructures could provide excellent wide-band and lightweight microwave absorbents performance [52].

Not only tubular morphologies, the sheet-liked morphologies also could be generated by the template free method, for example, the Jia et al. using the steric hexakis(benzylthio)benzene and thiophene as comonomers, the chloroform acts as the cross-linker to dictate the cross-linking degree between the two monomers. By simply adjust the solvent amount of chloroform, the morphologies of HCPs could be precisely tailored from nanosheets to nanotubes. The resultant HCPs exhibit excellent iodine uptake capacity and high absorption rate [13]. The adsorption capacity of HCP for iodine reached 270% and equilibrium rapid adsorption could be achieved within 60 min. As illustrated in Figure 6, Song et al. showed the Lewis acid–base interaction had a dramatic effect on the hyper cross-linking, the self-assembled morphologies could be tailored from nanotubes to hollow spheres and even nanosheets. These polymers could be transfer to acid-functionalized catalyst for the biodiesel production. And the porous carbonaceous counterparts also could be generated by pyrolysis of the corresponding polymer precursors [13,53,54]. Also, from Kim et al., their reported the crossing linking agent play a key role on the morphology and porosity design of HCPs. By simply varying monomer to formaldehyde dimethylacetal (FDA) ratio, the diversity HCPs morphologies, such as nanospheres, nanofibers, and flower-shapes could be generated [55]. The high surface area and porous nature make these polymers exhibit outstanding adsorption capacity and pollutant remove ability. And the corresponding carbon counterparts showing outstanding electrochemical performance and stable capacitance retention [56]. Tan et al. also proposed an ultrasonic-assisted solvent exfoliation method for generating of the layered polymers. Unlike other approach by using the FDA as the cross-linking agent, the dichloroalkane are induced to the system to be an economical solvent, stable electrophilic environment, and extra cross-linker. This method demonstrated a new and inexpensive ideas for preparing the morphology-controlled HCPs.

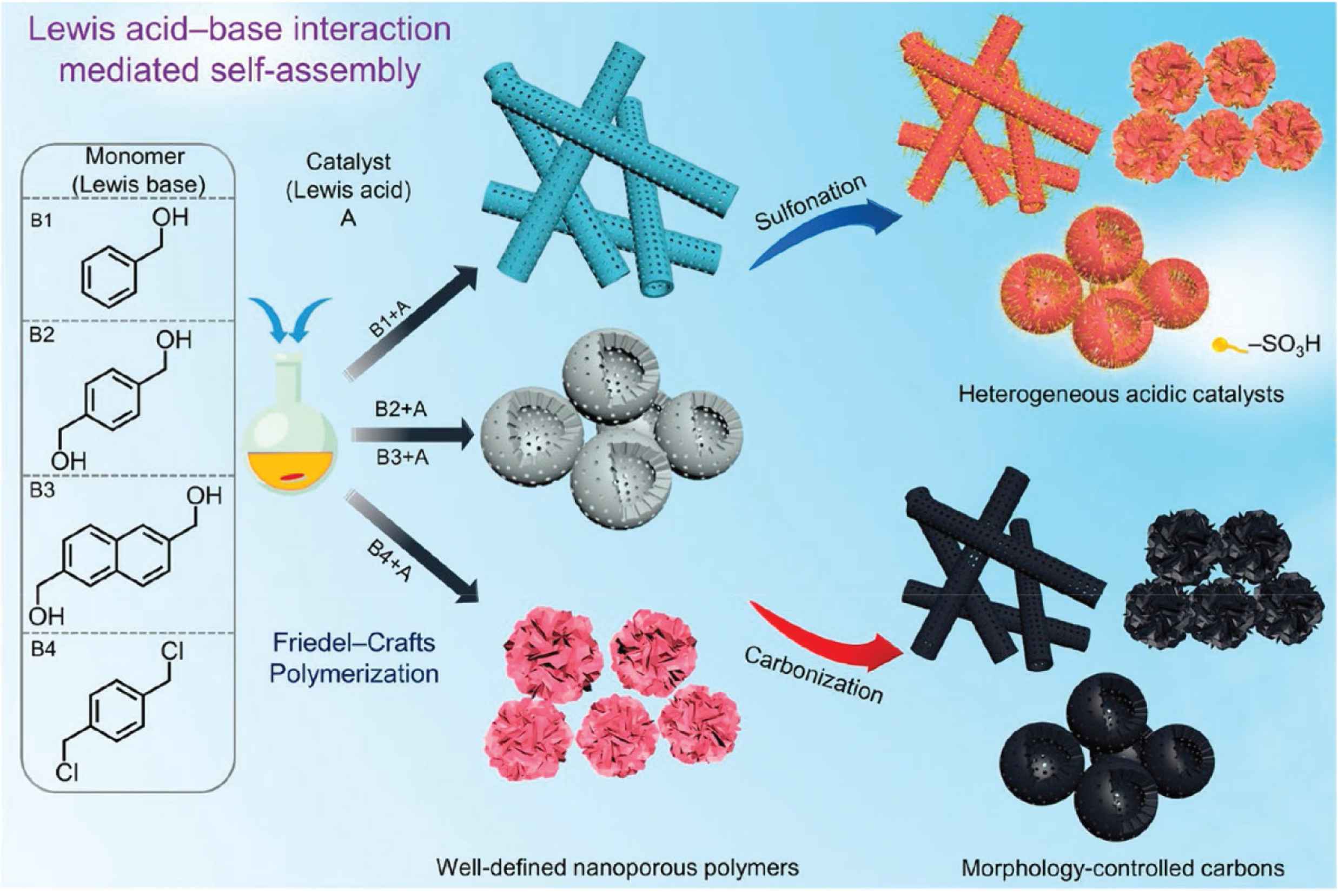

Figure 6

Represented template free method for fabricating of the morphology-controlled HCPs. (a) Scheme of preparation of polymeric nanotubes, hollow polymer spheres and nanosheets. Sulfonation of the resultant HCPs to yield the heterogeneous acidic catalysts, and carbonization of the HCPs to yield the porous morphology-controlled carbon materials [13]. Copyright 2019. Adapted with permission from the American Chemical Society.

Films are also important materials for the area of separation and purification. The polystyrene-based polymers could be utilized as the HCPs’ precursor. Qiao et al. described a strategy for preparing HCP membranes as the precursor, following by the conventional Friedel–Crafts reaction with FDA as the crosslinker. These membranes demonstrate excellent performance for selecting of the small gas molecules [57]. Also, by using the same direct synthetization method, the ionic liquid conjugated HCPs also been fabricated and applied for the H₂ generation [58].

The template free method solves the problem existed on the templating synthesis; the tedious, time-consuming procedure are not required. However, the exquisite choosing of the assembly staring materials seems particularly important. In the template free method, understanding the role of the monomer catalysts and the cross-linking agent seems extremely important for synthesizing of the morphology-controlled HCPs.

2.3. Physical–Mechanical Method

Beside of the template and template-free method, the physical and mechanical methods are also reported as the useful solution for assembling of the HCPs. Electro spin is the useful method for synthesizing of the fiber-liked HCPs. Wu et al. firstly apply this method into the HCPs area, the stable continuous nanofibers was fabricated by the electrospinning process and collected by the aluminum foil. The stepwise crosslinking was applied two times by the conventional Friedel–Crafts knitting method [59]. Also, recently, Szekely reported the robust nanofibrous adsorptive membranes were fabricated via electrospinning, after crosslinked with the graphitic acid linker, the robust covalent polymer networks were generated (Figure 7). The nanofibrous membrane could be used for rapid and efficient scavenging of the organic pollutants [60]. Recently, Horike also report a green, low-cost, and mechanochemical route to synthesize the HCPs with the relatively high surface of 782 m²/g in only 5 min. A variety of aromatic molecules could be used as the monomer for synthesizing of the highly porous polymers within minutes [61].

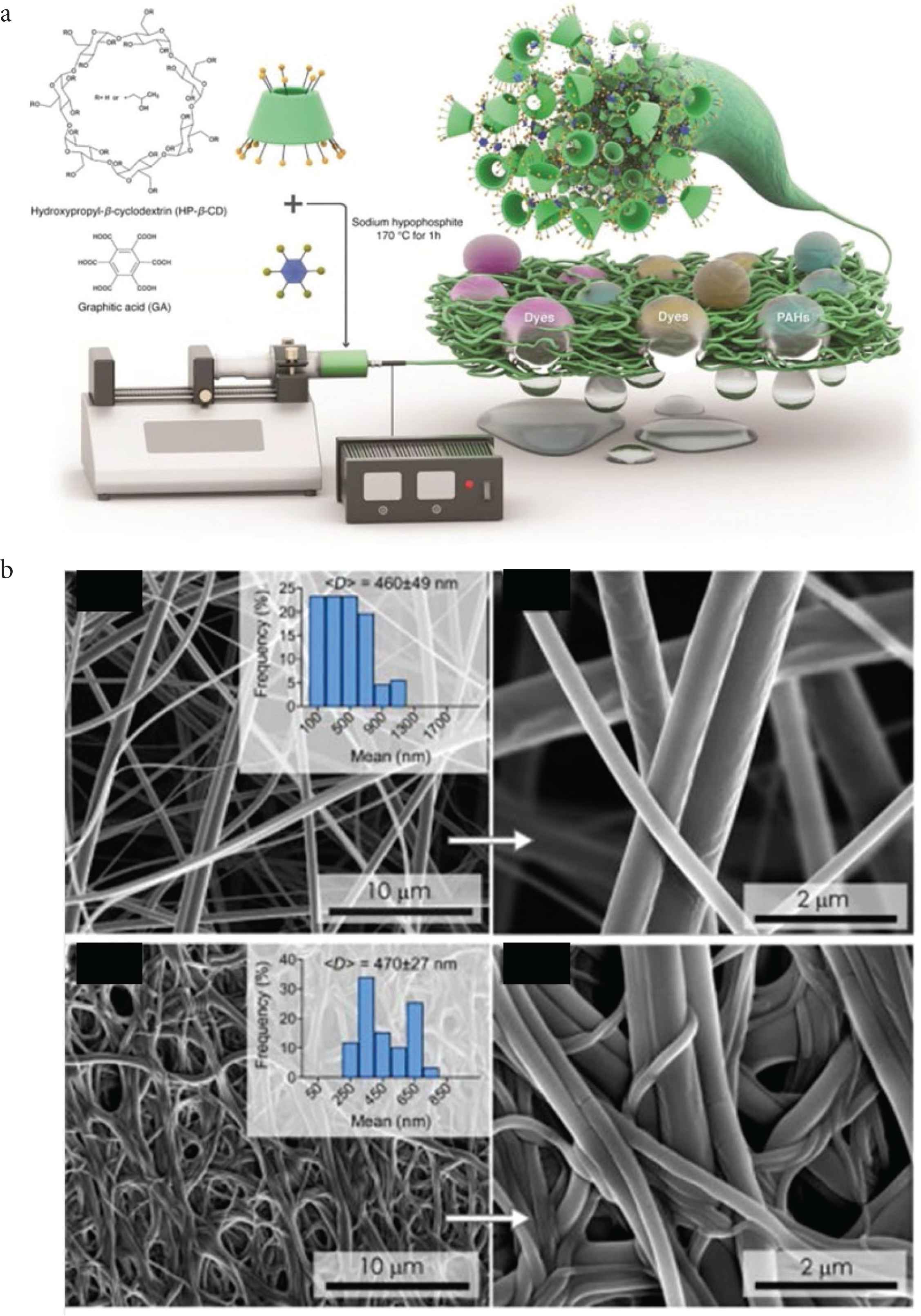

Figure 7

The electro spin was used as the tool for generating of the hyper crosslinked cyclodextrin networks. (a) Scheme of fabrication the fiber-liked HCPs and the scavenging of organic pollutants. (b) SEM images of the hypercrosslinked polymers [60]. Copyright 2021. Adapted with permission from the Elsevier.
