Journal of Statistical Theory and Applications

Volume 19, Issue 1, March 2020, Pages 59 - 74

The Hjorth's IDB Generator of Distributions: Properties, Characterizations, Regression Modeling and Applications

Authors
Mustafa Ç. Korkmaz1, *, Emrah Altun2, Haitham M. Yousof3, G. G. Hamedani4
1Department of Measurement and Evaluation, Artvin Çoruh University, Artvin, Turkey
2Department of Statistics, Bartin University, Bartin, Turkey
3Department of Statistics, Mathematics and Insurance, Benha University, Benha, Egypt
4Department of Mathematics, Statistics and Computer Science, Marquette University, Milwaukee, USA
Corresponding Author
Mustafa Ç. Korkmaz
Received 15 October 2018, Accepted 18 February 2019, Available Online 12 March 2020.
DOI
10.2991/jsta.d.200302.001How to use a DOI?
Keywords
Hjorth model; Generalized distribution family; Regression; Residual analysis; Characterizations; Bathtub; Hazard rate; PISA data; Student cognitive skill data
Abstract

We introduce a new flexible class of continuous distributions via the Hjorth's IDB model. We provide some mathematical properties of the new family. Characterizations based on two truncated moments, conditional expectation as well as in terms of the hazard function are presented. The maximum likelihood method is used for estimating the model parameters. We assess the performance of the maximum likelihood estimators in terms of biases and mean squared errors by means of the simulation study. A new regression model as well as residual analysis are presented. Finally, the usefulness of the family is illustrated by means of four real data sets. The new model provides consistently better fits than other competitive models for these data sets.

Copyright
© 2020 The Authors. Published by Atlantis Press SARL.
Open Access
This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

1. INTRODUCTION

Hjorth [1] obtained a three-parameter distribution generalizing Rayleigh, exponential and linear failure rate distributions. Its cumulative distribution function (cdf) and probability density function (pdf) are given by

HHjx;α,β,θ=11+βxθβexpαx22,x0,(1)
and
hHjx;α,β,θ=αx1+βx+θ1+βxθβ+1expαx22,x>0,
respectively, where α>0 is the scale parameter and β,θ>0 are the shape parameters. Clearly, this distribution is reduced to Rayleigh, exponential and linear failure rate distributions for θ=0, α=β=0 and β=0, respectively. Since this distribution has increasing αθβ, decreasing α=0, constant α=β=0 and bathtub-shaped 0<α<βθ hazard rate functions (hrfs), it has also been named increasing-decresing-bathtub (IDB) distribution by the author. The quantile function (qf), denoted by Q(u), of the IDB distribution is the solution of the following equation:
1u1+βQuθβexpα2Qu2=0,u0,1.(2)

Hence, If U is a uniform random variable on (0,1) then QHjU is an IDB random variable, where QHj is the solution of the Equation (2). On the other hand, Alzaatreh et al. [2] proposed a new technique to construct wider families by using any pdf as a generator. This generator called the T-X family of distributions has cdf defined by

Fx=aWGx;ξrtdt,
where r(t) is the pdf of the random variable Ta,b for <a<b< and WGx;ξ is a function of the baseline cdf which satisfies the following conditions: i) WGx;ξa,b, ii) WGx;ξ is the differentiable and monotonically non-decreasing, iii) limxWGx;ξ=a and limxWGx;ξ=b. The pdf of the T-X family is given by
fx=xWGx;ξrWGx;ξ.

Based on the above transformer T-X generator, we propose a new wider family of continuous distribution, the Hjorth-G family by replacing rt with the Hjorth density function and having cdf given by

Fx=0logG¯x;ξhHjt;α,β,θdt=1expα2logG¯x;ξ21βlogG¯x;ξθβ,x,(3)
where G¯x;ξ=1Gx;ξ is the baseline survival function depending on a q×1 vector ξ of unknown parameters, Gx;ξ is the baseline cdf and α,β and θ are the extra scale and shape parameters which are ensure flexibility to baseline distribution. The pdf corresponding to equation (3) is given by
fx=gx;ξαβlogG¯x;ξ1logG¯x;ξ+θG¯x;ξ1βlogG¯x;ξθβ+1expα2logG¯x;ξ2,x,(4)

Hereafter, the random variable X with pdf (4) is denoted by X~ Hj G(α,β,θ,ξ). Further, we can omit the dependence on the parameter vector ξ of the parameters and simply write Gx;ξ=Gx and gx;ξ=gx. If T is an IDB random variable with cdf (1), then X=G11eT is the Hj-G random variable where G1 is the qf of the baseline distribution. Hence, qf of X is the solution of the non-linear equation G11eQHju,u0,1. The hazard rate function (hrf) of X is given by

hx=gxαβlogG¯x1logG¯x+θG¯x1βlogG¯x.(5)

The goal of this work is to introduce a new flexible and wider family of the distributions based on T-X family using the IDB model. We are motivated to introduce the Hj G family because it exhibits increasing, decreasing, constant, upside down, unimodal then bathtub as well as bathtub hazard rates as shown in Figures 1 and 2. The members of the Hj G family can also be viewed as a suitable model for fitting the bimodal, unimodal, U-shaped and other shaped data. The Hj G family outperforms several of the well-known lifetime distributions with respect to three real data applications as illustrated in Section 9. The new log- regression model based on the Hj – Weibull provides better fits than the log-Topp-Leone odd log-logistic-Weibull [3] and log-Weibull regression models for Stanford heart transplant data set.

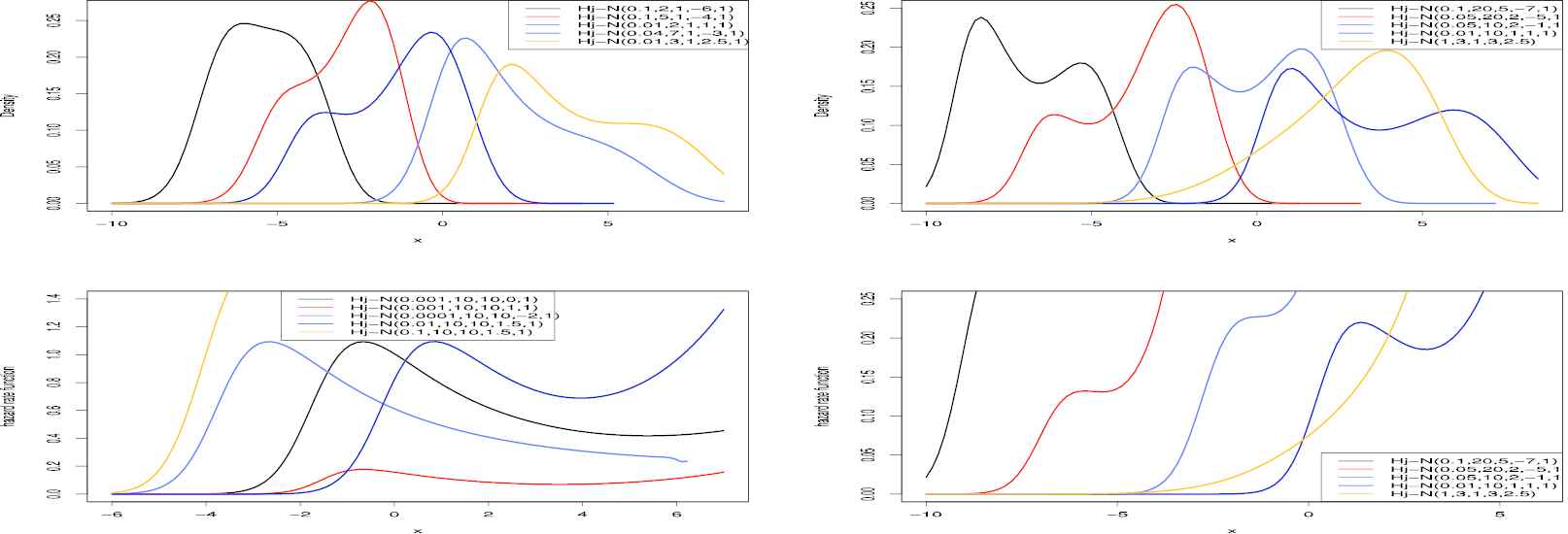

Figure 1

The probability density function (pdf) and hazard rate functions (hrf) of the Hj-Normal (Hj-N) distribution for selected parameter values.

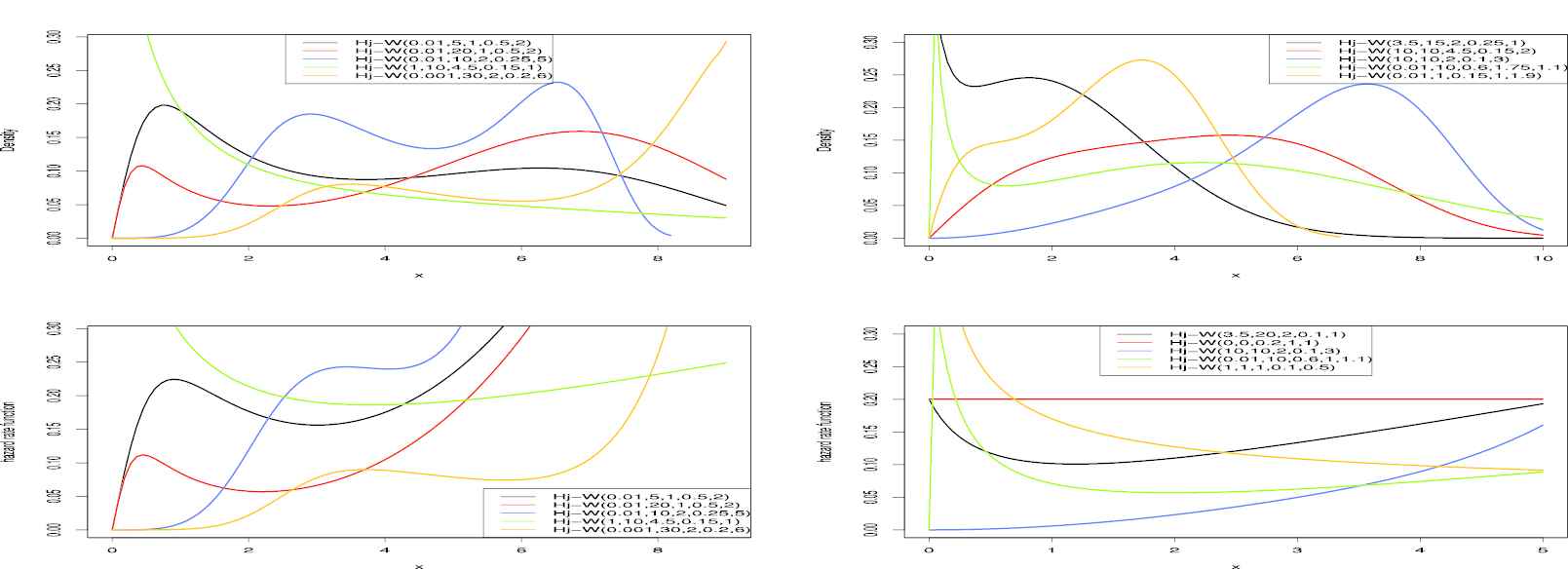

Figure 2

The probability density function (pdf) and hazard rate functions (hrf) of the Hj-Weibull (Hj-W) distribution for selected parameter values.

The paper is organized as follows: Some sub-families of the new family are introduced in Section 2. In Section 3, the series expansions for cdf and pdf of the new family are presented. In Section 4, some of its mathematical properties are derived. Section 5 deals with some characterizations of the new family. In Section 6, the maximum likelihood method is used to estimate the parameters. A new regression model as well as residual analysis are presented in Section 7. In Section 8, two simulation studies are performed to evaluate the efficiency of the maximum likelihood estimates. In Section 9, we illustrate the importance of the new family by means of three applications to real data sets. The paper is concluded in Section 10.

2. SPECIAL HJ-G DISTRIBUTIONS

The Hj-G family can extend to any baseline distribution due to its shape and scale parameters. So, the pdf (4) will generate more flexible distributions than baseline model. Also, Hj-G family includes some sub-families such as Rayleigh-G, exponential-G and linear failure rate-G families for θ=0, α=β=0 and β=0, respectively. We note that the Rayleigh-G and exponential-G families are the special members of the Weibull-G family which was introduced by Corderio et al. [4]. Here, we obtain three special models of the Hj-G family. These special models extend some well-known distributions given in the literature.

2.1. The Hj-Normal (Hj-N) Distribution

The normal distribution is very useful model in statistics and related field. Since, it has increasing hrf shape, symmetrical and uni-modal pdf shape, its data modeling area can be limited. To extend the normal distribution, we consider Hj-N distribution as our first example by taking Gx;μ,σ=Φxμσ and gx;μ,σ=σ1ϕxμσ, the cdf and pdf, respectively, where x,μ, σ>0 and ϕ and Φ are the pdf and cdf of the standard normal distribution, respectively. We denote this distribution with Hj-N (α,β,θ,μ,σ). Some plots of the Hj-N density and hrf for selected parameter values are displayed in Figure 1. W note that the pdf shapes of the Hj-N can be skewed, bi-modal and uni-modal. Also, its hrf shapes are increasing and firstly increasing shape then bathtube shape.

2.2. The Hj-Weibull (Hj-W) Distribution

As our second example, we consider the Weibull distribution, which has monotone hrf and decreasing and uni-modal pdf, with shape parameter γ>0 and scale parameter λ>0. Its cdf and pdf are given by Gx;γ,λ=1exp(λx)γ and gx;γ,λ=λγx(γ1)exp(λx)γ for x>0, respectively. We denote this distribution with Hj-W (α,β,θ,λ,γ). Some plots of the Hj-W density and hrf for selected parameter values are displayed in Figure 2. Figure 2 shows that the pdf and hrf shapes of the Hj-W can be very flexible. For example, the new extended Weibull distribution has bi-modal, uni-modal, decreasing, firstly increasing shape then U shaped pdf. Nevertheless, it has both monotone and non-monotone hrf shape such as bathtube shape and firstly increasing shape then bathtube shape.

2.3. The Hj-Uniform (Hj-U) Distribution

As our third example, let the baseline distribution have an uniform distribution in the interval a,b Then Gx;a,b=(xa)(ba) and gx;a,b=1(ba) for a<x<b, a,b. We denote this distribution with Hj-U (α,β,θ,a,b). Some plots of the Hj-U density and hrf for selected parameter values are displayed in Figure 3. Figure 3 shows that the pdf can be increasing, decreasing, uni-modal, firstly decresing then uni-modal and U-shaped. Its hrf has increasing and bathtube shape. Hence, Hj-U distribution may be suggested for hrf model with bathtube shape.

Figure 3

The probability density function (pdf) and hazard rate functions (hrf) of the Hj-Uniform (Hj-U) distribution for selected parameter values.

3. USEFUL EXPANSIONS

In this section, we provide a useful linear representation of the Hj-G cdf function

Fx=1expα2log1Gx2Ai1βlog1Gxθβ.

Expanding the quantity Ai in power series, we can write

Fx=1i=013ilog1Gx2ii!1α2i1βlog1GxθβBi,
and expanding the quantity Bi by via Taylor series
τζ=j=0j!1τ1jζj,
where j is a positive integer and ζj=ζζ1ζj+1 is the descending factorial, we get
Fx=1i,j=013i+ji!j!1α2iβjθβjlog1GxCi2i+j.

Expanding the quantity Ci by using log(1z) expansion

log(1τ)=k=0τk+1h+11,|τ|<1,
we obtain
Fx=1i,j=015i+2ji!j!1α2iβjθβjk=0Gxk+1k+12i+j.

Using the equation by Gradshteyn and Ryzhik [5], page 17, for a power series raised to a positive integer n

k=0akukn=k=0cn,kuk,
where the coefficients cn,k (for k=1.2,) are easily determined from the recurrence relation
cn,k=ka01m=1kmn+1kamcn,km,
where Cn,0=a0n, the coefficient cn,k can be calculated from cn,0,,cn,k1 and hence from the quantities a0,,ai, we have
Fx=1k=0vk+1Πk+1x,(6)
where Πk+1x=Gxk+1 is the cdf of the exponentiated-G (exp-G) class with power parameter k+1 and
vk+1=i,j=015i+2jβji!j!1α2iθβjc2i+j,k.

Upon differentiating (6), we obtain

fx=k=0υk+1πk+1x,(7)
where υk+1=vk+1 and πk+1x=k+1gxGxk denotes the exp-G class density with power parameter k+1.

4. SOME PROPERTIES OF THE HJ-G FAMILY

4.1. General Properties

The rth ordinary moment of X is given by μr=E(Xr)=xrfxdx. Then, we obtain μr=k=0υk+1E(Yk+1r), where Yγr=γxrGxγ1gxdx, which can be computed numerically in terms of the baseline quantile function (qf) QG(u;ξ)=G1(x;ξ) as E(Yαn)=α01uα1QG(u;ξ)ndu. by setting r=1 in μr, we have the mean of X. The last integration can be computed numerically for most parent distributions. The rth central moment of X, say μn, follows as μr=E(Xμ1)n=h=0n(1)hnh(μ1)nμnh. For the skedwness and kurtosis coefficients, we have β1=μ32μ23andβ2=μ4μ22. The values for mean, variance, β1 and β2 for selected Hj-W distributions are shown in Table 1. Table 1 shows that Hj-N distribution can be left skewed and right skewed as well as having different kurtosis values. Hence, the Hj-W model can be useful for data modeling in terms of skewness and kurtosis.

(α,β,θ,λ,γ) μ1 Variance β1 β2
(0.5, 0.5, 0.5, 0.5, 0.5) 4.4975 37.1694 2.6572 13.5148
(1, 1, 1, 1, 1) 0.7706 0.3715 1.0395 3.9265
(2, 2, 0.5, 1, 2) 0.8161 0.0849 −0.1659 2.6427
(5, 5, 5, 5, 5) 0.1385 0.0011 −0.3015 2.6162
(0.5, 2, 0.5, 2, 0.5) 1.4083 3.1419 2.3539 11.1339
(1, 2, 3, 4, 5) 0.1918 0.0022 −0.1629 2.6292
(5, 4, 3, 2, 1) 0.1626 0.0188 1.1156 4.0671
(5, 10, 15, 20, 25) 0.0444 0.00001 −27.0075 31116
Table 1

Mean, variance, coefficients of skewness and kurtosis for Hj-Weibull (Hj-W) distributions.

The nth descending factorial moment of X (for n=1,2,) is

μn=E[X(n)]=EXX1××Xn+1=k=0nsn,kμk,
where s(n,k)=(k!)1[dkk(n)/dxk]x=0 is the Stirling number of the first kind. Here, we provide two formulae for the moment generating function (mgf) MXt=EetX of X. Clearly, the first one can be derived from Equation (7) as MXt=k=0υk+1Mk+1t, where Mkt is the mgf of Yk+1. Hence, MXt can be determined from the exp-G generating function. A second formula for MXt follows from (7) as MXt=j=0υk+1τt,k, where τt,k=01exptQGuukdu and QG(u) is the qf corresponding to Gx;ξ, i.e., QG(u)=G1(u;ξ). The rth incomplete moment of X is defined by mr(y)=yxrf(x)dx. From (7) we can write mr(y)=k=0υk+1mr,k(y), where mr,γ(y)=E(Yγr)=0Gy;ξQGru;ξuγ1du. The integral mr,γ(y) can be determined analytically for special models with closed-form expressions for QG(u;ξ) or computed at least numerically for most baseline distributions.

4.2. Order Statistics

Suppose X1,,Xn is a random sample from any Hj-G distribution. Let Xi:n denote the ith order statistic. The pdf of Xi:n can be expressed as

fi:n(x)=f(x)B(i,ni+1)1j=0ni(1)jnijF(x)j+i1.

Following similar algebraic developments of Nadarajah et al. [6], we can write the density function of Xi:n as

fi:n(x)=r,k=0υr,kπr+k+1(x),(8)
where
υr,k=n!(r+1)(i1)!υr+1(r+k+1)j=0ni(1)jfj+i1,k(nij)!j!,
and υr+1 is given in Section 3 and the quantities fj+i1,k can be determined with fj+i1,0=c0j+i1 and recursively for k1, fj+i1,k=kc01m=1k[m(j+i)k]cmfj+i1,km. Equation (8) is the main result of this section. It reveals that the pdf of the Hj-G order statistics is a linear combination of Exp-G density functions. So, several mathematical quantities of the Hj-G-G order statistics such as ordinary, incomplete and factorial moments, mean deviations and several others can be determined from those quantities of the exp-G distribution.

5. CHARACTERIZATION

This section deals with various characterizations of the Hj-G distribution. These characterizations are based on i a simple relationship between two truncated moments; ii the hazard function and iii conditional expectation of a function of the random variable. It should be mentioned that for characterization i the cdf is not required to have a closed form. We present our characterizations iiii in three subsections.

5.1. Characterizations Based on Two Truncated Moments

In this subsection we present characterizations of Hj-G distribution in terms of a simple relationship between two truncated moments. The first characterization result employs a theorem due to Glänzel [7] see Theorem 5.1.1 below. Note that the result holds also when the interval H is not closed. Moreover, as mentioned above, it could be also applied when the cdf F does not have a closed form. As shown in Glänzel [8], this characterization is stable in the sense of weak convergence.

Theorem 5.1.1.

Let Ω,,P be a given probability space and let H=d,e be an interval for some d<e (d=,e= might as well be allowed). Let X:ΩH be a continuous random variable with the distribution function F and let q1 and q2 be two real functions defined on H such that

Eq2X|Xx=Eq1X|Xxηx,xH,
is defined with some real function η. Assume that q1,q2C1H, ηC2H and F is twice continuously differentiable and strictly monotone function on the set H. Finally, assume that the equation ηq1=q2 has no real solution in the interior of H. Then F is uniquely determined by the functions q1,q2 and η, particularly
Fx=axCηuηuq1uq2uexpsudu,
where the functions is a solution of the differential equation s=ηq1ηq1q2 and C is the normalization constant, such that HdF=1.

Proposition 5.1.1.

Let X:Ω be a continuous random variable and let, q1x=logG¯x1βlogG¯xθβ+1αβlogG¯x1logG¯x+θ and q2x=q1xexpα2logG¯x2 for x. The random variable X has pdf (4) if and only if the function η defined in Theorem 5.1.1 has the form

ηx=1αexpα2logG¯x2,x.

Proof.

Let X be a random variable with pdf (4), then

1FxEq1X|Xx=1αexpα2logG¯x2,
and
1FxEq2X|Xx=12αexpαlogG¯x2,x,
and finally
ηxq1xq2x=q1x2expα2logG¯x2<0forx.

Conversely, if η is given as above, then

sx=ηxq1xηxq1xq2x=αgxlogG¯xG¯xx,
and hence
sx=α2logG¯x2,x.

Now, in view of Theorem 5.1.1, X has density (4).

Corollary 5.1.1.

Let X:Ω be a continuous random variable and let q1x be as in Proposition 5.1.1. The pdf of X is (4) if and only if there exist functions q2 and η defined in Theorem 5.1.1 satisfying the differential equation

ηxq1xηxq1xq2x=αgxlogG¯xG¯xx.

The general solution of the differential equation in Corollary 5.1.1 is

ξx=expαlogG¯x22αgxG¯x1logG¯x×expαlogG¯x22q1x1q2x+D,
where D is a constant. Note that a set of functions satisfying the above differential equation is given in Proposition 5.1.1 with D=0. However, it should be also noted that there are other triplets q1,q2,η satisfying the conditions of Theorem 5.1.1.

5.2. Characterization Based on Hazard Function

It is known that the hazard function, hF, of a twice differentiable distribution function, F, satisfies the first order differential equation

f(x)f(x)=hF(x)hF(x)hF(x).

For many univariate continuous distributions, this is the only characterization available in terms of the hazard function. The following characterization establishes a non-trivial characterization of Hj-G distribution in terms of the hazard function, which is not of the above trivial form.

Proposition 5.2.1.

Let X:Ω be a continuous random variable. The pdf of X is (4) if and only if its hazard function hFx satisfies the differential equation

hFxgxgxhFx=gxddxαβlogG¯x1logG¯x+θG¯x1βlogG¯x,x.

Proof.

If X has pdf (4), then clearly the above differential equation holds. Now, if the differential equation holds, then

ddxgx1hFx=ddxαβlogG¯x1logG¯x+θG¯x1βlogG¯x,
or
hFx=gxαβlogG¯x1logG¯x+θG¯x1βlogG¯x,
which is the hazard function of the Hj-G distribution.

5.3. Characterizations Based on Conditional Expectation

The following proposition has already appeared in Hamedani [9], so we will just state it here which can be used to characterize the Hj-G distribution.

Proposition 5.3.1.

Let X:Ωa,b be a continuous random variable with cdfF. Let ψx be a differentiable function on a,b with limxa+ψx=1. Then for δ1,

EψX|Xx=δψx,xa,b,
if and only if
ψx=1Fx1δ1,xa,b.

Remark 5.3.1

(a) For ψx=explogG¯x21βlogG¯x2θαβ, δ=α2+α and a,b=, Proposition 5.3.1 provides a characterization of Hj-G distribution. (b) Of course there are other suitable functions than the one we mentioned above, which is chosen for simplicity.

6. MAXIMUM LIKELIHOOD ESTIMATION (MLE)

We consider the estimation of the unknown parameters of the new family from complete samples only by maximum likelihood method. Let x1,,xn be a random sample from the Hj-G family with a (q+3)×1 parameter vector Θ=(α,β,θ,ξ), where ξ is a q×1 baseline parameter vector. The log-likelihood function for Θ is given by

(Θ)=i=1nloggxi;ξi=1nlogG¯xi;ξ+θβ+1i=1nlog1βlogG¯xi;ξ+i=1nlogαβlogG¯xi;ξ1logG¯xi;ξ+θα2i=1nlogG¯xi;ξ2.

The components of the score vector, UΘ=Θ=(Θ)α,(Θ)β,(Θ)θ,(Θ)ξ, are

Uα=i=1nβlogG¯xi;ξ1logG¯xi;ξαβlogG¯xi;ξ1logG¯xi;ξ+θ12i=1nlogG¯xi;ξ2,
Uβ=θβ+1i=1nlogG¯xi;ξ1βlogG¯xi;ξθβ2i=1nlog1βlogG¯xi;ξ+i=1nαlogG¯xi;ξ2αβlogG¯xi;ξ1logG¯xi;ξ+θ,
Uθ=1βi=1nlog1βlogG¯xi;ξ+i=1n1αβlogG¯xi;ξ1logG¯xi;ξ+θ,
and
Uξr=i=1ngxi;ξgxi;ξ+i=1nGxi;ξG¯xi;ξ+θβ+1i=1nβGxi;ξG¯xi;ξ1βlogG¯xi;ξ+i=1n{βlogG¯xi;ξα[βlogG¯xi;ξ1]}Gxi;ξG¯xi;ξα[βlogG¯xi;ξ1]logG¯xi;ξ+θαi=1nGxi;ξG¯xi;ξlogG¯xi;ξ,
where
gxi;ξ=gxi;ξξandGxi;ξ=Gxi;ξξ.

Setting the nonlinear system of equations Uα=Uβ=Uθ=Uξr=0 (for r=1,,q) and solving them simultaneously yields the MLEs Θ^=(α^,β^,θ^,ξ^). To solve these equations, it is more convenient to use nonlinear optimization methods such as the quasi-Newton algorithm to numerically maximize (Θ). For interval estimation of the parameters, we can evaluate numerically the elements of the (q+3)×(q+3) observed information matrix J(Θ)={2θrθs}. Under the standard regularity conditions, when n, the distribution of Θ^ can be approximated by a multivariate normal Np(0,J(Θ^)1) distribution to construct approximate confidence intervals for the parameters. Here, J(Θ^) is the total observed information matrix evaluated at Θ^. The method of the re-sampling bootstrap can be used for correcting the biases of the MLEs of the model parameters. Good interval estimates may also be obtained using the bootstrap percentile method.

7. SIMULATION STUDY

In this section, the performance of the MLEs of Hj-W distribution is discussed via simulation study. The inverse transform method is used to generate random variables from Hj-W distribution. The performance of the MLEs is evaluated based on the following measures: biases, mean square error (MSE) and coverage probability (CP). N=1,000 samples of sizes n=50,55,,1000 is generated from the Hj-W distribution with α=0.5,β=0.5,θ=2,λ=2,γ=3. The MLEs of the model parameters are obtained for each generated sample, say (αi^,βi^,θi^,λi^,γi^), for i=1,,N. The standard errors of the MLEs are evaluated by inverting the observed information matrix, namely (sαî,sβî,sθî,sλî,sγî) for i=1,,N. The estimated biases and MSEs and CPs are given by Bias^ε(n)=1Ni=1N(ε^iε), MSE^ε(n)=1Ni=1N(ε^iε)2, and CPε(n)=1Ni=1NI(ε^i1.95996sε^i,ε^i+1.95996sε^i) where ε=α,β,θ,λ,γ and sεî is standard error of ε̂i for each generated sample.

Figure 4 displays the simulation results for above measures. As seen from Figure 4, the estimated biases and MSEs approach zero when the sample size increases. As expected, CPs are near the nominal value (0.95) for sufficiently large sample sizes. The simulation results verify the consistency property of MLE. The similar results can be obtained for different parameter vector.

Figure 4

Estimated coverage probability (CPs), biases and mean square errors (MSEs) for the selected parameter vector.

8. LOG-HJ-W REGRESSION MODEL

Consider the Hj-W distribution with five parameters presented in Subsection 2.2. Henceforth, X denotes a random variable following the Hj-W distribution and Y=log(X). The density function of Y (for y) obtained by replacing γ=1σ and λ=1expμ, can be expressed as

fy=1σexpyμσexpyμσα1+βexpyμσexpyμσ+θexpexpyμσ1+βexpyμσθβ+1expα2expyμσ2,(9)
where μ is the location parameter, σ>0 is the scale parameter and α>0, β>0 and θ>0 are the shape parameters. We refer to equation (9) as the log-Hj-W (LHj-W) distribution, say Y~LHj-W(α,β,θ,μ,σ). Figure 5 provides some plots of the density function (9) for selected parameter values. They reveal that this distribution is a good candidate for modeling left skewed and bimodal data sets.

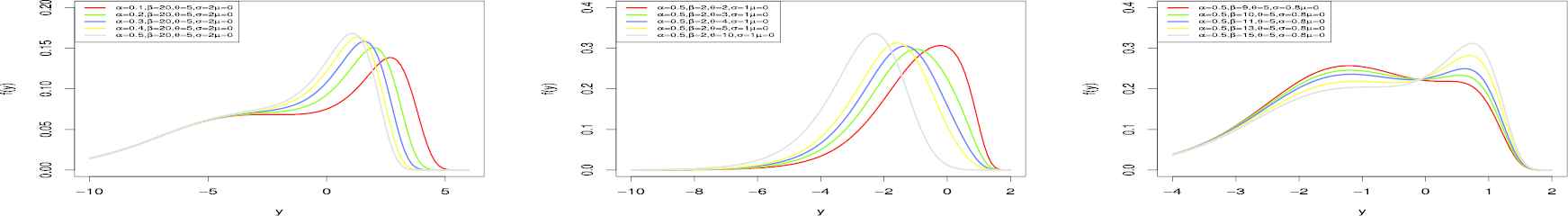

Figure 5

Plots of the LHj-W density function for some parameter values.

The survival function corresponding to (9) is given by

Sz=expzexpzα1+βexpzexpz+θexpexpz1+βexpzθβ+1expα2expz2,(10)
and the hrf is simply h(y)=f(y)S(y). The standardized random variable Z=(Yμ)σ has density function
fz=2αβexpzexpz1expexpzαβ111expexpzαβ1π1expexpz2αβ+11expexpzα2β.(11)

Based on the LHj-W density, we propose a linear location-scale regression model linking the response variable yi and to explanatory variable vector viT=vi1,,vip given by

yi=viTβ+σzi,i=1,,n(12)
where the random error zi has the density function (11), β=(β1,,βp)T, σ>0, α>0, β>0 and θ>0 are unknown parameters. The parameter μi=viTβ is the location of yi. The location parameter vector μ=(μ1,,μn)T is represented by a linear model μ=Vβ, where V=(v1,,vn)T is a known model matrix. Consider a sample (y1,v1),,(yn,vn) of n independent observations, where each random response is defined by yi=min{log(xi),log(ci)}. We assume non-informative censoring such that the observed lifetimes and censoring times are independent. Let F and C be the sets of individuals for which yi is the log-lifetime or log-censoring, respectively. The log-likelihood function for the vector of parameters τ=(α,β,θ,σ,βT)T from model (12) has the form l(τ)=iFli(τ)+iCli(c)(τ), where li(τ)=log[f(yi)], li(c)(τ)=log[S(yi)], f(yi) is the density (9) and S(yi) is the survival function (10) of Yi. The total log-likelihood function for τ is given by
τ=rlog1σ+iFzi+iFlogα1+βuiui+θθ+ββiFlog1+βuiα2iFui2iClogexpα2ui21βuiθβ,(13)
where ui=exp(zi), zi=(yiμi)σi, and r is the number of uncensored observations (failures). The MLE τ^ of the vector of unknown parameters can be obtained by maximizing the log-likelihood function (13). The R software is used to estimate τ^.

8.1. Residual Analysis

Residual analysis has critical role in checking the adequacy of the fitted model. In order to analyze departures from the error assumption, two types of residuals are considered: martingale and modified deviance residuals.

8.1.1. Martingale Residual

The martingale residuals is defined in counting process and takes values between +1 and (see [10] for details). The martingale residuals for LHj-W model is

rMi=1+log=expα2ui21βuiθβifiF,log=expα2ui21βuiθβifiC,
where ui=2Φexpzi2/2 and zi=(yiμi)σ.

8.1.2. Modified Deviance Residual

The main drawback of the martingale residual is that when the fitted model is correct, it is not symmetrically distributed about zero. To overcome this problem, modified deviance residual was proposed by Therneau et al. [11]. Th modified deviance residual for LHj-W model is

rDi=sign(rMi){2[rMi+log(1rMi)]}12,ifiFsign(rMi){2rMi}12,ifiC,
where r̂Mi is the martingale residual.

9. REAL DATA APPLICATIONS

In this section, we consider three applications to real data sets to show the modeling ability of the Hj-N, Hj-W and Hj-U distributions. We compare these distribution models with both distributions of some members of the T-X family, where W[G(x)] is equal to log[1G(x)], and some generalizations of ordinary normal, Weibull and uniform distributions. These families and generalized models are the Mc Donald-G (Mc-G) family [12], Gompertz-G (Gom-G) family [13], Generalized odd log logistic-G (GOLL-G) family [14], Weibull-G (W-G) family [4], Lomax-G (Lx-G) family [15], Lindley-G (Li-G) family [16], logistic-G (L-G) family [17], Kumaraswamy odd log logistic normal (KwOLLN) distribution [18], odd Burr normal (OBN) distribution [19], Zografos-Balakkrishnan odd log logistic Weibull (ZBOLLW) distribution [20], additive Weibull (AW) distribution [21] and gamma uniform (GU) distribution [22]. The cdfs of these distributions are available in the literature. To determine the best model, we also compute the estimated log-likelihood values ̂, Akaike Information Criteria (AIC), corrected Akaike information criterion (CAIC), Bayesian information criterion (BIC), Hannan–Quinn information criterion (HQIC), Cramer-von-Mises (W) and Anderson-Darling (A) goodness of-fit statistics for all distribution models. We note that the statistics W and A are described in detail in [23]. In general, it can be chosen as the best model the one which has the smaller the values of the AIC, CAIC, BIC, HQIC, W and A statistics and the larger the values of ̂ and p-values. All computations are performed by the maxLik routine in the R programme. The details are given below.

9.1. Otis IQ Scores of Non-White Males Data Set

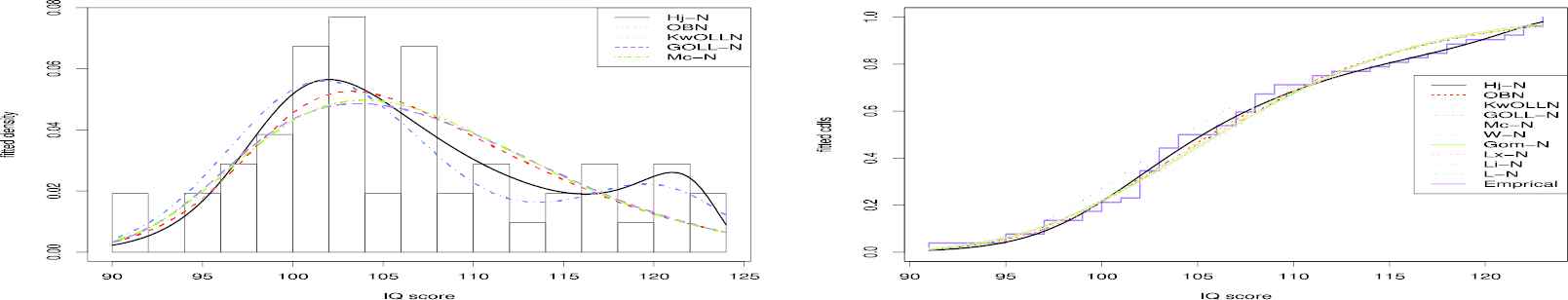

The first real data set is the data on the Otis IQ Scores of 52 non-white males hired by a large insurance company in 1971. This data set has been analyzed by [2426] and [27]. On the data set, we compare the Hj-N model with Mc-N, Lx-N, W-N, KwOLLN, L-N, OBN, GOLL-N, Gom-N and Li-N models. Table 2 shows MLEs and standard erros of the estimates for the first dat set. Table 3 lists information criteria results and goodness-of-fits statistics. Table 3 clearly show that the Hj-N model has the smallest values AIC, CAIC, BIC, HQIC, W and A statistics and it has the largest values for ̂ and two p-values among the fitted models. So, it can be chosen as the best model based on these criteria. For this data set, the plots of the fitted pdfs and cdfs for all models are shown in Figure 6. From this figure, we see that the Hj-N, Mc-N and KwOLLN models fit data as bi-modal shape whereas the OBN model fits data as uni-modal shape.

Data Set Model α̂ β̂ θ̂ μ̂ σ̂
I Hj-N 190,363.1425 518,889.4549 152,083.8273 154.4301 11.9168
(5.9316) (380.4220) (380.4954) (0.00001) (0.0862)
KwOLLN 5.8735 84.4204 0.0221 113.0728 2.0037
(0.2310) (6.8585) (0.0026) (0.0308) (0.0519)
Mc-N 0.0160 0.0573 2.7977 111.0082 1.4883
(0.0023) (0.0132) (0.0315) (0.0001) (0.0001)
GOLL-N 0.7348 - 18.6911 84.2008 12.0843
(0.1867) (6.8108) (4.7654) (2.2345)
OBN 1.7777 - 0.2647 98.9947 7.7191
(0.8162) (0.1183) (1.9371) (2.6981)
W-N 0.1546 - 0.9030 96.8421 3.5746
(0.0432) (0.0972) (0.0002) (0.0002)
Gom-N 0.0020 - 0.0921 94.9562 3.4364
(0.0152) (0.0196) (0.0007) (0.0007)
Lx-N 118.0650 376.2148 - 99.5811 5.4795
(93.3838) (92.8438) (1.0954) (0.4381)
Li-N - 0.1470 90.5867 4.0007
(0.0144) (0.0001) (0.0001)
L-N - 2.5576 101.6204 12.0705
(0.9339) (1.7310) (4.3032)
Table 2

MLEs and standard erros of the estimates (in parentheses) for the first data set.

Data Set Model AIC CAIC BIC HQIC A W ^
I Hj-N 366.8823 368.1866 376.6385 370.6226 0.2925 0.0428 178.4411
[0.9434] {0.9198}
KwOLLN 368.0000 369.3043 377.7562 371.7403 0.3144 0.0446 179.0001
[0.9266] {0.9098}
Mc-N 368.4839 369.7883 378.2401 372.2242 0.3422 0.0520 179.2420
[0.9028] {0.9030}
GOLL-N 372.5455 373.3966 380.3505 375.5378 0.4404 0.0683 182.2728
[0.8072] {0.7639}
OBN 371.8735 372.7245 379.6784 374.8657 0.3973 0.0584 181.9367
[0.8508] {0.8262}
W-N 372.5644 373.4154 380.3693 375.5566 0.4698 0.0750 182.2822
[0.7770] {0.7231}
Gom-N 371.0419 371.8929 378.8468 374.0341 0.5295 0.0856 181.5209
[0.7160] {0.6616}
Lx-N 373.2565 374.1076 381.0615 376.2488 0.6205 0.1031 182.6283
[0.6280] {0.5715}
Li-N 370.9549 371.4549 376.8087 373.1991 0.7868 0.1486 182.4775
[0.4900] {0.3947}
L-N 372.8924 373.3924 378.7461 375.1365 0.4423 0.0639 183.4462
[0.8053] {0.7911}
Table 3

Information criteria results, A, W and ̂ statistics ([] and {} denote their p-values) for the first data set.

Figure 6

The fitted probability density functions (pdfs) and cumulative distribution functions (cdfs) for the first data set.

9.2. Failure Times Data Set

The second data set represents the times between successive failures (in thousands of hours) in events of secondary reactor pumps studied by [28,29] and [30]. This data set is also known as bathtub shaped. So, for this data set, we compare the Hj-W model with AW, Mc-W, Lx-W, W-W, ZBOLLW, L-W, GOLL-W, Gom-W and Li-W models. We fitted the Hj model and obtained its ̂ value as −31.2520. Table 4 shows MLEs and standard erros of the estimates for the second data set. Table 5 lists information criteria results and goodness-of-fits statistics. The Hj-W model has the smallest values of the AIC, HQIC, W and A statistics and have the largest values for ̂ and all p-values among the fitted models. For this data set, the plots of the fitted pdfs and cdfs for all models are shown in Figure 7. From this figure, we see that the Hj-W model fits the histograms of the data sets with more adequate fitting than Li-W and other models.

Data Set Model α̂ β̂ θ̂ λ̂ γ̂
II Hj-W 0.0031 23.3597 6.9156 0.9910 1.8949
(0.0018) (6.5439) (2.1775) (0.0152) (0.0007)
ZBOLLW 2.5977 6.2815 - 41.9548 0.2567
(3.3552) (4.1634) (12.3595) (0.1468)
Mc-W 87.0504 119.6097 2.3397 37.5696 0.0487
(4.2657) (1.4467) (0.1265) (2.5664) (0.0064)
GOLL-W 0.2619 - 10.3956 4.1457 0.8139
(0.0579) (0.2475) (0.0893) (0.7005)
W-W 0.1100 - 1.1545 11.0445 0.6995
(0.0523) (0.1856) (0.0051) (0.0001)
Gom-W 0.0023 - 0.0912 15.1874 0.7808
(0.0230) (0.0294) (0.0003) (0.0001)
Lx-W 48.4187 99.9372 - 1.7814 0.8161
(11.7869) (17.9206) (1.0382) (0.1314)
Li-W - 27.1223 0.0126 0.1298
(10.4406) (0.0099) (0.1298)
L-W - 21.5282 1.4143 0.0571
(9.5853) (0.4227) (0.0272)
AW 0.1576 11.1873 - 0.6779 0.7575
(0.0172) (10.4301) (0.2075) (0.1372)
Table 4

MLEs and standard erros of the estimates (in parentheses) for the second data set.

Data Set Model AIC CAIC BIC HQIC A W ^
II Hj-W 68.7731 72.3025 74.4506 70.2010 0.1295 0.0157 29.3865
[0.9997] {0.9996}
ZBOLL-W 71.1057 73.3279 75.6476 72.2480 0.2213 0.0243 31.5528
[0.9835] {0.9923}
Mc-W 73.5915 77.1209 79.2690 75.0193 0.2264 0.0256 31.7957
[0.9814] {0.9898}
GOLL-W 69.9227 72.1450 74.4647 71.0650 0.2400 0.0384 30.9614
[0.9754] {0.9445}
W-W 73.0278 75.2500 77.5698 74.1701 0.4040 0.0617 32.5139
[0.8433] {0.8076}
Gom-W 72.3346 74.5568 76.8766 73.4770 0.3845 0.0569 32.1673
[0.8626] {0.8382}
Lx-W 73.0204 75.2427 77.5625 74.1628 0.3965 0.0602 32.5102
[0.8509] {0.8175}
Li-W 71.0288 72.2920 74.4354 71.8855 0.4047 0.0619 32.5144
[0.8426] {0.8066}
L-W 71.2273 72.4905 74.6338 72.0841 0.2326 0.0259 32.6136
[0.9788] {0.9891}
AW 70.5462 72.7684 75.0881 71.6884 0.3730 0.0600 31.2731
[0.8738] {0.8186}
Table 5

Information criteria results, A, W and ̂ statistics ([] and {} denote their p-values) for the second data set.

Figure 7

The fitted probability density functions (pdfs) and cumulative distribution functions (cdfs) for the second data set.

9.3. Student's Cognitive Skill Data

The third data set contains the student's cognitive skills for Organisation for Economic Co-operation and Development (OECD) countries. The score of student's cognitive skill represents the average score in reading, mathematics and science as assessed by the OECD's Programme for International Student Assessment (PISA). The data set can be found in https://stats.oecd.org/index.aspx?DataSetCode=BL. By using this data set, we compare the Hj-U model with GU, L-U and W-U models. We note that since a<x<b, the MLE of the a and b are the minumum order statistic x1:n and maximum order statistic xn:n respectively. Hence, we assume that the parameters are a=416 and b=529 for all fitted models. Table 6 shows MLEs and standard erros of the estimates for the third data set. Table 7 lists information criteria results and goodness-of-fits statistics. The Hj-U model has the smallest values of the AIC, CAIC, HQIC, W and A statistics and have the largest values of the ̂ and all p-values among the fitted models. So, it can be chosen as the best model based on these criteria. For this data set, the plots of the fitted pdfs and cdfs for all models are shown in Figure 8. From this figure, The Hj-U model has fitted the data as uni-modal shaped.

Data Set Model α̂ β̂ θ̂ a b
III Hj-U 0.8393 11.0082 0.1020 416 529
(0.1537) (4.2005) (0.2336)
GU 1.0723 3.9112 - 416 529
(0.2339) (1.0792)
L-U 2.7437 - - 416 529
(0.4026)
W-U 0.4537 - 0.6334 416 529
(0.1032) (0.0930)
Table 6

MLEs and standard erros of the estimates (in parentheses) for the third data set.

Data Set Model AIC CAIC BIC HQIC A W ^
III Hj-U 295.7462 296.5738 300.2357 297.2568 0.6284 0.1031 144.8731
[0.6202] {0.5726}
GU 297.7327 298.1327 300.7257 298.7398 1.2184 0.2049 146.8684
[0.2604] {0.2588}
L-U 299.6478 299.7768 301.1443 300.1513 2.5881 0.5574 148.8239
[0.0449] {0.0279}
W-U 404.1662 404.5662 407.1592 405.1733 2.8695 0.5562 200.0831
[0.0322] {0.0281}
Table 7

Information criteria results, A, W and ̂ statistics ([] and {} denote their p-values) for the third data set.

Figure 8

The fitted probability density functions (pdfs) and cumulative distribution functions (cdfs) for the third data set.

Finally, when we observe all results, we can say that the Hj-N, Hj-W and Hj-U models could be chosen as the best models for the three data sets via the above criteria.

9.4. Stanford Heart Transplant Data

Recently, Brito et al. [3] introduced the Log-Topp-Leone odd log-logistic-Weibull (Log-TLOLL-W) regression model. Brito et al. [3] used the Stanford heart transplant data set to prove the usefulness of Log-TLOLL-W regression model. Here, we use the same data set to demonstrate the flexibility of LHj-W regression model against the Log-TLOLL-W and Log-Weibull regression models. These data set is available in p3state.msm package of R software. The sample size is n=103, the percentage of censored observations is 27%. The goal of this study is to relate the survival times t of patients with the following explanatory variables: x1- year of acceptance to the program; x2- age of patient (in years); x3- previous surgery status 1=yes,0=no; x4- transplant indicator 1=yes,0=no; ci - censoring indicator (0 = censoring, 1 = lifetime observed). The regression model fitted to the stanford heart transplant data is given by

yi=β0+β1xi1+β2xi2+β3xi3+β4xi4+σzi,
respectively, where the random variable yi follows the LHj-W distribution given in (9). The results for the above regression models are presented in Table 8. The MLEs of the model parameters and their SEs, p values and , AIC and BIC statistics are listed in Table 8. Based on the figures in Table 8, LHj-W model has the lowest values of the , AIC and BIC statistics. Therefore, it is clear that LHj-W regression model outperforms the others for this data set. In view of the results of LHj-W regression model, β0, β1 and β2 are statistically significant at 1% level.

Models
Log-Weibull
Log-TLOLL-W
LHj-W
Parameters Estimate S.E. p-value Estimate S.E. p-value Estimate S.E. p-value
α - - - 2.34 3.546 - 1.662 0.541 -
β - - - - - - 5.382 6.910 -
θ - - - 24.029 3.015 - 19.326 12.172 -
σ 1.478 0.133 - 9.68 12.526 - 1.223 0.141 -
β0 1.639 6.835 0.811 −0.645 8.459 0.939 6.398 0.485 <0.001
β1 0.104 0.096 0.279 0.074 0.097 0.448 0.234 0.096 0.014
β2 −0.092 0.02 <0.001 −0.053 0.02 0.009 −0.066 0.018 <0.001
β3 1.126 0.658 0.087 1.676 0.597 0.005 0.139 0.512 0.785
β4 2.544 0.378 <0.001 2.394 0.384 <0.001 0.262 0.377 0.487
171.2405 164.684 160.061
AIC 354.481 345.368 338.122
BIC 370.2894 366.4458 361.834
Table 8

MLEs of the parameters to Stanford Heart Transplant Data for Log-Weibull, Log-TLOLL-W and LHj-W regression models with corresponding SEs, p-values and , AIC and BIC statistics.

Finally, when we observe all results, we can say that the Hj-N, Hj-W and Hj-U models could be chosen as the best models for the three data sets via the above criteria.

9.4.1. Residual analysis of LHj-W model for Stanford heart transplant data set

Figure 9 displays the index plot of the modified deviance residuals and its Q-Q plot against N(0,1) quantiles for Stanford heart transplant data set. Based on Figure 9, we conclude that none of observed values appear as possible outliers. Therefore, the fitted model is appropriate for this data set.

Figure 9

Index plot of the modified deviance residual (left) and Q-Q plot for modified deviance residual (right).

10. CONCLUSIONS

In this work, we introduce a new flexible class of continuous distributions via the Hjorth's IDB model. We provide some mathematical properties of the new family. Characterizations based on two truncated moments, conditional expectation as well as in terms of the hazard function are presented. The maximum likelihood method is used for estimating the model parameters. We assess the performance of the maximum likelihood estimators in terms of the biases and mean squared errors by means of two simulation studies. A new regression model as well as residual analysis are presented, Finally, the usefulness of the family is illustrated by means of three real data sets. The new model provides consistently better fits than other competitive models for these data sets.

CONFLICT OF INTEREST

Authors have no conflicts of interest to declare.

AUTHORS' CONTRIBUTIONS

The authors contributed equally to this work.

Funding Statement

None.

REFERENCES

5.I.S. Gradshteyn and I.M. Ryzhik, Table of Integrals, Series, and Products, Academic Press, New York, NY, USA, 2007.
9.G.G. Hamedani, On Certain Generalized Gamma Convolution Distributions II, Department of Mathematics, Statistics and Computer Science, Marquette University, Milwaukee, Wisconsin, USA, 2013. Technical Report No. 484
10.T.R. Fleming and D.P. Harrington, Counting Process and Survival Analysis, John Wiley, New York, NY, USA, 1994.
22.H. Torabi and N.H. Montezari, Kybernetika, Vol. 48, 2012, pp. 16-30.
24.H.V. Robert, Data Analysis for Managers with Minitab, Scientific Press, Redwood City, CA, USA, 1988.
28.S.M. Salman and S. Prayoto, Atom Indones., Vol. 25, 1999, pp. 155-161.
30.S.E. Lucena, A.H.A. Silva, and G.M. Cordeiro, J. Data Sci., Vol. 13, 2015, pp. 187-206.
Journal
Journal of Statistical Theory and Applications
Volume-Issue
19 - 1
Pages
59 - 74
Publication Date
2020/03/12
ISSN (Online)
2214-1766
ISSN (Print)
1538-7887
DOI
10.2991/jsta.d.200302.001How to use a DOI?
Copyright
© 2020 The Authors. Published by Atlantis Press SARL.
Open Access
This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

Cite this article

TY  - JOUR
AU  - Mustafa Ç. Korkmaz
AU  - Emrah Altun
AU  - Haitham M. Yousof
AU  - G. G. Hamedani
PY  - 2020
DA  - 2020/03/12
TI  - The Hjorth's IDB Generator of Distributions: Properties, Characterizations, Regression Modeling and Applications
JO  - Journal of Statistical Theory and Applications
SP  - 59
EP  - 74
VL  - 19
IS  - 1
SN  - 2214-1766
UR  - https://doi.org/10.2991/jsta.d.200302.001
DO  - 10.2991/jsta.d.200302.001
ID  - Korkmaz2020
ER  -
