2.1. NTLM Overview

Although Kerberos is the most secure authentication protocol in IWA, integrating IoT products with Kerberos implies that devices must join the windows domain first, which is nearly impossible for most IoT devices. On the other hand, NTLM is widely used not only for protocols such as SMB, LDAP, MSSQL, HTTP but also used for applications such as wi-fi or remote desktop connection and NTLM is easier to implement for most software.

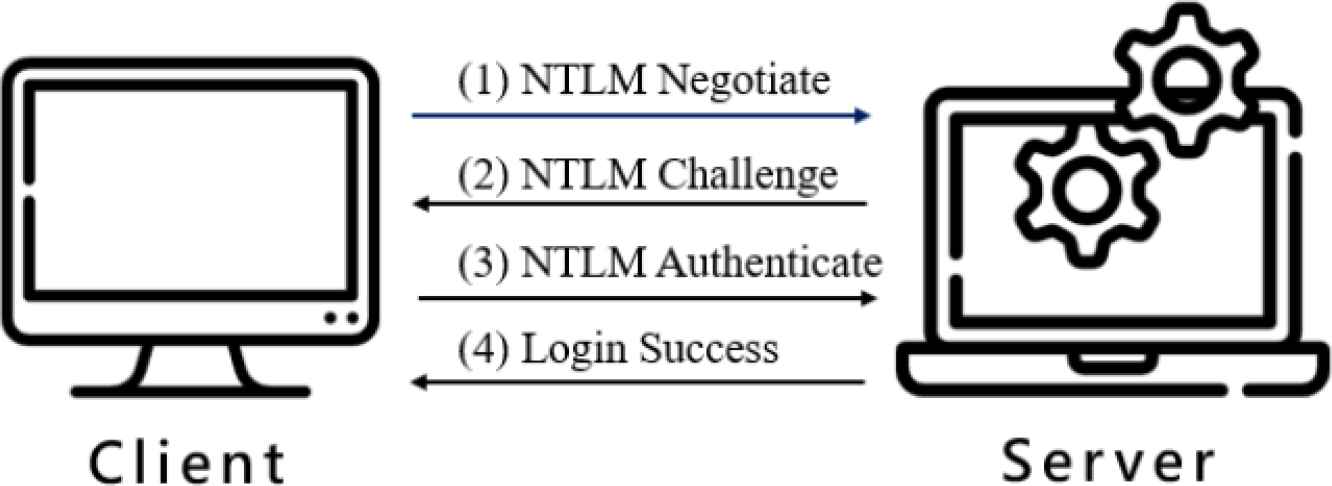

NTLM is a challenge–response authentication protocol as shown in Figure 1. First, the client sends a negotiate message advertising its capabilities to the server. Then the server responds with a challenge message. Third, the client encrypts the challenge message with its username and password as a authenticate message, and then the server will verify whether the password is correct or not.

Although NTLM has been widely used for decades and has been updated (the most important update is from NTLMv1 to NTLMv2) many times, its security mechanism has often been challenged. Nevertheless, Kerberos is much more complicated to configure and there is downward compatibility for the third-party software requirement which does not support Kerberos as an authentication option, using NTLM for authentication is usually a necessary option even if Kerberos is being implemented [3].

Figure 1

The NTLM challenge–response mechanism.

2.2. Typical Attack and Previous Research

The security concerns of the NTLM authentication protocol are reflected in two aspects, Cryptography security and the authentication process. On the cyptographic aspect, the NTLMv1 used Data Encryption Standard (DES) for the encryption. However, DES has been proved to be broken since the hash could be crack in 20 min. Although NTLMv2 does stand as secure, it would still be crack through the dictionary attack. In other words, if the computer user chose a password that has been leaked then cracking the hash could be easy. Even though most devices support NTLMv2 and have priority adopting it, NTLMv2 by default falling back to NTLMv1 on the windows operating system. Namely, if one side (client or server) insists on using NTLMv1, the other side would simply agree to use it.

On the authentication process aspect, there is another attack method called NTLM relay or so call pass the hash. The attack method is another variant of the man-in-the-middle attack as shown in Figure 2. Although there are some mitigations such as enhanced protection for authentication, still there are ways to bypass those mechanisms such as “drop the mic” [4]. Through the NTLM relay attack, an attacker could connect the server through the remote procedure call, thereby affecting the entire operation of the enterprise.

Figure 2

The NTLM relay attack with active dictionary.

2.3. NTLM Leak

The key point to trigger all the attacks that has been mentioned is to make victims initiatively send a login request to the malicious server. Generally, there are two ways to make this happen, through malicious file or Link-Local Multicast Name Resolution (LLMNR)/NetBIOS spoofing.

The article [5] introduced the file types that could cause the NTLM leak such as HTML files, PDF, Windows media player, Microsoft Office files. These files initiatively request resources embedded in the Universal Naming Convention (UNC) path through the SMB protocol once the user opens the file. After that, the server responds with the challenge message, then the client would respond with the authenticate message due to the Single sign-on implementation of IWA. However, if the UNC path point to IP Address where the hacker responds query as a malicious server, users would leak their NTLM hash without awareness of what is happening.

These malicious files are often sent as attachments in phishing emails. Fortunately, only PDF and Microsoft Offices file are common email attachment file types. To protect users vulnerable to this type of attack, Adobe Acrobat reader would pop out a warning message box and ask the user whether the UNC path is trustworthy if the PDF file contains the UNC path. In contrast, open in protected view is the only mitigation Microsoft provide to protect user’s device from malware and other threats download from the Internet. If users were not informed of what is contained in the file and the threat hiding in it, they may rashly press the button “Enable Editing” after that user would still leak their NTLM hash.

Before we come to LLMNR/NetBIOS spoofing [6], we talk about Windows Name Resolution first. Windows Name Resolution resolve Uniform Resource Locator (URL), as following order: Hosts, DNS (cache/server), Local LMHOST File, LLMNR, NetBIOS. LLMNR/NetBIOS perform name resolution for hosts in the same intranet. Since both LLMNR/NetBIOS listen on User Datagram Protocol (UDP) they can be spoofed. If the user’s computers set the Local Area Network setting as “automatically detect setting” which is a configuration by default. Once users’ browsers such as chrome were opened, their device would send a broadcast message to see if there would be Web Proxy Auto-Discovery Protocol (WPAD) server to provide a Proxy Auto-Config (PAC) file. The intention of WPAD is to make Network Manger’s work easier for Proxy configuration to put a PAC file in the WPAD server instead of setting all the devices in intranet one-by-one. However, By spoofing LLMNR/NetBIOS hacker could hijack WPAD and thus become a Proxy Server or respond a challenge message over WPAD protocol to the client. Both manners would cause the NLTM leak.

3.1. Bypassing Microsoft Office Mitigation

The NTFS file format supports using the named Zone: Identifier in the alternate data stream to mark files from the Internet. If the file happens to be an Office document, it would be opened in Protected View. However, compressed files remain a special case. When compressed files are being decompressed, the unzipped file should inherit the characteristics of Zone: identifier.

Although most compression software aware of these security concerns, different compression modes in the same decompress software might cause different results. Taking the most popular extractor 7zip as an example, it will propagate Zone: Identifier only when the compressed file is being open in the archive. Namely, modes such as “Extract All” were not secure which could cause the NTLM leak once the office file is opened. The article “Downloads and the Mark-of-the-Web” [7] discusses it before, yet we re-experimented the latest version of serval popular extractor and found slightly different results, e.g., “Table 1.”

3.2. Bypassing Firewall

In the previous research of Microsoft Offices, NTLM leak could only transport through the SMB protocol. However, Most Network Manager would prohibit outbound or inbound SMB connections. Because notorious exploit or hacker tools such as “EternalBlue” and “PsExec” are transported over SMB protocol. Our research attempts to change the UNC path into other URLs for the purpose of causing the NTLM leak through other protocols. Finally, we found out that manipulating the UNC path into a URL with HTTP/HTTPS or LDAP protocol would also cause the NTLM leak. Nevertheless, URL with HTTP(S) would only cause the leak when the setting on the users’ computer is “automatic logon only on Intranet zone” or “automatic logon with current username and password”. In contrast, URL with LDAP will trigger NTLM leak just as SMB, but to avoid being block by firewall as shown in Figure 3.

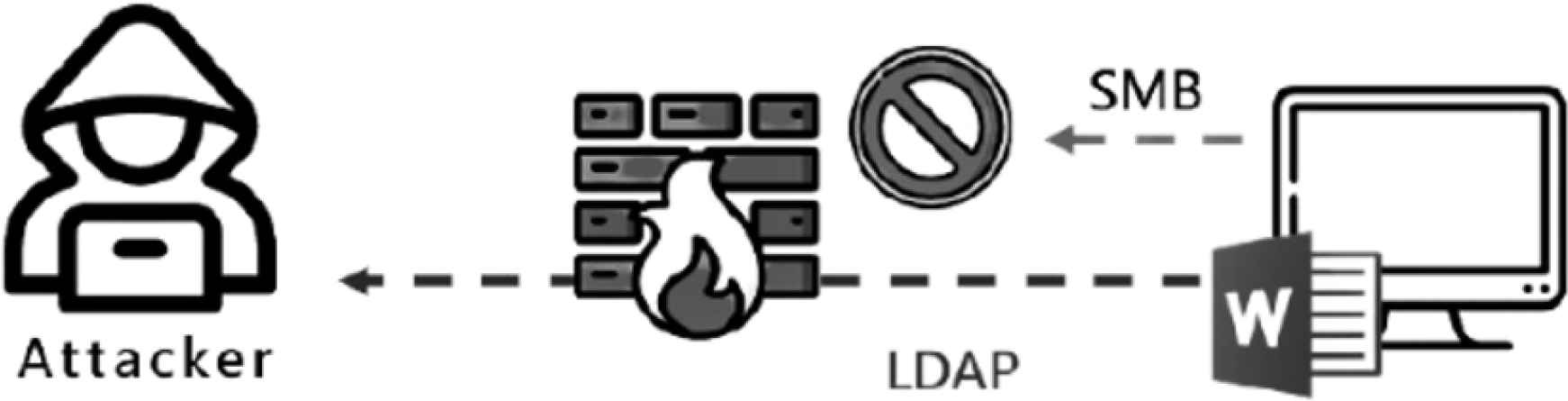

Figure 3

The attack simulation scenario of bypassing firewall.

3.3. Credential Harvesting in Intranet

Our research could not only attack computers connect to the internet, but also could attack others that are not connecting to the internet by changing the URL hidden in the Microsoft Offices files pointing to computers that have been infected instead of the C&C server on the internet. It is worth notice that NTLM leak over SMB protocol is also not an available option inside the intranet. Although SMB protocol is often used inside the intranet for file sharing and printing which does not cause any suspicion, deploying a rogue SMB server in the intranet is nearly impossible. Because the Transmission Control Protocol (TCP) port SMB used has been bound by the Network Neighborhood or samba binding the same port with an existed service is unrealistic. However, NTLM leak over HTTP(S) or LDAP would do the job stealthy.

Because the NTLM leak over HTTP has its’ restriction, it is less practical than NTLM leak over LDAP. However, in MDSec’s research [8] reveals an approach leaking NLTM over WebDAV with internet shortcut or URL files. Although leaking through WebDAV shares the same restriction as HTTP, since WebDAV is an extension of HTTP, it only required the victim to open a shared folder instead of a malicious file which would have a higher chance of harvesting more credentials if the condition fulfilled.

To once more reduce the user interaction that our strategy relies on, adopting LLMNR/NetBIOS spoofing is the best choice under the premise of the target intranet has no WPAD server and LLMNR/NetBIOS were not prohibited. Table 2 demonstrates the comparison between methods of credential leaks.
