1. INTRODUCTION

In modern society, aging trend is getting more and more serious. The increase in the number of elderly people, 65 years old or more, living alone is remarkable for both men and women in Japan. About 1.92 million men and about 4 million women among the total population of the elderly, 13.3% for men and 21.1% for women, live alone in 2015 [1]. Therefore, it is necessary to establish an elderly support/care system. According to Ministry of Health [2], ‘fracture and fall’ is the fourth leading cause of the need for protection for the elderly.

Nowadays, the Japanese elderly care system has been gradually improving. There are many care systems in the current market. For example, specialists regularly visit elderly homes to see his/her health status: They use contact sensors to monitor the usage of home appliances or even gas in the home to know the activities of a person in the house: 24-h monitoring systems are also popular. However, these systems are difficult to deal with emergency cases.

On the other hand, according to the 2017 public opinion poll on public security [3], 60.8% of the respondents answered that “domestic public security has deteriorated over the last 10 years.” Surveillance cameras installed in a town contribute to increase the arrest rate for robbery on the street, but it is not a system to prevent crimes in advance.

In this paper, aiming at the development of a crime prevention and elderly watching system which will be used in an intelligent robot, we propose a novel human motion description and recognition method using a single camera. In conventional researches, Andrade et al. [4] proposed flow vectors for establishing optical flow distributions in regions of interest. Bobick and Davis [5] proposed Motion History Image (MHI) to describe historical motion using a single camera. Mitchelson and Hilton [6] proposed three-dimensional restoration of motion. However, most of the methods of motion recognition using a single camera such as MHI assume that the motion for recognition is on the plane perpendicular to the optical axis of the camera, and the motion toward the camera or leaving from the camera is not dealt with because of its self-occlusive nature. To describe a self-occlusive motion, Tan et al. [7] proposed a reverse MHI method and 3D-MHI [8]. But they had a drawback of computational cost. In this paper, we propose a method which can deal with the motions to and from a camera by expanding the MHI. The method is named Triplet Motion Representation Images (TMRIs) [8] with extended Histogram of Oriented Optical Flow (HOOF). It represents depth information, i.e. approaching or leaving from a camera, by three characteristic images. The performance of the proposed method is shown experimentally.

In the following, the proposed method is described in Section 2. Performed experiment and evaluation are presented in Section 3. The experimental results are discussed and the paper is concluded in Section 4.

2. PROPOSED METHOD

The proposed method is mainly separated into five steps. The first step is a foreground extraction. Since a background may change over time, extraction of a human region is performed using a background model that can cope with changes in the background. In the second step, optical flow is used to represent human movement. If the lines representing the optical flow in an image meet at a point, it is regarded as a Focus of Expansion (FoE), indicating that the motion contains the movement toward an observing camera or away from the camera. If no FoE is found, the motion is considered to be in a plane perpendicular to the optical axis of the camera. The third step is to extend the traditional MHI method into TMRIs to describe a human motion. The TMRIs are then transformed to Hu moments representation, providing a TMRI feature vector. In the fourth step, optical flow is extracted to know motion direction and its speed. For this purpose, HOOF is used. It gives a HOOF feature vector. Finally, in the fifth step, a classifier is trained using these two feature vectors. Motion recognition is performed by use of the classifier.

2.2. Computation of a FoE

In order to keep the detection of FoE stable, feature points are equally spaced on the outline of the extracted human region. In this study, LK tracker [10] is used to calculate the optical flow between successive frames. Figure 1a shows an example of optical flow of human movement. The optical flow lines are extended on the voting plane to find a FoE, as shown in Figure 1b. If the number of lines intersecting a single point exceeds a predetermined threshold, the point is regarded as a FoE.

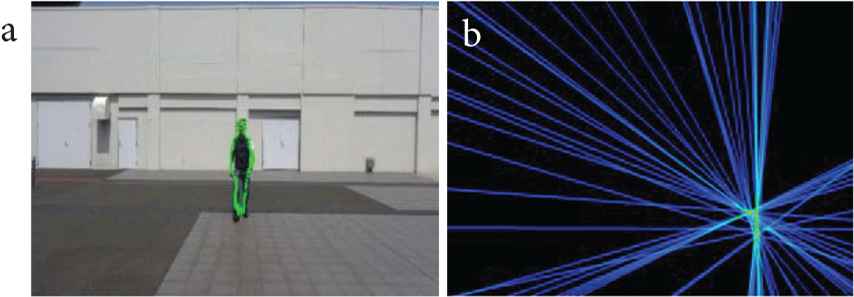

Figure 1

Extension of optical flow lines: (a) Optical flow detected from a human motion, (b) FoE on a voting plane.

Because of possible wrong detection of a FoE due to the deviation of the voting, this paper adopts a weighted voting method. It gives weight to the extended optical flow line. A larger weight is given to the pixels close to the line, whereas smaller weight is given to the pixels distant from it. A FoE exists if the result of the final vote is greater than a predetermined threshold.

2.3. Description of a Human Motion: TMRIs

The original two-dimensional (2-D) MHI is extended in the proposed method, so that it may describe a motion in a 3-D way. To realize this, we propose a motion description method using three kinds of motion history images called TMRIs. They are newness, indicating the original 2-D MHI, density, indicating the frequency of appearance in the past τ frames, and depth, showing the movement of the object in the depth direction. The definition of each image is given as follows:

Hτnew(x,y,t)={τmax(0,Hτnew(x,y,t−1)−1)    if D(x,y,t)=1otherwise. (1)

Hτden(x,y,t)=∑i=0τD(x,y,t−i). (2)

Hτdep(x,y,t)=∑i=0τ{Nlayer(t−i)×D(x,y,t−i)}. (3)

Here H_τ(x, y, t) is the gray value at (x, y, t) and D is a binary image showing a foreground region.

N_layer(t) is the number of layers to be overlapped at time t and defined by

Nlayer={γ×Lave1  if Vmax>Tvoteotherwise . (4)

Here V_max is the maximum value with voting results: T_vote is the voting threshold: γ is a constant used to determine the value of N_layer according to the size of optical flow: L_ave is the average length of optical flow.

The TMRIs w.r.t. walk to the right and walk to the back are shown in Figure 2.

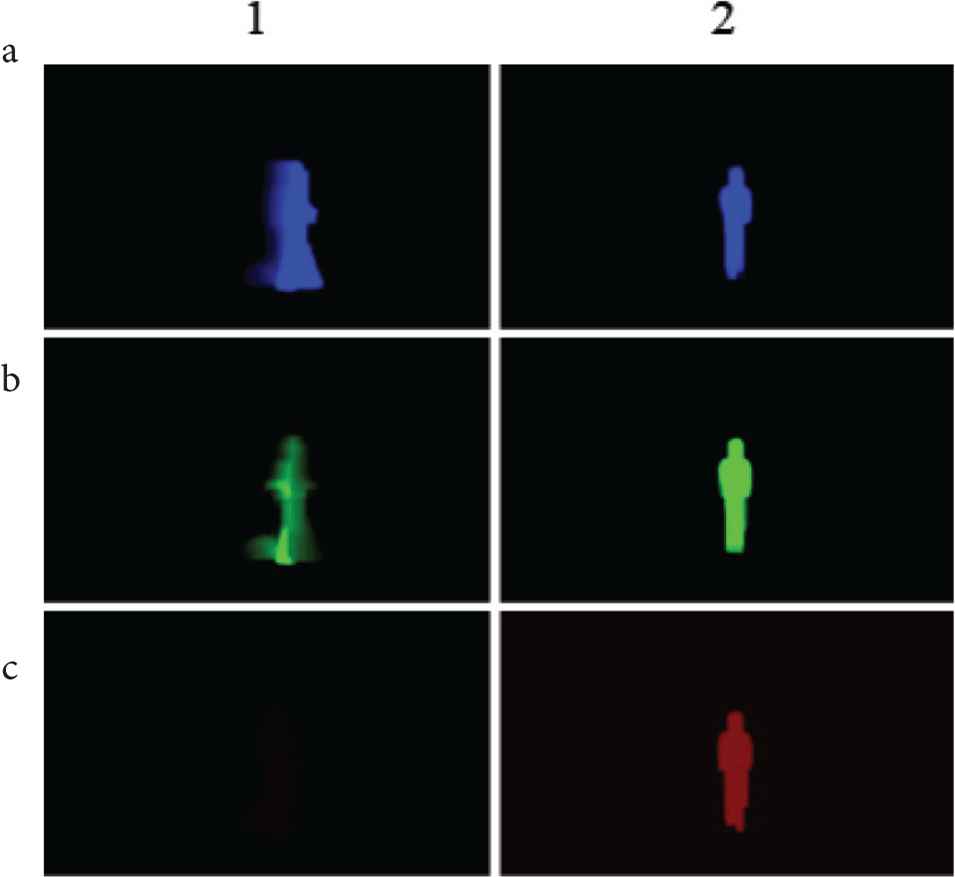

Figure 2

Examples of TMRIs: (a) newness, (b) density, (c) depth: (1) walk to the right, (2) walk to the back.

The features of TMRIs are described using Hu moments [11]. Hu moments are invariant to image scaling, rotation and flipping, and defined by seven invariant features v_i (i = 1, 2, …, 7). Since they have large difference in scale, they are changed to logarithmic values by s_i = log(sign(v_i) · v_i). The feature vector is then defined as s = (s₁, s₂, ..., s₇).

Since TMRIs contain three kinds of motion history images and each image is described by Hu moments, they are integrated to form a 2-D vector as

VTMRI=(snew,sden,sdep) . (5)

2.4. Description of a Human Motion: HOOF

The direction and the speed of a motion should also be extracted, since TMRIs does not represent them. For this purpose, the HOOF [12] method is used in an extended manner to describe the information in terms of the number of bins and the weights in calculating the histogram frequency. As shown in Figure 3, the direction of optical flow vectors are separated into n (n = 30 in the experiment) directions and the length of the optical flow of respective directions is accumulated to form a histogram representing the magnitude of optical flow with each direction.

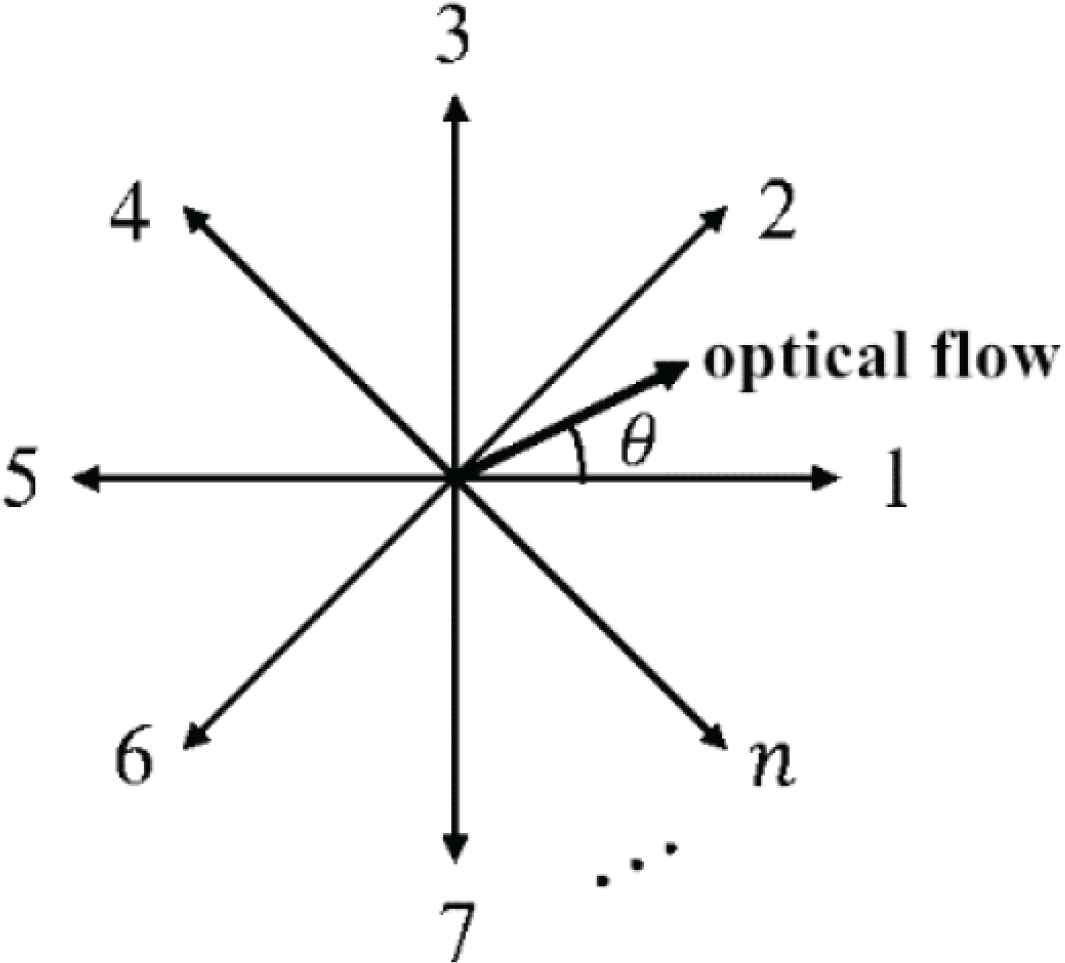

Figure 3

The extended HOOF.

Given an optical flow vector v = (x, y)^T, the angle θ = tan⁻¹(y/x) and the length L=x2+y2 are calculated. If θ is the angle between bin a and bin b, the weights w_a, w_b are calculated by

wa=|θ−2π/n×(b−1)|2π/n . (6)

wb=|θ−2π/n×(a−1)|2π/n . (7)

Then, L × w_a and L × w_b are accumulated to bin a and bin b, respectively.

As defined in Equations (1)–(4), a motion is described using τ successive frames. Optical flow vectors are calculated from every other frame among the τ frames. All these optical flow vectors in the past τ frames are accumulated in a single histogram, and normalization is performed so that the total frequency becomes 1. The feature vector of HOOF having n bins is described by

VHOOF= (f1,f2, …,fn). (8)

Here, f_i (i = 1, 2, …, n) is the frequency of the ith bin under the condition that ||V ^HOOF|| = 1.

As n = 30 in the experiment, V^HOOF is a 3-D feature vector.

3. EXPERIMENTAL RESULTS

In order to verify the performance of the proposed method, experiments were carried out on the accuracy of detection of FoE and motion recognition. The experimental video contains 12 different motions; walk left/right/front/back, walk left-front/right-front, walk left-rear/right-rear and fall left/right/front/back. Each motion was done once by four people (univ. students). Among them, six motions are represented by TMRIs and shown in Figure 4. It is noted that, as described by Equations (1)–(4), a motion is given in the form of three images (newness, density and depth). They are changed into color images using R, G and B, respectively, and superposed to make a single image. It is shown in Figure 4.

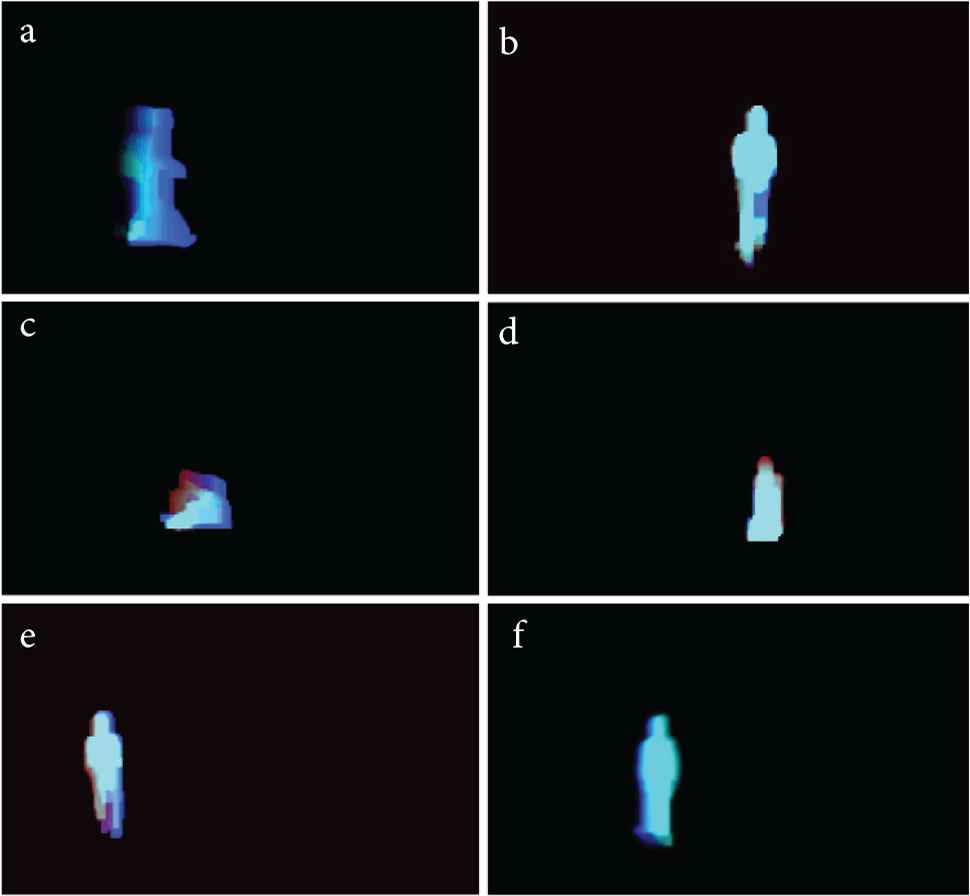

Figure 4

Examples of motions described by TMRIs: (a) walk right, (b) walk back, (c) fall right, (d) fall back, (e) walk right front, (f) walk left rear.

4. DISCUSSION AND CONCLUSIONS

In the proposed method, an arbitrary motion is described first by the TMRIs and then transformed into a feature vector consisting of Hu moments. An extended HOOF is also used to extract a feature vector on the direction and speed of each motion. The proposed method uses an overall feature vector V of Equation (9) composed of the above two feature vectors. An unknown motion is represented by V and recognized using a 3-nearest neighbor classifier. The accuracy of motion recognition by the proposed method was verified by experiments and an expected result (81.2% recognition rate) was obtained as shown in Table 1. The rate is much higher than the recognition rates of the three comparative experiments; use of MHI, and respective use of TMRIs and HOOF.

Although the recognition accuracy is acceptable in the performed experiment, the proposed method requires further improvements to make it have higher recognition rates and more stable performance by increasing training data, tuning used parameters, etc.

In most of the studies on human motion recognition, the direction of the motions they deal is almost perpendicular to a camera’s optical axis. On the other hand, TMRIs proposed in this paper can describe the motion toward the depth (optical axis) direction under a single camera. This is the main advantage of the present method over other methods. Automating the task of human motion recognition is important and expected particularly by a future robot working together with a human. The goal of the present study is to realize a strong method of human motion recognition not influenced by the direction of motion. In this sense, the present study is worth developing further.
