Distributed Rotating Encirclement Control of Strict-Feedback Multi-Agent Systems using Bearing Measurements

Authors

Tengfei Zhang, Yingmin Jia^*

The Seventh Research Division and the Center for Information and Control, School of Automation Science and Electrical Engineering, Beihang University (BUAA), 37 Xueyuan Road, Haidian District, Beijing 100191, China

^*Corresponding author. Email: ymjia@buaa.edu.cn; www.buaa.edu.cn

Corresponding Author

Yingmin Jia

Received 21 October 2019, Accepted 22 February 2020, Available Online 20 May 2020.

DOI: 10.2991/jrnal.k.200512.007 How to use a DOI?
Keywords: Strict-feedback multi-agent systems; rotating encirclement control; target localization; trajectory planning; trajectory tracking
Abstract: This paper focuses on the distributed multi-target rotating encirclement formation problem of strict-feedback multi-agent systems using bearing measurements. To this end, an estimator is presented to localize agents’ neighbor targets. Then, based on the trajectory planning method, a reference trajectory is constructed by three estimators, which are utilized to obtain the targets’ geometric center, the reference rotating radius and angular. Finally, an adaptive neural dynamic surface control scheme is proposed to drive all agents to move along their reference trajectories, which satisfy the multi-target rotating encirclement formation conditions. A numerical simulation is provided to verify the correctness and effectiveness of our proposed control scheme.
Copyright: © 2020 The Authors. Published by Atlantis Press SARL.
Open Access: This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

1. INTRODUCTION

Recent years have witnessed considerable attention on the rotating encirclement formation problem of multi-agent systems due to its significant potential applications in both military and civilian areas such as surveillance, search-and-rescue, reconnaissance, etc. [1]. Many interesting results have been achieved for the rotating formation or surrounding/encirclement control problem [1–7].

In practice, many physical systems, including manipulators, vessel, unmanned aerial vehicles (UAVs), can be written in the strict-feedback form [8]. Some important researches of the strict-feedback single/multi-agent system have been presented [8–11]. However, there is no research to date on the rotating encirclement control of high-order multi-agent system.

Motivated by the above discussion, for the first time, we consider the multi-target rotating encirclement formation problem of strict-feedback multi-agent systems, and only bearing measurements of targets can be obtained. To this end, we divide the problem into three sub-problems: target localization, trajectory planning and trajectory tracking. Four estimators are designed to construct a reference trajectory for each agent, and an adaptive neural dynamic surface control scheme is presented to drive all agents to move along their desired trajectories.

2. PRELIMINARIES AND PROBLEM STATEMENT

2.1. Graph Theory

Let 𝒢(𝒱,𝒠,𝒜,𝒝) be a weighted undirected graph corresponding to n agents and m targets, where 𝒱={v1,v2,⋯,vn,s1,⋯,sm} denotes the set of vertexes, 𝒠⊂𝒱×𝒱 denotes the set of edges, 𝒜=[aij]∈Rn×n denotes the weighted adjacency matrix of targets, 𝒝=[bik]∈Rn×m denotes the weighted adjacency matrix from targets to agents. Let d (v_i, v_j) denote the shortest distance from the vertex v_i to v_j, for instance, d (v_i, v_j) = 1 if (vi,vj)∈𝒠 . The neighbor agents set of the agent v_i is denoted by 𝒩i={vj∈𝒱|(vi,vj)∈𝒠} and the neighbor targets set of the agent v_i is denoted by 𝒩i𝒯={sk∈𝒱|(vi,sk)∈𝒠} . The neighbor agents set of the target S_k is denoted by 𝒩i𝒤={vi∈𝒱|(vi,sk)∈𝒠} .

2.2. Problem Statement

Consider a multi-target multi-agent system consisting of n agents (Index set 𝒤={1,2,⋯,n} ) and m stationary targets (Index set 𝒯={1,2,⋯,m} ) with bearing-only measurements, where the dynamic of agent v_i is written in the following q_i-order strict-feedback form.

{x˙ij=fij(x¯ij)+xij+1x˙iqi=fiqi(x¯iqi)+uiyi=xi1 (1)

where x¯ij=[xi1T,⋯,xijT]T , and x¯iqi,yi,ui∈R2 represent the states, output and control input of agent v_i, respectively. fij(x¯ij) is an unknown continuous nonlinear function.

The objective of this note is to design the distributed control scheme using bearing-only measurements of targets and the neighbor position information of agents, such that strict-feedback agents are capable of achieving the multi-target rotating encirclement formation, which is properly formulated by Definition 1 using the polar coordinate transformation yi=r¯+[licos(θi),lisin(θi)]T .

Definition 1⁴.

The multi-agent system is said to achieve the multi-target rotating encirclement formation if

limt→∞[li-λmaxk∈𝒯‖rk-r¯‖]=0 (2)

limt→∞[θi-θj-2π(i-j)n]=0 (3)

limt→∞[θ˙i-ω]=0 (4)

where i,j∈𝒤 , r_k and r¯(t)=1/m∑k∈𝒯rk denote the position of the k-th target and the geometric center of all targets respectively. The design parameter λ > 1 determines the radius of the desired rotation formation and ω represents the desired angular velocity.

To facilitate the latter control design and analysis, we make some reasonable assumptions.

Assumption 1.

All agents are connected in some undirected communication topologies and each target connected to at least one agent via the directed edge.

Assumption 2.

The radius of the desired rotation formation is bounded, i.e., there exists a positive constant d^* satisfying maxk∈𝒯‖rk-r¯‖≤d* .

Assumption 3.

The desired angular velocity ω and angular acceleration ω˙ are continuous and bounded, i.e., there exists positive constants ω^* and ωd* such that ‖ω‖≤ω*,‖ ω˙‖≤ωd* .

3. CONTROL DESIGN

3.1. Target Localization

With bearing-only measurements, the following estimator is proposed to obtain the neighbor target’s position of agent v_i according to Shao and Tian [7].

r^˙ik=αik(I-ϕikϕikT)(xi1-r^ik) (5)

where k∈𝒩i𝒯 , α_ik is a positive design parameter, and φ_ik is the unit vector from x_i to r_k.

3.2. Trajectory Planning

We design the following distributed estimators to obtain the estimations pi,l^i and θ^i of the desired geometric center r¯ , polar radius l_i and polar angle θ_i, respectively.

{p˙ik=βi∑j∈𝒩iaij[pjk-pik]+βibik[r^ik-pik]pi=1m∑mk=1pik (6)

{ρ˙i1=γi1maxk∈𝒩i𝒯(‖r^ik-pi‖)-ρi1ρ˙i2=γi2maxj∈𝒩i∪{i}(‖ρj1‖)-ρi2 ⋮ρ˙iM=γiMmaxj∈𝒩i∪{i}(‖ρjM-1‖)-ρiMl^i=λρiM (7)

θ^˙i=δi∑j∈𝒩iaik[θ^j-θ^i-2π(j-i)n]+ω (8)

where β_i, γ_i₁, ..., γ_iM, δ_i are positive design parameters, and M=maxi,j∈𝒤{d(i,j)} , which can be chosen as M = n − 1 if it is not prior information.

Then, with the polar coordinate transformation, the reference trajectory of agent v_i is provided as follows.

y^i=pi+[l^icos(θ^i),l^isin(θ^i)]T (9)

3.3. Trajectory Tracking

Define dynamic surface errors as follows.

{zi1=xi1-y^izij=xij-η^ij (10)

where η^ij(t) is the first-order filter estimation of the virtual controller η_ij(t) with the time constant τ_ij > 0 and the filter error is denoted by η˜ij=η^ij-ηij .

τijη^˙ij+η^ij=ηij,η^ij(0)=ηij(0) (11)

Then, we present the following adaptive neural dynamic surface control scheme.

{ηij=-κijzij-W^ijTSij(ζij)ui=-κiqiziqi-W^iqiTSiqi(ζiqi) (12)

W^˙ij=-Γij-1[σijW^ij-Sij(ζij)zijT] (13)

where Γij=ΓijT>0 is an adaptive gain matrix, W^ij and S_ij(ζ_ij) represent the estimation of the optimal weight matrix W_ij and the basis function vector respectively. κ_ij, σ_ij are positive design parameters.

4. MAIN RESULTS

With the proposed control scheme in Section 3, we can easily obtain the following reasonable results.

Lemma 1.

Consider the estimator (5) under Assumptions 1–2. Then for any i∈𝒤,k∈𝒯 , the estimation position r^ik will asymptotically converge to the actual position r_k of the k-th target.

Proof.

The proof is similar to Theorem 3.1 in Shao and Tian [7].

Then, we define the estimation of the targets’ geometric center as follows.

r^¯=1m∑i=1n∑k∈𝒩k𝒯1|𝒩𝒦ℐ|r^ik (14)

Apparently, r^¯ will asymptotically converge to the actual geometric center r¯ .

Lemma 2.

Consider the estimator (6) under Assumptions 1 and 2. For any i∈𝒤 , the estimation position p_i will asymptotically converge to r^¯ .

Proof.

The proof is similar to Lemma 4 in Zhang et al. [4].

Then, combining Lemma 1 with Lemma 2, we can conclude that the estimation position p_i of the i-th agent will asymptotically converge to the actual geometric center r¯ .

Lemma 3.

Consider the estimator (7) under Assumptions 1 and 2. For any i∈𝒤 , the following equation holds.

limt→∞[l^i-λmaxi∈𝒤,k∈𝒩i𝒯(‖r^ik-pi‖)]=0 (15)

In other words, the estimation l^i of the polar radius will asymptotically converge to the above value.

Proof.

The proof is similar to Lemma 5 in Zhang et al. [4].

Furthermore, with Lemma 1 and 2, it is easy to see that limt→∞[l^i-λmaxk∈𝒯(‖rk-r¯‖)]=0 , which implies that l^i satisfies the condition (2).

Lemma 4.

Consider the estimator (8) under Assumptions 1–3. For any i,j∈𝒤 , the following equations hold.

limt→∞[θ^i-θ^j-2π(i-j)n]=0 (16)

limt→∞[θ^˙i-ω]=0 (17)

In other words, the estimation θ^i of the polar angle satisfies conditions (3) and (4).

Proof.

The proof is similar to Lemma 6 in Zhang et al. [4].

Thus, from the polar coordinate transformation of (9), we can easily conclude that the reference trajectory y^i satisfies conditions of the multi-target rotating encirclement formation in Definition 1. Then, with the same analysis process as given in our article at ICAROB2020, we present the following theorem.

Theorem 1.

Consider the multi-agent system (1) in the strict-feedback form with stationary multi-targets. Suppose that Assumptions 1–3 hold. For any bounded initial condition, if we choose design parameters satisfy c_i₀ > 0, then all agents will achieve the multi-target rotating encirclement formation with the proposed control scheme in Control Design.

Proof.

The proof is similar to our article at ICAROB2020.

5. NUMERICAL SIMULATION

The strict-feedback multi-agent system, design parameters are chosen as follows and communication topologies are shown in Figure 1.

{x˙11=x11+cos(x11)+x12x˙12=x11x12+u1 x˙21=sin(x21)+u2{x˙31=2x31+x32x˙32=x31+2x32+x33x˙33=x31cos(x32)+u3 {x˙41=x41sin(x41)+x42x˙42=x41+x42+u4 x˙51=3+cos(x51)+u5{x˙61=2x61+x62x˙62=x61x62+x63x˙63=x61+sin(x62)+u6

αik=2,βi=4,γik=4,δi=2,κij=50,τij=0.01,σij=10

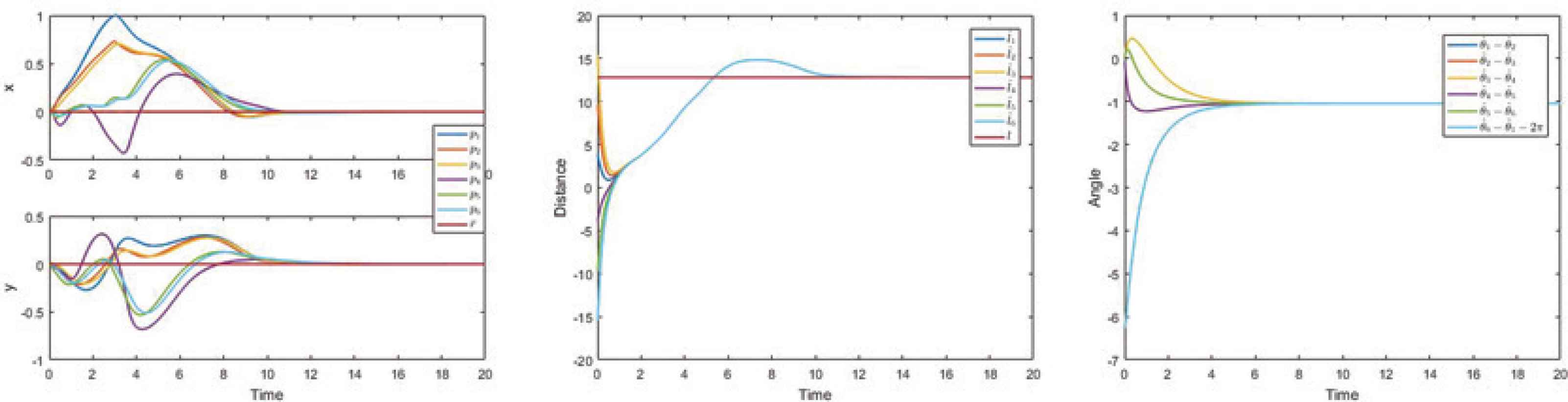

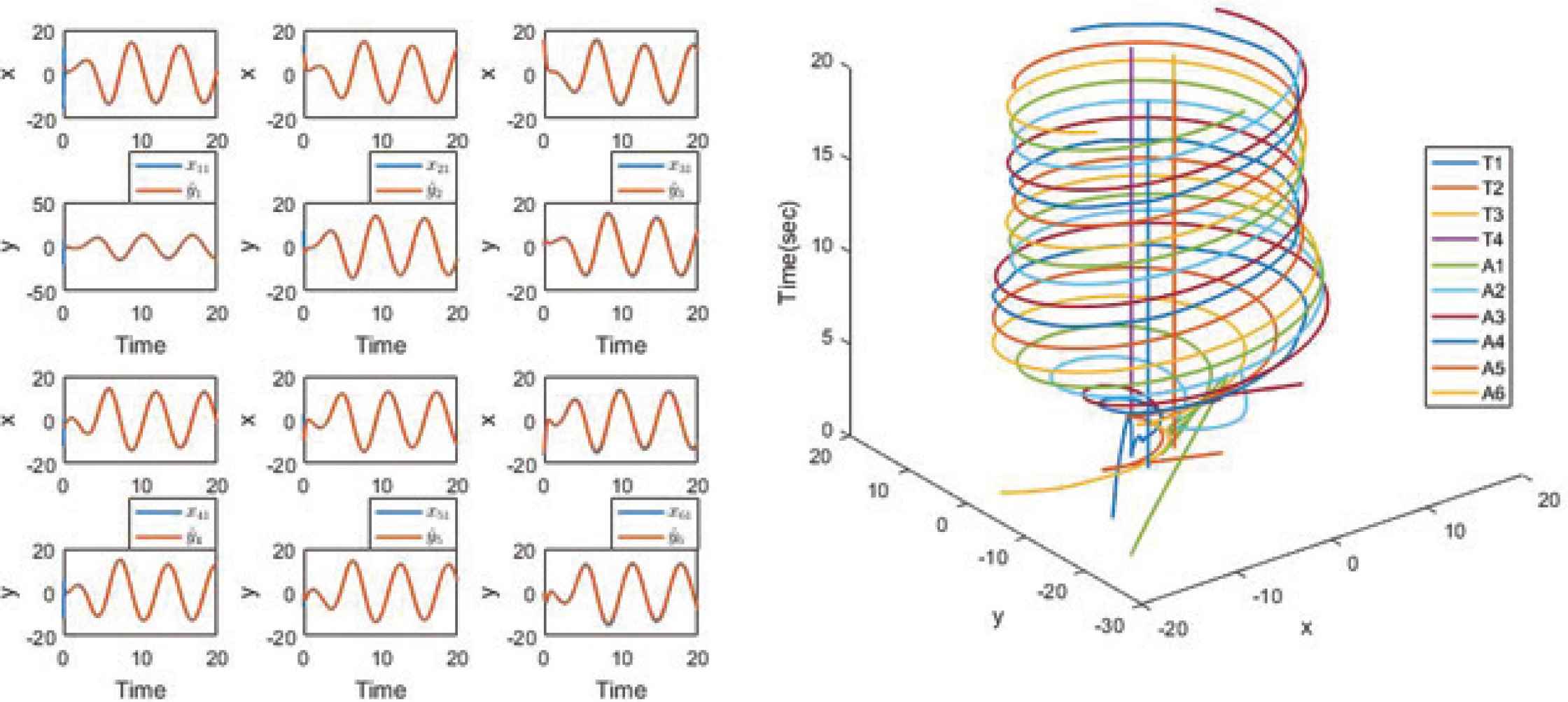

Clearly, Assumptions 1–3 are satisfied. Figure 2 shows that all agents can precisely locate their neighbor targets. Figure 3 illustrates that the reference trajectory satisfies conditions in Definition 1. Finally, Figure 4 indicates that the proposed control scheme can force all agents to track their reference trajectories and shows each agent’s trajectory in 3D.

6. CONCLUSION

The collective multi-target rotating encirclement formation problem of strict-feedback multi-agent systems is investigated by dividing into three sub-problems. Our proposed control scheme can solve this problem well.

CONFLICTS OF INTEREST

The authors declare they have no conflicts of interest.

ACKNOWLEDGMENTS

This work was supported by the NSFC (61327807, 61521091, 61520106010, 61134005) and the National Basic Research Program of China (973 Program: 2012C B821200, 2012CB821201).

AUTHORS INTRODUCTION

Mr. Tengfei Zhang

He received the B.S. degree in information and computational science from Beihang University, Beijing, China, in 2016. He is currently pursuing the PhD degree with the Seventh Research Division and the Center for Information and Control, School of Automation Science and Electrical Engineering, Beihang University. His current research interests include cooperative control of multiagent systems.

Prof. Yingmin Jia

He received the B.S. degree in control theory from Shandong University, China, in 1982, and the M.S. and PhD degrees both in control theory and applications from Beihang University, China, in 1990 and 1993, respectively. Then, he joined the Seventh Research Division at Beihang University where he is currently Professor of automatic control. From February 1995 until February 1996 he was a Visiting Professor with the Institute of Robotics and Mechatronics of the German Aerospace Center (DLR), Oberpfaffenhofen, Germany. He held an Alexander von Humboldt (AvH) research fellowship with the Institute of Control Engineering at the Technical University Hamburg-Harburg, Hamburg, Germany, from December 1996 until March 1998, and a JSPS research fellowship with the Department of Electrical and Electronic Systems at the Osaka Prefecture University, Osaka, Japan, from March 2000 until March 2002. He was a Visiting Professor with the Department of Statistics at the University of California Berkeley from December 2006 until March 2007. Dr. Jia was the recipient of the National Science Fund for Distinguished Young Scholars in 1996, and was appointed as Chang Jiang Scholar of the Ministry of Education of China in 2004. He has been Chief Scientist of the National Basic Research Program of China (973 Program) since 2011, and in particular he won the Second Prize of National Technology Invention Award in 2015. His current research interests include robust control, adaptive control and intelligent control, and their applications in robots systems and distributed parameter systems.

REFERENCES

[1]F Chen, W Ren, and Y Cao, Surrounding control in cooperative agent networks, Syst. Control Lett., Vol. 59, 2010, pp. 704-712.

[2]P Lin and Y Jia, Distributed rotating formation control of multi-agent systems, Syst. Control Lett., Vol. 59, 2010, pp. 587-595.

[3]L Mo, X Yuan, and Q Li, Finite-time rotating target-encirclement motion of multi-agent systems with a leader, Chinese J. Phys., Vol. 56, 2018, pp. 2265-2274.

[4]T Zhang, J Ling, and L Mo, Distributed finite-time rotating encirclement control of multiagent systems with nonconvex input constraints, IEEE Access, Vol. 7, 2019, pp. 102477-102486.

[5]R Li, Y Shi, and Y Song, Localization and circumnavigation of multiple agents along an unknown target based on bearing-only measurement: a three dimensional solution, Automatica, Vol. 94, 2018, pp. 18-25.

[6]T Zhang, J Ling, and L Mo, Distributed multi-target rotating encirclement control of second-order multi-agent systems with nonconvex input constraints, IEEE Access, Vol. 8, 2020, pp. 27624-27633.

[7]JP Shao and YP Tian, Multi-target localisation and circumnavigation by a multi-agent system with bearing measurements in 2D space, Int. J. Syst. Sci., Vol. 49, 2018, pp. 15-26.

[8]T Zhang and Y Jia, Adaptive neural network control of uncertain strict-feedback systems with full-state constraints by integral-barrier Lyapunov functions, IEEE, in 2018 37th Chinese Control Conference (CCC), (Wuhan, China, 2018), pp. 846-851.

[9]SJ Yoo, Distributed consensus tracking of a class of asynchronously switched nonlinear multi-agent systems, Automatica, Vol. 87, 2018, pp. 421-427.

[10]T Zhang and Y Jia, Adaptive neural network control for uncertain robotic manipulators with output constraint using integral-barrier lyapunov functions, in Proceedings of the 2018 Chinese Intelligence and Systems Conference (Wenzhou, China, 2018), pp. 71-84.

[11]W He, S Zhang, and SS Ge, Adaptive control of a flexible crane system with the boundary output constraint, IEEE Trans. Ind. Electron., Vol. 61, 2014, pp. 4126-4133.
