1. INTRODUCTION

Silicon Neuronal Networks (SNNs) [1–3] refers to a network of spiking neurons designed using silicon-based neuronal soma and synaptic circuits. Armed with local unsupervised learning rules such as Spike Timing Dependent Plasticity, they are a prime candidate to arrive at the goal of realizing autonomous learning machines addressing the major issues of high power consumption and von-Neumann bottleneck prevalent in contemporary computing architectures. These circuits are designed to mimic as closely as possible the electrophysiological dynamics of the neuronal cell body and synapses in the brain. Though various biologically realistic neuronal soma circuits have been proposed in the past, the need for a biomimetic synaptic circuit persists. The nervous system consists of a multitude of chemical synapses comprising various neurotransmitters (glutamate, GABA, etc.) which act on specific receptors on the postsynaptic membrane with low (GABA_A, GABA_B) or high (AMPA, NMDA) reversal potentials. Synapses are the key structures that localize memory as well as information processing in the nervous system, and biomimetic synaptic models have long been known to enhance the processing capability of the overall network to perform complex computational tasks [4]. In this manuscript, the experimental results of a low power biomimetic analog silicon synaptic circuit with pseudo-5-bit synaptic efficacy are presented. The circuits in the dawn approximated postsynaptic currents as pulses and neglected the exponential rising and decaying characteristics of these currents. Circuits proposed in the recent past have incorporated these temporal dynamics as well as focused on reducing the circuit footprint by having a single synapse circuit emulate multiple synapses. However, none of the low-power oriented circuits proposed to date take into account the experimentally observed first-order dependence of synaptic current on the difference between synaptic reversal potential and the instantaneous value of the membrane potential of the postsynaptic neuron. This phenomenological description of synaptic current is of paramount importance in implementing the experimentally observed phenomenon of shunting or silent inhibition. A few [3,5,6] synaptic circuits incorporate the effect of synaptic reversal potential but their implementation is not biomimetic as the current generated in these circuits is unidirectional. In addition to incorporating this effect, special emphasis has been put in the design to minimize the static power consumption of the synaptic circuit. As the synapses are activated in an event-based manner, a large scale SNN will have many synapses staying dormant at any particular time interval thus making static power consumption an important metric to be capitalized upon. The proposed circuit was designed in TSMC 250 nm process. The next section of this manuscript provides a brief description of the synaptic circuit along with the setup used for measurements, followed by results, discussion, and the planned future work.

2. SYNAPTIC MODEL

Kinetic models [7] of chemical synapses that describe the neurotransmitter kinetics are capable of precisely reproducing the experimentally observed dynamics of postsynaptic currents. Following the analysis in Destexhe et al. [7] and generalizing the response over various receptor types, a phenomenological description of the synaptic current is given by:

3. PROPOSED SYNAPTIC CIRCUIT

3.1. Operation and Description

The proposed synaptic circuit (Figure 1) can be compartmentalized into three major blocks, a binary-weighted Digital to Analog Converter (M1–M10), an integrator circuit similar to the log domain integrator [8] (C_syn and M11), and a transconductance stage (M12–M18) to simulate the first-order dependence of synaptic current described by Equation (1). All the transistors operate in the sub-threshold regime and the circuit functions as follows. The DAC activated by an input pulse at the node nV_in, sources a current I_w into the node V_syn charging it linearly. The strength of I_w depends on the synaptic weight controlled by the state of the binary bits (nWa–nW2) and the value of the bias voltage sV_w. During the DAC activation I_w is given by (ignoring short channel effect):  

Iw=Iwoe(k*sVw-Vsyn)UT, (2)

where I_wo, sV_w and V_syn represent the leakage current, the gate voltage and the source voltage of the transistors M4, M6, M8, and M10 respectively. When the input pulse turns off, the DAC is deactivated shutting down I_w, and the transistor M11 operating in the saturation region linearly discharges the node V_syn sinking a constant current I_τ given by:

Iτ=Iτoe(k*sVt)UT, (3)

where I_τo represents the leakage current of M11, and sV_t is the bias voltage that controls the strength of I_τ and thus the time constant of the synaptic circuit (along with the capacitor C_syn). This node V_syn is connected to the tail transistors of the transconductance stage (M12 and M13) which generates either an Excitatory Postsynaptic Currents (EPSC) or inhibitory postsynaptic current depending on the value of E_syn relative to V_mem described by Equation (4):

Isyn=Ioe(kVsyn-Vref)UT*tanh(k2UT(Esyn-Vmem)), (4)

where I_o and V_ref represent the leakage current and the source voltage of the tail transistors respectively. The tangent hyperbolic function can be approximated by a linear function around the origin, thus for a small voltage difference between E_syn and V_mem, Equation (4) can be linearized to obtain:

Isyn=(Ioe(kVsyn-Vref)UT*k2UT)*(Esyn-Vmem). (5)

The phenomenological model of Equation (1) to describe the synaptic current is thus realized. Here the first term (in bracket) represents the transconductance of the circuit, represented by g_syn in Equation (1). The source of the tail transistors is connected to the node V_ref set to 20 mV. It minimizes the leakage current of the transconductance stage when the circuit is inactive (with V_syn = 0 V).

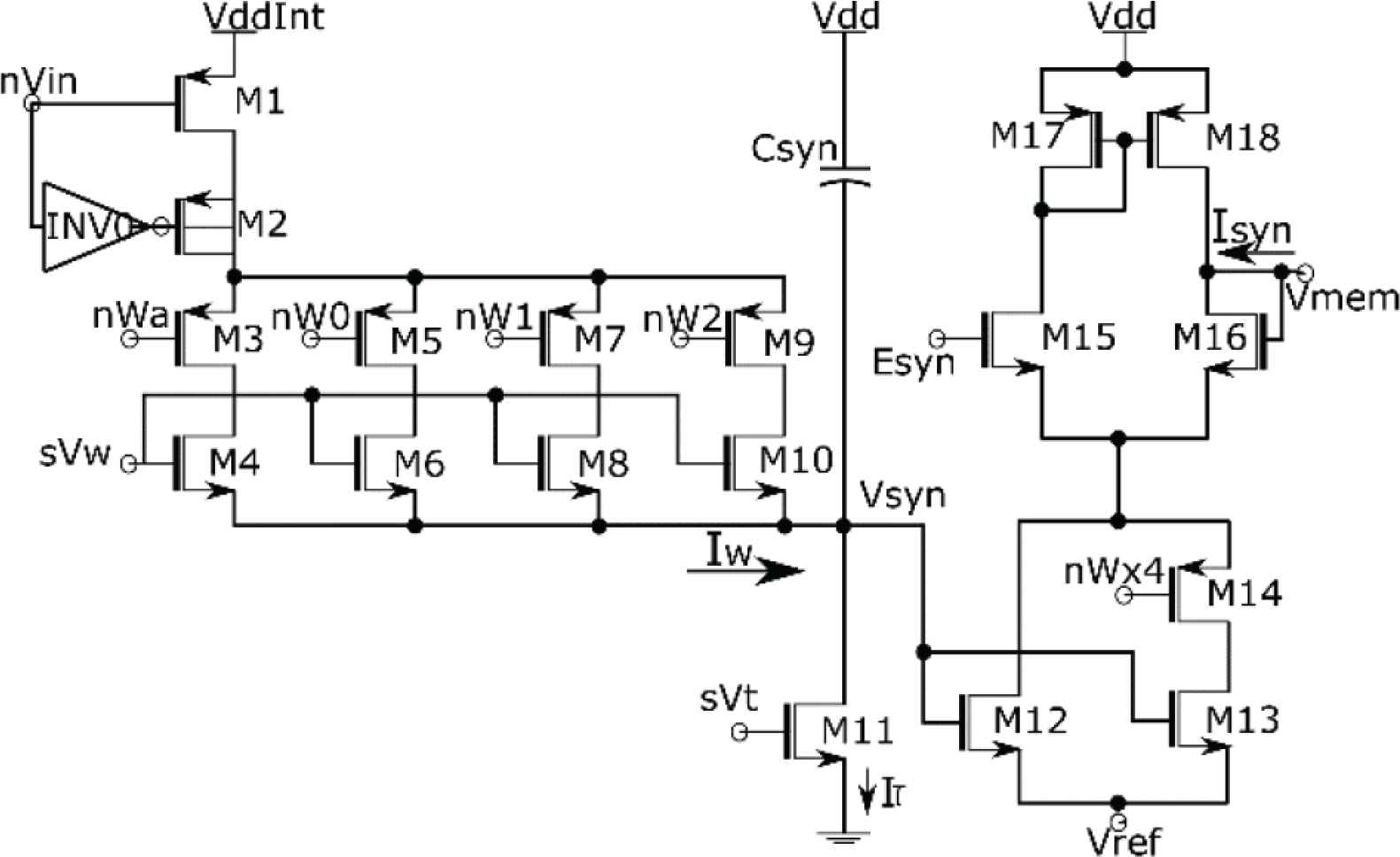

Figure 1

Schematic diagram of the proposed synaptic circuit. Dimensions of the transistors: M4 = 0.3758 * (w/l), M6 = w/l, M8 = 2 * (w/l) and M10 = 4 * (w/l) with w = 2 µm, l = 500 nm. Tail transistor M13 is three times wider than M12.

4. RESULTS

Unless specified otherwise, the results presented are from the synapses in the TEG and the voltage parameters listed in the caption of Figure 2 were used for measurement. The synaptic current was measured and plotted in terms of voltage across the high resistance circuit. Figure 3 shows the synaptic waveforms mimicking the response of the four major neurotransmitters. Figure 4 shows the plot of synaptic currents over the dynamic range of synaptic weights described in Table 1. The synapse was configured to be in excitatory mode with E_syn = 600 mV. Figure 2 demonstrates the first-order dependence of synaptic current on the difference between synaptic reversal potential (E_syn) and membrane potential (V_mem). Membrane potential was kept fixed at 700 mV (resting potential of neuronal soma). As expected from Equation (5) the relationship is approximately linear. Zero crossing occurs at around 707 mV instead of 700 mV due to the mismatch of transistors in the transconductance stage. The variation in the value of the time constant of the (falling phase of) synaptic waveform across the range of synaptic efficacy for different values of sV_t is plotted in Figure 5. The maximum time constant obtained for the value of sV_t = 0 V was on average around 175 ms with a standard deviation of 10.5% about the mean. The mean and the percentage standard deviation around the mean for the rest of the sV_t values are labelled in Figure 5.

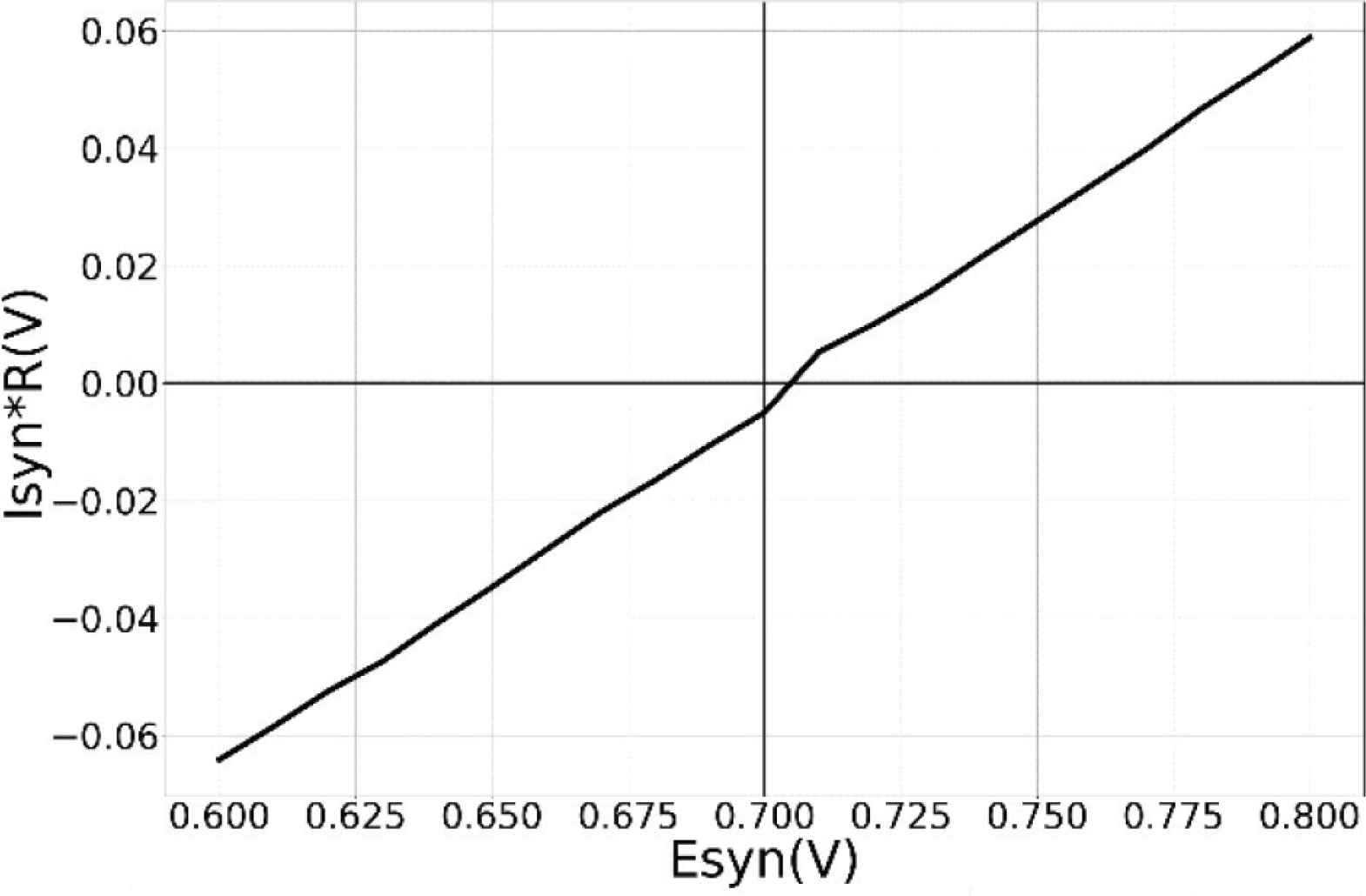

Figure 2

Dependence of synaptic current on synaptic reversal potential. Y-axis reflects the peak value of the synaptic current. Parameters used: sV_w = 140 mV, sV_t = 0, E_syn = 600 mV with maximum synaptic efficacy.

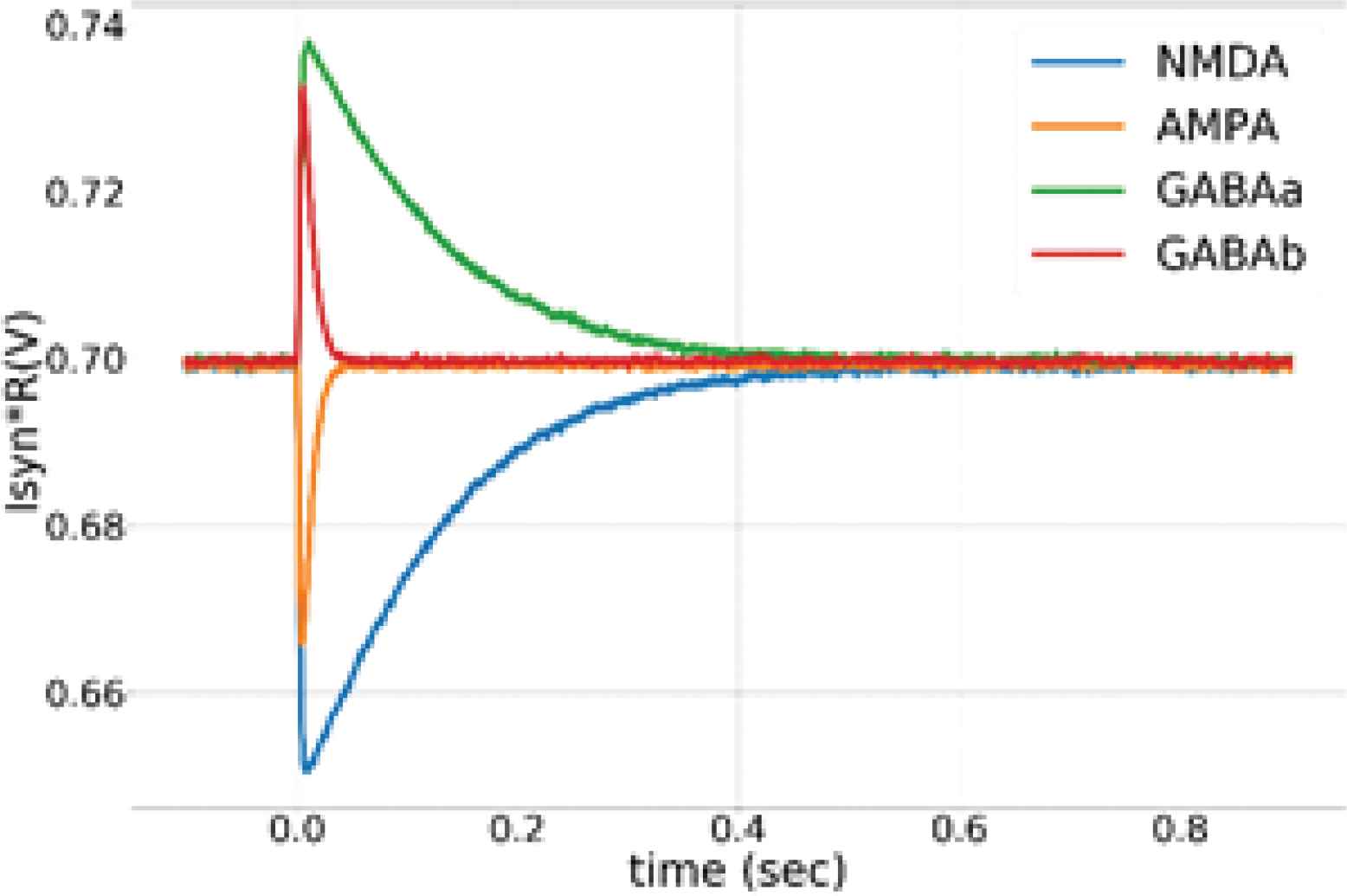

Figure 3

Synaptic currents emulating the response of excitatory neurotransmitters AMPA, NMDA (with E_syn = 600 mV) and inhibitory neurotransmitters GABA_A, GABA_B (with E_syn = 800 mV). sV_t was set to 10 mV for NMDA and GABA mode and to 120 mV for AMPA and GABA_A mode.

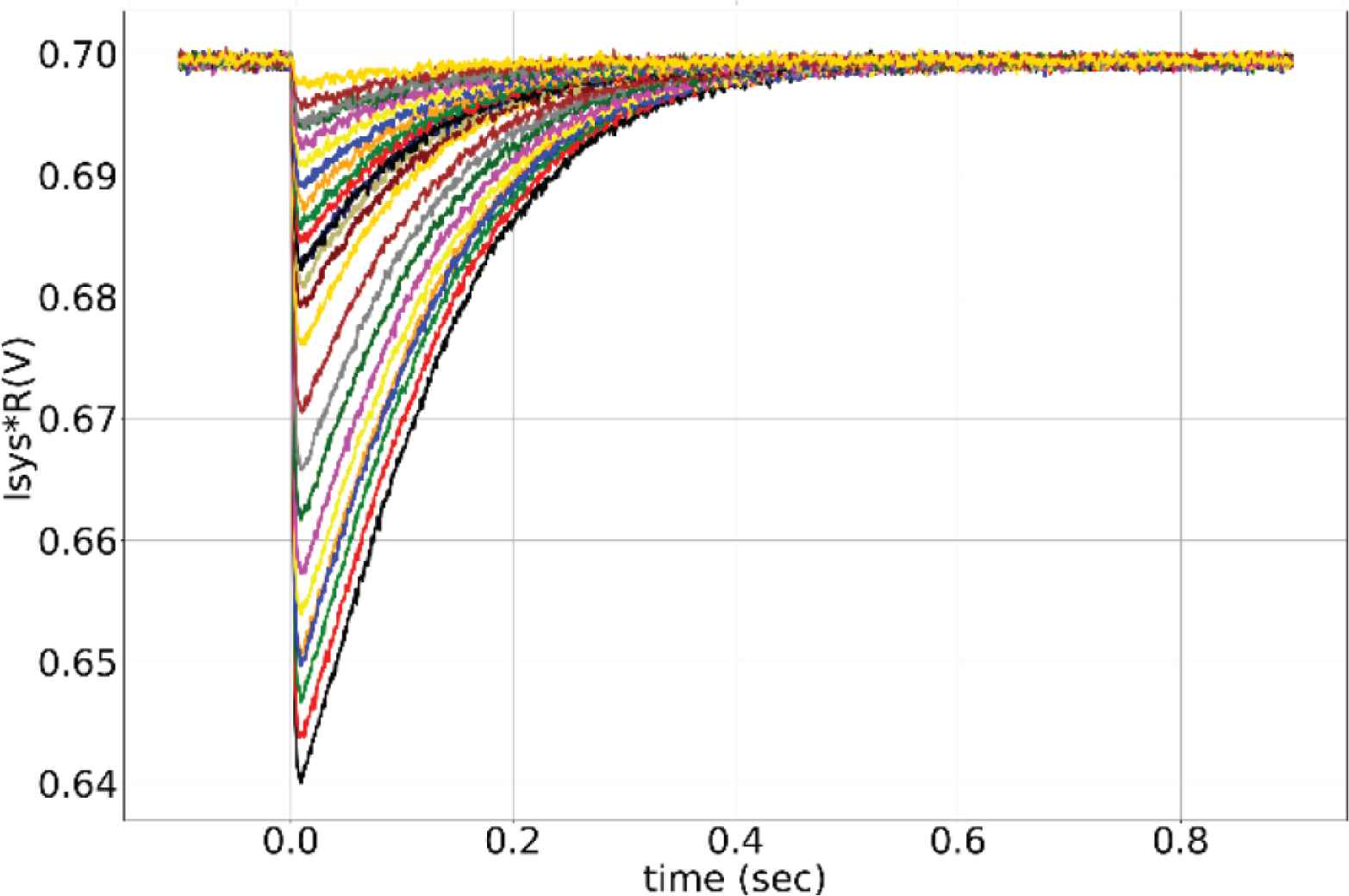

Figure 4

Synaptic current output over the dynamic range of the synaptic weights. Parameters used: sV_w = 135 mV, sV_t = 0, E_syn = 600 mV.

Figure 5

Profile of time constant for various values of sV_t across the range of synaptic efficacy.

To characterize the mismatch and examine the desired monotonicity of the DAC stage, the following procedure was adopted. With the spiking circuitry of the neuronal soma deactivated, thus acting as a passive membrane, excitatory postsynaptic potential from 128 synaptic circuits was measured individually across the range of weight values of 4-bit binary-weighted DAC (from 0000 to 1111) giving a total of 2048 EPSPs. Due to the non-linear relationship between EPSP and EPSC an elaborate procedure involving current sources in the neuron circuit was used to construct a lookup table mapping the value of EPSP to corresponding EPSC. The mean and the standard deviation (represented by error bars) of the peak value of the synaptic current across the range of 4-bit synaptic efficacy for 128 synaptic circuits are plotted in Figure 6. Out of 128 synaptic circuits, a kink in the desired monotonicity was observed in 58 synapses between the synaptic efficacy value of 7(0111) and 8(1000). The maximum standard deviation was recorded to lie in between 5% and 20% of the mean value for maximum and minimum values of synaptic efficacy respectively (error bars at synaptic efficacy values 15 and 1 respectively).

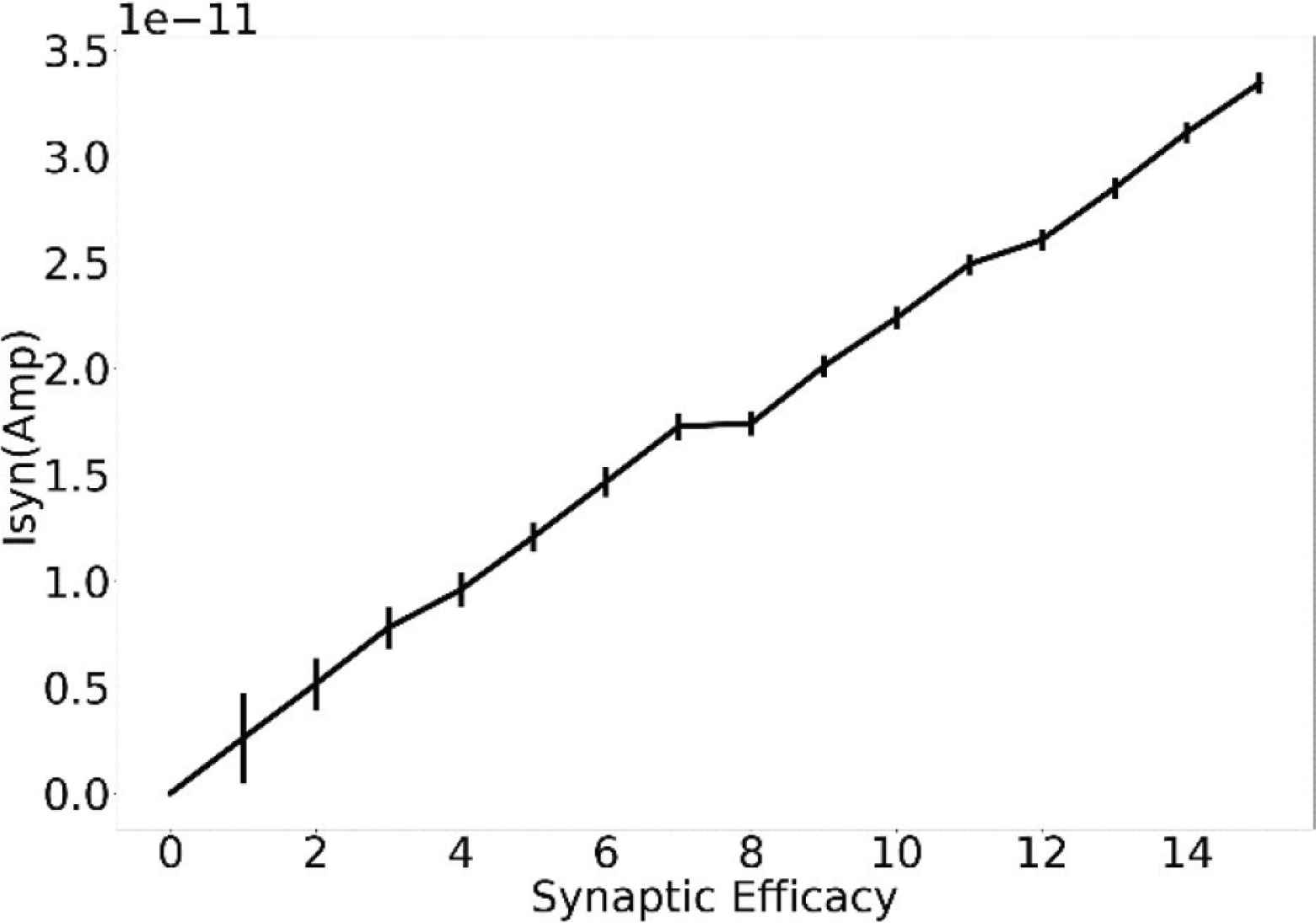

Figure 6

Average value of the peak synaptic current for 128 synapses across the range of synaptic efficacy to characterize the DAC. Error bars capture variation across mean value of current.

The static power consumption of each circuit was limited to be under 2 pW and the dynamic energy consumption is measured as follows. For sV_w = 110 mV (peak synaptic current of around 5 pA) and time constant of 160 ms, the input stage of our circuit consumes around 40 fJ per synaptic event and the integrator and the transconductance stage consume around 500 fJ (this value reduces to 112 fJ for a time constant of 3 ms).

5. DISCUSSION

As described above the deviation of EPSC intensity from the desired monotonicity with respect to the value of synaptic efficacy was observed between efficacy values of 7(0111) and 8(1000) for around 46% of the synaptic circuits. Around 6% of the synaptic circuits displayed deviation from monotonicity between the synaptic efficacy value of 3 and 4, and 11 and 12. The probable reason for this deviation is device mismatch combined with second-order and parasitic effects associated with the half-size transistor (M4 in Figure 1), but this could not be confirmed quantitatively due to the unavailability of statistical mismatch data in TSMC 250 nm CMOS PDK needed to perform Monte-Carlo simulation. The observed variation in standard deviation between the minimum and maximum values of synaptic efficacy is apparent from the size of transistors used in the DAC stage (see Figure 1 caption). For the synaptic efficacy value of 1, only the half-size transistor M4 (w = 750 nm, l = 500 nm) is active. As smaller devices exhibit higher mismatch, the standard deviation about the mean value of EPSC is higher in this case, and as the value of synaptic efficacy increases with additional full-size transistors M6 (w = 2 µm, l = 500 nm), M8 (w = 2 × 2 µm², l = 500 nm) and M10 (w = 2 × 4 µm², l = 500 nm) being activated the standard deviation about the mean decreases.

Data similar to one in Figure 6 but with the synaptic reversal potential value of set to 800 mV displayed higher standard deviation with respect to the mean value of the peak synaptic current. In other words the variance in the peak value of the synaptic current (measured for all synapses) for a particular value of synaptic efficacy was higher in the case of inhibitory synapses than in the case of excitatory ones. When configured in the inhibitory mode [(E_syn = 800 mV) > (V_mem = 700 mV)], most of the current sourced out of the V_mem node is activated through the path M15 → M17 → M18. The use of relatively short transistors (L = 400 nm) in the current mirror devices (M17 and M18) led to a higher mismatch among them throughout the synaptic array and thus higher standard deviation was observed. When configured in the excitatory mode [(E_syn = 600 mV) > (V_mem = 700 mV)], the current sourced into the node V_mem is activated through the shorter path consisting of M16. Due to their larger dimension, transistors M15 and M16 are better matched throughout the synaptic array and thus the standard deviation is smaller for synaptic circuits configured in the excitatory mode than in inhibitory mode. In other words, over the range of various reversal potential values, higher the contribution of current from transistor M18 into the node V_mem, which would depend on the relative difference between E_syn and V_mem, higher would be the standard deviation about the mean value of synaptic current throughout the synaptic array. As the transition frequency of the MOS transistor depends inversely on the square of its length, using a longer device leads to a sluggish synaptic response when configured in inhibitory mode (due to the relatively long path taken by the current). Making a trade-off between the response time and the probable mismatch effects, the length of the transistors was chosen to be 400 nm. This mismatch along with the Drain Induced Barrier Leakage effect on M18 led to a higher leakage current in the case synapses configured in inhibitory mode than in excitatory mode, also resulting in the offset in the zero-crossing observed in Figure 4. Though this additional leakage current can be compensated in the soma circuit, this difference needs to be minimized. One possible way which was verified via simulation was to separately control the bulk voltage of the current mirror transistors and fix it at a value higher than V_dd.

A standard deviation of about 10% around the mean value was observed in the time constants over the range of synaptic efficacy for various sV_t values (Figure 5). This variation arises due to the transition of the operating region of the transistor M11 from saturation to linear during the discharging phase of the node V_syn. Ideally during the discharge phase, the transistor M11 should be sinking a constant current depending only on the value of applied bias voltage sV_t independent of its drain voltage (V_syn), but the transistor deviates from this ideal behavior for smaller values of V_syn and the current drawn decreases. The node V_syn charges up to different voltage levels for different values of synaptic efficacy, thus during the discharge phase there is a variation in the value of time constant across the range of synaptic efficacy, even if the value of the bias voltage sV_t is kept constant.

6. CONCLUDING REMARKS

Experimental results of a low power biomimetic silicon synaptic circuit fabricated in TSMC 250 nm technology node was presented. The circuit is the first low power synaptic circuit that takes into account the effect of synaptic reversal potential and the instantaneous membrane potential of the postsynaptic neuron on the synaptic current. To capitalize on the event-based nature of neuronal communication the design focused on minimizing static power consumption of the synaptic circuit, a metric not yet evaluated or reported in almost all contemporary CMOS based synaptic circuits. This first-generation chip contains only 128 synapses with just one input stage per integrator. The number of input stages can be increased to a higher number, the design is completely modular. Thus the number of synapses can be expanded by placing additional silicon synaptic modules. Issues related to device mismatch in the DAC and the transconductance stage were characterized and will be fixed in the future.
