1. INTRODUCTION

The sphere is concise shape with the smallest surface area, the largest volume, and rolling in all direction. It is the most excellent shape existing in the universe, and the best rolling body that every animal likes to play with. The typical characteristics of the sphere are: (1) when no friction and air resistances, an ideal sphere with uniform density will be kept moving forward straightly and smoothly by the inertia force and moment of inertia; (2) when the mass centroid close to the sphere center, the position attitude is in stable, and when the mass centroid away from the center, the sphere has a strong tendency to self-stabilization, etc. The characteristics of spheroid inspire the enthusiasm of scholars to invent many kinds of spherical robots. Since the spherical robot concept first appeared, it was considered as a new technology to lead the robot industrial revolution such as the implementation in planet-moon exploration, military usage, and inevitably arising the demand of the toy entertainment industry [1,2].

Through reviewing literature and patents, there are several types of representative spherical robots, and according to their physical driving principles, the current spherical robots with omnidirectional motion performance could be divided into two typical categories: (1) Inertia moment driving type [2], the principle is to rely on the rotating inertia moment to drive the omnidirectional rolling of a spherical robot, but the inertia moment needs the rapid rotation like spinning gyroscope to acquire enough driving force. (2) Eccentric torque drive type, its principle is to rely on the motion of eccentric mass centroid producing the eccentric torque on the fulcrum, and the eccentric torque drives the spherical robot rolling. The invention of drive mechanism with eccentric torque driving the spherical robot has been very rich [3–9]. One of the earliest and concise spherical robots is invented and researched by Halme et al. [3]. Its driving mechanism is made up of a driving wheel, a steering shaft and a balance wheel. One of recent and most concise spherical robots is reported by Wei et al. [9]. It has two independent driving omni wheels located at each end of the inside vertical diameter of the sphere shell, and the two wheels’ axes are in orthogonal position. Both omni wheels can roll on the inner surface of the spherical shell by their friction forces. The lower omni wheel is responsible for walking drive, and the upper one for steering drive.

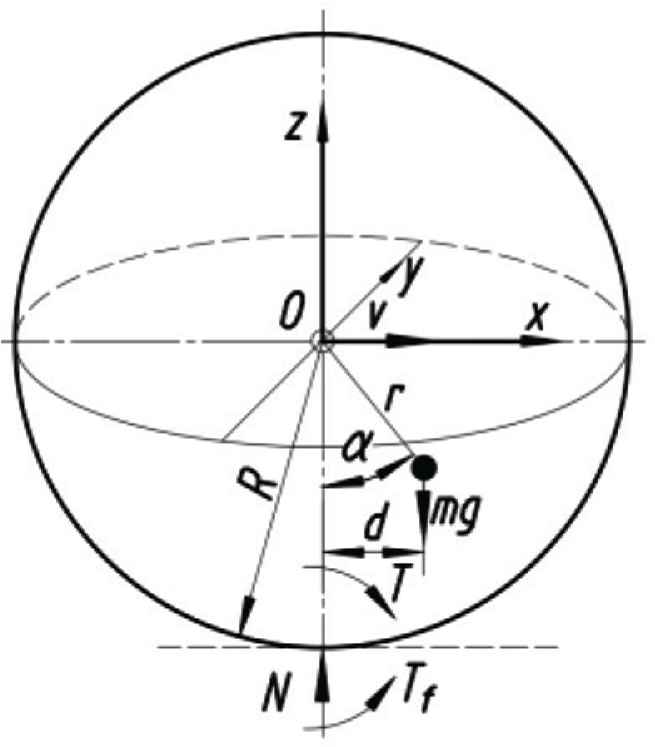

Although there are many mechanisms to realize the eccentric torque drive principle, their physical model can be described briefly as shown in Figure 1. Supposing the only resistance is the rolling resistance torque T_f , the torque T caused by mass centroid is considered to drive or steer the robot rolling. The distance r which from the sphere center to the mass centroid m directly determines the quantity of the driving torque T, that is, T = m⋅g⋅r⋅sin(a). When T > T_f , the spherical robot will start to move and increase speed. When T = T_f , the spherical robot will move uniformly. When T < T_f , the spherical robot will reduce speed until stop.

Figure 1

Principle of eccentric torque drive.

This paper proposes a novel and concise spherical robot mechanism with only one omni wheel to drive the eccentric torque overcome the rolling resistance torque. The spherical robot can realize the omnidirectional motion in any direction. The omni wheel is arranged by a series of small rollers around the circumference which are perpendicular to the driving direction. When omni wheel drives, its rollers can slide laterally on the wheel periphery. The lateral rolling of small rollers does not interfere its circumferential driving function. The mechanism is shown in Figure 2. The spherical robot driven by one omni wheel will be analyzed as following in several aspects as mechanism composition, motion and dynamics analysis etc.

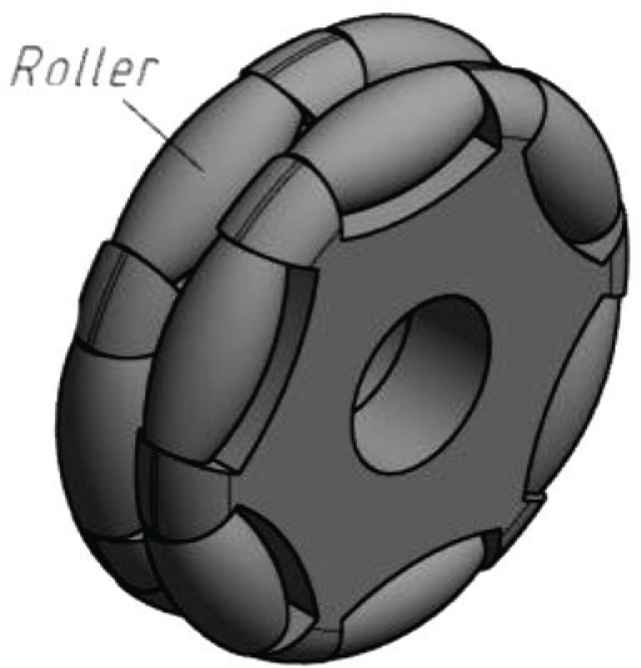

Figure 2

Omni wheel.

2. MECHANISM

The spherical mobile robot contains spherical shell, arc track and drive assembly which include chassis, support wheels, driving motor, steering motor, side wheels, springs etc. Its interior structures are shown in Figure 3. The structure shows the mass centroid is in the lowest position now. An omni wheel is located under the arc track and touches the inner surface of the spherical shell. The support wheels, driving motor, steering motor, side wheels, springs and omni wheel are fixed in the chassis. The support wheels roll along the arc track by the track force which are acquired by the friction from the springs pressure, or by the engaged gear track and wheel. The side wheels keep the omni wheel stable in the arc track plane and let the drive assembly moving along the arc track freely.

Figure 3

Drive mechanism of single omni wheel.

3. FUNCTION ANALYSIS

The robot has two moving functions, rolling function and turning function. The rolling function is shown in Figure 4. When driving motor starts up, the spring force and the gravity of drive assembly under arc track provide friction to let the moving parts climbing the inner spherical shell, and then the eccentric mass provides the eccentric torque to roll the spherical shell forward or backward. The side wheels can keep the drive assembly in stable and reduce the friction to arc track when the drive assembly moving along the arc track, that is the omni wheel can always touch the inner surface of the spherical shell. When steering motor starts up, the support wheels run along the arc track to drive the chassis and its drive assembly left or right, and at the same time the omni wheel will slide laterally, so the eccentric mass provides the eccentric torque to turn the spherical shell turning left or right. Driving motor and steering motor can operate simultaneously, they don’t interfere with each other. The turning function is shown in Figure 4. The driving motor turns the mass center α angle and produces the eccentric torque to roll the spherical robot forward. The steering motor turns the mass center β angle and produces the eccentric torque to turn the spherical robot left.

Figure 4

Driving pose and steering pose.

4. COORDINATE SYSTEMS

Built the coordinate systems is the first step to do the analysis of the kinematics and dynamics. The coordinate system W-XYZ is attached on the ground, and the coordinate system S-XYZ is established on the center of spherical robot. The A-XYZ is the arc track coordinate system located at the sphere center. The O-XYZ is the omniwheel coordinate system. The O-XYZ slides or rotates along the A-XYZ. The A-XYZ rotates around the S-XYZ. The S-XYZ rolls on the W-XYZ. The relationship built between the coordinate systems is shown in Figure 5. That is the fundamental to simplify the analysis of the kinematics and dynamics.

Figure 5

The relationship of the coordinate systems.

5. CONCLUSION

The mechanism of the spherical robot takes advantage of the characteristics of the omni wheel, and it combines the driving and steering together in the simplest way. The spherical robot lowers the center of drive assembly gravity which can generate the maximized eccentric driving torque. The simulation with the mechanical dynamic analysis software ADAMS shows that the mechanism can facilitate the motion toward any direction successfully, and it has a variety of good motion capabilities, such as obstacle crossing, jumping, small radius steering etc. As the ends of arc track limit the lateral sliding of the omni wheel, its steering function is a little bit weak and more behaviors of the spherical mobile robot will be explored further.

CONFLICTS OF INTEREST

The authors declare they have no conflicts of interest.

ACKNOWLEDGMENTS

This research was funded by China National High Technology Research and Development Plan (863 Plan) 2013AA041302.
