1.1. Related Works

Random picking is a challenging problem in the robotics and computer vision fields. The aim of this task is to pick up objects which are manipulated under structured layout by using a robot arm’s end-tip effector. Bin picking was studied when Amazon started the picking challenge. By using a 3D image sensor, the position and pose of the object to be picked up are calculated [3].

On the other hand, for the industrial random picking robots, FANUC, YASKAWA, etc. have developed the bin picking robot by using the structured light or binocular camera.

1.2. Contributions

In some special application such as bottles being put in the ice water, a normal 3D sensor cannot get the correct depth information. In this paper, a deep-learning-based image processing method is purposed to detect and segment the randomly ordered Polyethylene Terephthalate (PET) bottles by using a monocular Red Green Blue (RGB) camera instead of a depth sensor.

Additionally, this research also discusses the brands’ recognition under the overlapped conditions by using the Inception v3 [4] without the knowledge on the target.

2.1. Network Training Stage

The network training is divided into five steps as shown in Figure 1. First, the Mask Regional Convolutional Neural Network (R-CNN) [5] is pretrained by the Microsoft Common Object in Contest (COCO) dataset. The COCO dataset has a large number of images with labels and segmentation lines. To prevent overfitting, the Mask R-CNN is trained with all 80 classes of COCO dataset. Second, around 200 photos are taken or found for each brand of bottle. Next, the dataset of bottles is used for fine tune the Mask R-CNN. Then, all the images are augmented with random cutting and perspective transform to increase the dataset size to 1500 brands per brands. Finally, the augmented images are used for training for brand recognition.

Figure 1

The network training process.

The training of Mask R-CNN takes 160 epochs in total, where 40 epochs for the classification head, and 120 epochs for the ResNet-101 backbone.

Around 80% of the images are randomly selected for the training, and the remaining 20% of images are used for validation. The training is performed with learning rate 0.01 and the training is stopped when the validation accuracy no longer rising along with the training accuracy.

2.2. Detection Stage

The detection stage contains four steps as shown in Figure 2. First, the Region of Interest (ROI) box and the mask are needed to be generated by using Mask R-CNN. Next, the mask is bitwise-AND with the original image. Then, by using the ROI generated in the first step, a bottle is cut out from the image with a black background. Finally, for each image with only one bottle visible are sent to the Inception v3 network for brand recognition.

Figure 2

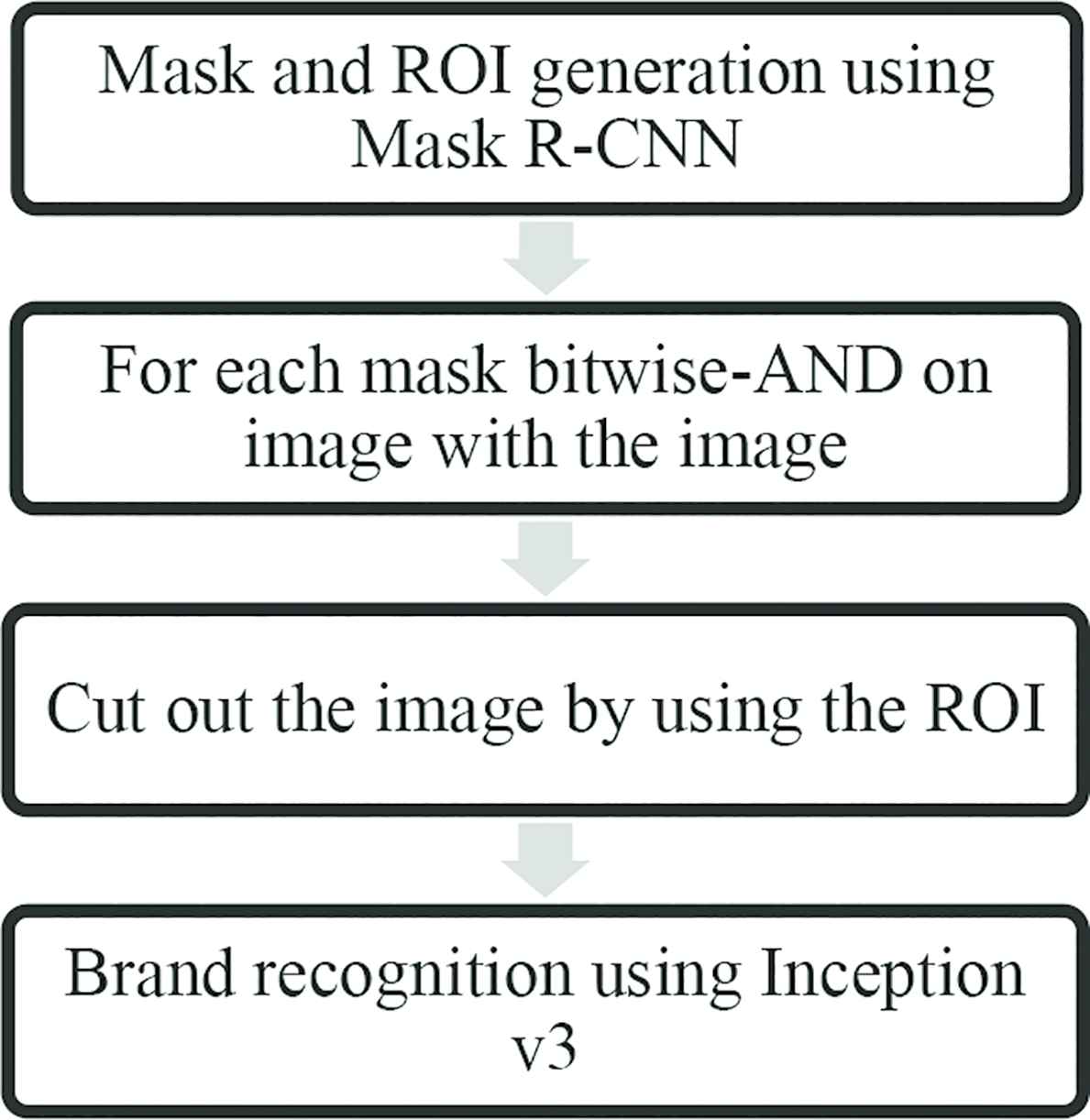

Detection process.

The output of the Inception v3 is a vector with six elements that indicate the confidence of each class. The evaluation of the brand recognition is based on the comparison between the ground truth, human labeled and the highest confidence of network output, so that it is possible to see the accuracy of brand recognition by using Inception v3 compare to human beings.

Assuming the set of objects with size N is S. The total image of objects detected from the image is S = S_human ∪ S_inception and images cannot be classified by Inception v3 or human is S_failed and S_e as shown in Figure 3. The accuracy of brand recognition P is calculated by formula (1).

Figure 3

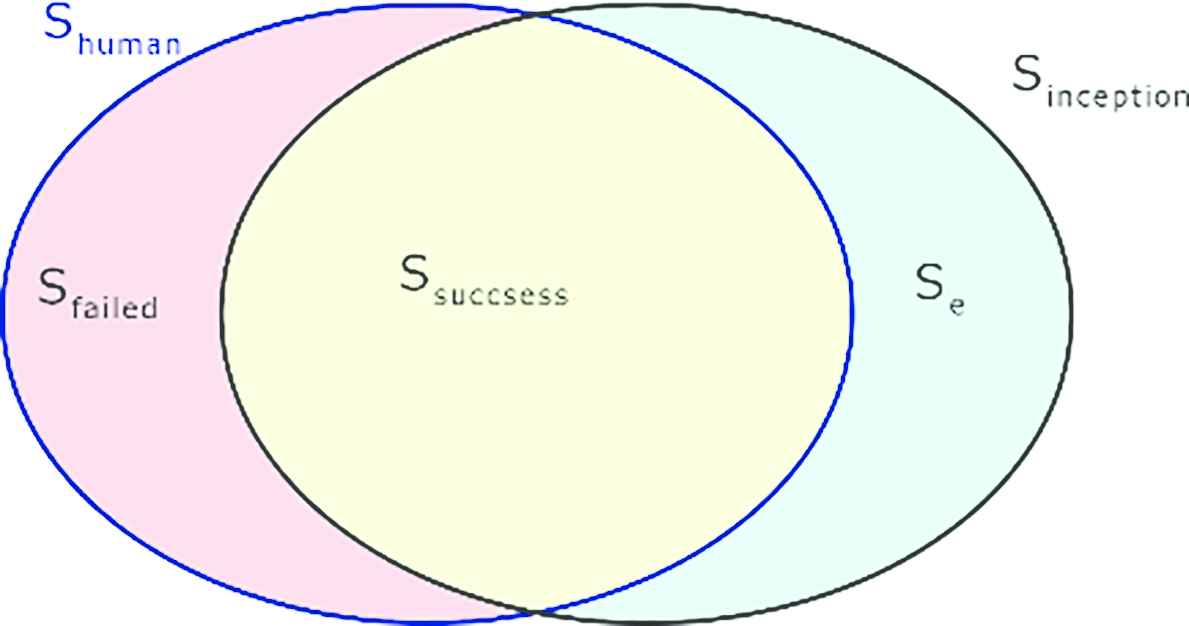

Brand validation result set.

3.1. Training of Mask R-CNN

The bottles are the primary detection target in this research. However, the number of images that can be used to retrain the whole network is limited. The COCO dataset comes with 80 classes for object detection plus 1 class for background. So, all 81 classes are used for training the whole network at first. Then the bottles taken from the test subject are labeled with a class name and a mask as shown in Figure 4.

Figure 4

Image segmentation for training.

The training rate in this step is set to 0.01 and only training the mask and classification parts in the network.

3.2. Training for Brand Recognition

The brand recognition is implemented by the Inception v3. Retraining the whole network will cause too much time and easy to get overfitted. So, the initial weight of Inception v3 is transferred from the object recognition network. In this research, six kinds of drinking in the Japan market including Oiocha, Coca-Cola, Calpis, Afternoon tea, Irohasu, and Nama cha are selected as test subject. For each brand, around 150–200 images are collected from the Internet or taken directly. Then, the images are processed randomly with cropping, perspective transform, rotation and zooming to increase the number of images up to 2000 for each brand as shown in Figure 5.

Figure 5

Image augmentation.

During the training stage, 20% of all the images in the dataset is selected as the validation dataset. The accuracy of the training is record on the end of each batch. The training of the Inception v3 stops, based on the accuracy that convergence to around 0.85 as shown in Figure 6. The validation accuracy stops increase after around 3500 training steps.

Figure 6

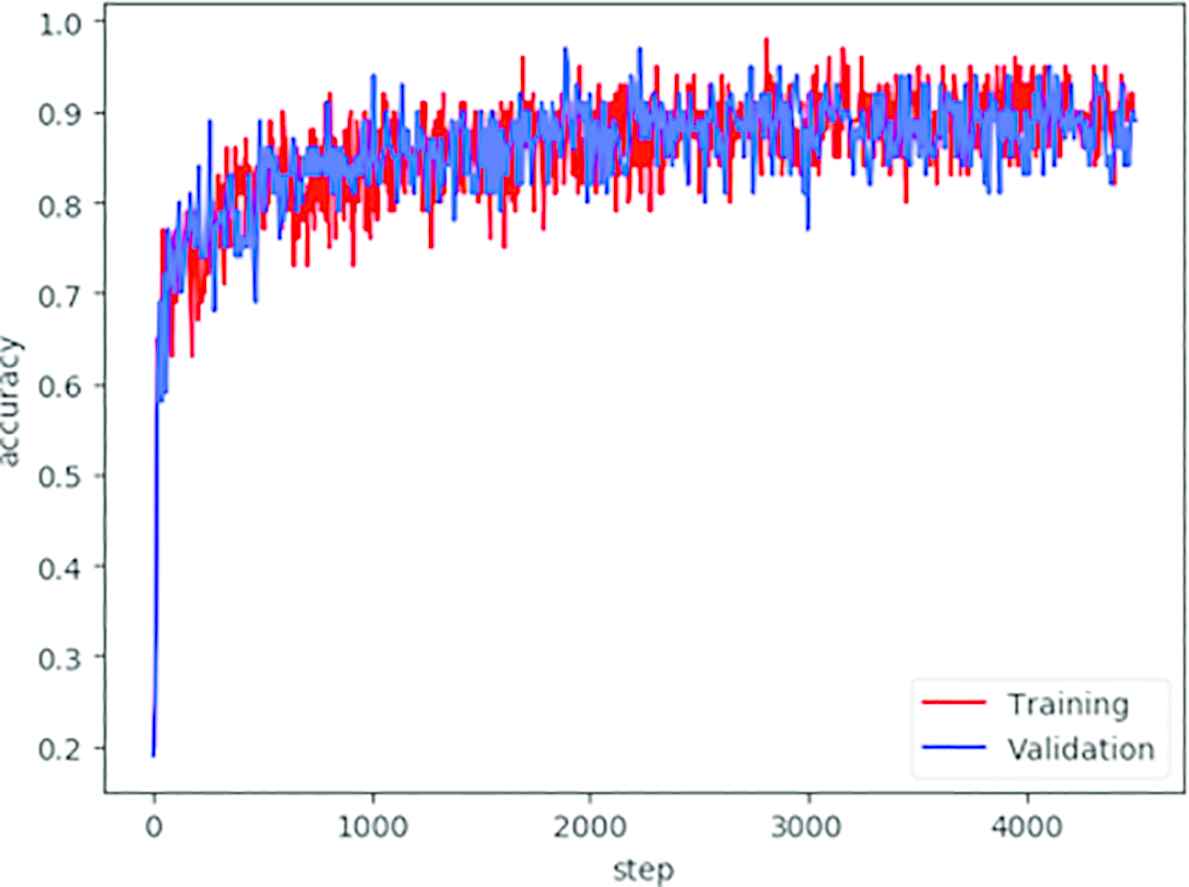

Training and validation accuracy.

3.3. Evaluation of Mask and ROI Generation

Figure 7 shows the result of the mask and ROI generation. The evaluation is based on the real image taken from a normal monocular camera as shown in Figure 7a. By using the mask and ROI generated from the network shown in Figure 7b, the original image can be masked and cut off as shown in Figures 7c and 7d.

Figure 7

Mask and ROI cutting on the original image. (a) Original image. (b) Mask generation. (c) Masked image. (d) Image cut out by ROI.

As shown in the result, bottles with color can be correctly detected from the image. However, bottles with a transparent appearance have a lower detection rate.

3.4. Evaluation of the Brand Recognition

The brand recognition is based on the image cut off from the Figure 7d. These images are resized to 299 × 299 and sent to Inception v3 for the brand recognition one-by-one. The output with the highest score is selected as the result. Here, we select one more group of test data besides the images in Figure 7, and the result of the brand recognition is shown in Table 1.

As the result shows, although the network gives out all the correct result, the score of output is not very satisfying in some cases, because the confidence under 0.6 will be unacceptable result.

As the data in Table 1 shows, after filtering out the confidence lower than 0.6, the total accuracy is around 85% which is like human labeled. The Inception v3 can partially treat with the transparent objects in the image.
