1. INTRODUCTION

The collective behavior of agents has been a long and lasting spotlight in systems and control field. The underpinning knowledge was introduced by Olfati and Murray [1], which including graph theory, adjacent matrix as well as consensus concepts, made clear intuitively. Leader follower agent systems, which have been a focus by many experts, were still being improved up to now. The networks of networks scheme of leader follower systems was made possible by Song et al. [2], which demonstrating interdependence of agents, turned into reality via socialized status of the agents. For the engineering complexity, the agents should be different, and only by this difference, the engineering systems can function well, and in this kind of sense, hybrid agents, especially hybrid agents with heterogenous dynamics, were explored in detail. Hybrid agents with both first and second order dynamics, under auspices of augmented matrix operation [3], could be assumed unified.

In spite of collective behavior of hybrid agents has been explored so deeply, there are still some rooms to be filled in. Among those, the ultimate goal of collective behavior will stand out, for its essential value in the planning of agent goal. Generally speaking, all the members of the agents should contribute and could play their roles, however, counter intuitively, in this paper, in directed networks of hybrid agents, only the root block member agents can dominate the final equilibrium of the flock, this is inevitably innovative for agents flocking. And this finding seems promising in today’s real world, for the authorized agents, their number should be made as less as possible in case of security.

To be distinguished from the already existed results, our points here have at least three standing out viewpoints. At first, block guiding which extends the concept of leader guiding in flocking control has been reported so less often. And secondly, that ultimate goal position is invariant from the leaf block points will be awarded these days for security of the networks. And the third, network of hybrid agents are borrowed to verify the suggested scheme, is much more promising, for the first order agents can be anchor points sometimes and the second order agents can be the mobile agents, which will be guided by the anchor agents.

The structure of this paper is arranged as follows. At first, problem formulation, together with the main results as well as some comments on the main results will be presented in the second part of this paper. Then followed that will be some conclusions, which will be the final part to end up this paper.

2. FLOCK GUIDING OF HYBRID AGENTS

This part will start with the flock guiding of hybrid agents, which will be covered by Subsection 2.1, the theorem will be demonstrated at first, and then some notes about it. Then the main results will be followed at Subsection 2.2, both the topology of the agent networks and the simulation results will be provided, and after that some comments will be made ready to clarify the idea further in Subsection 2.3.

2.2. Main Results

Consider the network, which consists of 5 agents, among which nodes 1 and 2 are root block nodes, while nodes 3–5, are leaf block nodes, this can be referred to Figure 1.

Figure 1

Network consists of five nodes.

To be further, the nodes 1 and 2 are assigned as the first order agents, while nodes 3–5 are assigned as the second order agents, respectively.

The coupling matrix of Figure 1 is easily to be gotten as

A=[−110001−100010−311001−100111−3]

The left eigen vector to the zero Eigen value of A is [1/21/2000]T , and the dynamics of the system can be described as Equation (4)

(4)x˙i=ui, i∈{1,2,⋯,n};x˙j=[x˙j1x˙j2]=[xj2uj],j∈{m,m+1,⋯,N};n=2,m=n+1,N=5.

which can be ensemble as compact as

x˙=[0000000000000000000100000000000000000100000000000000000100000000]x+[1000001000000000010000000000100000000001]u

where

x=[x1x2x31x32x41x42x51x52]T,u=[u1u2u3u4u5]T.

To be concise, the control action can be expressed as

u=[u1u2u3u4u5]=[a(x2−x1)a(x1−x2)a(x1+x41+x51−3x31)−bx32a(x31−x41)−bx42a(x2+x41+x31−3x51)−bx52]

The introduced control action for agents 1 and 2 are easily to be understood, for agents 1 and 2, they make up of the undirected sub network of root block, and they tend to be convergent to each other, and this convergent and ultimate value will be assigned to the whole agents system further. Control action added for agents 3–5 can make a little nervous at first glimpse, but they still can be made tractable in this way, first we decomposed the added control function into two different parts, and the first part is used to realize the consensus among themselves and their neighbours, and these consensus actions are scaled by proportional factor a, and the second term is velocity damping part, which is also scaled by proportional factor, and the scaled value can be varied from a, and in this case we named the factor as b. The consensus term plus the damping term collaboratively turn the flock guiding of hybrid agents possible. Among which, we assigned a = 1 and b = 2, respectively. The simulation results can be seen in Figure 2.

Figure 2

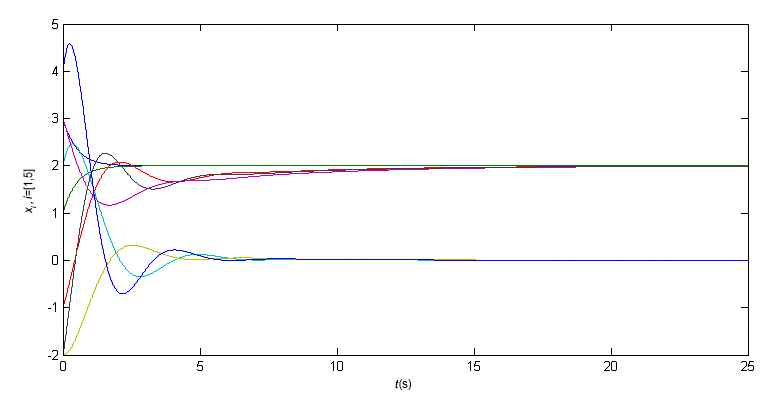

Flock guiding of five hybrid agents.

During simulation, the initial values of the agents were listed as follows

x0=[x10x20x310x320x410x420x510x520]T=[31−123−2−24]T

From Figure 2, the ultimate flock guiding position is 2, it is the average of the initial values of agents 1 and 2. So, in this respect, only the root block agents have their role being played in the ultimate goal of flock guiding. It is much more interesting about the second sub variables of agents 3–5, all of them were rendered to zero because of the damped factor of theirs. It seems frustrated that, the velocity signals of the agents at leaf block are not available sometimes. However, all of the second sub system states can be observed, it is a standard way to design observers for them. And in this point, this should not be an excuse to devalue our contribution here. And this is customary, because for the fixed ultimate goal position, the velocity sub variable must be ceased. Of course, the ultimate goal can be adjusted if we like, we can regulate the ultimate goal position by manipulation the coupling coefficients of root block nodes.

3. CONCLUSION

In conclusion, to realize the security of the flock guiding, the ultimate goal of the flock, should be exposed to only several key agents, and they can be assigned as the root node agents, as to the leaf agents, for their popularity is so massive, they should be kept from the secrets of the ultimate goal. Flock with secrets keeping is made possible here with root node and leaf node decomposition.

System complexity, which is so elusive, could not be easily explained if we are unwillingly exposed to the concrete systems. The road to clarify the complexity can be made tractable through the following exemplified engineering systems as well as the theoretical exploration. Instance like high performance vehicle driving, which was spearheaded in Jia [4] and thereafter individualized designed in Jia [5], can be the justified pilot scale systems. As to the large quantities complex systems, not only the object itself, but also the endured hostile environment, will be an impediment for the successful manipulation of them. Time varying delays, uncertain and unreliable information, annoying disturbances, and multi-inputs multi-outputs, can also be the adversary factors. Adaptive scheme was born to fix them, and this can be referred to Jia [6]. Reductionism should not be the only way to deal with the complex system, but it should be kept in mind at first, for the first step we should know the system locally in detail to grasp the whole system globally, and in this way, refined analysis and control of the complex systems are necessary. Refined control of leader follower system according their roles of the leader agent, follower agents that have connected path with the leaders, the follower agents that are failed with the connection of the other agents, and the targeting agent which represent the ultimate goal position are recommended also [7]. So, flock guiding of hybrid agents via root block, which make the ultimate goal position invariant even with some adversary leaf agents, will be much more capable candidate for the robust flocking control of agents system.
