Minimal surfaces associated with orthogonal polynomials

Vincent Chalifour; Alfred Michel Grundland

doi:10.1080/14029251.2020.1819599

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Volume 27, Issue 4, September 2020, Pages 529 - 549

Minimal surfaces associated with orthogonal polynomials

Authors

Vincent Chalifour

Departement of mathematics and statistics, Université de Montréal, C. P. 6128, Succ. Centre-ville, Montréal, Québec, H3C 3J7, Canada,chalifour@dms.umontreal.ca

Alfred Michel Grundland^*

¹Centre de Recherches Mathématiques, Université de Montréal, C. P. 6128, Succ. Centre-ville, Montréal, Québec, H3C 3J7, Canada

²Departement of Mathematics and Computer Science, Université du Québec, CP500, Trois-Rivières, Québec, G9A 5H7, Canada,grundlan@crm.umontreal.ca

^*Corresponding author.

Corresponding Author

Alfred Michel Grundland

Received 17 January 2019, Accepted 3 December 2019, Available Online 4 September 2020.

DOI: 10.1080/14029251.2020.1819599 How to use a DOI?
Keywords: Integrable system; soliton surface; minimal surface; orthogonal polynomial; Weierstrass immersion formula; Sym-Tafel immersion formula; CMC surface
Abstract: This paper is devoted to a study of the connection between the immersion functions of two-dimensional surfaces in Euclidean or hyperbolic spaces and classical orthogonal polynomials. After a brief description of the soliton surfaces approach defined by the Enneper-Weierstrass formula for immersion and the solutions of the Gauss-Weingarten equations for moving frames, we derive the three-dimensional numerical representation for these polynomials. We illustrate the theoretical results for several examples, including the Bessel, Legendre, Laguerre, Chebyshev and Jacobi functions. In each case, we generate a numerical representation of the surface using the Mathematica symbolic software.
Copyright: © 2020 The Authors. Published by Atlantis Press and Taylor & Francis
Open Access: This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

1. Introduction

To describe the behavior of a continuous medium (fluid, gas or solid), theoretical physics uses various models, most of which lead to nonlinear partial differential equations (PDEs). The study of the general properties of these nonlinear equations and of the methods for solving them is a rapidly developing area of modern mathematics. Specifically, this is true in the study of integrable models in two independent variables, which have generated a great deal of interest and activity in several mathematical as well as physical fields of research. In particular, surfaces immersed in Lie groups, Lie algebras and homogeneous spaces which are associated with these models have been shown to play an essential role in several applications to nonlinear phenomena in diverse areas of physics, chemistry and biology (see e.g. [1–10] and references therein). An algebraic approach to the structural equations of these surfaces (i.e. the Gauss-Weingarten (GW) and Gauss-Codazzi (GC) equations) has often been very difficult to carry out. A geometrical approach to the derivation and classification of such systems, which we propose here for special functions, seems to be of importance for applications in several branches of science. The construction and investigation of two-dimensional (2D) surfaces obtained through the use of the soliton surface technique [11] allows the plotting of these functions, which constitutes the main objective of this work. We examine certain aspects of a visual image of surfaces reflecting the behavior of some special functions, focusing mainly on such functions as the Bessel, Legendre, Laguerre, Chebyshev and Jacobi functions and the associated series [12–16], which can be of interest. This may provide some clues about the properties of these surfaces, which are otherwise hidden in some implicit mathematical expressions. This is, in short, the main topic of investigation.

The paper is organized as follows. Section 2 contains a brief summary of the results concerning the construction of minimal and constant mean curvature lambda (CMC-λ) surfaces (H = λ) immersed in the three-dimensional (3D) Euclidean and hyperbolic spaces, respectively. It is shown that the use of successive gauge transformations allows us to reduce the GW system of equations for the moving frame on these surfaces to a single linear second-order ordinary differential equation (ODE). The coefficients of this ODE are expressed in terms of two arbitrary holomorphic functions. Comparing them with the coefficients of the ODE associated with orthogonal polynomials allows us to construct their associated 2D-surfaces. It is shown that these surfaces are defined by the Weierstrass formula for immersion. The properties of surfaces associated with these polynomials are discussed in detail. In section 3, we illustrate the theoretical considerations for several classical orthogonal polynomials. We summarize the obtained results in tables 1 to 8. This analysis includes explicit solutions of the GW system, that is the wavefunctions and their potential matrices. For each orthogonal polynomial, a 3D numerical representation is constructed and investigated. The last section contains remarks and suggestions regarding possible further developements.

The Legendre equation: (1−z2)d2ωdz2−2zdωdz+α(α+1)ω=0, α ∈ ℕ, z ≠ ±1.

η2=c121−z2, χ=−1λΔ1z+c2c12.

u11=−u22=−Δ1z+c21−z2, u12=−λc121−z2, u21=1λ(Δ1z+c2)2c12(1−z2).

Ψ1=k1Pα(z)+k2Qα(z),Ψ2=1λc12[k1(Pα(z)(Δ2z+c2)−αPα−1(z))+k2(Qα(z)(Δ2z+c2)−αQα−1(z))].

F1=14λ2ℝe(1c14[Δ3(ϕ1−ϕ2)+2Δ12z]ξ0ξ),F2=−14λ2𝕀m(1c14[Δ3(ϕ1−ϕ2)−2Δ12z]ξ0ξ),F31=12λℝe([(Δ1−c2)ϕ2+(Δ1+c2)ϕ1]ξ0ξ).

F˜11=−F˜22=−i4λ([(Δ1−c2)ϕ2+(Δ1+c2)ϕ1]ξ0ξ−([(Δ1−c2)ϕ2+(Δ1+c2)ϕ1]ξ0ξ)*)F˜12=−i4(c12[ϕ1−ϕ2]ξ0ξ−1λ2(1c14[(Δ1+c2)2ϕ1−(Δ1−c2)2ϕ2−2Δ12z]ξ0ξ)*)F˜21=i4(1λ2c14[(Δ1+c2)2ϕ1−(Δ1−c)2ϕ2−2Δ12z]ξ0ξ−(c12[ϕ1−ϕ2]ξ0ξ)*).

Note: P_α, Q_α : α^th-order Legendre polynomials, 1^st and 2^nd kind.

Δ₁ = α(α + 1), Δ₂ = α(α + 2), Δ3=λ2c14−(α(α+1)+c2)2, ϕ₁ = log(1 + z), ϕ₂ = log(1 − z).

Table 1:

Summary. The Legendre equation

The Legendre associated equation: (1−z2)d2ωdz2−2zdωdz+(α(α+1)−m21−z2) ω = 0, α, m ∈ ℕ, m ≠ 0, z ≠ ±1.

η2=c121−z2, χ=1λm22(ϕ1−ϕ2)−Δz+c2c12.

u11=−u22=−Δ1z+c21−z2, u12=−λc121−z2, u21=1λ(Δ1z+c2)2c12(1−z2).

Ψ1=k1Pαm(z)+k2Qαm(z),Ψ2=1λc12[(m22(ϕ1−ϕ2)−Δz+c2)[k1Pαm(z)+k2Qαm(z)]+k1(z2−1)m/22αα! ⋅(mzdm+αdzm+α(z2−1)α+(z2−1)dm+α+1dzm+α+1(z2−1)α+k2(z2−1)m/2(mzdmdzmQα(z)+(z2−1)dm+1dzm+1Qα(z)))].

F1=12Re([c122(ϕ1−ϕ2)−124λ2c12(−24(α2+2α3+α4)z+12(c22+2c2α+α2+2c2α2+2α3+α4)ϕ1 +6m2(c2+Δ)ϕ12+m4ϕ13+3m2ϕ22(2c2−2Δ+m2ϕ1)−m4ϕ23−ϕ2(12c22−24c2Δ+Δ(12Δ−7,225⋅m2) +12m2(c2+Δ)ϕ1+3m4ϕ12)−24m2ΔLi2((1−z)/2))]ξ0ξ),F2=−12Im([c122(ϕ1−ϕ2)+124λ2c12(−24(α2+2α3+α4)z+12(c22+2c2α+α2+2c2α2+2α3+α4)ϕ1 +6m2(c2+Δ)ϕ12+m4ϕ13+3m2ϕ22(2c2−2Δ+m2ϕ1)−m4ϕ23−ϕ2(12c22−24c2Δ+Δ(12Δ−7,225⋅m2) +12m2(c2+Δ)ϕ1+3m4ϕ12)−24m2ΔLi2((1−z)/2))]ξ0ξ),F3=18λRe([m2ϕ22+ϕ1(4(Δ−c2)−2m2ϕ1)+ϕ1(4(Δ+c2)+m2ϕ1)]ξ0ξ).

F˜11=−F˜22=−i16λ([m2ϕ22+ϕ2(4(Δ−c2)−2m2ϕ1)+ϕ1(4(Δ+c2)+m2ϕ1)]ξ0ξ +([m2ϕ22+ϕ2(4(Δ−c2)−2m2ϕ1)+ϕ1(4(Δ+c2)+m2ϕ1)]ξ0ξ)*),F˜12=−i4([c12(ϕ1−ϕ2)]ξ0ξ−112λ2(1c12[(−24(α2+2α3+α4)z+12(c22+2c2α+(2c2+1)α2+2α3 +α4)ϕ1+6m2(c2+Δ)ϕ12+m4ϕ13+3m2ϕ22(2c2−2Δ+m2ϕ1)−m4ϕ23−ϕ2(12c22 +Δ(12Δ−7,225⋅m2−24c2)+12m2(c2+Δ)ϕ1+3m4ϕ12)−24m2ΔLi2((1−z)/2))]ξ0ξ)*),F˜21=i4(112λ2c12[−24(α2+2α3+α4)z+12(c22+2c2α+(2c2+1)α2+2α3+α4)ϕ1+6m2(c2+Δ)ϕ12+m4ϕ13 +3m2ϕ22(2c2−2Δ+m2ϕ1)−m4ϕ23−ϕ2(12c22+Δ(12Δ,7,255⋅m2−24c2) +12m2(c2+Δ)ϕ1+3m4ϕ12)−24m2ΔLi2((1−z/2)]ξ0ξ+([c12(ϕ1−ϕ2)]ξ0ξ)*).

Note: Pαm, Qαm: α^th-order Associated Legendre functions of degree m, 1^st and 2^nd kind, Li₂: Polylogarithm function.

Δ = α(α + 1), ϕ₁ = log(1 + z), ϕ₂ = log(1 − z).

Table 2:

Summary. The Legendre associated equation

The Bessel equation: z2d2ωdz2+zdωdz+(z2−p2)ω=0, p ∈ ℂ.

η2=c1z−1, χ=1λc1(p2log(z)−z22+c2).

u11=−u22=1z(p2log(z)−z22+c2), u12=−λc1z, u21=1λc11z(p2log(z)−z22+c2)2.

Ψ1=k1𝒥p(z)+k2𝒴p(z),Ψ2=1λc1[k1(−z2𝒥p−1(z)+(p2log(z)−z22+c2)𝒥p(z)+z2𝒥p+1(z)) +k2(𝒴p−1(z)+(p2log(z)−z22+c2)𝒴p(z)−𝒴p+1(z))].

F1=12λ2Re(1c1[(λ2c12−c22+p2z22)log(z)−c2p2log2(z)−p43log3(z)−(4p2−8c2+z2)z216]ξ0ξ),F2=12λ2Im(1c1[(λ2c12−c22−p2z22)log(z)+c2p2log2(z)+p43log3(z)+(4p2−8c2+z2)z216]ξ0ξ),F3=1λRe([c2log(z)+p22log2(z)−z24]ξ0ξ).

F˜11=−F˜22=−i2λ(ϕ+ϕ*),F˜12=−i2(c1log(z)|ξ0ξ−1λ2(1c1[log(z)(c22−p2z22)+z216(−8c2+4p2+z2)+c2p2log2(z)+p43log3(z)]ξ0ξ)*)F˜21=i2(1λ2c1[(log(z)(c22−p2z22)+z216(−8c2+4p2+z2)+c2p2log2(z)+p43log3(z))]ξ0ξ−(c1log(z)|ξ0ξ)*).

Note: 𝒥_p, 𝒴_p: p^th-order Bessel functions, 1^st and 2^nd kind. ϕ=[p22log2(z)−z24+c2log(z)]ξ0ξ.

Table 3:

Summary. The Bessel equation

The Chebyshev equation of the 1^st kind^a: (1−z2)d2ωdz2−zdωdz+n2ω=0, n ∈ ℕ, z ≠ ±1.

η2=c11−z2, χ=−1λn2ϕ+c2c1.

u11=−u22=−n2ϕ+c21−z2, u12=−λc11−z2, u21=1λ(n2ϕ+c2)2c1(1−z2).

Ψ1=k1Tn(z)+k21−z2T2,n−1(z),Ψ2=1λc(−k1(n2arcsin(z)+c1)Tn(z)+k1(n+1)1−z2Tn−2(z)+(−k2(n2arcsin(z)+c1)1−z2+k1n−2k2z1−z2)T2,n−1).

F1=12Re(1λ2c1[(λ2c12−c22)ϕ+n2c2ϕ2−n43ϕ3]ξ0ξ),F2=−12Im(1λ2c1[(λ2c12+c22)ϕ−n2c2ϕ2+n43ϕ3]ξ0ξ),F3=−1λRe([c2ϕ+n22ϕ2]ξ0ξ).

F˜11=−F˜22=i2λ([c2ϕ+n22ϕ2]ξ0ξ+([c2ϕ+n22ϕ2]ξ0ξ)*),F˜12=−c1i2⋅ϕ|ξ0ξ+i2λ2(1c1[c22ϕ−n2c2ϕ2+n43ϕ3]ξ0ξ)*,F˜21=i2λ2c1[c22ϕ−n2c2ϕ2+n43ϕ3]ξ0ξ−i2(c1⋅ϕ|ξ0ξ)*.

Note: T_n, T_2,_n: Chebyshev polynomials, 1^st and 2^nd kind. ϕ = arcsin(z).

a

To obtain the results for the Chebyshev equation of the 2^nd kind, we perform the transformation n↦nn+2.

Table 4:

Summary. The Chebyshev equations

The Laguerre associated equation: zd2ωdz2+(α+1−z)dωdz+nω=0, α, n ∈ ℕ, z ≠0.

η2=ezc1zα+1, χ=1λ(nc1ϕ1+c2).

u11=−u22=nc1ϕ1+c2c1zα+1e−z, u12=−λezc1zα+1, u21=1λ(nc1ϕ1+c2)2c1zα+1e−z.

Ψ1=k1Lnα(z)+k2U(−n,α+1,z),Ψ2=1λ[k1(((nc1ϕ1+c2)−nc1zαe−z)Lnα(z)+(n+α)c1zα+1e−zLn−1α(z)) +k2((nc1ϕ1+c2)U(−n,α+1,z)−nc1zα+1e−zU(−n+1,α+2,z))].

F1=12Re(1λ2[n2c1(α!)2∑p=0α∑q=0αΓ(p+q−α,z)p!q!+1c1(c22−λ2)z−αEα+1(−z)−2nc2ϕ2]ξ0ξ),F2=−12Im(1λ2[−n2c1(α!)2∑p=0α∑q=0αΓ(p+q−α,z)p!q!−1c1(λ2+c22)z−αEα+1(−z)+2nc2ϕ2]ξ0ξ),F3=1λRe([nϕ2−c2c1z−αEα+1(−z)]ξ0ξ).

F˜11=−F˜22=−i2λ([nϕ2−c2c1z−αEα+1(−z)]ξ0ξ+([nϕ2−c2c1z−αEα+1(−z)]ξ0ξ)*),F˜12=i2(1c1z−αEα+1(−z)|ξ0ξ+1λ2([−n2c1(α!)2∑p=0α∑q=0αΓ(p+q−α,z)p!q!−c22c1z−αEα+1(−z)+2nc2ϕ2]ξ0ξ)*),F˜21=i2(1λ2[−n2c1(α!)2∑p=0α∑q=0αΓ(p+q−α,z)p!q!−c22c1z−αEα+1(−z)+2nc2ϕ2]ξ0ξ+(1c1z−αEα+1(−z)|ξ0ξ)*).

Note: Γ(ν, z): Incomplete gamma function, Lnα: Associated Laguerre polynomial, U(ν₁, ν₂, z): Hypergeometric function, 2^nd kind, E_m: Exponential integral m-function. ϕ₁ = Γ(α + 1, z), ϕ2=α!∑r=0α−1zr−αr!(r−α)+log(z).

Table 5:

Summary. The Laguerre associated equation

The Hermite equation: d2ωdz2−2zdωdz−2nω=0, n ∈ 𝕑.

η2=c12ez2, χ=2nλc12∫z0ze−s2 ds.

u11=−u22=2nez2∫z0ze−s2 ds, u12=−λc12ez2, u21=4n2λc12ez2(∫z0ze−s2 ds)2.

Ψ1=k1H−n(z)+k2F11(n2,12,z2),Ψ2=2nλc1(k1(e−z2c1H−n−1(z)−H−n(z))−k2(F11(n2+1,32,z2)+F11(n2,12,z2)∫z0ze−s2 ds)).

F1=12Re(c12∫ξ0ξ(1−(2nλc12∫z0ze−s2 ds)2)ez2 dz),F2=−12Im(c12∫ξ0ξ(1+(2nλc12∫z0ze−s2 ds)2)ez2 dz),F3=2nλRe(∫ξ0ξ∫z0ze−s2 ds⋅ez2 dz).

F˜11=−F˜22=−niλ(∫ξ0ξ∫z0ze−s2 ds⋅ez2 dz+(∫ξ0ξ∫z0ze−s2 ds⋅ez2 dz*)),F˜12=−i2(c12∫ξ0ξez2dz−4n2λ2(1c12∫ξ0ξ(∫z0ze−s2 ds)2ez2dz)*),F˜21=i2(4n2λ2c12∫ξ0ξ(∫z0ze−s2ds)2ez2dz−(c12∫ξ0ξez2dz)*).

Note: H_n: n^th-order Hermite polynomial, _pF_q: Hypergeometric function.

Table 6:

Summary. The Hermite equation

The Gegenbauer equation: (1−z2)d2ωdz2−(2α+1)dωdz+n(n+2α)ω=0, n ∈ ℕ, α ∈ ℂ, z ≠ ±1.

η2=c1(1+z1−z)α+1/2, χ=1λΔ2(1−z)α+1/2(1+z)−α−1/2+c2c1Δ3.

u11=−u22=Δ2+c2(1+z1−z)α+1/2Δ3, u12=−λc1(1+z1−z)α+1/2, u21=1λΔ22(1−z1+z)α+1/2+2c2Δ2+c22(1+z1−z)α+1/2c1Δ32.

Ψ1=k1ϕ1+k22α−1/2(z−1)−α+1/2ϕ2,Ψ2=1λc1[k1(Δ2(1−z1+z)α+1/2+c2Δ3ϕ1+14(Δ1+1)(Δ1−1)α+1/2(1−z1+z)Δ3/4ϕ3) +k22α−1/2(z−1)1/2−α((Δ2(1−z1+z)α+1/2+c2Δ3+(1/2−α)(z−1)−1)⋅ϕ2−12Δ1(α+1/4Δ1)3/2−αϕ4)].

F1=12Re([c1⋅21/2−α2α+3ϕ5−1λ2c1Δ32(Δ22⋅2α+3/21−2α(1+z)1/2−αϕ6+c22⋅21/2−α2α+3ϕ5+2c2Δ2z)]ξ0ξ),F1=12Im([c1⋅21/2−α2α+3ϕ5+1λ2c1Δ32(Δ22⋅2α+3/21−2α(1+z)1/2−αϕ6+c22⋅21/2−α2α+3ϕ5+2c2Δ2z)]ξ0ξ),F3=1λRe(1Δ3[Δ2z+c2⋅21/2−α2α+3ϕ5]ξ0ξ).

F˜11=−F˜22=−i2λ(1Δ3[Δ2z+c2⋅21/2−α2α+3ϕ5]ξ0ξ+(1Δ3[Δ2z+c2⋅21/2−α2α+3ϕ5]ξ0ξ)*),F˜12=−i2([c1⋅21/2−α2α+3ϕ5]ξ0ξ−1Δ3(1c1Δ32[Δ22⋅2α+3/21−2α(1+z)1/2−αϕ6+c22⋅21/2−α2α+3ϕ5+2c2Δ2z]ξ0ξ)*).F˜21=i2(1λ2c1Δ32[Δ22⋅2α+3/21−2α(1+z)1/2−αϕ6+c22⋅21/2−α2α+3ϕ5+2c2Δ2z]ξ0ξ−([c1⋅21/2−α2α+3ϕ5]ξ0ξ)*).

Note: _pF_q: Hypergeometric function. Δ1=4n2+8αn+1, Δ₂ = n(n + 2α), Δ₃ = 2α + 1.

ϕ1=F21(−1/2(Δ1+1),1/2(Δ1−1);α+1/2;1−z2), ϕ2=F21(−α−1/2Δ1,1/2Δ1;3/2−α;1−z2), ϕ3=F21(1−1/2(Δ1+1),1+1/2(Δ1−1);α+3/2;1−z2), ϕ4=F21(1−α−1/2Δ1,1+1/2Δ1;5/2−α;1−z2), ϕ5=(1+z)α+3/2F21(α+1/2,α+3/2;α+5/2;1+z2), ϕ6=F21(−α−1/2,1/2−α;3/2−α;1+z2).

Table 7:

Summary. The Gegenbauer equation

The Jacobi eq.: (1−z2)d2ωdz2+(β−α−(α+β+2)z)dωdz+n(n+α+β+1)ω=0 n ∈ ℕ, α, β ∈ ℂ, z ≠ ±1.

η2=c1(1+z)−(β+1)(1−z)−(α+1), χ=−1λΔ(z+1)β+1ϕ3+c2c1(β+1).

u11=−u22=−Δ(z+1)β+1ϕ3+c2(β+1)(1+z)β+1(1−z)α+1, u12=−λc1(1+z)β+1(1−z)α+1, u21=1λ(Δ(z+1)β+1ϕ3+c2)2c1(β+1)2(1+z)β+1(1−z)α+1.

Ψ1=k1ϕ1+2αk2(z−1)−αϕ2,Ψ2=1λc1[−k1Δ2α(2α(z+1)β+1ϕ3+c2β+1ϕ1+12(α+1)(1+z)β+1(1−z)α+1ϕ4) +k2(−2αΔ2−α(z+1)β+1ϕ3+c2β+1(z−1)−αϕ2+2α(−1)α(−α(1+z)β+1ϕ2+(α+n)(β+n+1)2(α−1)(1+z)β+1(1−z)ϕ5))].

F1=12Re(−c12α+2(1+z)−β(1+z1−zϕ6−2βϕ7) −1λ2c1[Δ22α(β+1)]2ϕ10−c222α+2(z+1)−β(z+1β−1ϕ6+2βϕ7)−2c2Δ(β+1)ϕ8),F2=−12Im(−c12α+2(1+z)−β(1+z1−zϕ6−2βϕ7) +1λ2c1[Δ22α(β+1)2ϕ10−c222α+2(z+1)−β(z+1β−1ϕ6+2βϕ7)−2c2Δ(β+1)ϕ8]),F3=−1λRe(1(β+1)[Δ2−α(β+1)ϕ9−c22α+2(z+1)−β(z+1β−1ϕ6+2βϕ7)]).

F˜11=−F˜22=i2λ(1(β+1)[Δ2−α(β+1)ϕ9−c22α+2(z+1)−β(z+1β−1ϕ6+2βϕ7)]ξ0ξ +(1(β+1)[Δ2−α(β+1)ϕ9−c22α+2(z+1)−β(z+1β−1ϕ6−2βϕ7)]ξ0ξ)*),F˜12=i2(c12α+2[(1+z)−β(1+z1−zϕ6+2βϕ7)]ξ0ξ +1λ2(1c1[Δ22−α(β+1)2⋅ϕ10−c222α+2(z+1)−β(z+1β−1ϕ6+2βϕ7)−2c2Δ(β+1)ϕ8]ξ0ξ)*),F˜21=i2(1λ2c1[Δ22−α(β+1)2⋅ϕ10−c222α+2(z+1)−β(z+1β−1ϕ6+2βϕ7)−2c2Δ(β+1)ϕ8]ξ0ξ +(c12α+2[(1+z)−β(1+z1−zϕ6+2βϕ7)]ξ0ξ)*).

Note: _pF_q: Hypergeometric function. Domain_Jacobi = {ξ ∈ ℂ | |ξ| < 1 and |ξ + 1| < 2|α|}.

Δ = 2^α n(n + α + β + 1), ϕ1=F21(−n,α+β+n+1;α+1;1−z2), ϕ2=F21(−α−n,β+n+1;1−α;1−z2), ϕ3=F21(−α,β+1;β+2;1−z2), ϕ4=F21(1−n,α+β+n+2;α+2;1−z2), ϕ5=F21(−α−n+1,β+n+2;2−α;1−z2), ϕ6=F21(1−β,α+1;2−β;1+z2), ϕ7=F21(−β,α;1−β;1+z2), ϕ8=∑s=0∞((−α)s(z+1)s+1(β+s+1)(s+1)s!2s+2α+1F21(s+1,α+1;s+2;1+z2)), ϕ9=∑s=0∞((−α)s(z+1)s+1(β+s+1)(s+1)s!⋅2s+1F21(s+1,α+1;s+2;1+z2)), ϕ10=∑s=0∞∑k=0∞((−α)s(−α)k(z+1)s+k+β+1(β+s+1)(β+k+1)(β+s+k+1)s!k!2s+k(F21(s+k+β+1,α+1;s+k+β+2;1+z2) −F21(s+k+β+1,α;s+k+β+2;1+z2)))..

Table 8:

Summary. The Jacobi equation

2. Linear problem and immersion formulas

In this section, according to [17] , we recall the main concepts required to study the linear problem (LP) related to the GW equations for frames on 2D-surfaces, which are the Enneper-Weierstrass and Sym-Tafel formulas for immersion, both in Euclidean and hyperbolic spaces. We make use of the gauge transformations in order to reduce the LP to a single linear second-order ODE and to investigate its links with orthogonal polynomials.

2.1. The linear problem for minimal surfaces

To make the paper self-contained, we summarize the basic facts on the immerson of minimal surfaces in the Euclidean space 𝔼³ given in [11,18], together with the quaternionic description of these surfaces in the 𝔰𝔲(2) algebra. Let F be a smooth orientable and simply-connected surface in 𝔼³ given by a vector-valued function

F=(F1,F2,F3)T:ℛ→𝔼3(2.1)

where ℛ is a Riemann surface. A conformally parametrized surface involving complex coordinates z and z¯ requires that the tangent vectors ∂F, ∂¯F and the unit normal N satisfy the following normalization

(∂F|∂F)=0, (∂¯F|∂¯F)=0, (∂F|∂¯F)=12eu,(2.2)

(∂F|N)=0, (∂¯F|N)=0, (N|N)=1,(2.3)

where u is a real-valued function u : ℛ → ℝ. The brackets (· | ·) denote the scalar product in 𝔼³

(a|b)=∑i=13aibi.(2.4)

We have used the notation for the holomorphic and antiholomorphic derivatives

∂=12(∂∂x−i∂∂y), ∂¯=12(∂∂x+i∂∂y), z=x+iy.(2.5)

The Hopf differential Qdz on ℛ and the mean curvature on F are defined by

Q=(∂2F|N), H=2e−u(∂¯∂F|N),(2.6)

respectively. For a minimal surface (H = 0), the GW equations for a moving frame σ = (∂F, ∂¯F, N)^T take the form

∂σ=𝒰σ, ∂¯σ=𝒱σ,(2.7)

where

𝒰=(∂u0Q0000−2e−u0), 𝒱=(0000∂¯uQ¯−2e−uQ¯00).(2.8)

The compatibility conditions of the GW equations (2.7), often called the Zero-Curvature Condition (ZCC)

∂¯𝒰−∂𝒱+[𝒰,𝒱]=0,(2.9)

are reduced to the GC equations

∂¯∂u−2|Q|2e−u=0, ∂¯Q=0,(2.10)

where Q is a holomorphic function of z. It is convenient to use the Lie algebra isomorphism 𝔰𝔬(3) ≃ 𝔰𝔲(2) and to write the GW equations in terms of 2 × 2 matrices

∂Φ=𝒰Φ, ∂¯Φ=𝒱Φ,(2.11)

where

𝒰=(14∂u−Qe−u20−14∂u), 𝒱=(−14∂¯u0Q¯e−u214∂¯u)∈𝔰𝔩(2,ℂ).(2.12)

Here 𝒱 = −𝒰^† is an anti-Hermitian matrix.

The Enneper-Weierstrass immersion formula for minimal surfaces is defined by the contour integral [19, 20]

F→=(12ℝe∫z0z(1−χ2)η2dξ,−12𝕀m∫z0z(1+χ2)η2dξ, ℝe∫z0zχη2dξ)T∈𝔼3,(2.13)

in terms of two holomorphic functions η and χ, i.e. ∂¯η=∂¯χ=0. Equations (2.11) can be reduced to two equations expressed in terms of these two holomorphic functions. We apply the gauge transformation M to the wavefunction Φ in equations (2.11) as proposed in [17] , i.e.

Ψ=MΦ, where M=(|η|(1+χχ¯)1/2ηχ0−|η|η(1+χχ¯)1/2ηχ|η|(1+χχ¯)1/2)∈SL(2,ℂ).(2.14)

We obtain

∂Ψ=λη2(χ−1χ2−χ)Ψ, ∂¯Ψ=0,(2.15)

where

𝒰(λ;z)=λη2(χ−1χ2−χ)∈𝔰𝔲(2).(2.16)

Note that Ψ is a holomorphic function and 𝒰 is parametrized by λ ∈ ℂ\{0}. The wavefunction Φ in (2.11) can also be expressed in terms of the holomorphic functions η and χ

Φ=1(1+χχ¯)1/2(χeiθ−eiθe−iθχ¯e−iθ)∈SU(2),(2.17)

where η = re^iθ, r ∈ ℝ⁺, θ ∈ [0, 2π[ and λ=η/η¯=e2iθ is the spectral parameter. The Sym-Tafel type formula F^ST for the immersion of a 2D-surface in 𝔰𝔲(2) ≃ 𝔼³ is given by [21, 22]

FST=Φ−1∂λΦ=−i1+χχ¯(1−χχ¯2χ¯2χ−1+χχ¯), ∂¯χ=0.(2.18)

Let F˜ be the quaternionic description of the Enneper-Weierstrass formula (2.13). In view of the isomorphism 𝔰𝔬(3) ≃ 𝔰𝔲(2), the Enneper-Weierstrass formula (2.13) for the immersion of minimal surfaces takes the form

F˜=−i2(∫z0zχη2dξ+(∫z0zχη2dξ)*∫z0zη2dξ−(∫z0zχ2η2dξ)*−∫z0zχ2η2dξ+(∫z0zη2dξ)*−∫z0zχη2dξ−(∫z0zχη2dξ)*)∈𝔰𝔲(2),(2.19)

where * denotes the complex conjugate of the considered expression.

2.2. Immersion in the hyperbolic space H³(((λ))) of curvature λ

In this section, we use results from the soliton approach [11,22,23] for the study of CMC surfaces in the hyperbolic space H³(λ). Consider the conformal immersion of surfaces in the hyperbolic space

Fσ:ℛ→H3(λ)⊂ℝ3,1,(2.20)

where ℝ^3,1 is the Lorentz space with standard bilinear form

(X|Y)=X1Y1+X2Y2+X3Y3−X0Y0(2.21)

and the hyperboloid H³ is given by the scalar product

(X|X)=−λ−2.(2.22)

The conformality conditions are given by

(∂Fσ|∂Fσ)=0, (∂¯Fσ|∂¯Fσ)=0.(2.23)

The vectors F^σ, ∂F^σ, ∂¯Fσ and N form a moving frame σ = (F^σ, ∂F^σ, ∂¯Fσ, N)^T on a surface which satisfies the following normalization relations

(Fσ|N)=0, (∂Fσ|N)=0, (∂¯Fσ|N)=0, (N|N)=1.(2.24)

We define the functions u, H and Q as in (2.6). The GW equations for the moving frame are given by

∂2Fσ=∂u∂Fσ+QN, ∂¯∂Fσ=λ22euFσ+12HeuN, ∂N=−H∂Fσ−2Qe−u∂¯Fσ,(2.25)

and the GC equations take the form

∂¯∂u+12(H2−λ2)eu−2|Q|2e−u=0, ∂¯Q=12∂Heu, ∂Q¯=12∂¯Heu.(2.26)

In the case of CMC-λ surfaces (H = λ), the reduced GC equations take the form [17]

∂¯∂u−2|Q|2e−u=0, ∂¯Q=0,(2.27)

where Q is a holomorphic function. We note that equation (2.27), which is a Liouville type equation, coincides with the reduced form of the GC equations (2.10) obtained in the case of minimal surfaces (H = 0) immersed in the Euclidean space 𝔼³, with general solution

eu/2=ηη¯(1+χχ¯), Q=−η2∂χ.(2.28)

The reduced linear problem associated with equations (2.26) takes the form

∂Φ=(14∂u−Qe−u2λeu2−14∂u)Φ, ∂¯Φ=(−14∂¯u0Q¯e−u214∂¯u)Φ.(2.29)

Let us identify the vector X ∈ ℝ^3,1 with 2 × 2 Hermitian matrices using the Pauli matrices {σα}α=13 and the identity σ₀ := 𝟙₂ [24]

X=(X0,X1,X2,X3)↔Xσ=∑α=03Xασα=(X0+X3X1−iX2X1+iX2X0−X3).(2.30)

The scalar product is then given by

(X|Y)=12Tr(Xσiσ2(Yσ)Tiσ2),(2.31)

where (X | X) = −det(X^σ). We use the homomorphism

ρ:SL(2,ℂ)→SO(3,1), (ρ(A)X)σ=A†XσA.(2.32)

Consider Φ ∈ SL(2, ℂ) which transforms the orthonormal basis B = {𝟙₂, σ₁, σ₂, σ₃} into the orthonormal basis (the frame) B′ = {F^σ, ∂_xF^σ, ∂_yF^σ, N} by the relation

(λFσ,e−u2∂xFσ,e−u2∂yFσ,Nσ)=Φ†(𝟙2,σ1,σ2,σ3)Φ.(2.33)

To study the LP, we define the potential matrices 𝒰, 𝒱 in the 𝔰𝔩(2, ℂ) algebra by

∂Φ=𝒰Φ, ∂¯Φ=𝒱†Φ.(2.34)

Therefore these matrices take the following explicit form [11]

𝒰=(14∂u−Qe−u212eu2(λ+H)−14∂u), 𝒱=(−14∂uQe−u212eu2(λ−H)14∂u)∈𝔰𝔩(2,ℂ).(2.35)

Note that with the same gauge M (2.14), the gauge transformation process leads to the same structure, either with the transformation of the LP (2.11) associated with minimal surfaces immersed in the Euclidean space 𝔼³, or with the transformation of the LP (2.29) associated with CMC-λ surfaces immersed in the hyperbolic space H³(λ). Therefore, the linear system (2.15) can equivalently be expressed by the system

∂2Ψ1−2∂ηη∂Ψ1−λη2∂χΨ1=0,(2.36)

Ψ2=χΨ1−∂Ψ1λη2,(2.37)

where Ψ = (Ψ₁, Ψ₂)^T. The coefficients of the linear second-order ODE (2.36) possess a degree of freedom involving two arbitrary locally holomorphic functions η and χ. The complex-valued functions of one variable η(z) and χ(z) correspond to the arbitrary functions from the Enneper-Weierstrass representation (2.13) describing minimal surfaces in 𝔼³, which is equivalent to the Sym-Tafel formula (2.18) [25] .

From a solution Φ of the linear system (2.34), the formula

Fσ=1λΦ†Φ∈H3(λ)(2.38)

represents a conformal immersion in H³(λ). In the limit λ → 0, we have H³(λ) → 𝔼³, but the denominator in (2.38) goes to infinity. To solve this problem, before taking the limit, we perform a translation by shifting the origin from the center of the hyperboloid to one of the points on the hyperboloid, applying a limiting procedure used in [17] , similar to the one proposed in [26]

F˜σ=limλ→01λ(ϕ†ϕ−𝟙2).(2.39)

3. Special functions and associated soliton surfaces

In this section, we examine the ODE (2.36) in the case where it coincides with ODEs describing orthogonal polynomials. We present an example in which we solve the LP associated with the Laguerre polynomial. We discuss the explicit form of the Enneper-Weierstrass representation of 2D-surfaces immersed in 𝔼³ associated with this polynomial. Next, a summary of the results is presented for several classical orthogonal polynomials, under the form of tables, together with 3D images of selected surfaces.

3.1. The Laguerre equation: a complete example

The Laguerre equation for the unknown function ω takes the form

d2ωdz2+1−zzdωdz+αzω=0, z≠0, α∈ℕ.(3.1)

Comparing the coefficients of (3.1) with those of (2.36), we obtain the explicit form of the meromorphic functions η and χ. In general, for an ODE of the form

p(ν;z)d2ρdz2+q(ν;z)dρdz+r(ν;z)ρ=0, p≠0,(3.2)

we obtain the relations

q(ν;z)p(ν;z)=−2∂ηη, r(ν;z)q(ν;z)=−λη2∂χ,(3.3)

where we abbreviate the notation for the dependence of a function f on the parameters of the ODE (3.2) by writing f (ν; z), ν:= (ν₁, ν₂,...,ν_n). For any second-order linear homogeneous ODE of the form (3.2), the meromorphic functions η and χ take the form

η(ν;z)=k1Exp{−12∫0zq(ν;ξ)p(ν;ξ)dξ},(3.4)

χ(ν;λ;z)=k2λ∫Exp{∫0zq(ν;ξ)p(ν;ξ)dξ}r(ν;z)p(ν;z)dz,(3.5)

where k₁, k₂ ∈ ℂ are arbitrary integration constants and λ ≠ 0 is the parameter of the LP (2.15). Making use of (3.3) for the Laguerre equation, we find

η2(z)=ezc1z, χ(α;λ;z)=1λ(αc1e−z+c2),(3.6)

where c₁ ∈ ℂ \ {0}, c₂ ∈ ℂ are arbitrary integration constants and the functions η and χ are holomorphic, i.e. ∂¯η=∂¯χ=0. In view of (2.16), the potential matrix becomes

𝒰(α;λ;z)=(α+c2c1ezz−λezc1z1λ(αc1e−z+c2)2ezc1z−α+c2c1ezz)∈𝔰𝔩(2,ℂ).(3.7)

Making use of (3.6), we eliminate η et χ from equation (2.36) and obtain the Laguerre equation with dependent variable Ψ₁

zd2Ψ1dz2+(1−z)dΨ1dz+αΨ1=0, z≠0, α∈ℕ.(3.8)

To determine the wavefunction Ψ which satisfies the LP (2.15), we solve (3.8) for its first component Ψ₁

Ψ1=k1Lα(z)+k2U(−α,1,z), k1,k2∈ℂ,(3.9)

where L_α(z) et U(−α,1, z) are, respectively, the α^th-order Laguerre polynomial and the hypergeometric function of the second kind [15]. The general solution of the Laguerre equation (3.9) allows us to calculate the second component of the wavefunction Ψ₂ from relation (2.37)

Ψ2=χΨ1−∂Ψ1λη2=1λ[k1(c2Lα(z)+c1αezLα−1(z))+k2((c1αez+c2)U(−α,1,z)−c1αzezU(1−α,2,z))],(3.10)

where we use the well known recurrence formulas [15]

zddzLm(z)=mLm(z)−mLm−1(z),(3.11)

ddzU(ν1,ν2,z)=−ν1U(ν1+1,ν2+1,z).(3.12)

The wavefunction Ψ associated with the LP (2.15) takes the form

Ψ(α;λ;z)=(k1Lα(z)+k2U(−α,1,z)1λ[k1(c2Lα(z)+c1αezLα−1(z))+k2((c1αez+c2)U(−α,1,z)−c1αzezU(1−α,2,z))]),(3.13)

where z ≠ 0. We make use of (2.13) to calculate the Enneper-Weierstrass representation of the surface F ∈ 𝔼³. We find

F1(α;λ;ξ,ξ¯)=12Re(1λ2[1c1(λ2−c22)Ei(z)−α2c1Ei(−z)−2αc2log(z)]ξ0ξ),F2(α;λ;ξ,ξ¯)=−12Im(1λ2[1c1(λ2+c22)Ei(z)+α2c1Ei(−z)+2αc2log(z)]ξ0ξ),F3(α;λ;ξ,ξ¯)=Re(1λ[(αlog(z)+c2c1Ei(z))]ξ0ξ), (3.14)

where the notation |ξ0ξ means that the previous expression is evaluated from a constant ξ₀ to an arbitrary complex number ξ. The function Ei(z) corresponds to the complex exponential integral as defined in [27]

Ei(z)=∑k=1∞zkk⋅k!+12(log(z)−log(1z))+γ,(3.15)

where γ is the Euler-Mascheroni constant. In view of (2.19), the components of the quaternionic representation F˜=(F˜ij) of the surface immersed in the 𝔰𝔲(2) algebra take the form

F1(α;λ;ξ,ξ¯)=12Re(1λ2[1c1(λ2−c22)Ei(z)−α2c1Ei(−z)−2αc2log(z)]ξ0ξ),F2(α;λ;ξ,ξ¯)=12Im(1λ2[1c1(λ2+c22)Ei(z)+α2c1Ei(−z)+2αc2log(z)]ξ0ξ),F3(α;λ;ξ,ξ¯)=Re(1λ[(αlog(z)+c2c1Ei(z))]ξ0ξ), (3.16)

We simplify the problem to illustrate a particular case of the Laguerre equation and to show a numerical display of the surface in 𝔼³. Let α = 1. The Laguerre equation (3.1) becomes

zd2ωdz2+(1−z)dωdz+ω=0(3.17)

and by comparing the coefficients of (3.17) with those of (2.36), we find the holomorphic functions as in (3.6). Considering fixed arbitrary integration constants and the parameter λ, let c₁ = 1, c₂ = 0, k₁ = 1, k₂ = 1 and λ = 1. From (3.3), the holomorphic functions η and χ become

η2(1;1;z)=ezz, χ(1;1;z)=e−z,(3.18)

where ∂¯η=∂¯χ=0. The potential matrix (2.16) takes the form

𝒰(1;1;z)=1z(−1ez−e−z1)∈𝔰𝔩(2,ℂ)(3.19)

and the wavefunction takes the form

Ψ(1;1;z)=(Ψ1Ψ2)=((z−1)(Ei(z)+1)−ez−e−z(Ei(z)+1)),(3.20)

where we use the relations (2.36) and (2.37). The second component Ψ₂ was obtained using the differentiation formula [15]

ddzEi(z)=ezz.(3.21)

We verify that 𝒰 and Ψ are solutions of the LP (2.15) using the notation 𝒰Ψ := (Λ₁, Λ₂)^T and verifying that ∂Ψ₁ = Λ₁, ∂Ψ₂ = Λ₂.

𝒰(λ,z)Ψ=(Λ1Λ2)=((Ei(z)+1)−ezze−z[(Ei(z)+1)−ezz])=∂(Ψ1Ψ2)=∂Ψ.(3.22)

The Enneper-Weierstrass representation (2.13) takes the form

F(1;1;ξ,ξ¯)=(12Re([Ei(z)−Ei(−z)]ξ0ξ)−12Im([Ei(z)+Ei(−z)]ξ0ξ)Re(log(z)|ξ0ξ))∈𝔼3.(3.23)

The quaternionic representation (2.19) of the surface immersed in the 𝔰𝔲(2) algebra takes the form

We keep in mind that the formulas (3.23) and (3.24) describe different representations of the same surface.

3.2. Solutions of the linear problem and soliton surfaces associated with orthogonal polynomials

We summarize our results in the form of tables, giving the explicit form of surfaces and LP elements. Each table is made of five parts: the meromorphic functions η (3.4) and χ (3.5), the components of the potential matrix 𝒰 (2.16), the components of the wavefunction Ψ defined by (2.36) and (2.37), the components of the surface F ∈ 𝔼³ (2.13), and the components of the surface F˜∈𝔰𝔲(2) (2.19).

In each case, we consider in the table the parameter λ ∈ ℂ\{0} of the LP (2.15), the parameters {ν_k : k = 1, 2,...,n} of the specific ODE, and four arbitrary integration constants c₁ ∈ ℂ\{0}, c₂, k₁, k₂ ∈ ℂ. To keep the expressions compact, in what follows, we use the notation z^* to designate the complex conjugate of z. We identify the special functions appearing in the formulas at the bottom of each table, accompanied by the notations and the constraints, in certain cases. For example, for the Jacobi equation, a restriction on the domain of the parametrization is necessary in order to integrate the functions η and χ, to find the components of the surface and to ensure the convergence of the infinite series. This restriction arises from the chosen representation of the functions appearing in the integrands of the Enneper-Weierstrass formula (2.13)

DJacobi={ξ∈ℂ:|ξ|<1 and |ξ+1|<2|α|}.(3.25)

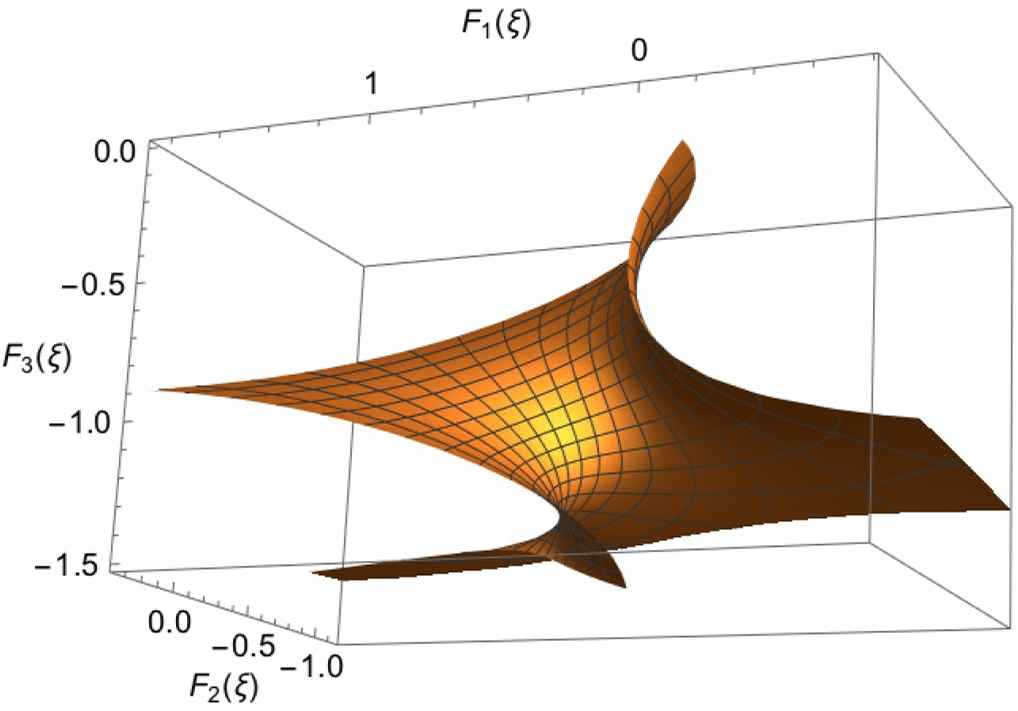

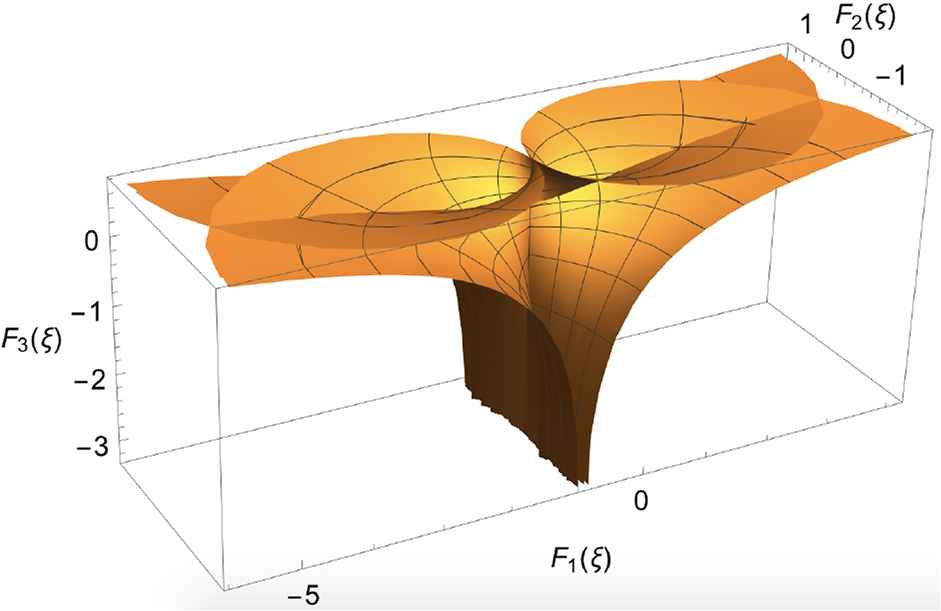

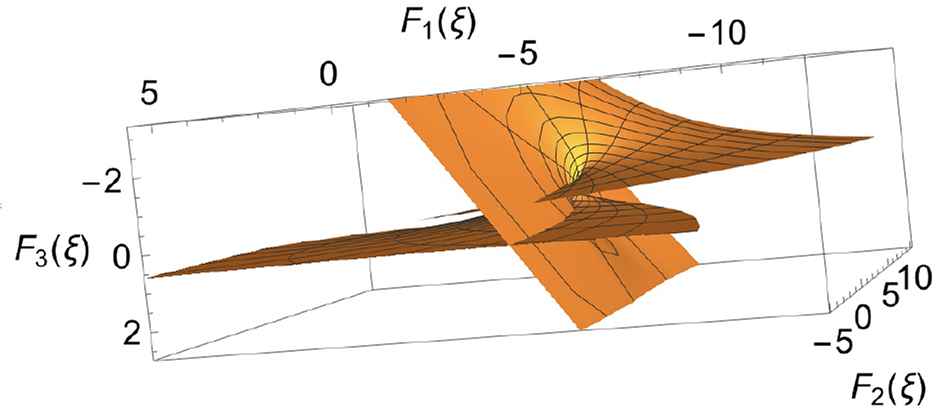

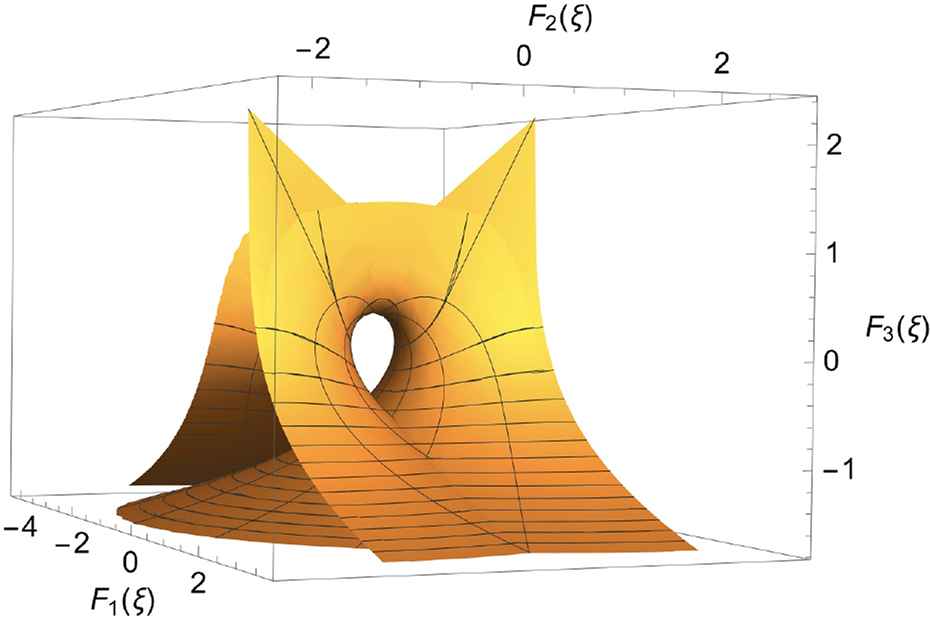

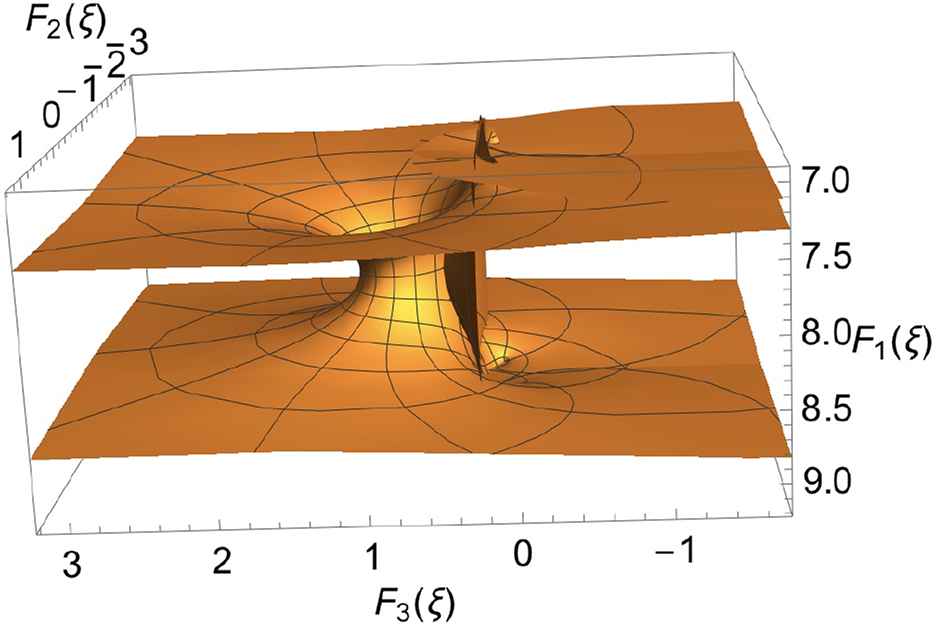

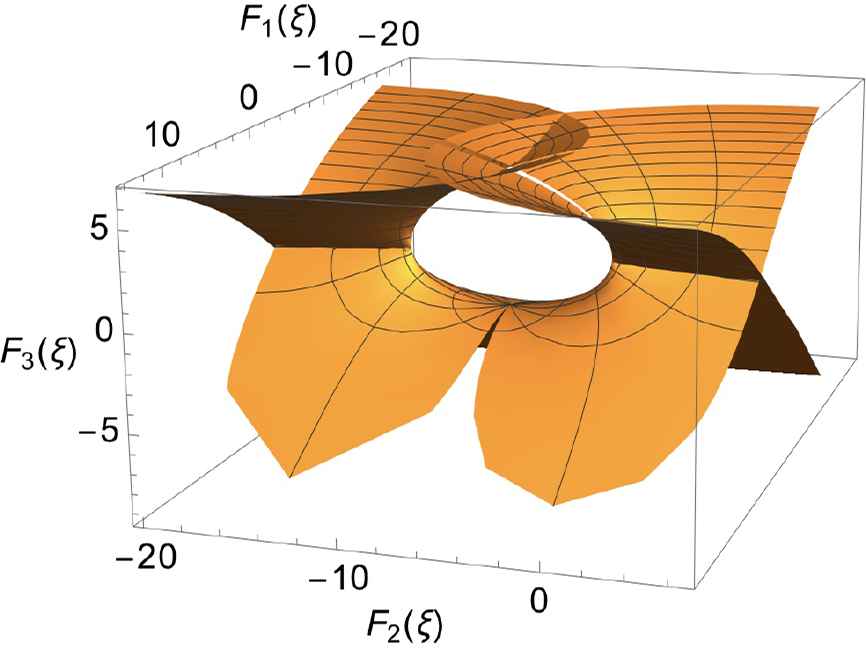

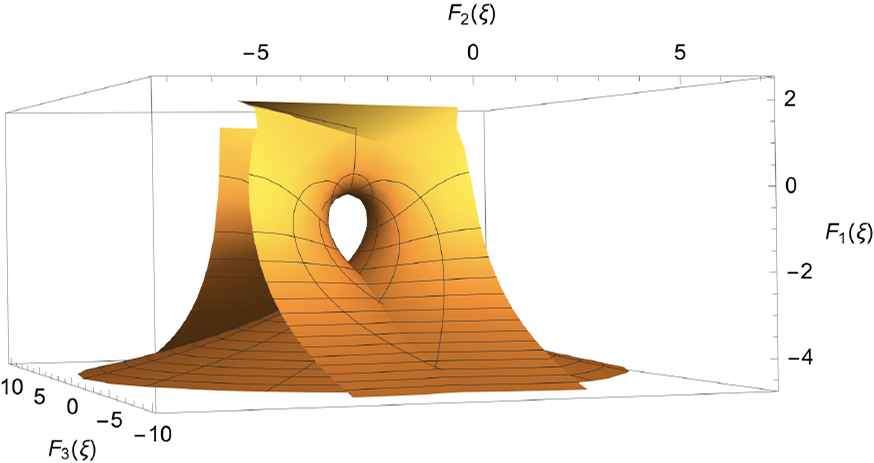

Each table is accompanied by a numerical 3D representation of a selected surface obtained by fixing the parameters of the classical ODE considered, the parameter of the LP and the integration constants. To keep the expressions in the captions compact, we use the notation Fk0, k = 1, 2, 3 to specify that the parameters and constants have fixed values.

4. Concluding remarks

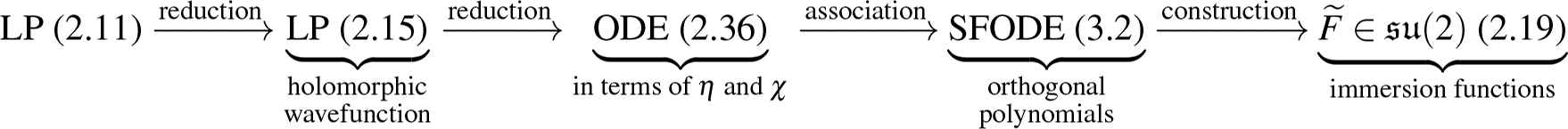

In this paper, we have shown the connection between the linear problem, the reduction of the GW equations to an ODE and the immersion functions of 2D-surfaces associated with classical special functions ODEs (SFODE) describing orthogonal polynomials. These links are summarized by the following diagram

This approach allows us to visualize the image of the surfaces arising from specific orthogonal polynomials, reflecting their behavior. The images were generated with Mathematica using the <monospace>ParametricPlot3d</monospace> command (no specific package). In order to reduce the calculation time, the primitive integrals of each component of the surface were used instead of the integral representation of the Enneper-Weierstrass formula.

The existence of SL(2, ℂ)-valued gauge transformations allowed the reduction of the LP to a second-order ODE, which can very often be explicitly integrated in terms of special functions. We showed that the simplification of the LP associated with the moving frame by successive gauge transformations allows the introduction of the arbitrary holomorphic functions η and χ of the Enneper-Weierstrass representation into the problem. This link between the immersion function and the LP was used to determine the second-order linear ODE arising from CMC-λ surfaces. At this point, the ODE representation of the LP could have been associated with any second-order linear ODE. We chose classical ODEs describing orthogonal polynomials, using the degree of freedom corresponding to the fact that the holomorphic functions η and χ are arbitrary. The explicit expressions for the potential matrices and the wavefunction solutions of the LP have been found. This fact enabled the construction of soliton surfaces defined using the Weierstrass or the Sym-Tafel formulas for immersion.

We have formulated easily verifiable conditions which ensure the visualization of surfaces describing special functions. This result can assist future studies of 2D-surfaces with the so-called Askey-scheme of hypergeometric orthogonal polynomials and their q-analogue of this scheme, which can lead to the description of more diverse types of surfaces than those studied in this paper. This task will be considered in a future work.

A new class of minimal surfaces describing orthogonal polynomials has been constructed. These surfaces must now be characterized to enable a clear description of their behavior in order to establish the links between their intrinsic properties and the orthogonal polynomials considered to construct them. The fundamental forms need to be determined, together with the genus and the zeros. We found that the orthogonality interval of the polynomials sometimes describes a curve on the surface. The link between this fundamental interval and the surfaces needs to be studied.

Acknowledgments

V.C. has been partially supported by the Natural Science and Engineering Research Council of Canada (NSERC) and by the Fonds de Recherche du Québec-Nature et Technologies (FRQNT). A.M.G. has been partially supported by the Natural Science and Engineering Research Council of Canada (NSERC) and would like to thank A. Doliwa (University of Warmia and Mazury) and D. Levi (University of Roma Tre) for helpful discussions on this topic.

References

[1]F.F. Chen, Introduction to plasma physics and controlled fusion, Springer, 1984.

[2]A.S. Davydov et al., Solitons in molecular systems, Springer, 1985.

[3]F. David, P. Ginsparg, and J. Zinn-Justin, Fluctuating geometries in statistical mechanics and field theory, Elsevier-North-Holland, Amsterdam, 1996.

[4]G. Landolfi, On the Canham–Helfrich membrane model, Journal of Physics A: Mathematical and General, Vol. 36, No. 4, 2003, pp. 699-715.

[5]D.J. Gross, T. Piran, and S. Weinberg, Two dimensional quantum gravity and random surfaces, World Scientific Singapore, 1992.

[6]D.R. Nelson, T. Piran, and S. Weinberg, Statistical mechanics of membranes and surfaces, World Scientific, 2004.

[7]Z.-C. Ou-Yang, J.-X. Liu, Y.-Z. Xie, and X. Yu-Zhang, Geometric methods in the elastic theory of membranes in liquid crystal phases, World Scientific, 1999.

[8]J. Polchinski and A. Strominger, Effective string theory, Physical review letters, Vol. 67, No. 13, 1991, pp. 1681.

[9]S. Safran, Statistical thermodynamics of surfaces, interfaces, and membranes, CRC Press, 2018.

[10]A. Sommerfeld, Lectures on theoretical physics, Academic Press, Vol. 1-3, 1964.

[11]A.I. Bobenko, Surfaces in terms of 2 by 2 matrices. Old and new integrable cases, Harmonic maps and integrable systems, 1994, pp. 83-127.

[12]C. Brezinski, A.P. Magnus, A. Ronveaux, A. Draux, and P. Maroni, Polynômes orthogonaux et applications, Springer-Verlag, Berlin, 1984.

[13]G.E. Andrews, R. Askey, and R. Roy, Special functions, Cambridge university press, 2000.

[14]F. Olver, Asymptotics and special functions, Academic press, New York, 1974.

[15]M. Abramowitz and I.A. Segun, Handbook of Mathematical Functions, Dover, New York, 1965.

[16]E.D. Rainville, Special functions, The MacMillan Company, New York, 1960.

[17]A. Doliwa and A.M. Grundland. Minimal surfaces in the soliton surface approach, arXiv ID: 1511.02173 (2015)

[18]A.I. Bobenko and U. Eitner, Painlevéequations in the differential geometry of surfaces, Springer-Verlag, Berlin, 2000.

[19]K. Weierstrass, Fortsetzung der untersuchung über die minimalflachen, Mathematische Werke, Vol. 3, 1866, pp. 219-248.

[20]A. Enneper, Analytisch-geometrische untersuchungen nachr, Königl. Gesell. Wissensch. Georg–Augusts-Univ. Göttingen, Vol. 12, 1868, pp. 258-277.

[21]A. Sym, Soliton surfaces, Littere al Nuovo Cimento, Vol. 33, 1982, pp. 394-400. which also mentions J. Tafel contribution

[22]A. Sym, Soliton surfaces and their applications (soliton geometry from spectral problems), Geometric aspects of the Einstein equations and integrable systems, Lecture notes in Physics, Vol. 239, 1985, pp. 154-231.

[23]B.G. Konopelchenko, Induced surfaces and their integrable dynamics, Studies in applied mathematics, Vol. 96, No. 1, 1996, pp. 9-51.

[24]A. Bobenko, Surfaces of constant mean curvature and integrable equations, Uspekhi Mat. Nauk, Vol. 46, No. 4(280), 1991, pp. 3-42.

[25]A.M. Grundland and I. Yurdusen, On analytic descriptions of two-dimensional surfaces associated with the CP(N-1) sigma model, J. Phys. A: Math. Theor, Vol. 42, 2009, pp. 172001.

[26]J.L. Cieśliński, A geometric interpretation of the spectral parameter for surfaces of constant mean curvature, Journal of Nonlinear Mathematical Physics, Vol. 13, No. 4, 2006, pp. 507-515.

[27] Wolfram Research, Exponential integral, accessed in november 2018. URL: http://functions.wolfram.com/06.35.02.0001.01

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Journal: Journal of Nonlinear Mathematical Physics
Volume-Issue: 27 - 4
Pages: 529 - 549
Publication Date: 2020/09/04
ISSN (Online): 1776-0852
ISSN (Print): 1402-9251
DOI: 10.1080/14029251.2020.1819599 How to use a DOI?
Open Access: This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

Cite this article

ris enw bib

TY  - JOUR
AU  - Vincent Chalifour
AU  - Alfred Michel Grundland
PY  - 2020
DA  - 2020/09/04
TI  - Minimal surfaces associated with orthogonal polynomials
JO  - Journal of Nonlinear Mathematical Physics
SP  - 529
EP  - 549
VL  - 27
IS  - 4
SN  - 1776-0852
UR  - https://doi.org/10.1080/14029251.2020.1819599
DO  - 10.1080/14029251.2020.1819599
ID  - Chalifour2020
ER  -

download .riscopy to clipboard

Journal of Nonlinear Mathematical Physics

Minimal surfaces associated with orthogonal polynomials

1. Introduction

2. Linear problem and immersion formulas

2.1. The linear problem for minimal surfaces

2.2. Immersion in the hyperbolic space H3(((λ))) of curvature λ

3. Special functions and associated soliton surfaces

3.1. The Laguerre equation: a complete example

3.2. Solutions of the linear problem and soliton surfaces associated with orthogonal polynomials

4. Concluding remarks

Acknowledgments

References

Cite this article

2.2. Immersion in the hyperbolic space H³(((λ))) of curvature λ
