2.2.1. Confidentiality

Authentication of devices in IoT is often not given enough importance when compared to application or user authentication methods that are common today due to IoT device resource limitations, network transmission capacity, or the lack of user interface. Many IoT devices are equipped with inexpensive sensors and insufficient security protections and are generally more prone to attacks than personal computers or smart IoT systems shown in Figure 2. The first issue stemming from it is that these devices are less capable than the laptops and desktops which can be protected with access controls and have antivirus software installed. The second issue is that IoT devices are using new connectivity protocols like Wi-Fi, Bluetooth, Zigbee and others that are not secured by traditional security systems. The last issue is that most of these devices do not have a way to patch or update security issues they are discovered. These devices are designed to be running all the time and there is no user interaction or interface which essentially the main areas where there are high chances of compromising security and to enforce strong protection rules, we would need a strong device authentication mechanism.

Let us take Smart home scenario as an example to illuminate authentication of IoT devices and potential faults. First and foremost, the step to enable any smart devices is to connect device to the internet by authenticating the device with home Wi-Fi (e.g., connecting smart switch to Wi-Fi router) as depicted in Zhang et al. [8]. While connecting, an attacker in the proximity can perform either a passive attack (by sniffing all message exchanged over the Wi-Fi), or by imitating the home automation device an attacker can connect to Wi-Fi router. Hence, sensitive information can be accessed such as Wi-Fi password or gaining access to network which allows the intruder to peek into the whole world of IoT network.

Figure 2

IoT smart network.

Several IoT device vendors take advantage of smartphones to input Pre-Shared Key (PSK) as a solution to authentication of IoT device problem. IoT devices collect PSK through smartphone and completes authentication with Wi-Fi router once after the connection between smartphone and IoT device is established. Hence, now the complication is shortened to IoT device and smartphone from IoT device and the Wi-Fi router authentication. And there were many cryptographic solutions proposed to pair smart phone and IoT devices securely but unfortunately, many traditional cryptographic techniques, such as the Diffie–Hellman protocol, by themselves are insufficient for securely pairing devices that spontaneously come into wireless contact.

The other problem as highlighted in Zhang et al. [8] is even if the home device had additional enough protection rules to secure the password using encryption, still it is not sufficient in protecting passwords. As home device is an embedded system, it is highly possible to read out the home device firmware and take binary analysis (by using firmware analysis tools) to retrieve the secrets. So, indeed the protection rules implemented by home device is not sufficient to fix the vulnerability. Also, an attacker can mimic the IoT device through transmitting same Service Set IDentifier (SSID) and Media Access Control (MAC) address.

As an alternative it was suggested to use a two-step authorization using biometrics verification in Farooq et al. [9], to ensure authentication which essentially is a preventive security measure but the drawback with this approach is mostly the IoT devices are heterogeneous and cannot support same level of communication required for authentication because of hardware constraints. For example, home devices such as smart switches and Router do not have the same set of authentication capabilities.

The shortcomings of IoT device hardware mentioned above can be conquered by using a proximity-based IoT device authentication called Move2Auth in Zhang et al. [8], in which the user operates few gestures in front of IoT device to authenticate securely while the IoT device is broadcasting radio signals as illustrated in Figure 3. Smartphone matches sensor trace with Received Signal Strength indicator (RSSI) trace to resolve if the device is within the proximity.

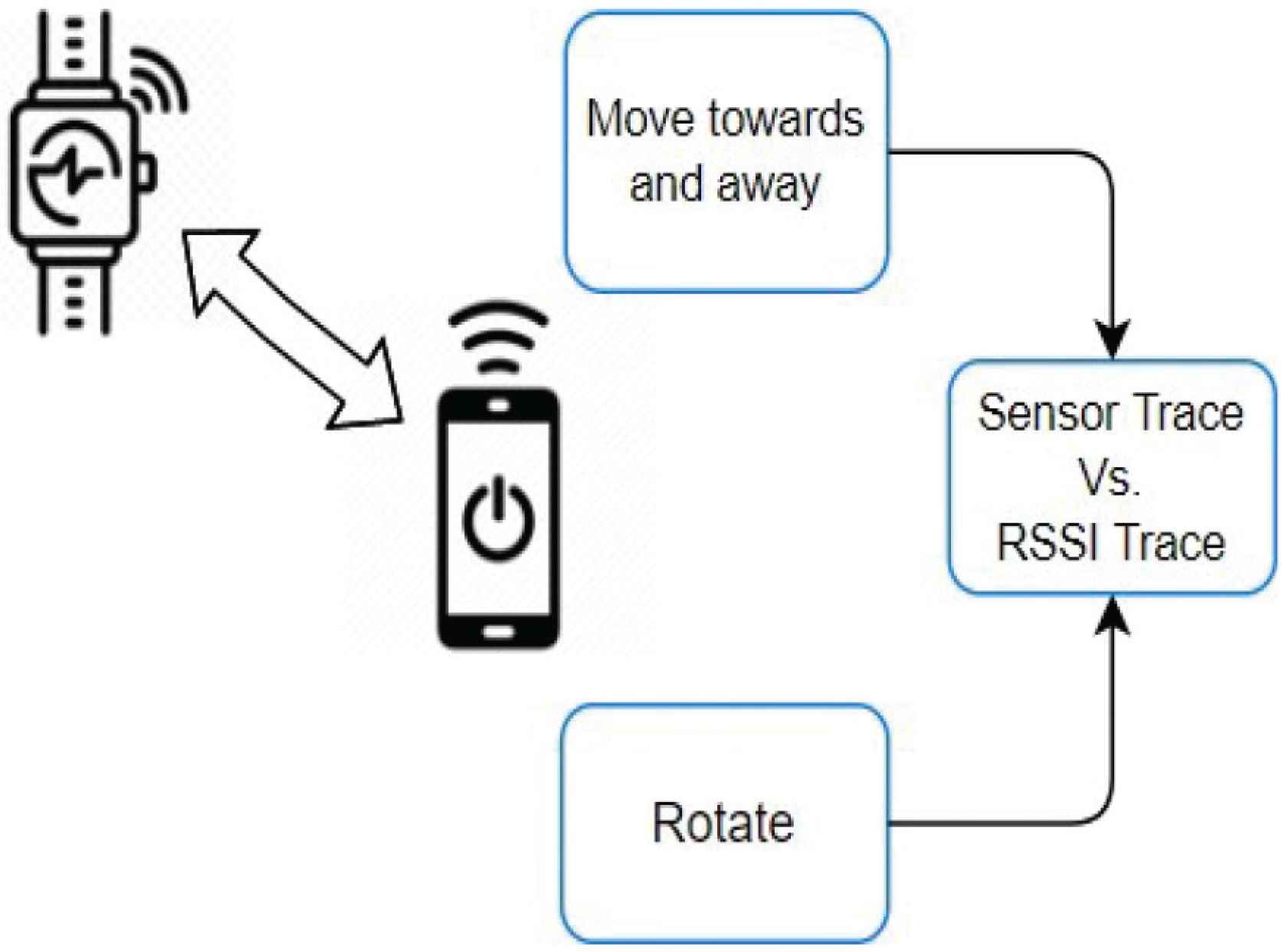

Figure 3

Proximity-based authentication.

In the proximity-based authentication, there is no need of manual entry of passwords and this solution is not sensitive to eavesdropping attacks. Using Move2Auth [8], we combine large RSSI-variation detection, and a comparison between RSSI trace and smartphone’s sensor trace, to execute reliable proximity detection, where RSSI variation detection can adequately mark off whether devices are with in proximity or far away, and the comparison between RSSI trace and smartphone’s sensor trace can counterattack against potential intruder who can promptly tune transmission capacity. Aforementioned method is easier to use and strongly secured. The basic advantages of this technique are it does not require any added hardware on the devices besides the radio signals that is anyhow used for communication. The only drawback with this approach is the accuracy of proximity-based authentication to adapt to the advancing dynamic nature of malicious attack, which can be improvised by using an adaptive security model as mentioned in our Section 3.

2.2.2. Availability

Availability is among the most important security models that ensures the target IoT systems, devices and networks are working as expected and allow authorized users to access data at any time. Although the data is essential component of IoT, IoT devices and other services must be available too when needed in the IoT network. Distributed Denial-of-Service (DDoS) attack are the most common attack that targets Availability of service and network. Let us investigate additional details of DDoS attacks and some of the existing countermeasures to it.

DDoS attacks: By definition, distributed DoS attack is outlined by a definitive effort to avoid the authentic users from consuming the services striking the target services with tremendous traffic. DDoS attacks are the leading threats in the modern internet and IoT era. And it is quite notable that in recent times, hacker’s frequency using IoT devices as an army of bots to target network, services and even the internet by introducing DDoS attacks. The special example we always can refer to is the popular Mirai Bot Attack explained in Figure 4. By leveraging the shortcomings of IoT devices mentioned earlier, attackers were able to successfully compromise many IoT devices such as surveillance cameras or smart switches and used them to bombard the victims with DDoS traffic. This has been described and demonstrated very extremely well in Gallopeni et al. [5].

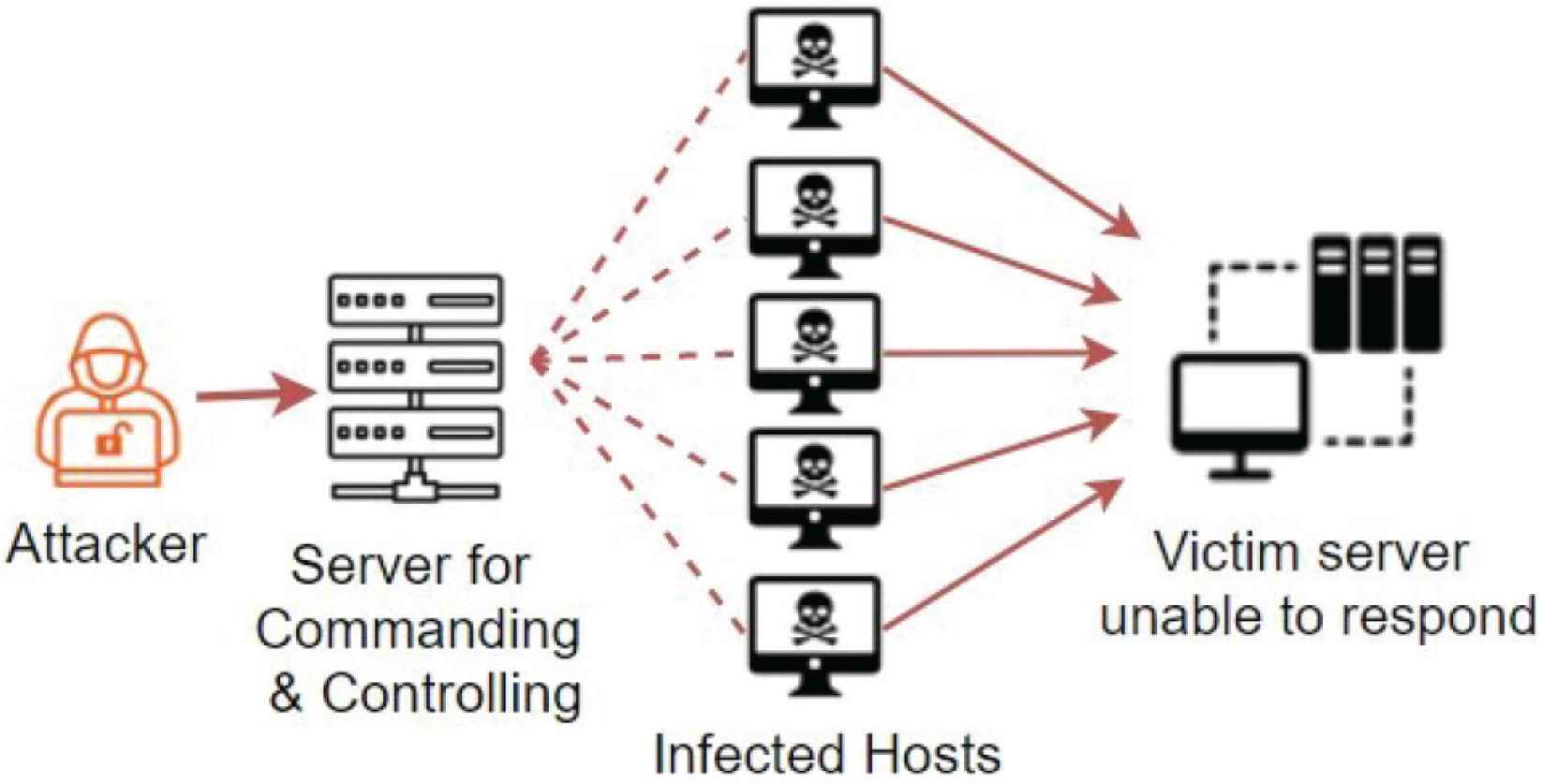

Figure 4

Mirai Bot attack 2016.

There are various types of DDoS attacks. Some of them are:

• •

  Syn flood attacks: This is a DoS attack where an intruder swiftly opens a connection to the target server and will never send an Acknowledge (ACK) back to the target. The targeted server waits for the ACK response from the requester and go into waiting state that results in utilizing server resources as demonstrated in Figure 5. Such utilization of resources will result in making the target system to be unresponsive to verified and authenticate users or traffic.

• •

  Ping flood attacks: This is a DDoS attack where attacker send a constant sequence of Internet Control Message Protocol (ICMP) echo ping requests to a target server’s network and the target server becomes busy in responding to such requests with ICMP Echo Reply packets.

  Target server’s network becomes very busy processing them and the legitimate users cannot connect to the target server. In a way attacker achieves what he wants by introducing delays into the network as shown in Figure 6.

• •

  UDP flood attacks: DDoS attack when the intruder sends enormous number of UDP packet messages to target server to make the target server busy until it reaches the server’s request threshold and ultimately push the target server to go into a busy state and rejects all the legal traffic. As demonstrated in Figure 7 legitimate users or requests perceive this as server timeout or service is unavailable.

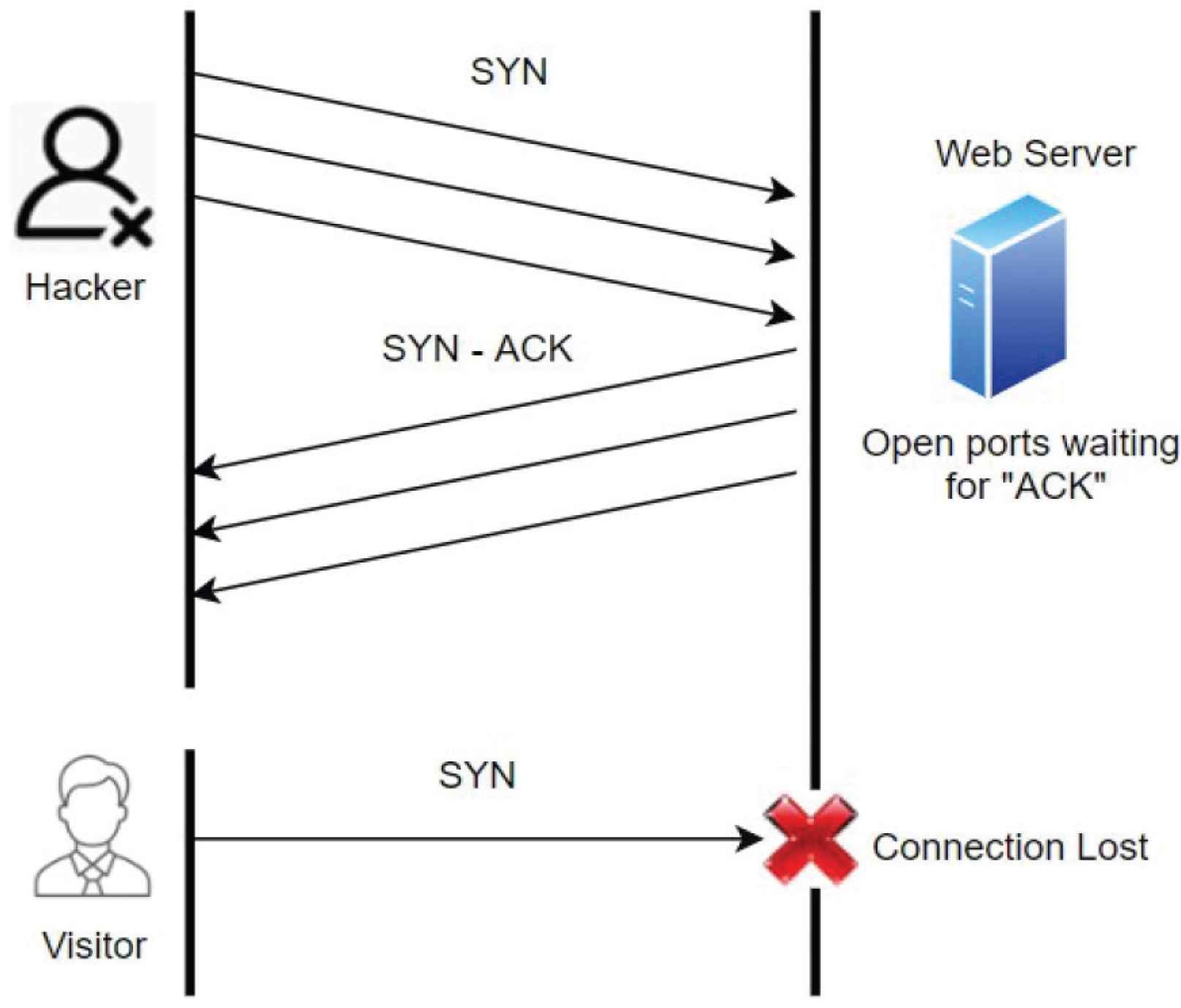

Figure 5

SYN flood attack.

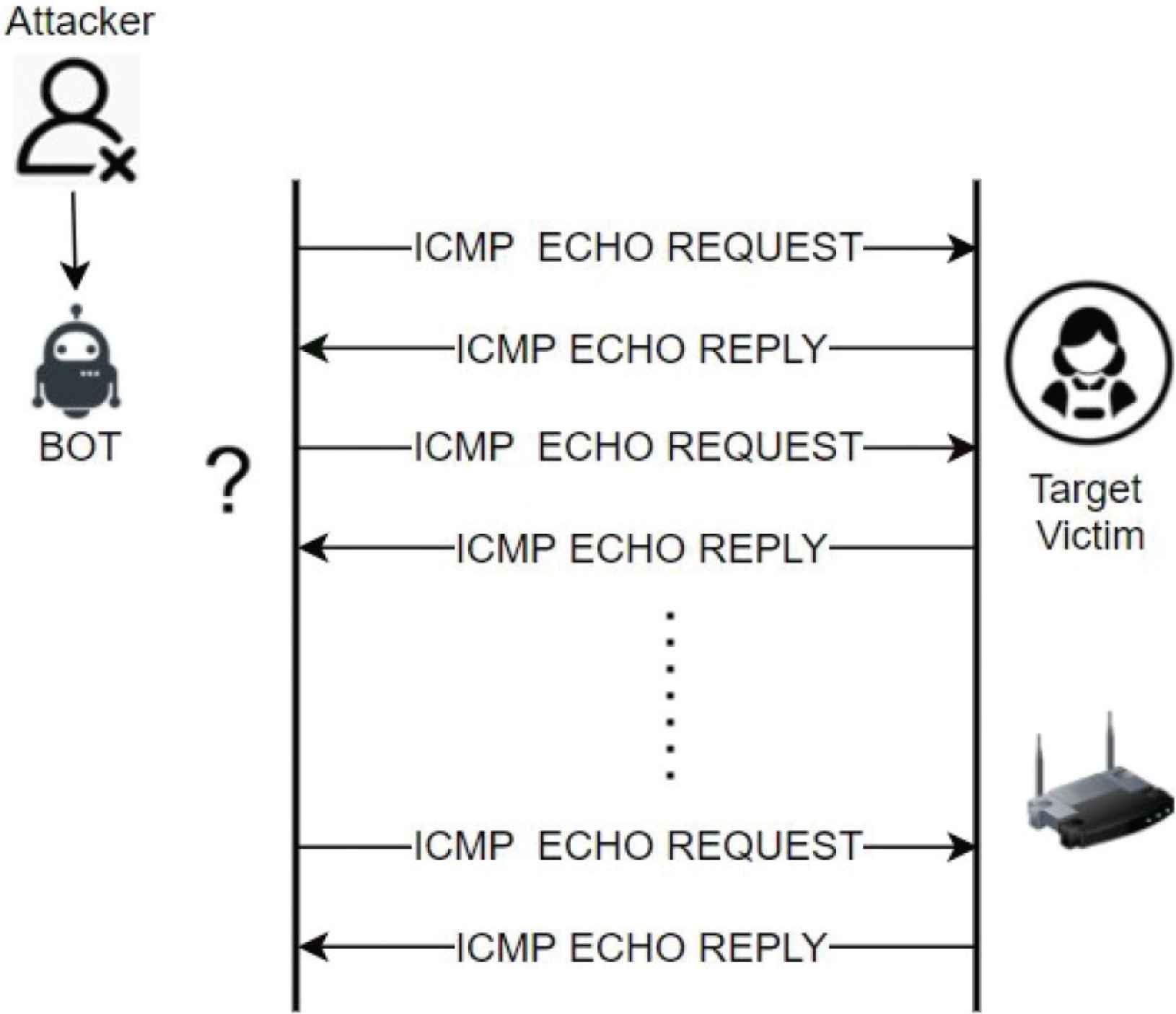

Figure 6

Ping flood attack

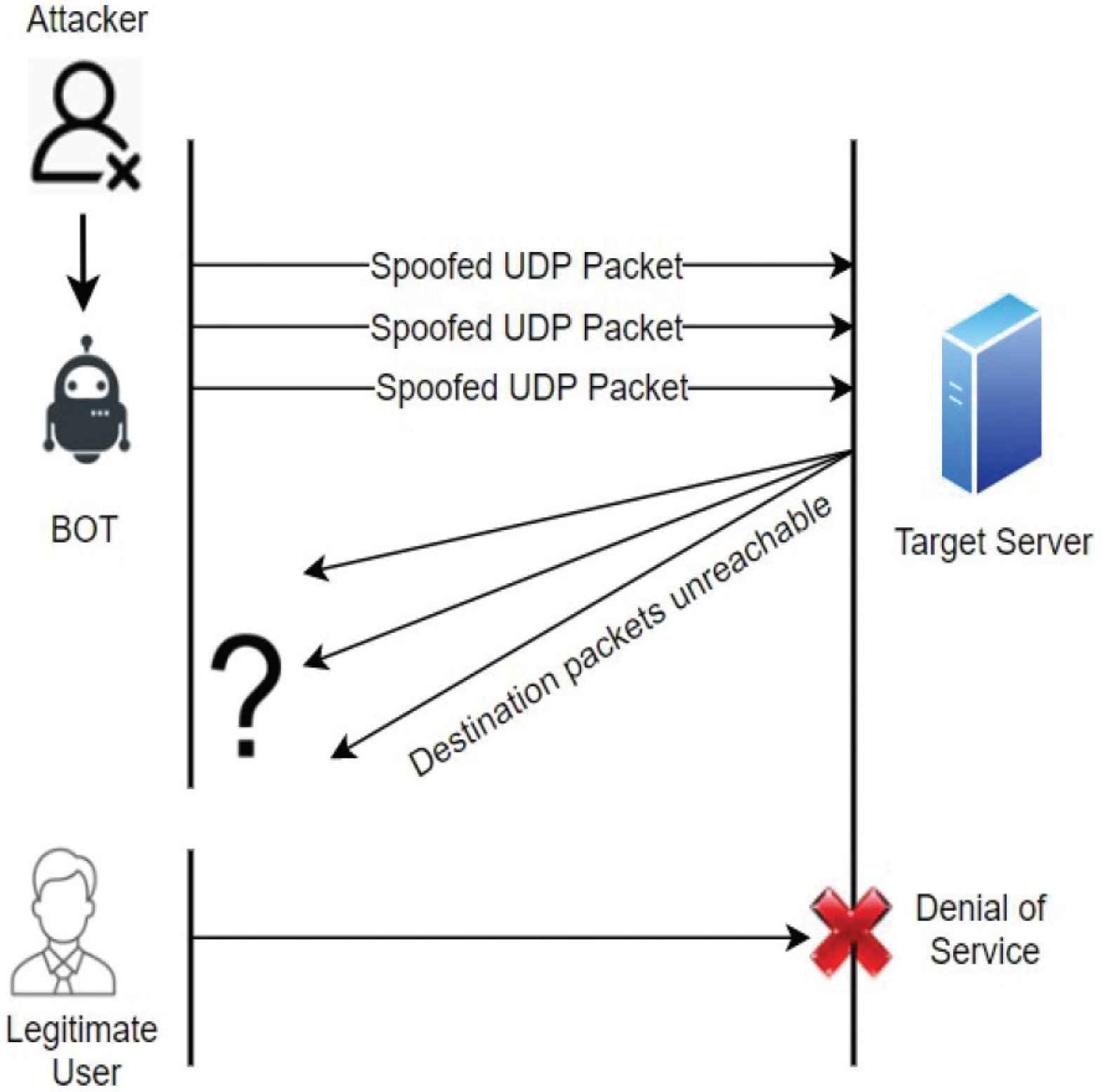

Figure 7

UDP flood attack.

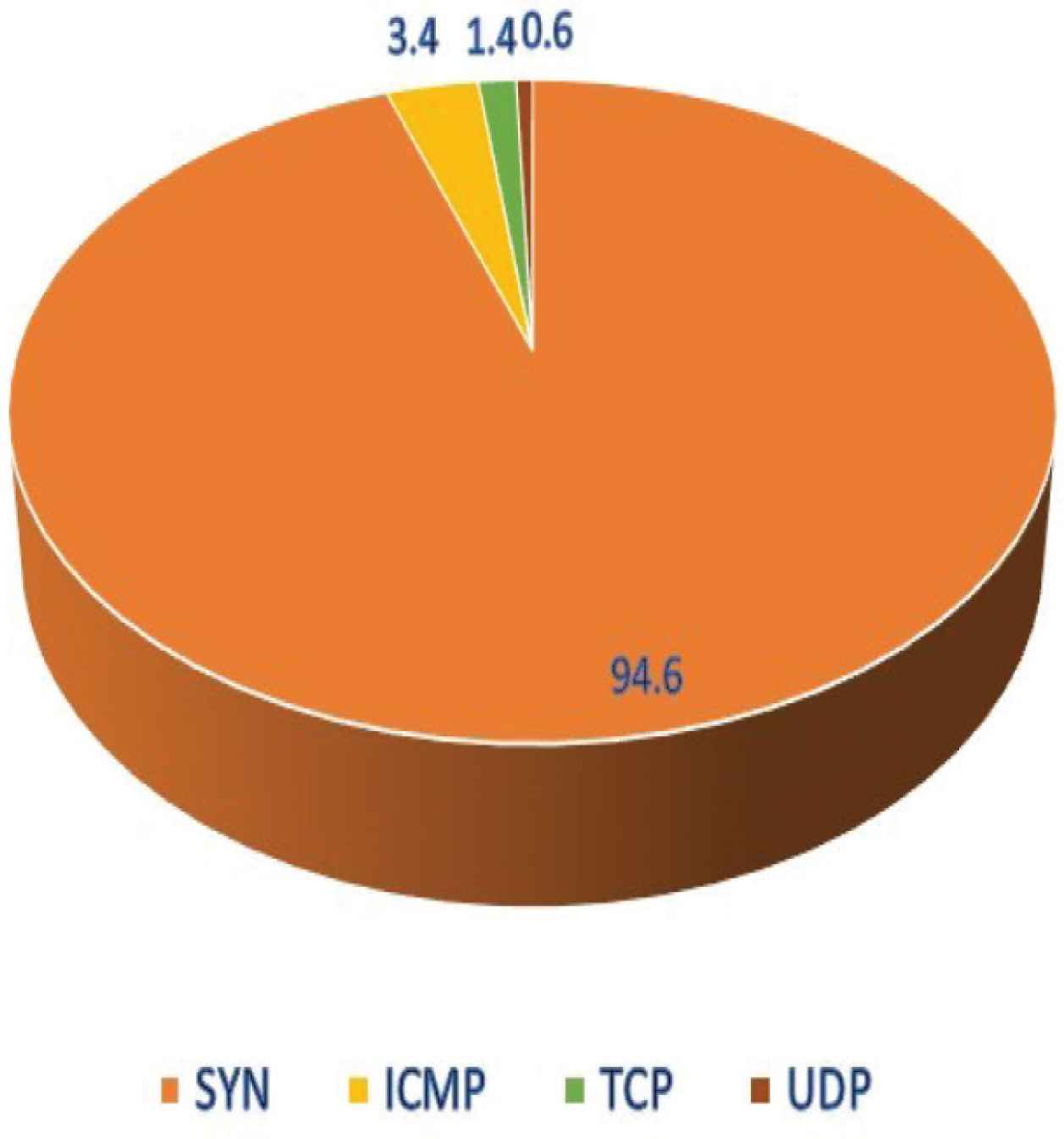

Syn Flood Attacks are the most common DDoS attack among all. Figure 8 shows the pictorial representation of various DDoS attacks depicted in pie chart using the 2018–2020 statistics [6]:

Figure 8

2018–2020 statistics depicting various DDoS attacks.

Intrusion Detection System (IDS): IDSes can identify the attack traffic and help in decreasing the attack surface. It analyzed the network traffic to identify and detect any suspicious behavior and takes necessary actions to contain the attack. Generally, there are two known types of IDS as described in Shurman et al. [10]:

• •

  Anomaly based: In Anomaly IDS method, the technique followed to detect attacks is by comparing the past traffic pattern and its behavior with the current normal traffic and this type is commonly used mechanism to detect new type attacks. However, it is known to be a mechanism that creates a lot of false positive alarms.

• •

  Misuse based or Signature based: This type uses a signature-based comparison to detect anomalies in the traffic and yields no false positive alarms, but new attacks are unidentified since signature of that pattern does not exist in the signature repository. Widely used to detect known attack with precision but would not work for detecting new attacks.

Some of the examples of Anomaly-based IDS model is using the parameters such as login location, login times and activities of the user to find anomalies in the network traffic by comparing it with the previous patterns. These can be automated by using network monitoring tools but collecting new data and feeding to the IDS model is a big challenge as there are so many attacks that happens every minute and due such huge data it is not easy for the monitoring tools to find the anomaly spontaneously. Since these models are static in nature, Section 3 proposes some of the Machine Learning techniques in association with adaptive security methods in improving the IDS countermeasure accuracy rate and identifying any intrusions and making it almost dynamic.

2.2.3. Integrity

Let us look at some of the traditional cryptographic methods such as Data Encryption Standard (DES), Advanced Encryption Standard (AES), Triple DES (TDES) and (Rivest–Shamir–Adleman) is an asymmetric cryptographic algorithm (RSA) as a countermeasure to ensure Data security and integrity during the transfer of data through communication channel. First and foremost, all these models would require reasonable memory and CPU processing power. It was found in recent times that DES is vulnerable to attacks and experts have found various flaws in the cipher design. It is well known AES is the much-used scheme and most efficient scheme that uses a symmetric cipher as suggested by authors in Farooq et al. [3] and Farooq and Faisal Aslam [7]. AES method is also adapted and recognized by US federal government. AES Cryptographic scheme is very easy to implement and uses symmetric, round-based algorithm with various sizes of key. Standard AES implementation would require more hardware resources and again that could very well be a drawback for some of the IoT devices with resource limitations. There are various new schemes introduced recently especially for securing IoT communication channels such as eXtended TEA (XTEA), SPEK and Location-Exposure Algorithm (LEA). This is certainly a debatable topic and various research has been done [11,12] to compare and find the most suitable cryptographic schema for IoT devices. So, for simplicity let us assume here that the IoT devices nowadays comes with efficient and large resources and we are considering AES method here as AES proven to be most efficient cryptographic scheme per [12]. Even though AES cryptographic scheme is a suitable candidate it is still not dynamic in nature that it is not suitable for the dynamic nature of attacks. An Adoptive model of AES scheme is shown in Section 3.

3.2.1. Confidentiality and authentication

In Section 2.2 we identified proximity-based authentication approach is the best solution with a limitation of not able to adapt to the changing dynamic nature of malicious attacks. Using Machine Learning data, we can implement adaptive framework to detect unusual activity based on the previous login times, location and other activities taken place and block the authentication. Various learning-based authentication techniques are applicable to IoT devices however since Unsupervised learning techniques like IGMM and Q-Learning techniques [15] are ideal to be used for proximity-based authentication without compromising the location information of the devices as shown in Xiao et al. [16] we will try to inspect them.

• •

  Infinite Gaussian Mixture Model (IGMM): IGMM technique is a non-parametric Bayesian method used mostly in the proximity test and the IGMM takes multiple radio sources into account and provides flexible proximity range control [17]. To identify spoofers outside the proximity range, the Model proximity will be adjusted to compute RSSI trace and ambient signal’s packet arrival time intervals [16,17]. In IGMM model, the proximity-based authentication and session key establishment are implemented based on location tags. So basic idea in this model is to make it difficult for the attacker to construct the location tags if the signals are sent from multiple radio sources. Also, each radio client will create a public location tag using the MAC addresses of the packets, RSSI, and sequence numbers. Additionally, all the clients keep a secret location tag that consists of packet arrival time details to generate the session keys. Accuracy of authentication will be improved with the use of IGMM technique. In comparison with the Euclidean distance-based authentication which is mostly used to detect the spoofing attacks [16,18] IGMM technique used in proximity authentication scheme trim down the error rate to 5% by 20%. This technique is strong enough, and the spoofers/Eavesdroppers cannot really intrude outside the proximity range easily.

In IGMM the ML system would need below data points for training exercise that can be collected during the authentication process:

1. (i)

   IP addresses and MAC addresses.

2. (ii)

   IoT User Agent header

3. (iii)

   Known or unknown device (from the cookie out of earlier authentication activity.

4. (iv)

   Authentication time.

5. (v)

   Previous authentication time.

6. (vi)

   Time since the previous authentication.

7. (vii)

   Whether from a trusted network or untrusted network.

• •

  Q-Learning-based authentication: Q-learning is a re-enforcement learning technique [15] model and has been commonly used in improving authentication efficiency [18,19] which will help in building the IDS model. The value function V exploits each state quality and, in the Q-function assigns a value to every action has taken by agent at all different states. For this reason, Q is often referred as action value function. Where Q-learning works from the experience replay what it gathers after some time of execution. The efficiency of Q-learning technique in the authentication technique entirely depends on the training data and also depends on the RSSI traces of the radio signals and empowers devices to enhance authentication accuracy and efficiency. For instance, from Xiao et al. [19], the Q-learning-based authentication trims down the error rate of average authentication by 64.3% to <5%.

There are other methods such as deep neural network and ‘Distributed Frank-Wolfe’ [20] methods to increase the accuracy of the authentication, but we propose IGMM, or Q-learning-based authentication since both suits the approach of proximity-based authentication [17] and yields better accuracy results.

3.2.2. Availability

We have seen in Section 3.2 that DDoS attacks are the most common ones that targets availability service and we have also seen the drawbacks of existing IDS mechanisms (anomaly and signature-based IDS systems). Anomaly-based IDS models create false positive alarms and whereas signature-based IDS model does not guarantee detection of new attacks (only to detect known attacks. So, in our adaptive security approach we will try to inspect some of the models using Machine Learning models or any other models, one example could be Hybrid IDS model to overcome the limitations of individual IDS types.

• •

  Hybrid IDS using known-attack signature database (KASDB): The hybrid approach proposed in Shurman et al. [10] is an integration of both anomaly- and signature-based IDS models to overcome the drawbacks in each of the IDS model that we discussed earlier. In this model all the patterns will be tracked and stored in KAS-DB, so even if an attacker IP (new IP address) without being detected using the IDS model the signature of the packet gets compared with the signatures in the KAS-DB and if found (known attack), blocks the packet and the signature gets stored in KAS-DB if not the behavior pattern of the attack gets monitored using the anomaly-based IDS to see whether there are any unusual patterns in the packets or not and the signature gets updated in KAS-DB and Log DB if a new attack is found so all the data will be used for future attacks. Even though this approach will reduce false positives drastically and helps in identifying new attacks with precision, the proposal did not outline how well it can perform in IoT ecosystem per [10]. Since multiple layers of IDS detection models are used in here most likely the performance of the IDS model will impact and this may ultimately impact the packet transfer rate.

• •

  Anomaly Detection-IoT (AD-IoT) system using Random Forest Machine Learning Algorithm: AD-IoT proposed in Alrashdi et al. [21] by authors is an intelligent anomaly IDS method based on Random Forest Machine Learning technique to identify threads and decrease false positives. Random Forest is a predictive modelling data analysis approach which is also mainly used for data exploration, where it generates several trees by recursive partitioning method and then it aggregates its results. This is more advanced IDS system than the traditional IDS models or the signature-based IDS systems which does not best fit to detect unknown attacks. Although this model performs better than all other machine techniques used such as “Decision Tree, k-Nearest Neighbor” but the only drawback could be the intrusion detection has to be detected in fog nodes instead of cloud layers, this may help in some of the IoT systems where fog nodes are deployed but since the fog node is still emerging and has a long way to go, this model is not preferred.

• •

  Support Vector Machines (SVM): SVM is a supervised learning ML method used for classification of data and is used to detect DDoS attacks with associated learning algorithms [22]. SVM has been extensively used to detect invasions as a classical pattern recognition tool where the principle of DoS attack generally utilizes the lack of effective authentication mechanism for management frames and control frames and the defects of Carrier-sense multiple access with collision avoidance (CSMA/CA) mechanism. SVM gets trained with both normal and intrusive data both [23]. SVM identifies a support vector and allows maximum space called hyperplane. An attacker can send a normal connection request through many forged illegal management frames and control frames, which will significantly increase the probability of the attack node accessing the wireless attack communication channel, thereby making the wireless access point unable to provide normal service or access due to access overload. The purpose of continuously occupying the communication channel for a long time affects the normal communication between other legitimate clients and the wireless access point.

  Using SVM algorithm, a new model is built which elects new candidates in at least one category, by constructing a non-probabilistic binary linear classifier. This model exhibits some examples both mapped and just as points in space, so that the samples in the other categories are split by a transparent gap as large as possible [23]. This method then try to map more samples into that same space and try to predict which category it fits into by matching the side of the gap they fall. SVM model adopts the principle of structural risk minimization, which establish good rationalization ability and promotes prediction accuracy. Even though SVM yields good classification accuracy results it suffers from memory and performance [24].

• •

  k-Nearest neighbors (k-NN) IDS method: k-NN’s method is another alternative to SVM to identify DDoS attacks. k-NN model is a type of supervised ML technique and used for both classification as well as regression problems like SVM. In IDS the k-NN is used to classify intrusion data. A class is classified through the vote of its neighbors so that a class is promoted as mostly widely used class within k-NN. Once the classification is done the k-NN value is derived. Several research were conducted on k-NN model [23,25] and proven to be efficient mechanism than “Naive Bayesian” and SVM. The accuracy of k-NN model count on the quality of training data, moreover the storage and computing costs are very high when the volume of data is huge since k-NN must compute Euclidean distance [26].

• •

  Decision tree IDS method: Decision tree is the non-parametric supervised learning algorithm used in both classification and regression tasks [27]. Decision tree IDS method is a general, predictive model and a greedy approach that uses divide and conquer method. It follows a top-down approach starting from root node and traverse through all non-leaf nodes by primarily choosing an attribute to test the sample data. While traversing through all non-leaf nodes the training sample gets divided furthermore into sub-samples where each sub sample have a new leaf node [28]. The same process is repeated until a specific condition is met. Choosing test attribute and a strategy on how to divide samples are very crucial in the process of creating a decision tree. Generally, users not required to know a lot of details about the learning process in Decision tree. C4.5 algorithm [29] is the most regularly used decision trees. In decision tree IDS model, first decision tree is constructed from the training data and then classification rules are extracted as by traversing through all the paths from root to leaf in which each branch denotes a test output so, the decision tree can be converted into IF ELSE a conditional rule. These classification rules are used in the IDS model to determine network behavior. Experiment in Wang et al. [28] shows decision tree IDS model yields better accuracy. In some other experiments [24] it was proven that the accuracy rate of decision tree is 98.11 using various feature selection techniques.

From the experiments [26] it was proven the accuracy rate of decision tree to be 99.95% using the NSL-KDD dataset when Random Forest method is applied to find the best features. In further experiments [30] when multiple decision trees also referred as “hybrid decision tree” model is used, the accuracy and precision rate is improved drastically since hybrid decision tree is a combination of three decision trees used for classification. That is, the first decision tree observes the entire dataset of the training phase and constructs its model [30]. Then, the tree is evaluated with the same training set. Subsequently, those samples that the first tree failed to classify correctly are more likely to be selected to enter the second tree. Those [28] appeared to be more difficult in the first and second classifiers were more likely to enter the third tree.

3.2.3. Integrity

We have seen in our Section 2.2 the proposed solutions [12] do not acknowledge the heterogenous type of IoT devices and proposes single AES implementation. That kind of approach is not suitable to all IoT devices owing to the varied limitations of resources on the device and the static nature of the model. So, now we try to inspect the model proposed in Farooq et al. [3], another model in Farooq and Faisal Aslam [7] which is an adaptive approach that considers five different implementations of AES schemes. Farooq et al. [3] proposed a solution to find the suitable scheme for the IoT device based on the device resource and throughput needs. An optimization function designates a value for each one of the available AES schemes results in a resource to throughput weighted distribution. Graph theory approach adapted in Farooq et al. [3] to find the correct match of AES scheme using the weighted bipartite graph which is a graph whose vertices can be divided into two separate disjoint sets, i.e., A, B and all the edges connect vertices between A and B sets. All the edges in a Bipartite graph points in one direction that is A → B.

From the research [3] it was proven that this approach yields better throughout results and more dynamic in nature. So, as mentioned in the adaptive approach a specific scheme of AES is chosen from various AES schemes [7] based on the IoT device hardware or resource by using Hungarian algorithm [31]. It was proven that this technique will help in minimizing the IoT device resource usage and proven to be dynamic in nature [3]. Results from both the Hungarian algorithm and the earlier discussed random and greedy approaches were compared and the results depicts this proposed framework yields 11% and 17% enhanced average throughput, 3% and 13% enhanced resource usage results when compared to the random and greedy approaches [3].

3.4.1. Benefits

• •

  Adaptive security or network vision leverages old and real time network data to apply advanced analytical and machine learning processes which can detect security breaches to larger extent.

• •

  Helps in mitigating the attack and reducing the area of attack by providing dynamic resolutions.

• •

  Security threats are detected nearly at real time and dealt with efficiently by automated processes.

3.4.2. Drawbacks

• •

  Even though the existing training datasets would help in analyzing security threats and detecting vulnerabilities, it requires more accurate and latest data sets to be used by ML systems since ML systems lacks improvement even with experience and creativity. This can be mitigated by using honeypots described in Section 3.3.

• •

  If Malicious insiders can exploit and manipulate the existing old training data used in the machine learning techniques, then it would be challenging for adoptive network systems to detect or trace the data manipulation changes.
