1. INTRODUCTION
Unfortunately, some cracking incidents reported. For example, Nintendo Switch Online is the online service for playing the games provided with it and released on September 18, 20181. However, Kuchera and Frank [1] reported that Nintendo Switch Online was already cracked, and own ROMs can be played using the cracked Nintendo Switch.
To protect the software from cracking, the obfuscation methods were proposed. An obfuscation method is to change programs hard to understand by preserving input/output specification. Various obfuscation methods are proposed [2–4], and are implemented to tools, such as Dash-O2, ProGuard3, and etc. In particular, the Identifier Renaming Method (IRM) is widely used, which changes the identifiers in the programs to meaningless names. Because it is easy to implement and to understand the approach [5,6]. However, IRM did not sufficiently discuss the tolerance against attacks, and strength of the protection. Because the relationships between the meanings of identifiers and strength of the protection are not clear.
Now, we consider a scenario that an adversary steals programs and obfuscates them by an IRM. The original authors of the programs try to analyze the programs by some methods, such as de-compilation. The analysis of the programs is quite hard since an IRM eliminates the meanings of identifiers. If a technique gives meanings to methods of programs, it is useful for the analysis. Of course, it is a security risk that adversaries conduct the technique. However, the obfuscation method should tolerate some attacks and should be evaluated the tolerance. Therefore, this paper proposes the de-obfuscation method for the identifier renamed programs and evaluates the tolerance of IRM. If we succeed in de-obfuscation by the proposed method, it can be said that tolerance of IRM is low.

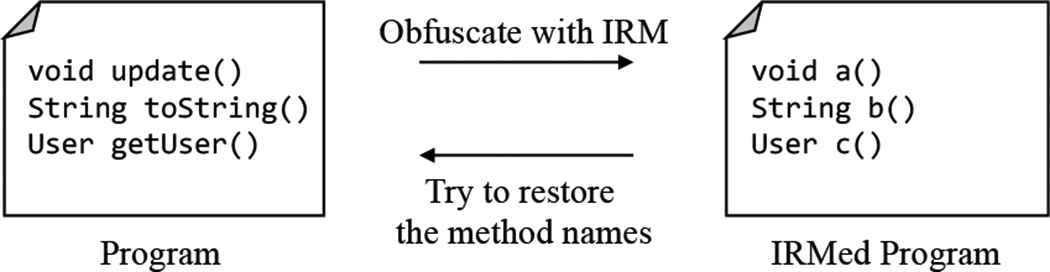

For this, we try to restore identifiers from programs applying IRM, illustrated in Fig. 1. Usually, programs have several identifiers, such as class, method, and variable names. We focus on, especially, method names in programs. Because the clues for restoring the variable names is few since they strongly depend on the domain of programs. Also, class names are hard to restore, too, since they depend on variable names. Therefore, at first, the paper proposes to restore method names in programs from their opcode list. Especially, this paper focuses on restoring verbs in method names. Because some verbs in method names relate to their behaviors. Thus, the goal of this paper is to recommend the verbs of the method names.
The purpose of the proposed method
For restoration, we use the random forest which is one of the machine learning algorithms. The proposed method, at first, constructs a restoration model from a huge number of programs. Then, the model recommends the names from an opcode list of methods. The opcode list is independent variable (explanatory variable), and the response variable (objective variable) is a verb of method names.
The remainder of the paper first defines the software obfuscation method and IRM (Section 2). Next, proposes a method for restoring the method names (Section 3). Afterward, we conduct experiments to evaluate the proposed method (Section 4), then discuss the threats to validity (Section 5). Finally, the conclusion will be shown (Section 7).
2. PRELIMINARY
2.1. Program Obfuscation Method
This section formulates the notion of program obfuscation method [7,8]. We start with the definition of the program understanding since the obfuscation prevents malicious users from understanding the program.
Definition 1.
(Program understanding cost): Let p be a given program and X be a set of information included in p. When a user can extract X from p by a certain method, then we define that the user has understood p about X. For this, we denote a cost of the understanding as c(p, X) in an abstract manner. The cost would be characterized by, for example, the time, efforts, the necessary knowledge, devices, etc., taken for the analysis. Then, we give a general definition of the program obfuscation.
Definition 2.
(Program obfuscation): Let p be a given program, X be a given a set of information of p, I be an input set of p, and r(p, I) be an output set of p with I. Then, the obfuscation of p with respect to X is to translate p into p′ with a certain method T (i.e., p′ = T(p)), such that
Condition 1 means input/output mapping of the program are preserved before and after obfuscation. The obfuscation must preserve the external specification of the target program. Also, Condition 2 shows that extracting X from p′ is more difficult than p.
2.2. Identifier Renaming Method
An identifier renaming method is one of the obfuscation methods. The identifier renaming method is widely used since almost obfuscation tools use the method. The method replaces each name in the program with another, to hide information reasoned from the name. Note that the replacing provides no effects for the program execution. Because names in a program are just identifiers for the computers.
Definition 3.
[Identifier Renaming Method (IRM)]: Let p be a given program, Up be a set of all name appeared in p, and Np(⊂ Up) be a set of names, which are targeted on the obfuscation. An identifier renaming method for p is to replace each name n ∈ Np in p to other name n′(= t(n)), and to obtain an obfuscated program p′, where t is one-to-one mapping (t : Np → Np′(Np′ ⊂ Up′)).
If p is an object-oriented program, a name appears in a class, a method, a field or a local variable. The names are shown in the declaration and the reference parts. The IRM changes the names appeared in the declaration part, therefore, involving the reference part.
3. The Proposed Method
3.1. Key Idea
The program generally uses a lot of names such as class, method, and field. The names appearing in the program are categorized into the declaration and the reference parts. In the declaration part, the name is shown in the method and the variable names. In the reference part, the name is used as calling the methods, and assigning and loading the variable. Almost IRMs change the names appeared in the declaration and the reference parts are changed as a side effect. For this, this paper focuses on restoring (de-obfuscating) names of methods in declaration parts. Note that the IRM targeted on reference part does not support in this paper [8].
The de-obfuscation needs to acquire the clues from the obfuscated program. The remained clues are opcodes in the methods because IRM does not affect them. However, the IRM eliminates the meanings of names contained in the original programs. Moreover, another obfuscation method might be applied for opcodes. Therefore, it is impossible to completely de-obfuscate the IRM, since the clues are not enough.
On the other hand, there are many software repositories in the world, today. The repositories have a huge number of libraries, and programs. This paper tries to recommend the original or similar names by using the opcodes of methods from the programs in the repositories.
However, it is still difficult to restore the method names. The method names are usually composed of a verb and an object (e.g., isEmpty and getBytes). The object depends on the field variable, class names or etc. In IRM, the meanings of all names are eliminated. Therefore, it is a quite hard task to guess the names of the objects. In this paper, we focus on restoring the verb part of the method names. Figure 2 illustrates the key idea of the proposed method. From Fig. 2, the response variable is the verb of the method name, and the clues (independent variable) is the list of opcodes.
The key idea of the proposed method
Note that, the target of our method is the Java language. However, the proposed method can port to other platforms, easily.
3.2. Procedures of the Proposed Method
3.2.1. Overview
The goal of this paper is to recommend verbs for the method name from opcodes. For this, we construct the restoration model from opcodes of a huge number programs in the software repositories. The model recommends verbs of each method, therefore, the obfuscated program by IRM is de-obfuscated by applying the model.
The procedure of the proposed method consists of the following four phases.
- 1.
Collecting the learning data.
- 2.
Converting the collected data for the model.
- 3.
Constructing the restoration model.
- 4.
De-obfuscating the target programs.
3.2.2. Collecting the learning data
At phase 1, at first, software repositories are chosen for collecting a program set. Then, a program set P = {p1, p2,..., pn} is constructed from selected repositories. The collected programs are adjusted to the learning data format to construct the restoration model. Next, we extract a method information set Mi = {mi,1, mi,2,..., mi,l} from each pi(1 ≤ i ≤ n). mi,j(1 ≤ i ≤ n, 1 ≤ j ≤ l) has two properties, a method name ci,j and an opcode list
3.2.3. Converting the collected data for the model
In the phase, each method information mi,j is transformed to m′i,j by the following four steps for the input of the machine learning. The first step in the phase is to extract the first verb from ci,j and obtain ti,j. For example, the method name getSize is transformed into get. Some methods do not start with verbs, we eliminate them from Mi.
In the second step, we normalize each ti,j to τi,j. This normalization converts with the following rules.
- •
A verb for third person singular form into base form (e.g., equals to equal).
- •
A verb in abbreviation form to non-abbreviation form (e.g., auth, init, and calc to authenticate, initialize, and calculate).
- •
Inconsistent spelling into unified form (e.g., analyze, and analyse to analyze).
Note that, we have considered seven words new, setup, cleanup, init, calc, to, and as as verbs since these words are often used as words similar to verbs, based on previous studies [8].
In the third step, each
| Group | Opcode |
|---|---|
| STACK | nop, pop, pop2, dup, dup_x1, dup_x2, dup2, dup2_x1, dup2_x2, swap |
| CONSTANT | aconst_null, iconst_X, lconst_X, fconst_X, dconst_X, bipush, sipush, ldc, ldc_w, ldc2_w |
| LOAD | iload, lload, fload, dload, aload, iload_X, lload_X, fload_X, dload_X, aload_X |
| ARRAY | iaload, laload, faload, daload, aaload, baload, caload, saload, iastore, lastore, fastore, dastore, aastore, bastore, castore, sastore, arraylength, multianewarray |
| STORE | istore, lstore, fstore, dstore, astore, istore_X, lstore_X, fstore_X, dstore_X, astore_X |
| ADD | iadd, ladd, fadd, dadd, iinc |
| SUBTRACT | isub, lsub, fsub, dsub |
| MULTIPLY | imul, lmul, fmul, dmul |
| DIVIDE | idiv, ldiv, fdiv, ddiv |
| REMAIN | irem, lrem, frem, drem |
| NEGATE | ineg, lneg, fneg, dneg |
| SHIFT_LEFT | ishl, lshl |
| SHIFT_RIGHT | ishr, lshr |
| USHIFT_RIGHT | iushr, lushr |
| AND | iand, land |
| OR | ior, lor |
| XOR | ixor, lxor |
| CAST | i2l, i2f, i2d, l2i, l2f, l2d, f2i, f2l, f2d, d2i, d2l, d2f, i2b, i2c, i2s, checkcast |
| COMPARE | lcmp, fcmpl, fcmpg, dcmpl, dcmpg, instanceof |
| BRANCH | ifeq, ifne, iflt, ifge, ifgt, ifle, if_icmpeq, if_icmpne, if_icmplt, if_icmpge, if_icmpgt, if_icmple, if_acmpeq, if_acmpne, goto, jsr, tableswitch, lookupswitch, ifnull, ifnonnull, goto_w, jsr_w |
| RETURN | ireturn, lreturn, freturn, dreturn, areturn, return, ret |
| FIELD | getstatic, putstatic, getfield, putfield |
| INVOKE | invokevirtual, invokespecial, invokestatic, invokeinterface, invokedynamic |
| NEW | new, newarray, anewarray |
| THROW | athrow |
| OTHERS | monitorenter, monitorexit, wide |
The merge rules for JVM instructions
In the final step in the phase, we vectorize the opcode list 𝒪i,j to
3.2.4. Constructing the restoration model
In this phase, we construct a restoration model from fi,j shown in Section 3.2.3. The random forest is selected for the machine learning algorithms to construct the restoration model. The objective variables are τi,j and the explanatory variables are 𝒪i,j. Therefore, the model outputs verbs of the methods from their opcode list.
3.2.5. De-obfuscating the target program
This phase de-obfuscates the given obfuscated programs by IRM by the restoration model in Section 3.2.4. The inputs for the model is the vectorized opcode list from the given obfuscated programs. Therefore, we extract vectorized opcode list 𝒪i, j from given programs in the same way as in Section 3.2.2. Finally, the model recommends a candidate verb v for each method from the vectorized opcode list.
4. EXPERIMENTAL EVALUATION
4.1. Research Questions
We evaluate the proposed method through the following three research questions.
- •
RQ1: How much can the proposed method restore the original verb?
- •
RQ2: Is the sequence of opcodes important?
- •
RQ3: Is the proposed method useful?
4.2. Experimental SetUp
4.2.1. The restoration model
For the experiment, we obtain programs as learning data from the Maven central repository (MCR) [10]. Then, the program set P was obtained from MCR and obtained 17,714 jar files which are the newest version of each product. Next, we extracted 21,738,029 methods from all classes in the jar files. The constructors (<init>) and static initializers (<clinit>) are eliminated from the extracted methods. Because the names of them are fixed in JVM and the Java languages.
We applied phase 2 shown in Section 3.2.3 to the extracted methods. Small and too large methods are eliminated. Because those methods are too few or too much information and are noise for the restoration. It is [30, 1000] that the range of opcodes length for the target methods. This range is about 10–300 lines of code.
Finally, we obtained 2,404,277 methods and 1,813 verbs. However, the usage frequencies of the verbs vary widely. Therefore, the experiments narrow down to the top 20 of usage frequencies, and resultant methods are 935,796 methods. The verbs in the top 20 of usage frequencies were denoted T = {τ1,…,τ20}. Before choosing T, we eliminate verbs get and set, because clues of them for restoration are usually little, and resultant verbs are not very useful.
4.2.2. Test data
The test data are shown in Table 2. Those programs were randomly chosen from sonartype releases maven repository4. That is, the restoration model does not include the programs for test data. Moreover, the method information was extracted from those programs, and we narrow the target methods with the method name in T.
| Name | Data size |
|---|---|
| BTSync-Java-0.1.jar | 5.2 MB |
| DynamicJasper-core-fonts-1.0.jar | 2.9 MB |
| acm-2.0.0-preview-5.jar | 251 KB |
| amqp-scala-client_2.12-2.0.0.jar | 555 KB |
| api-doc-0.0.34.jar | 554 KB |
| bitcoinj-core-0.15-cm04.jar | 1.5 MB |
| codedeploy-notifications_2.11-0.2.1.jar | 208 KB |
| dw-jdbc-0.4.jar | 167 KB |
| elasticsearch-5.0.0-beta1.jar | 8.9 MB |
| flink-kudu-connector-1.0.jar | 34 MB |
| geopackage-core-1.3.1.jar | 314 KB |
| itk-payloads-0.5.jar | 1.8 MB |
| ixa-pipe-chunk-1.1.0.jar | 5.3 MB |
| ixa-pipe-parse-1.1.1.jar | 59 MB |
| mlapi_2.12-0.0.1.jar | 367 KB |
| monetdb-java-lite-2.33.jar | 6.4 MB |
| no-exceptions_2.11-1.0.1.jar | 173 KB |
| openfin-desktop-java-adapter-6.0.1.0.jar | 310 KB |
| orbit-runtime-1.1.0.jar | 1.9 MB |
| payara-microprofile-1.0-4.1.2.172.jar | 37 MB |
| phtree-0.3.1.jar | 336 KB |
| scala-expect_2.12-6.0.0.jar | 199 KB |
| scenery-0.2.2.jar | 1.5 MB |
| schemaspy-maven-plugin-1.2.1.jar | 280 KB |
| semanticvectors-5.8.jar | 12 MB |
| siren-join-2.4.5.jar | 210 KB |
| uaiMockServer-1.2.5.jar | 579 KB |
| vldocking-3.0.4.jar | 392 KB |
The programs for the test data
Besides, we developed python script to conduct above procedures with scikit-learn5 on Python 2 platform. Also, the experiments were conducted on macOS High Sierra (10.13.3), MacBook Pro, 2.7 GHz Intel Core i5, 16 g.
4.3. How Much can the Proposed Method Restore the Original Verb?
This RQ investigates the success rate for the restoration. The experimental overview is shown in Fig. 3. The procedure of the experiment is that we (1) construct the restoration model from the learning data shown in Section 4.2.1, (2) restore the names for test data (Section 4.2.2), and (3) evaluate the names restored from the model. In the (3), the evaluation examines that the names restored from the model and original names are the same.

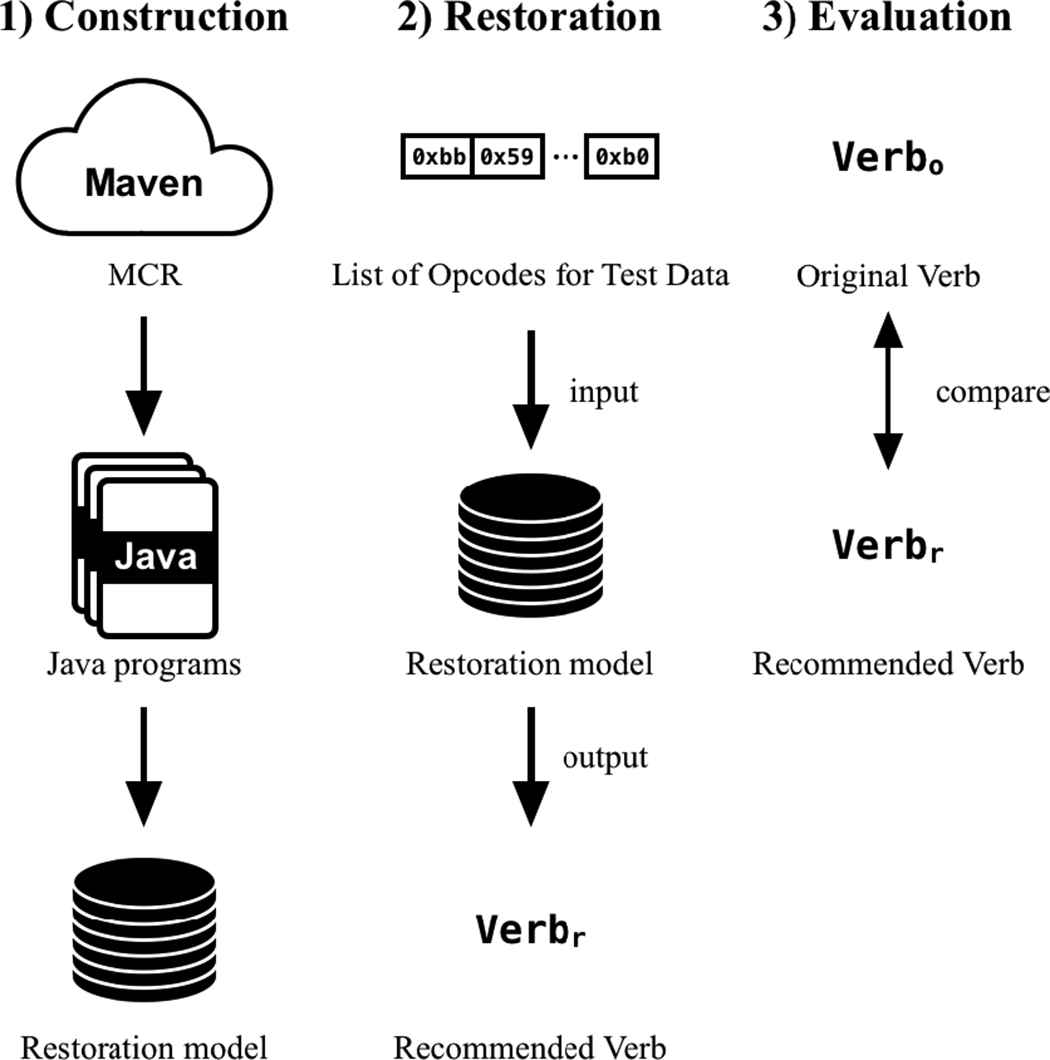

Overview of the experimental evaluation
The result of the experiment shows that the success rate for restoration was 39.19% (5,740/14,647). In other words, 39.19% of verbs are restored to original verbs. The confusion matrix for each verb is shown in Table 3. The columns of TP, FP, FN, and TN show the count in true positive, false positive, false negative and true negative, respectively. Also, the columns of P and R indicate precision and recall. From Table 3, the precision (P) and recall (R) vary widely equal and to were relatively high, precision and recall exceed 75% and 55%, respectively. This result was considered by two reasons. The first reason is equals and toString methods are defined in java.lang.Object which is the root class of the inheritance hierarchy in the Java language. The second reason is the process of almost methods of equals and toString are quite similar.
| TP | FP | FN | TN | P (%) | R (%) | |
|---|---|---|---|---|---|---|
| add | 442 | 1667 | 459 | 12079 | 21.0 | 49.1 |
| apply | 152 | 210 | 462 | 13823 | 42.0 | 24.8 |
| be | 520 | 950 | 170 | 13007 | 35.4 | 75.4 |
| check | 130 | 352 | 342 | 13823 | 27.0 | 27.5 |
| copy | 58 | 105 | 223 | 14261 | 35.6 | 20.6 |
| create | 453 | 1599 | 595 | 12000 | 22.1 | 43.2 |
| do | 77 | 492 | 484 | 13594 | 13.5 | 13.7 |
| equal | 946 | 86 | 397 | 13218 | 91.7 | 70.4 |
| find | 159 | 633 | 254 | 13601 | 20.1 | 38.5 |
| generate | 46 | 133 | 110 | 14358 | 25.7 | 29.5 |
| initialize | 64 | 218 | 259 | 14106 | 22.7 | 19.8 |
| parse | 238 | 363 | 559 | 13487 | 39.6 | 29.9 |
| process | 55 | 209 | 247 | 14136 | 20.8 | 18.2 |
| read | 428 | 733 | 602 | 12884 | 36.9 | 41.6 |
| remove | 242 | 361 | 291 | 13753 | 40.1 | 45.4 |
| run | 118 | 179 | 1254 | 13096 | 39.7 | 8.6 |
| test | 10 | 40 | 404 | 14193 | 20.0 | 2.4 |
| to | 1032 | 301 | 773 | 12541 | 77.4 | 57.2 |
| visit | 187 | 85 | 307 | 14068 | 68.8 | 37.9 |
| write | 383 | 191 | 715 | 13358 | 66.7 | 34.9 |
Restoration results: confusion matrix
On the other hand, the precision and recall of do and test are low, under 20% and 15%, respectively. Therefore, it was hard to recommend the verb by the proposed method, since there is no typical process in the methods of those names.
From the result, the answer to RQ1 was that the proposed method successfully restored in 40% verbs. However, the precision of the restoration strongly depends on verbs. The restoring success rate is high in the methods have typical processes. The verbs which have various meanings are hard to restore to the original verbs since the processes in the methods are various.
4.4. Is the Sequence of Opcodes Important?
In RQ1, the restoration model was constructed from the appearance frequencies of the opcodes by vectorization. In addition, in the RQ2, we also focus the order of opcodes to use 2 g of the opcodes. The 2 g is the two contiguous opcodes and shows the relationships between them.
In RQ2, the new restoration model was constructed from the appearance frequencies of the 2 g by vectorization. We conducted the experiment by the new model from the learning data shown in Section 4.2.1, then applied the model to test data shown in Table 2.
In the result of RQ2, the success rate for restoration was 49.71% (7,281/14,647), the result was improved about 10% from the result of RQ1. Also, the confusion matrix in the experiment is shown in Table 4. The columns of Table 4 are the same as Table 3. Table 4 shows that precisions and recalls are improved from Table 3 in all verbs except precision of write.
| TP | FP | FN | TN | P (%) | R (%) | |
|---|---|---|---|---|---|---|
| add | 529 | 1632 | 372 | 12114 | 24.5 | 58.7 |
| apply | 283 | 178 | 331 | 13855 | 61.4 | 46.1 |
| be | 573 | 440 | 117 | 13517 | 56.6 | 83.0 |
| check | 160 | 256 | 312 | 13919 | 38.5 | 33.9 |
| copy | 91 | 71 | 190 | 14295 | 56.2 | 32.4 |
| create | 543 | 1311 | 505 | 12288 | 29.3 | 51.8 |
| do | 77 | 385 | 484 | 13701 | 16.7 | 13.7 |
| equal | 1221 | 52 | 122 | 13252 | 95.9 | 90.9 |
| find | 187 | 382 | 226 | 13852 | 32.9 | 45.3 |
| generate | 66 | 127 | 90 | 14364 | 34.2 | 42.3 |
| initialize | 125 | 321 | 198 | 14003 | 28.0 | 38.7 |
| parse | 277 | 276 | 520 | 13574 | 50.1 | 34.8 |
| process | 74 | 237 | 228 | 14108 | 23.8 | 24.5 |
| read | 480 | 290 | 550 | 13327 | 62.3 | 46.6 |
| remove | 276 | 233 | 257 | 13881 | 54.2 | 51.8 |
| run | 173 | 183 | 1199 | 13092 | 48.6 | 12.6 |
| test | 85 | 218 | 329 | 14015 | 28.1 | 20.5 |
| to | 1141 | 368 | 664 | 12474 | 75.6 | 63.2 |
| visit | 290 | 70 | 204 | 14083 | 80.6 | 58.7 |
| write | 630 | 336 | 468 | 13213 | 65.2 | 57.4 |
Restoration results: confusion matrix (2 g)
From the result, the restoration model of the RQ2 is useful for restoring the verbs. Therefore, the answer of RQ2 was yes, it is important not only the appearance frequencies but also the relationships between the opcodes.
4.5. Is the Proposed Method Useful?
The final RQ examines whether the proposed method provides useful information for analyzing the identifier renamed programs. The RQ1 and 2 investigated that can the proposed method restore the original verbs from the opcodes. However, similar verbs with the originals would be also useful, therefore, it was not necessary to the correct restoration. For example, to and convert, and perform and run are quite similar, therefore, either verb should be correct restoration result. Hence, the experiment calculates the similarities between original and recommended verbs using WordNet6. We used path similarity which calculates the reciprocal of the length of the path through the common hypernym [11]. Since, the WordNet cannot calculate the similarity between different parts of speeches, we used almost synonymous verbs for the words shown in Section 3.2.2. The experiment used the restoration model constructed in RQ2. Moreover, test data were all methods of programs shown in Table 2, 37,395 methods.
The result of the experiment shows that the success rates were 21.81%, 29.84%, and 57.01% when the path similarities were 1 (synonym), 1/2 (hypernym), and 1/3, respectively. The success rate from the results was lower than RQ1 and 2 since the number of test data increased [14,627 (RQ1) to 37,395 (RQ3) methods, about 2.5 times]. Therefore, the answer of RQ3 was yes, the proposed method can provide verbs with similar meanings to the originals.
5. THREATS TO VALIDITY
5.1. The Learning Data and Test Data
In the experiments, the learning and test data were obtained from Maven repositories. Those data were selected automatically, however, the results of the experiments depends on them. Moreover, the suitabilities of original names were not evaluated. It means that the names in the learning and test data were potentially not suitable, e.g., names and contents of methods are unmatched, or no meanings in the names. The unsuitable names in the learning data will derive the wrong restoration. However, if the number of unsuitable names was few, the impact to the results are little. On the other hand, unsuitable names in the test data affect the results.
5.2. The Contribution to De-obfuscation
The goal of this paper is to restore the verb in the method names, and this paper showed the restoring methods of the verb from method contents. However, we did not evaluate the contribution to the tolerance of IRM by our restoration method. In other words, we have to evaluate the effect of the de-obfuscation against IRM by our method in our future work.
5.3. Inconsistency against Instinct
In the experiment for RQ3, the similarities between words were calculated using WordNet. The similarities are calculated based on not the programming language, but natural languages. The meanings in the programming and the natural languages generally have gaps. Especially, in the case of path similarity was 1/3, we did not evaluate whether the results from the proposed method were certainly suitable.
Table 5 shows example pairs of the original and recommended names. The names in first two columns are relatively similar meanings in use of programs, therefore, the proposed method succeeded in the restoration. However, the meanings of last two rows are quite different. In the case of last two rows, the proposed method failed to restore. Some results are similarly suitable to original names, and other results are the wrong restoration. Thus, in our future works, we will create a dictionary for programming languages.
| Original | Recommended |
|---|---|
| start | run |
| translate | convert |
| read | write |
| accept | remove |
Examples of original and recommended name pair
5.4. Clues for the Restoration
This paper used only the opcodes of the methods as the clues for restoration. Since IRM keeps types defined in the system libraries, the types might be the clues for restoration. Other information in the programs which keeps by the IRM would improve the success rate of the restoration. However, other obfuscation techniques might modify them. It is our future works to improve the success rate by using other clues.
5.5. Restoration Target Verbs
This paper targeted top 20 verbs in the learning data for restoration. In our previous works, the restoration model was constructed by using all verbs [12]. The resultant success rate was 6.4, quite low. However, investigating frequencies of the verbs were 22 types of verbs occupy 90% of the recommended verbs. The 22 types of verbs were shown in Table 3, and get and set. Even if using all verbs for the model did not improve the recommendation results. Also, in the test data, 20 verbs in T occupy the 40% of verbs. Therefore, narrowing targets are good practice for de-obfuscating IRM.
6. RELATED WORKS
Currently, there are a few researchers to study the evaluation of the obfuscation methods. For example, Udupa et al. [13] proposed the de-obfuscation technique of the basic block flattering method (one of control flow obfuscations) using the static and dynamic analyses. In data flow obfuscations, it is evaluated itself by defining metrics. Kanzaki et al. [14] evaluated the obfuscation methods by to measure program stealthiness from the artificiality of opcodes. Also, Cimato et al. [15] proposed the de-obfuscation method of IRM. However, the restoring targets of Cimato et al. were variable names, not method names.
On the other hand, the analysis methods focused on the names were proposed. Kashiwabara et al. [6] proposed the recommended method for verbs in method names. The clues of recommendation are class and method names used in a method. However, their major targets are Java source codes, therefore, the method is not used in de-obfuscation.
7. CONCLUSION
This paper evaluated the tolerance of IRM, and restored the verbs of methods by the random forest. For the clues of the restoration, we focus on the opcodes in the methods. The experimental evaluations show that the success rate for the restoration was 49.71% by using the appearance frequencies of opcodes’ 2 g as clues. Also, experiment focuses on meanings of verbs was conducted and shows that the success rate was 57.01% when the path similarities in WordNet was 1/3. In our future works, we improve the success rate by narrowing targets, using other clues, and updating algorithms for calculating similarities between verbs.
ACKNOWLEDGMENTS
Part of this work was supported by JSPS KAKENHI Grant Numbers 17K00196, 17K00500, and 17H00731.
