Interval-valued Evidence Updating with Reliability and Sensitivity Analysis for Fault Diagnosis

Xiaobin Xu; Zhen Zhang; Dongling Xu; Yuwang Chen

doi:10.1080/18756891.2016.1175808

Download article (PDF)

Next Article In Issue>

Volume 9, Issue 3, June 2016, Pages 396 - 415

Interval-valued Evidence Updating with Reliability and Sensitivity Analysis for Fault Diagnosis

Authors

Xiaobin Xu¹^,xuxiaobin1980@163.com, Zhen Zhang¹^,460833359@qq.com, Dongling Xu²^,ling.xu@mbs.ac.uk, Yuwang Chen²^,yu-wang.chen@mbs.ac.uk

Received 27 April 2015, Accepted 27 January 2016, Available Online 1 June 2016.

DOI: 10.1080/18756891.2016.1175808 How to use a DOI?
Keywords: Fault diagnosis; interval-valued belief structures; Dempster-Shafer evidence theory; evidence updating; alarm monitoring
Abstract: Information fusion methods based on Dempster-Shafer evidence theory (DST) have been widely used in fault diagnosis. In DST-based methods, the monitoring information collected from sensors is modeled as multiple pieces of diagnosis evidence in the form of basic belief assignment (BBA), and Dempster’s rule is then used to combine these BBAs to obtain the fused BBA for diagnosis decision making. However, the belief structure with crisp single-valued belief degrees in BBA may be too coarse to truthfully represent detailed fault information. Moreover, Dempster’s rule only uses a static combination process, which is unsuitable for dynamically fusing information collected at different time steps. In order to address these issues, the paper proposes a dynamic diagnosis method based on interval-valued evidential updating. First of all, the diagnosis evidence is constructed as an interval-valued belief structure (IBS), which provides a more informative scheme than BBA to model fault information. Secondly, the proposed evidential updating strategy can generate updated IBS as global diagnosis evidence by updating the previous evidence with the new incoming evidence recursively. Thirdly, the reliability and sensitivity indices are designed to evaluate and compare the performance of the proposed updating strategy with other commonly used strategies. Finally, the effectiveness of the proposed evidential updating strategy is demonstrated through some typical fault experiments of a machine rotor.
Copyright: © 2016. the authors. Co-published by Atlantis Press and Taylor & Francis
Open Access: This is an open access article under the CC BY-NC license (http://creativecommons.org/licences/by-nc/4.0/).

1. Introduction

Fault diagnosis depends on multi sensors to monitor whether the behavior of an industrial system is correct, which is a main way of alarm monitoring in an industrial alarm system. Information collected from multi-sensors have to be fused together because normally a single sensor may not be able to get sufficient information for fault diagnosis. In practical situation, data collected by most sensors are inherently uncertain, imprecise or even incomplete due to various factors, such as random environmental disturbances, sensor instrument errors, etc¹. Therefore, it is imperative to design a fusion mechanism for minimizing the effects of such imprecision and uncertainty on diagnosis decisions. Dempster-Shafer evidence theory (DST) is known to be capable of dealing with this kind of uncertain information fusion. DST can robustly deal with incomplete data and allows the representation of both imprecision and uncertainty². It provides Dempster’s rule of combination to fuse multi-source information so as to reduce the effects of the uncertainty and yield more accurate diagnosis results. Therefore, DST has already been widely used in fault diagnosis of typical industrial systems under uncertain environment, such as rotating machinery^3–4, power electronics^5–6, control system^7–8, sensor network ⁹ and so on.

Commonly, there are three interrelated steps for establishing a DST-based diagnosis system. The first step is to set up a frame of discernment (FoD) consisting of fault hypotheses. Different hypotheses in the FoD indicate different diagnosis goals. For instance, if we only want to detect whether a system is normal or abnormal, we may construct the FoD as Θ={F₀, F} in which the system state is described to be either faulty F or normal F₀. In order to differentiate a specific fault from the others, the FoD can be expanded to Θ={F₀, F₁,…, F_N}, where F_i signifies the presence of the ith fault mode. If we further need to detailedly analyze the severity level of a specific fault, we may set Θ={SL(slight), MO (moderate), SE(severe)}. The second step is to obtain a basic belief assignment (BBA) function, in which the belief degrees, i.e., belief masses, are used to measure the extent to which that on-line monitoring information supports each diagnosis hypothesis and the subsets of the hypotheses. Such a BBA can also be also named as a piece of diagnosis evidence. There are different ways for generating BBAs from different types of information and data collected by sensors or even extracted from experts’ experiences. The typical ways include fuzzy matching¹⁰, neural network ⁵, decision tree ⁵, artificial immune algorithm ⁴, expert system ⁷ and so on. The final step is to choose appropriate combination rules to fuse these BBAs and make a diagnosis decision according to the fused results. Besides Dempster’s rule, some improved combination rules have also been given to handle conflicting diagnosis evidence ^7,11.

Although these methodological contributions have stimulated the application of DST in the area of fault diagnosis, the current DST-based diagnosis mechanism has some inherent defects worthy of further analysis and discussion:

•
The belief structure with crisp single-valued belief degrees in BBA may be too coarse to truthfully represent detailed fault information. Therefore, Simple crisp belief structure may miss or distort useful fault information which may lead to incorrect diagnosis decision ¹².
•
The fusion mechanism of Dempster’s and other improved rules are “symmetric” or “static” ^13–14, and they are usually suitable for fusing multiple BBAs locally collected at the same time step. However, in order to support reliable decision-making, on-line diagnosis further requires aggregating the newly fused BBA at the current time step with the old results accumulated in the past dynamically. Obviously, the relationship between the new and old results is dissymmetric, so the previous rules may be no longer applicable.
•
Correct detection rate and false alarms rate are commonly used indices for evaluating the performance of a diagnosis algorithm ⁵, but this kind of “hard” indices rarely reflects how “close” the fused BBA is to the true situation. Particularly, while taking both symmetric and dissymmetric fusing processes into consideration, we need to design other comprehensive performance indices satisfying soft and dynamic requirements.

The first point above is concerned with the representation of uncertainty. In recent years, interval-valued belief structures (IBSs) have attracted considerable attention for its effectiveness of modeling and combining uncertain information by using interval form of belief masses^15–17. Compared with single-valued BBA, IBS can describe fault information in a more elaborate way and caters for human’s general understandings to uncertainty. Ref.12 presented a fuzzy feature extraction and matching method to generate the IBSs for fault diagnosis from multi-source data, and then fused them using the optimal combination rule for interval evidence proposed in Ref.15. Using the same set of data, Ref.12 also generated BBAs and fused them. A number of comparative studies on a machine rotor system proved that IBS captures more useful fault information from uncertain data than BBA and can enhance accuracy of DST-based diagnosis system.

The second point is concerned with the dynamic updating of diagnosis knowledge. The available diagnosis information can be classified into two parts. One is the previous knowledge base that has been constructed from a vast amount of evidence accumulated at the past steps, and the other is the diagnosis evidence gathered at the current time step. Generally speaking, the former may contain more comprehensive diagnosis information than the latter, but in a dynamically changing environment the new incoming evidence may reflect the current state of the system more accurately. Thus we should introduce an updating process to update the previous knowledge base with the new knowledge according to the human’s common-sense reasoning mechanism and utilize the knowledge from both parts for making a comprehensive diagnosis decision. The diagnosis decision according to the updated knowledge should be more credible than that derived from either of the two parts. As the contributions of two parts to the updated knowledge are different or dissymmetric, some updating strategies different from symmetric combination rules need to be introduced for combining the two parts effectively.

Some scholars have devoted their efforts to theoretical research of the updating strategies in different ways. Ref.18 and Ref.19 presented Jeffrey’s rule of conditioning and transferable belief model respectively. Ref.14 re-interpreted Jeffrey’s rule and gave a Jeffreylike rule for updating basic belief assignment function. Ref.20 gave the linear updating rule to combine the new BBA with the previous BBA. It was concluded in Ref.13 that “updating is a subtle operation and there is no single method, no single ‘good’ rule. The choice of the appropriate rule must always be given due consideration.” The same is true for dynamic diagnosis, and the above theoretical methods are rarely completely applicable. For example, the updated results gave by the Jeffrey-like rule are excessively determined by the current diagnosis evidence ¹. The linear updating rule is effective, but how to set the linear combination weights of evidence is an open question ¹.

The third point is about the performance evaluation of a diagnosis algorithm. The diagnosis decision making of a DST/IBSs-based diagnosis system is based on some principles of maximum belief degree, maximum plausibility, maximum of pignistic probability, etc²¹. For instance, suppose there are two fused BBA denoted as m_⊕,I and m_⊕,II coming from algorithm I and algorithm II respectively. If m_⊕,I(F₁)=0.6, m_⊕,I(F₂)=0.4, m_⊕,II(F₁)=0.9, m_⊕,II(F₂)=0.1, then, according to the principles of maximum belief degree, both of them can give the “hard” judgment that fault F₁ happens. However, it is obvious that algorithm II is more credible because m_⊕,II(F₁) is closer to the definite solution “m(F₁)=1” than m_⊕,I(F₁). Once this “distance” to the solution is quantified, the progress that an algorithm makes becomes observable as it converges on the solution²². In particular, when developing a dynamic updating process for diagnosis evidence, we have to synthetically consider the degree and speed of the convergence. While much research is being carried out to develop new fusion algorithms for fault diagnosis, limited research has been conducted to design indices for evaluating their static and dynamic performance.

In order to address the three concerns outlined above, this paper presents a new linear updating strategy of IBSs for on-line diagnosis, and also designs corresponding performance indices to assess and compare different updating methods on a commonly used diagnosis problem. Firstly, the Euclidean distance of evidence is extended to the framework of IBSs. Secondly, a new linear updating rule of IBSs is proposed to recursively generate the current updated IBS by updating the previous IBS with the new incoming IBS. In the updating process, similarity between the two IBSs is produced from the proposed distance and used to calculate the linear combination weights. A diagnosis decision is then made using the updated diagnosis evidence. Thirdly, based on the similarity, the static reliability index (SRI) and dynamic sensitivity index (DSI) are designed to measure the convergence degree and speed of the updating diagnosis algorithms respectively.

The rest of this paper is organized as follows. Section 2 reviews the relevant concepts of DST and IBSs. Section 3 introduces the extended Euclidean distance between two IBSs. Section 4 presents the new linear updating strategy of IBSs for on-line fault diagnosis. Section 5 designs the static reliability index (SRI) and dynamic sensitivity index (DSI). Section 6 reports that a few comparative experiments of dynamic fault diagnosis in a machine rotor system show the capacity of SRI and DSI and the applicability of the proposed linear updating strategy for diagnosing faulty states of the rotating machinery. The conclusions are presented in section 7.

2. Review of relevant concepts

2.1. Basic of DST

Let Θ be a finite set of elements. Each element in Θ can be a hypothesis, an object, or a fault in our case. We refer to Θ as the frame of discernment. Correspondingly the set consisting of all the subsets of Θ is called the power set of Θ, which can be denoted as 2^Θ.

A function m: 2^Θ → [0,1] is called a mass function if it satisfies the following two conditions: m(∅) = 0 and ∑_A∈2^Θ m(A)=1. This function is also named as basic belief assignment (BBA) or belief structure. A subset A with a non-null mass is viewed as a focal element. Commonly, if an information source can provide a mass function on Θ, this mass function is called a body of evidence, abbreviated to evidence.

The belief function (Bel) and Plausibility measure (Pl) can be defined as follows:

Bel(A)=∑B⊆Am(B),A⊆ΘPl(A)=∑B∩A≠∅m(B),A⊆Θ

Bel measures the confidence granted to A and all subset of A, and Pl measures the confidence that A cannot be refused.

If m₁, m₂ are two BBAs induced from two independent information sources, a combined BBA can be obtained by using Dempster’s combination rule

(1)m(A)={∑B∩C=Am1(B)m2(C)1−∑B∩C=∅m1(B)m2(C),A⊆Θ and A≠∅0,A=∅

Note that the Dempster’s combination rule is meaningful only when ∑_B∩C=∅m₁(B)m₂(C) < 1, i.e., m₁ and m₂ are not completely conflicting. This rule can be used to aggregate uncertain, imprecise or incomplete information coming from different sources.

Let m be a BBA on Θ. Its Pignistic probability function BetP_m: Θ→0,1] is defined as²³

(2)BetPm(θ)=∑A⊆Θ,θ∈A1|A|m(A)1−m(∅)

where |A| is the cardinality of the subset A and m(∅)<1. When an initial BBA gives m(∅)=0, m(A)/(1 − m(∅)) is reduced to m(A). This definition means that m(A) should be equally distributed among the elements of A for all A ⊆ Θ, when there is not additional information to be provided. This transformation from m to BetP_m is called as Pignistic transformation. It is obvious that the Pignistic probability can be regarded as a classical probability measure for decision-making using the standard Bayesian decision theory. A detailed discussion on this concept can be found in Refs.5,23.

2.2. Basic of IBS

In an IBS, belief masses are no longer described by crisp numbers, but lie within certain intervals. It is constrained as follows.

Definition 1¹⁵

Let A₁,…,A_N be N subsets of Θ and [a_i^-,a_i⁺] be N intervals with 0≤a_i^-≤a_i⁺≤1, i=1,2,…,N, an interval-valued belief structure (IBS) is defined as a set of BBAs such that the following conditions hold:

(1)
ai−≤m(Ai)≤ai+, where, 0≤ai−≤ai+≤1, i = 1,…, N
(2)
∑i=1Nai−≤1 and ∑i=1Nai+≥1
(3)
m(H) = 0, ∀H ∉ {A₁,…,A_N}

According to the above definition, each subset A_i such that a_i⁺>0 is called a focal element of an IBS. If ai−=m(Ai)=ai+, an IBS is reduced to a BBA. Hence IBSs generalizes the concept of BBA. If an IBS satisfies ∑i=1Nai−>1 or ∑i=1Nai+<1, then it is empty and invalid. Invalid IBS cannot be interpreted as belief structure and thus need to be revised or adjusted.

Definition 2 ¹⁵,

If the a_i^- and a_i⁺ of a valid IBS m satisfy respectively

(3)∑j=1Naj+−(ai+−ai−)≥1

(4)∑j=1Naj−+(ai+−ai−)≤1

where i,j=1,2,…N, then m is said to be normalized.

An original IBS may be only valid, but not normalized, so Ref.24 gave a normalization formula as

(5)max[ai−,1−∑j=1,j≠iNaj+]≤m(Ai)≤min[ai+,1−∑j=1,j≠iNaj−]

A valid IBS can be normalized by using the above inequality. Table 1 gives an example to illustrate the normalization process. Here, m₁ is a valid IBS because it satisfies the conditions in Definition 1, but it is not normalized according to Definition 2. Hence, Eq.(5) is used to normalize m₁ so as to obtain the valid and normalized IBS m₂ by cutting some infeasible subintervals of m₁. In the following, we assume that an IBS is valid and normalized, unless it is stated explicitly.

	{θ₁}	{θ₂}	{θ₃}	{Θ}
m₁	[0.5,0.8]	[0.2,0.35]	[0.0,0.05]	[0.2,0.4]
m₂	[0.5,0.6]	[0.2,0.3]	[0.0,0.05]	[0.2,0.3]

Table 1

The normalization of valid IBS

After BBA is extended to IBS, the following important work is to combine two or multiple IBSs.

Definition 3¹⁵

Let m₁ and m₂ be two IBSs with the intervals of belief masses [a_i^-,a_i⁺] (a_i^-≤m₁(A_i)≤a_i⁺, i=1,2,…,N₁) and [b_j^-,b_j⁺] (b_j^-≤m₂(A_j)≤b_j⁺, j=1,2,…,N₂) respectively. Their combination, denoted as m₁⊕m₂, is also an IBS defined by

(6)[m1⊕m2](C)={0C=∅[(m1⊕m2)−(C),(m1⊕m2)+(C)]C≠∅

where (m₁⊕m₂)⁻(C) and (m₁⊕m₂)⁺(C) are the minimum and maximum of the following pair of optimization problems respectively:

(7)max/min [m1⊕m2](C)=∑Ai∩Aj=Cm1(Ai)m2(Aj)1−∑Ai∩Aj=∅m1(Ai)m2(Aj)s.t.∑i=1Nm1(Ai)=1 (ai−≤m1(Ai)≤ai+;i=1,2,…,N1)∑j=1Nm2(Aj)=1 (bj−≤m2(Aj)≤bj+;j=1,2,…,N2)

For instance, Table 2 gives two IBSs m₁, m₂ and m₁ ⊕ m₂. Obviously, like Dempster combination rule, the combination rule of IBSs can also reduce uncertainty and converge belief mass to the focal element simultaneously supported by m₁ and m₂. Referring to Ref.15, the combination of two IBSs in Definition 3 can also be extended to the situation of multiple IBSs.

	{θ₁}	{θ₂}	{θ₃}	Θ={θ₁,θ₂,θ₃}
m₁	[0.6,0.7]	[0.05,0.15]	[0.0,0.01]	[0.2,0.3]
m₂	[0.55,0.65]	[0.05,0.15]	[0.0,0.01]	[0.25,0.35]
m₁ ⊕ m₂	[0.78,0.89]	[0.03,0.13]	[0.0,0.01]	[0.06,0.12]

Table 2

The fused IBS by combination rule

Actually, if any m(A_i) in an IBS m satisfies the constraint ∑i=1Nm(Ai)=1, then m is the crisp BBA of this IBS. So, the main idea of the combination rule in Eq.(7) can be interpreted as: the crisp BBAs selected from the two IBSs are combined by using the classical Dempster combination rule respectively. Thus, the fused IBS can be obtained from maximizing/minimizing the crisp fused BBAs. Each of the above pair of models (max/min) simultaneously considers the combination and normalization of two IBSs and optimizes them together rather than separately. The reason for doing so is to capture the true belief mass intervals of the combined focal elements¹⁵. Compared with existing combination and normalization approaches^24–25, the effectiveness and efficiency of Wang’s approach have been demonstrated through some typical examples in Ref.15. Furthermore, according to the definition of interval representation presented in Ref.26, the function [m₁ ⊕ m₂](C) in Eq.(6) can be regarded as an interval representation of the real function m(A) in Eq.(1). In this sense, the crisp BBAs-based optimization strategy given in Eq.(7) is actually only an alternative under normalization constraints for calculating the interval representation function of m(A). Hence, there may be other available methods to obtain [m₁ ⊕ m₂](C). More theoretical discussion and inspiration can be found in Ref.26.

3. The Euclidean distance between IBSs

Before presenting the Euclidean distance of two IBSs, we need to clarify the geometrical interpretation for IBSs.

Definition 4²⁷

An interval number X in ℜ is defined as the set of real numbers such that X=[x^-,x⁺]={x’ ∈ ℜ : x^-≤x≤x⁺}. X is degenerated iff x^-=x⁺. Each degenerated interval number [x^-=x, x⁺=x] can be treated as the real number x.

Definition 5²⁷

Denote the set of all close intervals X in ℜ as Int(ℜ) (the subset of 2^ℜ). Vector V=(X₁, X₂,…, X_n)^T (n∈N) is defined as an interval-valued vector in (Int(ℜ))ⁿ built of n elements X_i=[x_i^-,x_i⁺]={ x_i^’ ∈ ℜ : x_i^- ≤ x_i^’ ≤ x_i⁺}.

Vector V is an extension by replacing elements being crisp numbers with elements being intervals in a vector. Each classic vector is a special case of an interval-valued vector where its each element is a degenerated interval.

According to Definition 4 and Definition 5, we obtain:

Definition 6

Let m be an IBS with the intervals of belief masses [a_i^-,a_i⁺] (a_i^-≤m(A_i)≤a_i⁺, i=1,2,…,2^|Θ|), thus, m is defined as an interval-valued vector in a multi-dimensional space Ω=Int₁(ℜ) × Int₂(ℜ) ×…× Int_N(ℜ), N=2^|Θ|, such that Int_i(ℜ) is the space of intervals of belief masses of A_i ⊆ Θ and the element [a_i^-,a_i⁺] in Int_i(ℜ) satisfies the valid and normalized requirements in Definition 1 and Definition 2 respectively.

For example, Θ={θ₁, θ₂}, an IBS is given by m({θ₁}) ∈ [0.2, 0.4], m({θ₂}) ∈ [0.4, 0.7], m({θ₁, θ₂}) ∈ [0, 0.3]. The subsets of Θ are ordered as A₁={∅}, A₂={θ₁}, A₃={θ₂}, A₄={ θ₁, θ₂}, thus this IBS is an interval-valued vector m=([0,0], [0.2,0.4], [0.4,0.7], [0,0.3])^T in space Ω=Int_A₁ (ℜ) × Int_A₂ (ℜ) ×Int_A₃ (ℜ) × Int_A₄ (ℜ).

We set Θ={θ_k| k=1,2,…,n}, where n=|Θ| denotes the cardinality of Θ, namely, the number of elements of Θ. Following the spirit of optimization in Definition 3, we can define the extended Pignistic probability function of m as

(8)IBetPm(θk)=[BetPm−(θk),BetPm+(θk)]

BetPm−(θk) and BetPm+(θk) are the minimum and maximum of the following pair of optimization problems respectively:

(9)Max/Min BetPm(θk)=∑Ai⊆Θ,θk∈Ai1|Ai|m(Ai)1−m(∅),m(∅)≠1s.t. ∑i=1Nm(Ai)=1, ai≤m(Ai)≤bi,i=1,2,…,N

Actually, the extended Pignistic transformation projects the mass intervals of subsets of Θ into a new orthogonal space Ω′=Int_θ₁ (ℜ) × Int_θ₂ (ℜ) ×…× Int_{θ_n} (ℜ).

In the orthogonal space Ω′, we use normalized Euclidean distance to measure the dissimilarity between the interval-valued vectors IBetP_m₁ and IBetP_m₂.

Definition 7

Suppose m₁, m₂ are two IBSs on Θ, and their corresponding Pignistic probability functions are IBetP_m₁ and IBetP_m₂ respectively. The extended Euclidean distance between IBetPs of two IBSs can be defined as

(10)d(IBetPm1,IBetPm2)=14∑k=1n((BetPm1−(θk)−BetPm2−(θk))2+(BetPm1+(θk)−BetPm2+(θk))2)

where the factor of 1/4 is to normalize d and guarantee that 0 ≤ d ≤ 1,

IBetPm1=([BetPm1−(θ1),BetPm1+(θ1)],,…,[BetPm1−(θn),BetPm1+(θn)])IBetPm2=([BetPm2−(θ1),BetPm2+(θ1)],,…,[BetPm2−(θn),BetPm2+(θn)])

Obviously, the larger d(IBetP_m₁, IBetP_m₂) is, the more different m₁ and m₂ are, and vice versa, so d can be used to indirectly measure the dissimilarity between m₁ and m₂. We will rigorously check that d is indeed a metric distance in Lemma 1.

Lemma 1

d is a metric distance on Ω′, then Ω′ is a metric space.

Proof. See Appendix A.

4. The linear updating of IBS for dynamic fault diagnosis

Essentially, Dempster’s rule and other symmetric combination rules can only provide static fused results, as they are just used to fuse several pieces of diagnosis evidence appearing at the same time step. As a result, the diagnosis decisions based on the fused results are also static. However, the running states of the equipment being monitored usually changes dynamically. Therefore, there are two main variations should be considered in diagnosis¹ :1) Even if an equipment works in a normal state, intermittent or abrupt external disturbances are sometimes so strong that the static fusion methods may temporarily make false judgments. Actually, these disturbances never lead to the internal faults of the equipment; In this case, a perfect fusion method should always make the correct (i.e., no fault) judgments; 2) the equipment may undergo a gradual change from the normal status to a certain fault, or may abruptly jump from the normal status to a certain fault. In this case, a perfect fusion method should make prompt and stable responses to the changes.

In order to deal with dynamic diagnosis, next we introduce the linear updating rule of evidence presented in Ref.20 and further extend it to IBSs. The updated IBS recursively generated by the extended rule can integrate the current static fused IBSs with the previous updated IBSs so as to make a global and stable judgment.

4.1. The linear updating rule of interval-valued structures

In Ref.28, Fagin et al. defined the notions of conditional belief and plausibility functions. For any two focal elements A, B ⊆ Θ, the conditional belief and plausibility functions are defined respectively as

(11)Bel(B|A)=Bel(A∩B)Bel(A∩B)+Pl(A−B)Pl(B|A)=Pl(A∩B)Pl(A∩B)+Bel(A−B)

Based on Bel(B|A) and Pl(B|A), Ref.20 deduced conditional BBA on the assumption B⊆A

(12)m(B|A)=∑C:C⊆Bm(C)Pl(A)−∑E:E∈ℓ(B)m(E)−∑C:C⊂Bm(C|A)

where ℓ(B) = {E ⊆ Θ : E = D ∪ C s.t. ∅ ≠ D ⊆ Ā, ∅ ≠ C ⊆ B ⊆ A} and when Ā ∩ B ≠ ∅, m(B | A) = 0. Especially, for all B ⊆ A, s.t. m(B) = Bel(B), then Eq.(12) is reduced to

(13)m(B|A)=m(B)Pl(A)−∑E:E∈ℓ(B)m(E)=m(B)m(B)+Pl(A−B)

Example 1

This example is given to show how to calculate the conditional BBA. The belief mass distribution of the original BBA m is m({θ₁}) = 0.1, m({θ₂}) = 0.3, m({θ₃}) = 0.4, m({θ₂, θ₃}) = 0.2. Suppose there is an incoming piece of evidence with focal element A = {θ₂, θ₃}. When B is taken respectively as {θ₁}, {θ₂}, {θ₃} and {θ₂, θ₃}, the corresponding conditional Bel(B|A), Pl(B|A) and m(B|A) given the conditioning proposition A can be calculated by Eqs.(12) and (13) respectively, as shown in Table 3.

B	Bel(B)	Pl(B)	m(B)	Bel(B\|A)	Pl(B\|A)	m(B\|A)
{θ₁}	0.1	0.1	0.1	0	0	0
{θ₂}	0.3	0.5	0.3	0.3/0.9	0.5/0.9	0.3/0.9
{θ₃}	0.4	0.6	0.4	0.4/0.9	0.6/0.9	0.4/0.9
{θ₂, θ₃}	0.9	0.9	0.2	1	1	0.2/0.9

Table 3

The calculations of Bel(B|A),Pl(B|A) and m(B|A)

It can be seen from the above example that the belief masses of those propositions included in the complement of the conditioning proposition A are being annulled, on the other hand, the belief masses of the remaining propositions related to A are being redistributed by the conditioning operation. In Ref.20, it is pointed out that “Unlike the direct calculation of the belief using the complete BoE, these measures explicitly depend on the specific propositions in A that condition the propositions in B”. Therefore, it implies that when one attempts to make decisions by using the conditional BBA, the conditioning proposition A derived from the incoming evidence should have the maximal mass, definitely m(A) =1, that is to say, the new evidence completely supports the proposition A, which can be confirmed in the example of a distributed decision-making network illustrated in Ref.20.

Furthermore, Ref.20 defined the linear updating rule of evidence, i.e. a linear combination of the original BBA and the incoming conditional BBA, as follow:

(14)mA(B)=αAm(B)+βAm(B|A)

where m(B) is the available or original basic mass of belief to B ∈ 2^Θ, m(B|A) quantifies the degree that an incoming piece of evidence with the definite BBA as “m(A)=1” supports or affects the focal element B. m_A(B) is the updated mass of B conditional to A. The linear combination weights {α_A,β_A} can be interpreted as measures indicating the flexibility or inertia of the original evidence to updating when presented with the incoming conditioning proposition A. Some basic strategies for selecting {α_A,β_A} were introduced in Ref.20:

(i)
The choice {α_A,β_A}={1,0} is called the infinite inertia based (IIB) updating strategy. In this case, the original evidence has the complete inflexibility towards changes. It could be that, for example, the original evidence is derived from a vast collection of reliable data, but the incoming evidence is completely unreliable, which leads to a high inertia, etc;
(ii)
The choice {α_A,β_A}={0, 1} is called the zero inertia based (ZIB) updating strategy. In this case, the original evidence has the complete flexibility towards changes. This situation arises when the original evidence is derived from little or no credible knowledge, but the incoming evidence is completely reliable, etc;
(iii)
The choice {α_A,β_A}={T/(T+1),1/(T+1)} is called the proportional inertia based (PIB) updating strategy, where T refers to the number of “pieces” of evidence that the original evidence is based upon. In this case, already gathered evidence and the incoming evidence have equal inertia.

In practical fault diagnosis, the diagnosis evidence is commonly gathered at each time step. The updated result is recursively calculated by Eq.(14) at each time step, which is related to the new incoming evidence and the previous evidence. As the quality and reliability of evidence may change over time with the variability of equipment running status, inertia of evidence should not be static. However the above three methods for choosing {α_A,β_A} are static and therefore not suitable for dynamic diagnosis.

Following the spirit of optimization in Definition 3, we present the extended linear updating rule on the framework of IBSs as shown in Definition 8.

Definition 8. The extended linear updating rule of IBSs

Let m₁ and m₂ be two IBSs with the intervals of belief masses [a_i^-,a_i⁺] (a_i^-≤m₁(B_i)≤ a_i⁺, i=1,2,…,N₁) and [b_j^-,b_j⁺] (b_j^-≤m₂(A_j)≤b_j⁺, j=1,2,…,N₂) respectively. X₁={B_i| i=1,2,…,N₁} and X₂ = {A_j| j=1,2,…,N₂} are the sets of the focal elements of m₁ and m₂ respectively. Assume that m₁ and m₂ are the previous and incoming IBSs respectively. The extended linear updating rule of IBSs is defined as

(15)m1⊕←m2(C)={0C=∅[(m1⊕←m2)−(C),(m1⊕←m2)+(C)]C≠∅

where, (m1⊕←m2)−(C) and (m1 ⊕← m2)+(C) are the minimum and maximum of the following pair of optimization problems respectively:

(16)max/min [m1⊕←m2](C)=αAm1(C)+βAm(C|A)=αAm1(C)+βA((∑Bi⊆Cm1(Bi)(Pl1(A)−∑Bi∈ℓ(C)m1(Bi)))−∑Bi⊆Cm1(Bi|A))s.t.∑i=1N1m1(Bi)=1 (ai−≤m1(Bi)≤ai+;i=1,2,…,N1)∑j=1N2m2(Aj)=1 (bj−≤m2(Aj)≤bj+;j=1,2,…,N2)

where, ℓ(C)={E ⊆ Θ : E = D ∪ G s.t. ∅ ≠ D ⊆ Ā, ∅ ≠ G ⊆ C ⊆ A,}. The criterion of choosing A is that the midpoint of interval m₂(A) is larger than that of any other focal element.

Because the above basic strategies for selecting {α_A,β_A} are not suitable for dynamic diagnosis fault, in the following section, we propose some new methods to adjust the linear combination weights using the evidence distance and similarity between two IBSs.

4.2. Diagnosis procedure based on the linear updating rule of IBSs

In this section, we present the dynamic diagnosis procedures based on the proposed linear updating rule as shown in Fig.1.

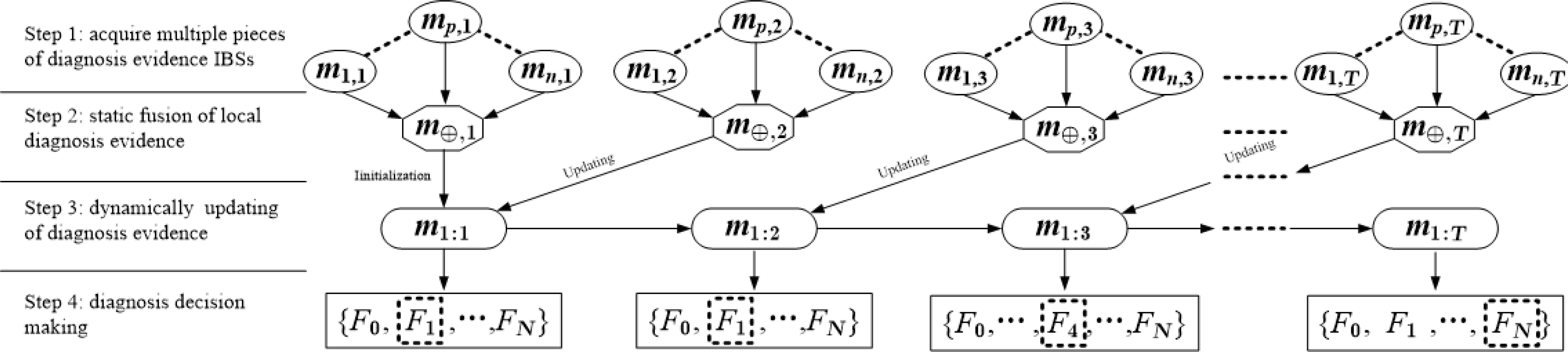

The whole procedure consists of 4 steps. Step 1 is to acquire n local pieces of diagnosis evidence at each step, denoted as m_p,t, p=1,2,…,n, t=1,2,…,T. The intervals of belief masses in m_p,t present the belief degrees that on-line monitoring information, given by the p^th source at the t^th step, supports each fault mode and the subset of fault modes in the frame of discernment Θ. m_p,t can be given by the pattern matching methods¹² or diagnosis experts¹⁷. Step 2 is to fuse n local pieces of diagnosis evidence. Since m_1,t, m_2,t,…, m_n,t are simultaneously collected at the t^th step, so the symmetric or static combination rule in Definition 3 is used to fuse them. The function of combination rule is to reduce the uncertainty of local diagnosis evidence such that the fused IBS m_⊕,t is more certain and precise than any local IBS.

In the following updating step, m_⊕,t is regarded as the incoming diagnosis evidence. The extended linear updating rule in Definition 8 is used to update the previous updated diagnosis evidence m_1:t-1 with m_⊕,t. As a result, the current global evidence m_1:t can be recursively generated at each step, which contains the whole diagnosis information from the 1^st step to the current step. At the 1^st step, m_1:t is initialized as m_⊕,1, as we have not prior information to update. The last step is to make a diagnosis decision at the each step based on the global diagnosis evidence m_1:t. There are two popular criterions which must be complied with in diagnosis decision: (1) for the determined fault proposition, the left and right endpoints of its belief mass interval are greater than those of any other fault propositions respectively; (2) The right endpoint of m(Θ) (complete ignorance) must be smaller than a certain threshold. It is set as 0.3 experientially.

4.3. The new methods for selecting linear combination weights

In the above step 3, we have to determine the linear combination weight {α_t,β_t} at each step when using the extended linear updating rule. In this section, we present two available strategies based on the similarity measure between two IBSs.

In Dempster-Shafer evidence theory, the evidence distance is the main way to quantify the dissimilarity between two belief structures (i.e.,BBAs or IBSs)²⁹, so the concepts of distance and similarity are linked in an inverse way. That is to say, the lesser the distance between two IBSs, the greater their similarity²². Therefore, the similarity measure Sim(m₁,m₂) between m₁ and m₂ on the same frame of discernment Θ, can be obtained from the distance measure given in Definition 7 as

(17)Sim(m1,m2)=f(d(IBetPm1,IBetPm2))

where f:[0,1]→[0,1] is a strictly monotone decreasing function. In order to implement the desired characteristics of the similarity, we use the sigmoid function:

(18)Sim(m1,m2)=11+exp(−a((0.5−d(IBetPm1,IBetPm2)))

where a is a parameter for adjusting the influence of the difference between m₁ and m₂ on the degree of similarity. It satisfies the properties of Sim(m₁,m₁)=1 (normality), Sim(m₁,m₂)= Sim(m₂,m₁) (symmetry), and Sim(m₁,m₁)> Sim(m₁,m₂) for all m₁≠m₂, as similarity relationship introduced by Ref.30.The relationship between d and Sim built by sigmoid function is shown in Fig. 2 when the parameter a takes different values. It should be noted that other funcitons with the similar characteristics to the sigmoid function (i.e., symmetric, monotonically decreasing and having a finite value range) can also be used to construct the degree of similaity.

It can be seen from the Fig.2 that Sim=0.5 when d =0.5, their similarity rapidly trends towards 0 when d increases from 0.5 to 1, their similarity rapidly trends towards 1 when d decreases from 0.5 to 0. In the existing definitions of similarity measure, the function f is usually endowed with the linear form, for example f =1-d ³¹. However, compared with the linear function, the sigmoid function can polarizes the similarity relationship between two IBSs, which is more beneficial to fault classification problem. Degree of polarization can be changed by adjusting a.

If there are N IBSs on Θ, as m₁, m₂,…, m_N, then the degree that m_i is supported by the other N-1 IBSs can be given as³¹

(19)Sup(mi)=∑j=1j≠iNSim(mi,mj)

The credibility degree of m_i is defined as ³¹

(20)Crd(mi)=Sup(mi)∑i=1NSup(mi)

Obviously, ∑i=1NCrd(mi)=1, thus, the credibility degree is actually a weight showing the relative importance of the collected evidence.

Actually, from the extended linear updating rule in Eqs.(15) and (16), it can be seen that the current updated evidence is the weighted sum of the historical updated evidence m_1:t-1 and the current diagnosis evidence m_⊕,t. The corresponding weights {α_t,β_t} determine the combining proportions of these two pieces of evidence respectively. Suppose the updated IBSs m_1:t-2 and m_1:t-1 at the (t-2)^th and the (t-1)^th steps have been recursively obtained respectively and the incoming fused IBS m_⊕,t at the t^th step and the next fused IBS m_⊕,t+1 at the (t+1)^th step have also been calculated respectively from step 2 in Fig.1. We present two available strategies for getting {α_t,β_t}.

The first is called the look-back based (LBB) updating strategy using similarity between m_1:t-2, m_1:t-1 and m_t. Firstly, we calculate similarities between them by Eq. (18)

(21)Sim(m1:t−2,m1:t−1)=11+exp(−a((0.5−dIBetP(IBetPm1:t−2,IBetPm1:t−1)))

(22)Sim(m1:t−2,m⊕,t)=11+exp(−a((0.5−dIBetP(IBetPm1:t−2,IBetPm⊕,t)))

(23)Sim(m1:t−1,m⊕,t)=11+exp(−a((0.5−dIBetP(IBetPm1:t−1,IBetPm⊕,t)))

Secondly, we calculate the credibility degrees of m_1:t-2, m_1:t-1 and m_⊕,t by Eq. (20)

(24)Crd(m1:t−2)=Sup(m1:t−2)(Sup(m1:t−2)+Sup(m1:t−1)+Sup(m⊕,t))

(25)Crd(m1:t−1)=Sup(m1:t−1)(Sup(m1:t−2)+Sup(m1:t−1)+Sup(m⊕,t))

(26)Crd(m⊕,t)=Sup(m⊕,t)(Sup(m1:t−2)+Sup(m1:t−1)+Sup(m⊕,t))

where Sup(m_1:t-2), Sup(m_1:t-1) and Sup(m_⊕,t) are calculated by Eq. (19)

According to the credibility degrees, we can set the linear combination weight at the t^th step as

(27)αt=Crd(m1:t−2)+Crd(m1:t−1)

(28)βt=Crd(m⊕,t)

Obviously, the LBB assigns a higher weight α_t to the historical diagnosis evidence m_1:t-1 than β_t to the current diagnosis evidence m_⊕,t. Meanwhile, {α_t,β_t} are always adjusted dynamically with the changes of similarities between m_1:t-2, m_1:t-1 and m_⊕,t. The LBB is derived from the kind of experts’ cognition that the historical diagnosis information is more reliable than the current diagnosis information.

The second is called the look-ahead based (LAB) updating strategy using similarity between m_1:t-1, m_⊕,t and m_⊕,t+1. Repeating the above process, we can obtain Crd(m_1:t-1), Crd(m_⊕,t) and Crd(m_⊕,t+1), and then set the linear combination weight at the t^th step as

(29){αt=Crd(m1:t−1)+Crd(m⊕,t+1),βt=Crd(m⊕,t), Sim(m1:t−1,m⊕,t+1)≥Sim(m⊕,t,m⊕,t+1)αt=Crd(m1:t−1),βt=Crd(m⊕,t)+Crd(m⊕,t+1),otherwise

The LAB follows the other kind of experts’ cognition that one has to look ahead and behind before taking actions. It introduces the future diagnosis information m_t+1 to updating by the smoothing factor Crd(m_⊕,t+1), which can be used to adjust {α_t,β_t} dynamically according to the changes of similarities between m_1:t-1, m_⊕,t and m_⊕,t+1. More specifically, Sim(m_1:t-1,m_⊕,t+1)> Sim(m_⊕,t,m_⊕,t+1) means that the belief mass distribution of m_⊕,t is distinctly different from that of m_1:t-1 and m_⊕,t+1. Since there is commonly a reciprocal causation relation among running states of equipment at adjacent time steps, so this conflict between m_1:t-1 and m_⊕,t is likely caused by the uncertain disturbances at the t^th step. Therefore, m_1:t-1 is more reliable than m_⊕,t, Crd(m_⊕,t+1) is assigned to α_t such that the former has bigger combining proportion than the latter. Moreover, since m_1:t-1 includes all of the historical information by iterative updating process, so although Sim(m_1:t-1,m_⊕,t+1)=Sim(m_⊕,t,m_⊕,t+1), Crd(m_⊕,t+1) is still assign to α_t. On the other hand, Sim(m_1:t-1,m_⊕,t+1)<Sim(m_⊕,t,m_⊕,t+1) means that running states of equipment have significant change, the new state continues for adjacent two steps. In this case, Crd(m_⊕,t+1) is assign to β_t so as to reduce the inertia of the historical information.

As a result, the LBB and LAB have the different scope of application. In the following typical fault experiments, their functions and performance will be compared and analyzed in detail.

5. The static reliability and dynamic sensitivity indices for diagnosis

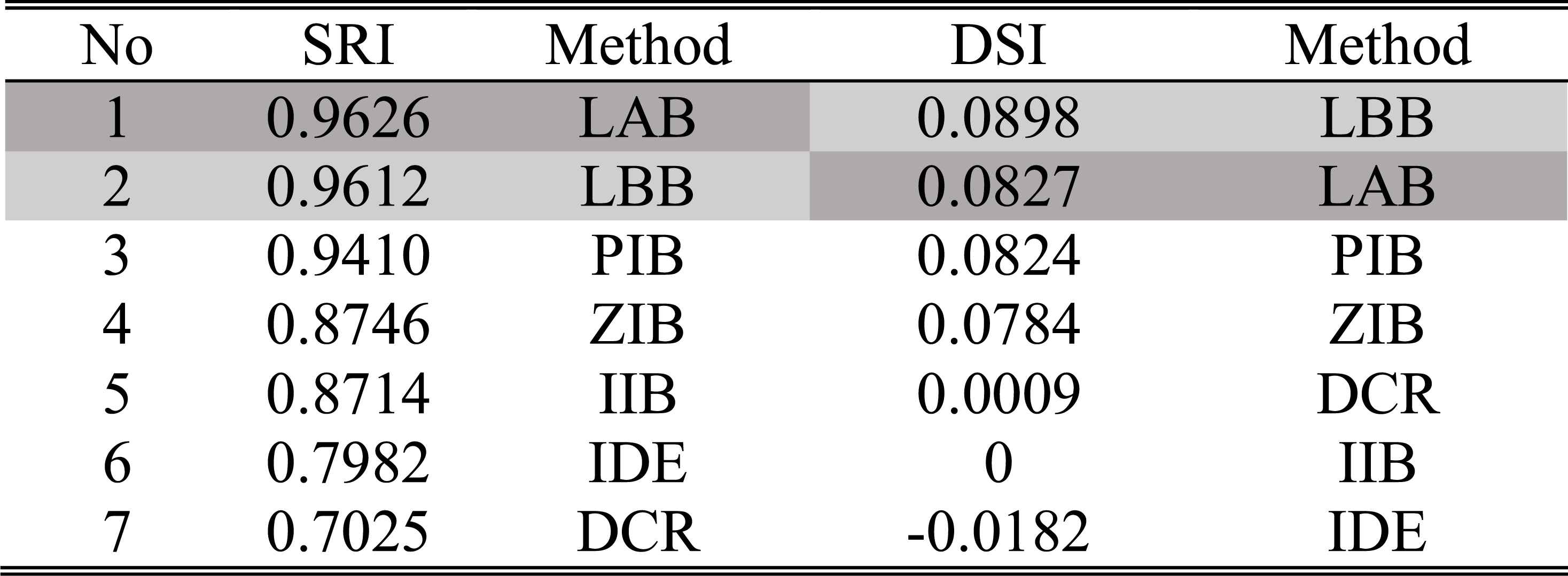

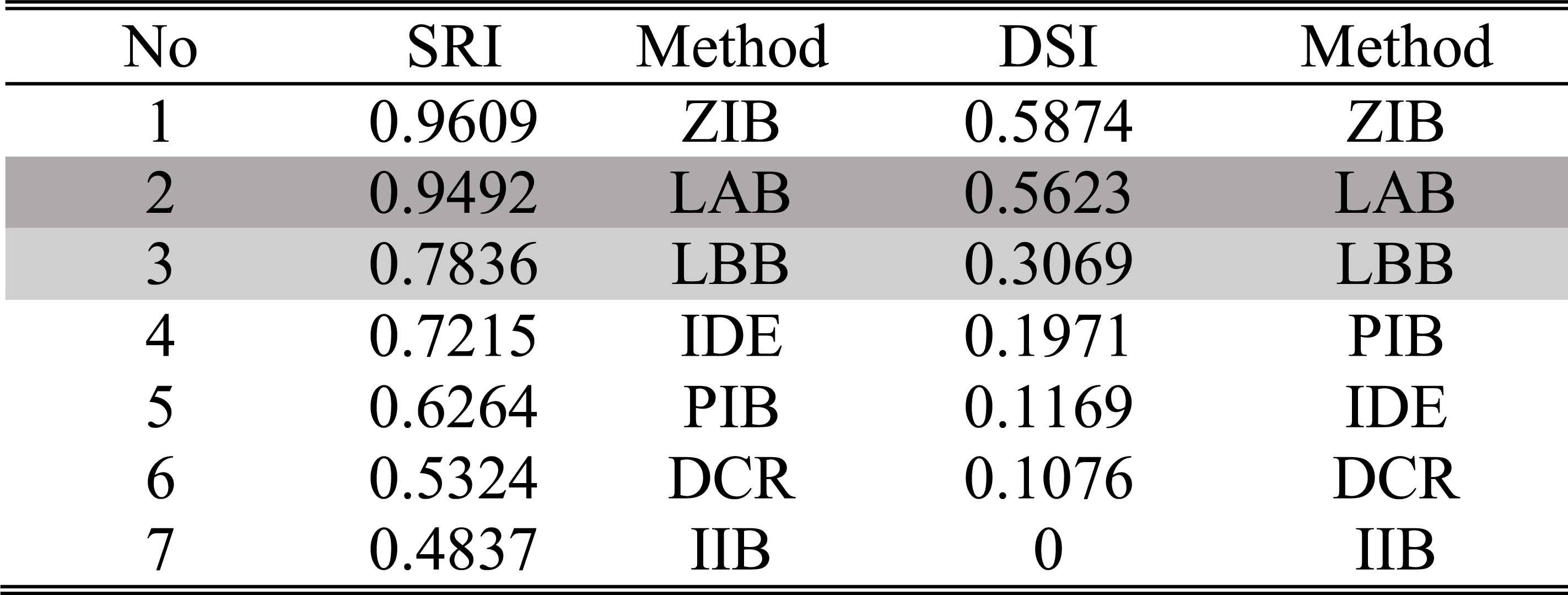

In order to assess the performance of updating diagnosis algorithms, we design the static reliability index (SRI) and dynamic sensitivity index (DSI).

Let us denote the FoD as Θ={F₀, F₁,…, F_N}. Suppose that the length of a diagnosis period is T time steps and the equipment being monitored goes through totally M states from F_T₁ to F_{T_M}, F_{T_i} ∈ Θ (i=1,2,…M) in this period.

SRI can be defined as

(30)SRI=1M(1T1∑t=1T1Sim(m1:t,m(FT1))+ 1T2∑t=T1+1T1+T2Sim(m1:t,m(FT2))+⋯+ 1TM∑t=T1+⋯+TM−1+1T1+⋯+TMSim(m1:t,m(FTM)))

where m(F_{T_i})=[1,1] denotes the true solution with the form of belief interval, T_i is the number of steps that the equipment keeps in the i^th state. 1/T_i is normalized factor, so SRI∈[0,1]. SRI describes the degree that the updated m_1:t converges to m(F_{T_i}) at the whole diagnosis period. The bigger the SRI, the higher the static reliability of the updating algorithm.

Correspondingly, the DSI can be defined as

(31)DSI=1M(∑t=2T1λt1Δt1+∑t=T1+1T1+T2λt2Δt2+⋯+∑t=T1+⋯+TM−1+1T1+⋯+TMλtMΔtM)

1/M is a normalized factor such that DSI ∈ [−1,1]. DSI=0 means that the updated m_1:t has not the ability to track m(F_{T_i}); DSI>0 means m_1:t converges to the correct solution, DSI<0 means m_1:t converges to the incorrect solution and the bigger the absolute value of DSI, the faster the speed of updating algorithm converging to correct/incorrect solution. Δti describes the change of similarity at each step given by

(32)Δti=Sim(m1:t,m(FTi))−Sim(m1:t−1,m(FTi))

λti is fading factor of Δti given by

(33)λti={1t−1 i=11t−∑j=1i−1Tj 2<i≤M

It emphasizes that the contribution of Δti to DSI will attenuate with time. In the following typical fault experiments, we will interpret and analyze the functions of DSI and RSI for assessing static and dynamic performance of the linear updating algorithms with different strategies for selecting linear combination weights.

6. Experiments

6.1. Experiment settings

In this paper, we choose the ZHS-2 machine rotor system as shown in Fig.3 to test the proposed linear updating algorithms with the different strategies of selecting linear combination weights {α_t,β_t} The typical faults seeded in the system are motor bracket loosening (F₁), rotor misalignment (F₂) and rotor unbalance (F₃) ^1,12. As one goal of fault diagnosis, we also add F₀ as the normal state of the system. Therefore, the frame of discernment can be described as Θ = {F₀, F₁, F₂, F₃}.

A vibration displacement sensor and a vibration acceleration sensor are installed on the bracket of rotor respectively in order to collect vibration signals in both vertical and horizontal directions. The collected vibration signals are inputted into HG-8902 data collector, and then processed by signal conditioning circuits. Finally, the processed signals are inputted into a laptop. The fault features can be extracted from these signals by HG-8902 data analysis software under the environment of Labview. The amplitudes of fundamental, double, triple vibration acceleration frequencies (denoted as f_×1~ f_×3 respectively for short) and average amplitude of vibration displacement (denoted as d_a for short) are selected as fault feature parameters ^1,12.

6.2. Experiment results

We conduct four typical fault experiments usually happened in real world, on which, the proposed LBB(look-back based) and LAB(look-ahead based) strategies for selecting {α_t,β_t} are compared with the basic strategies IIB(infinite inertia based), ZIB(zero inertia based) and PIB (proportional inertia based). Moreover, in these experiments, we also use the Dempster’s combination rule of IBSs (DCR) in Definition 3 to obtain the updated results, namely, m_1:t=m_⊕,1 ⊕ m_⊕,2⊕ … ⊕ m_⊕,t. From the comparison between DCR and the liner updating rule, it can be seen that static/symmetric DCR may be no longer suitable for evidence updating, especially when system states change over time.

Experiment 1:

The rotor system always stably keeps in normal state at the t^th step, t=1,2,…,10, the time interval between two steps Δt = 16s.

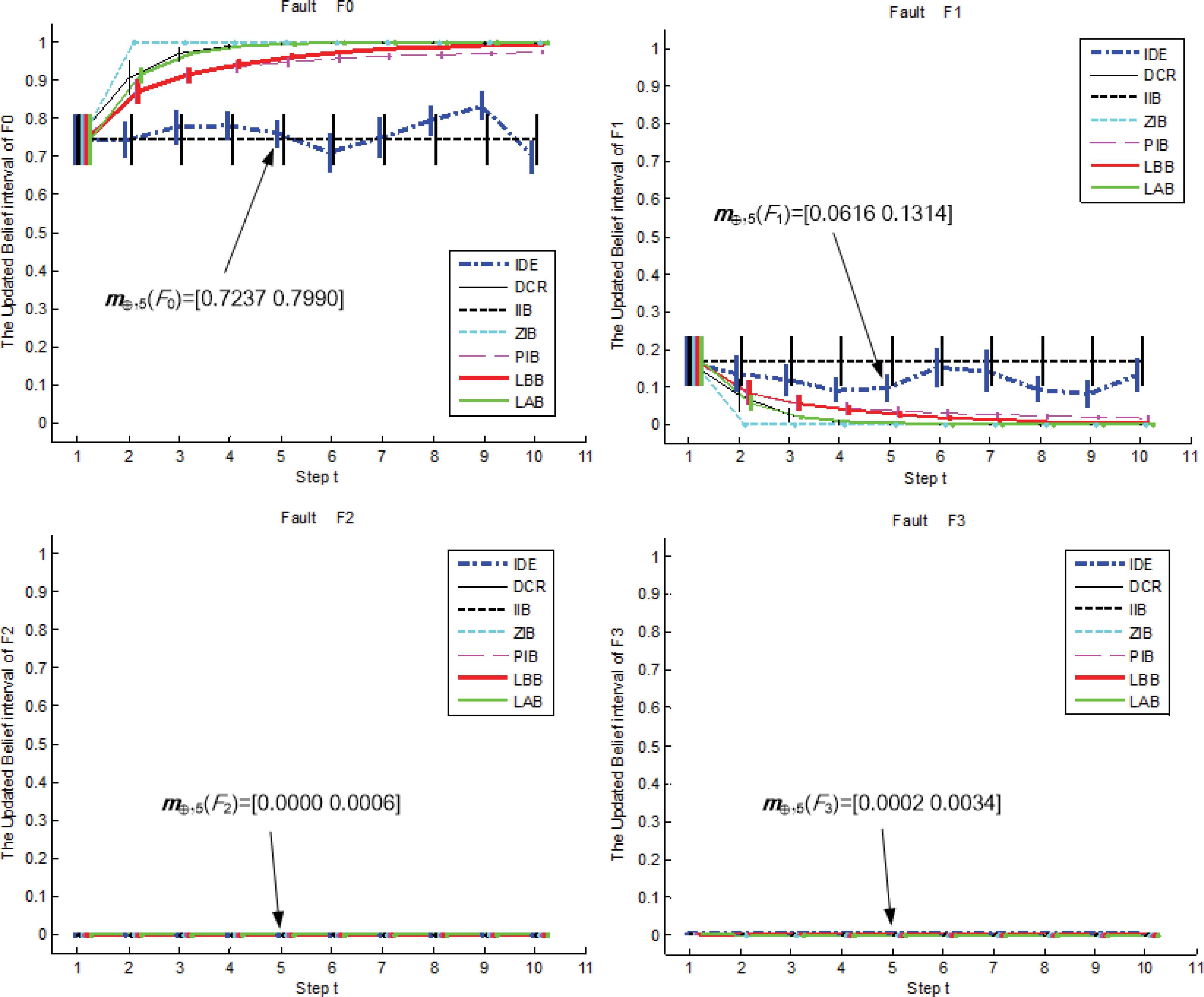

According to the diagnosis procedure in Fig.1, at each time step, the method in Ref.12 is used to get the four local IBSs respectively from the monitoring data of f_×1, f_×1, f_×3 and d_a, and then, the static combination rule in Definition 3 is used to fuse the local IBSs to obtain the incoming diagnosis evidence (IDE) m_⊕,t as shown in Table 4. Fig.4 shows the updated results obtained recursively using the linear updating rule with LBB, LAB, IIB, ZIB, PIB and DCR. Here, m_⊕,t({F₀}), m_⊕,t({F₁}), m_⊕,t({F₂}) and m_⊕,t({F₃}) are also shown in Fig 4 except m_⊕,t (Θ), because m_⊕,t (Θ) usually becomes relatively small by optimal combination such that it rarely influences the following decision making. For example, the interval value of belief masses of m₈ illustrated in Fig.4.

t	m_⊕,t{F₀}	m_⊕,t{F₁}	m_⊕,t{F₂}	m_⊕,t{F₃}	m_⊕,t (Θ)
1	[0.6792 0.8103]	[0.1023 0.2344]	[0.0000 0.0001]	[0.0004 0.0052]	[0.0639 0.1136]
2	[0.6935 0.7922]	[0.0861 0.1846]	[0.0000 0.0005]	[0.0003 0.0046]	[0.0968 0.1487]
3	[0.7312 0.8230]	[0.0747 0.1619]	[0.0000 0.0002]	[0.0002 0.0029]	[0.0827 0.1296]
4	[0.7437 0.8186]	[0.0564 0.1256]	[0.0000 0.0006]	[0.0003 0.0046]	[0.1048 0.1509]
5	[0.7237 0.7990]	[0.0616 0.1314]	[0.0000 0.0006]	[0.0002 0.0034]	[0.1182 0.1674]
6	[0.6595 0.7609]	[0.1001 0.2033]	[0.0000 0.0005]	[0.0002 0.0031]	[0.1112 0.1685]
7	[0.6930 0.8029]	[0.0876 0.1977]	[0.0000 0.0004]	[0.0005 0.0066]	[0.0843 0.1350]
8	[0.7548 0.8317]	[0.0571 0.1271]	[0.0000 0.0002]	[0.0003 0.0039]	[0.0928 0.1376]
9	[0.7947 0.8713]	[0.0456 0.1153]	[0.0000 0.0002]	[0.0006 0.0073]	[0.0668 0.1038]
10	[0.6559 0.7439]	[0.0879 0.1768]	[0.0000 0.0014]	[0.0002 0.0030]	[0.1395 0.1977]

Table 4

The incoming diagnosis evidence (IDS) m_⊕,t

Table 5 lists the static reliability index (SRI) and dynamic sensitivity index (DSI) of the updated results in descending order. In our experiments, the parameter a of similarity measure is set as 8.

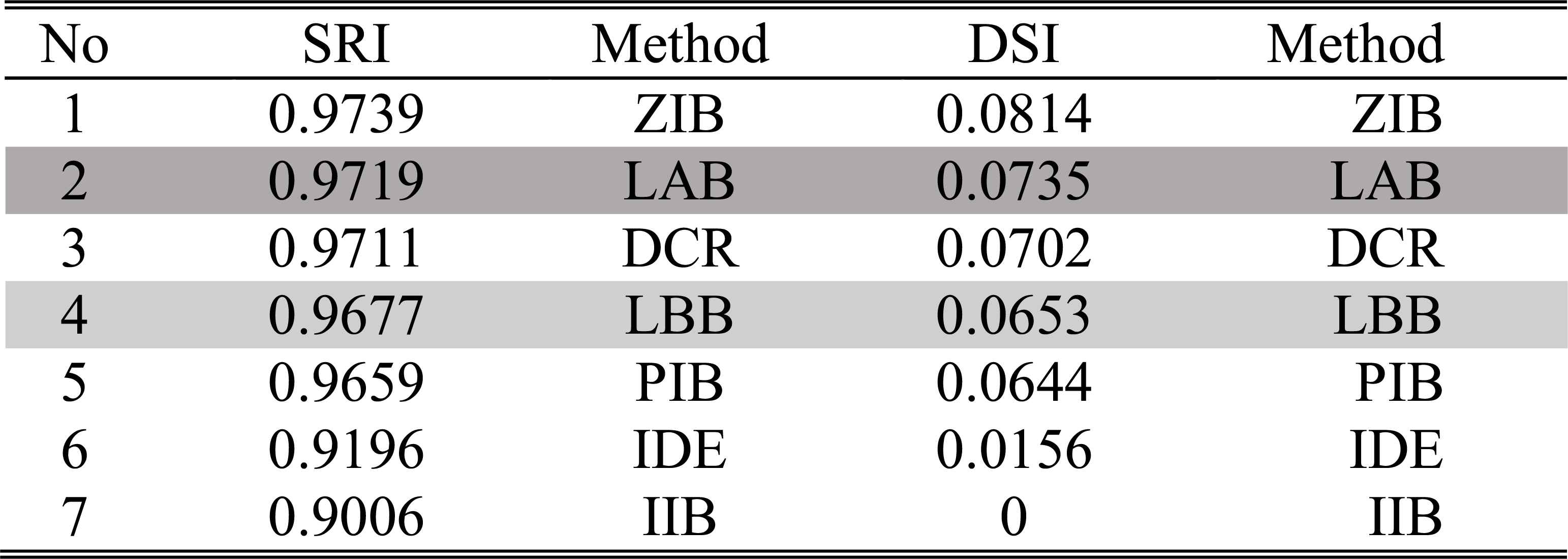

Table 5

The ordering of SRIs and DSIs of different methods in experiment 1

It can be seen that from Table 5 that the performance indices of the other updating algorithms except the IIB, are all better than the IDE’s. That is to say, although the diagnosis decisions made from all the methods are correct (F₀ happens), the dynamic updating procedure can provide more reliable diagnosis results than the static fusing procedure. In the IIB, {α_t,β_t}={1,0}, it means that m_1:t = m_1:t-1 according to the extended linear updating rule in Eqs. (15) and (16). Since m_1:1= m_⊕,1, the updated result at each step is always taken as m_⊕,1, therefore, the IIB is quite insensitive to the change of the incoming diagnosis evidence. In the PIB, when t=1, {α_t,β_t} = {1,0}, otherwise, {α_t,β_t}={(t-1)/t,1/t}. In the ZIB, {α_t,β_t}={0,1}, so its m_1:t is completely determined by the m_⊕,t, and since m_⊕,t({F₀}) is always larger than m_⊕,t({F₁}), m_⊕,t({F₂}), m_⊕,t({F₃}) and m_⊕,t(Θ), according to the extended linear updating rule, m_1:t({F₀}) can immediately converge to [1,1] at the 2^nd step and is unchanged until the last step. Therefore, in this experiment, the ZIB have the best performance on reliability and sensitivity. As m_⊕,t always supports F₀, so the DCR also makes belief masses converge to F₀. Although the LAB and LBB do not provide better results than the ZIB, both of them are available in accordance with the decision criterions in Fig.1.

Experiment 2:

The rotor system encounters abrupt external disturbances at different time steps, and then returns to its normal working condition when the disturbances disappear. There are three detailed cases.

Case 1: The system only encounters the disturbance at the 6^th step. It causes the false fault “motor bracket loosening (F₁)”.
Case 2: The system continuously encounters the disturbances at the 6^th and 7^th steps. They cause the false faults “motor bracket loosening (F₁)” and “rotor misalignment (F₂)” respectively.
Case 3: The system intermittently encounters the disturbances at the 6^th and 8^th steps respectively. They cause the false faults “motor bracket loosening (F₁)” and “rotor misalignment (F₂)” respectively.

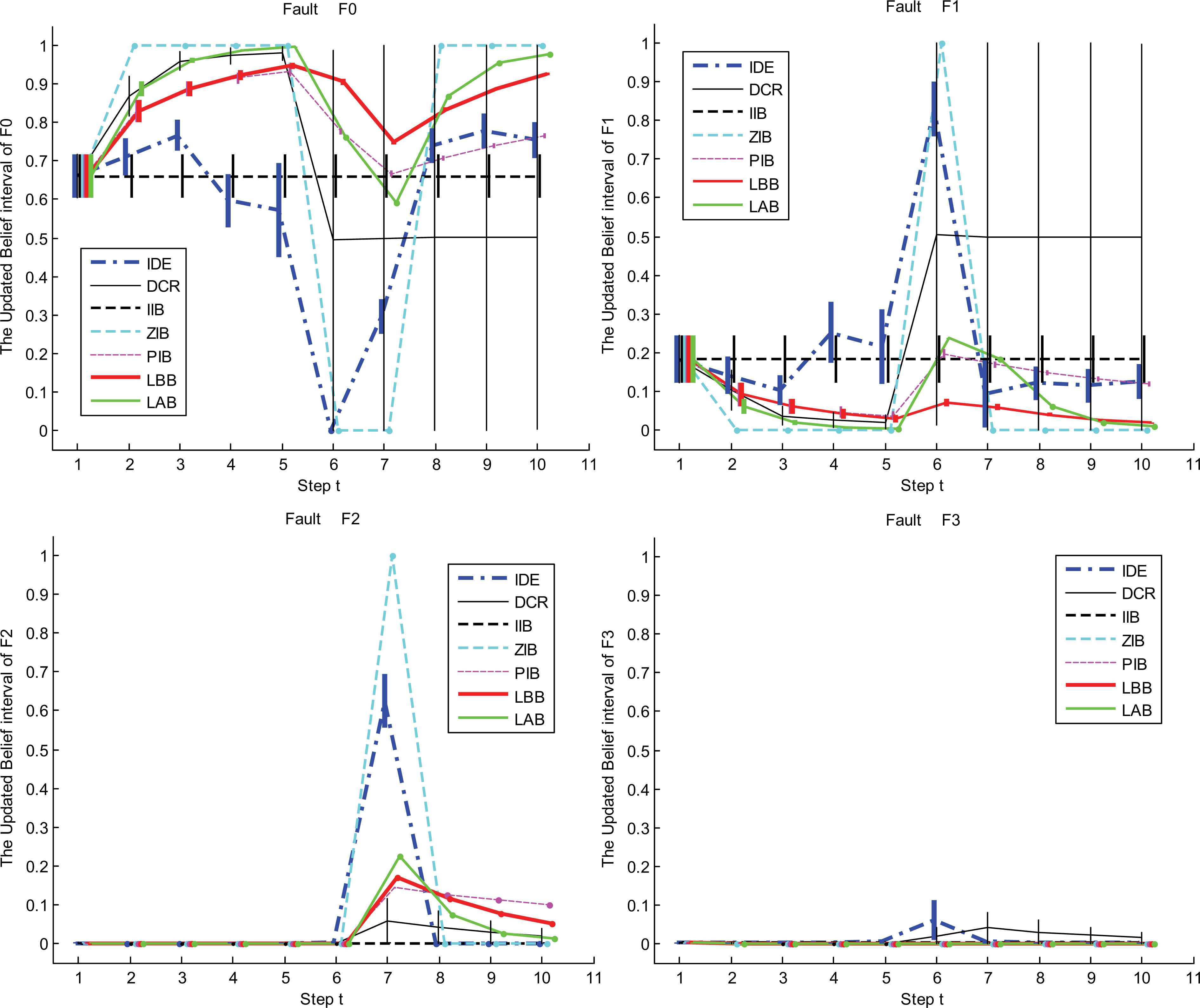

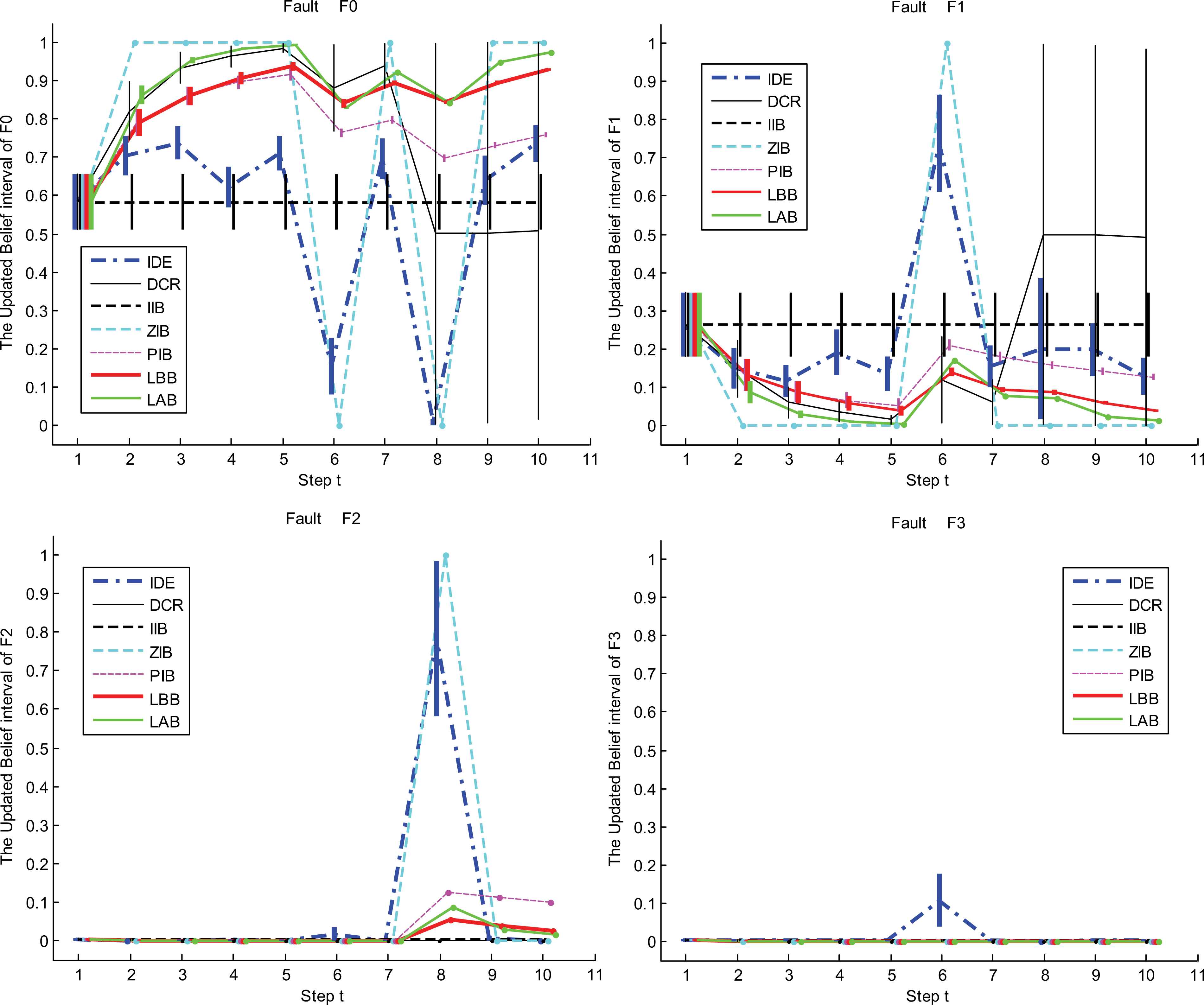

The updated results in three cases are shown in Fig.5, Fig.6 and Fig.7 respectively. An ideal diagnosis system should be immune to the disturbances. It can be concluded from these three figures that, the disturbances are so strong that the incoming diagnosis evidence (IDE) incorrectly support false faults. The disturbances even cause that the DSIs of IDE are negative. For example, Table 6 lists the changes of similarity (Δti) and the corresponding fading factors (λti) at 10 steps in case 2. Here, the system goes through only one state F_T = F₀.

F_T	t	Sim	Δti	λti
F₀	1	0.8586	-	-
	2	0.8990	0.0404	1
	3	0.9288	0.0298	1/2
	4	0.7819	−0.1469	1/3
	5	0.7688	−0.0131	1/4
	6	0.0324	−0.7364	1/5
	7	0.1976	0.1653	1/6
	8	0.9152	0.7175	1/7
	9	0.9290	0.0138	1/8
	10	0.9195	−0.0095	1/9

Table 6

The similarity changes of IDE in case 2

From Table 6, we can get DSI=-0.0135, SRI=0.7231 according to Eqs. (31) and (30). In the same way, we can calculate the SRI and DSI of each method in three cases as shown in Table 7, Table 8 and Table 9 respectively.

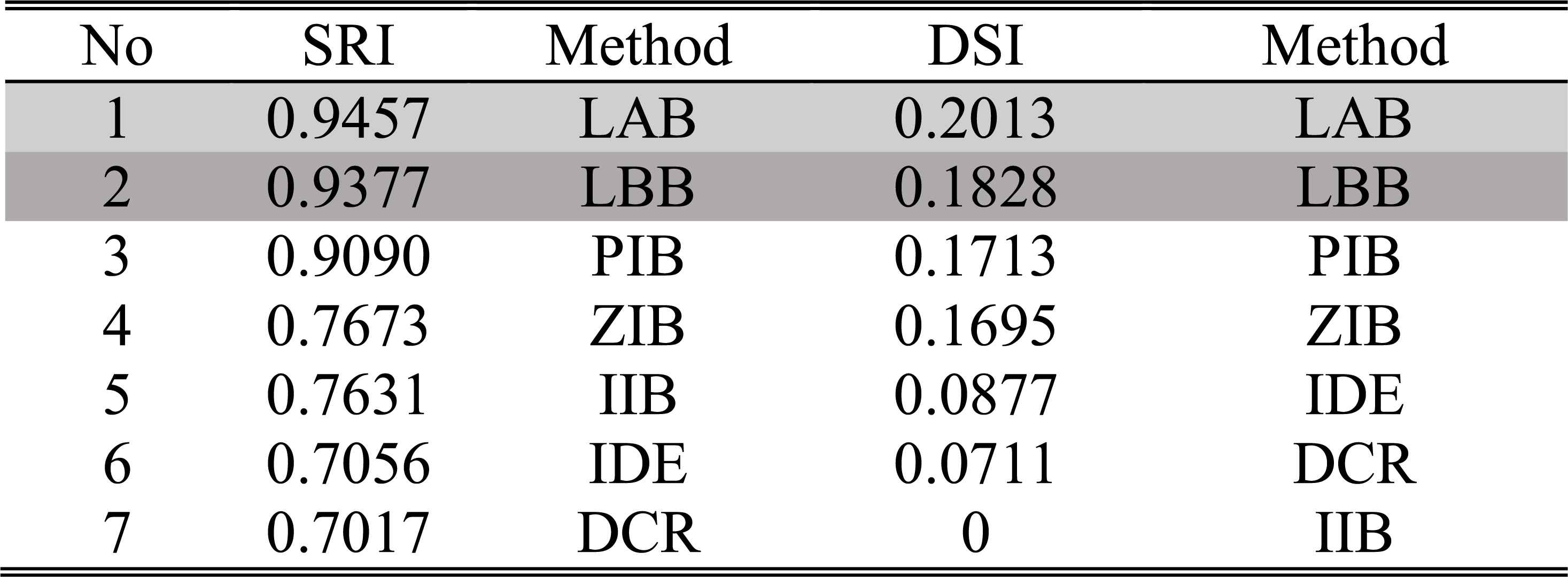

Table 7

The ordering of SRIs and DSIs of different methods in case 1 of experiment 2

Table 8

The ordering of SRIs and DSIs of different methods in case 2 of experiment 2

Table 9

The ordering of SRIs and DSIs of different methods in case 3 of experiment 2

It can be seen from these figures and tables that the evidence updating strategies in LAB, LBB, PIB and IIB all make the correct judgment according to the decision criterions. Obviously, the static and dynamic performance of the LAB and LBB are superior to that of the other methods. When the disturbances happen, the judgments given by the ZIB are always utterly wrong, because it adopts the extreme strategy to support the incoming evidence and ignore the inertia of historical evidence. On account of the conflicts between the incoming diagnosis evidence, since the 6^th step, the interval widths of belief masses given by the DCR become too large to make decisions. So, in these cases, the DCR is no longer applicable.

Experiment 3:

The rotor system goes through the intermediate stage between normal and fault. More specifically, the system is normal from the 1^st step to the 5^rd step, from the 6^th step to the 7^th step, the running status of the system gradually degrades to “motor bracket loosening (F₁)”, and then, F₁ really happens at remaining three steps.

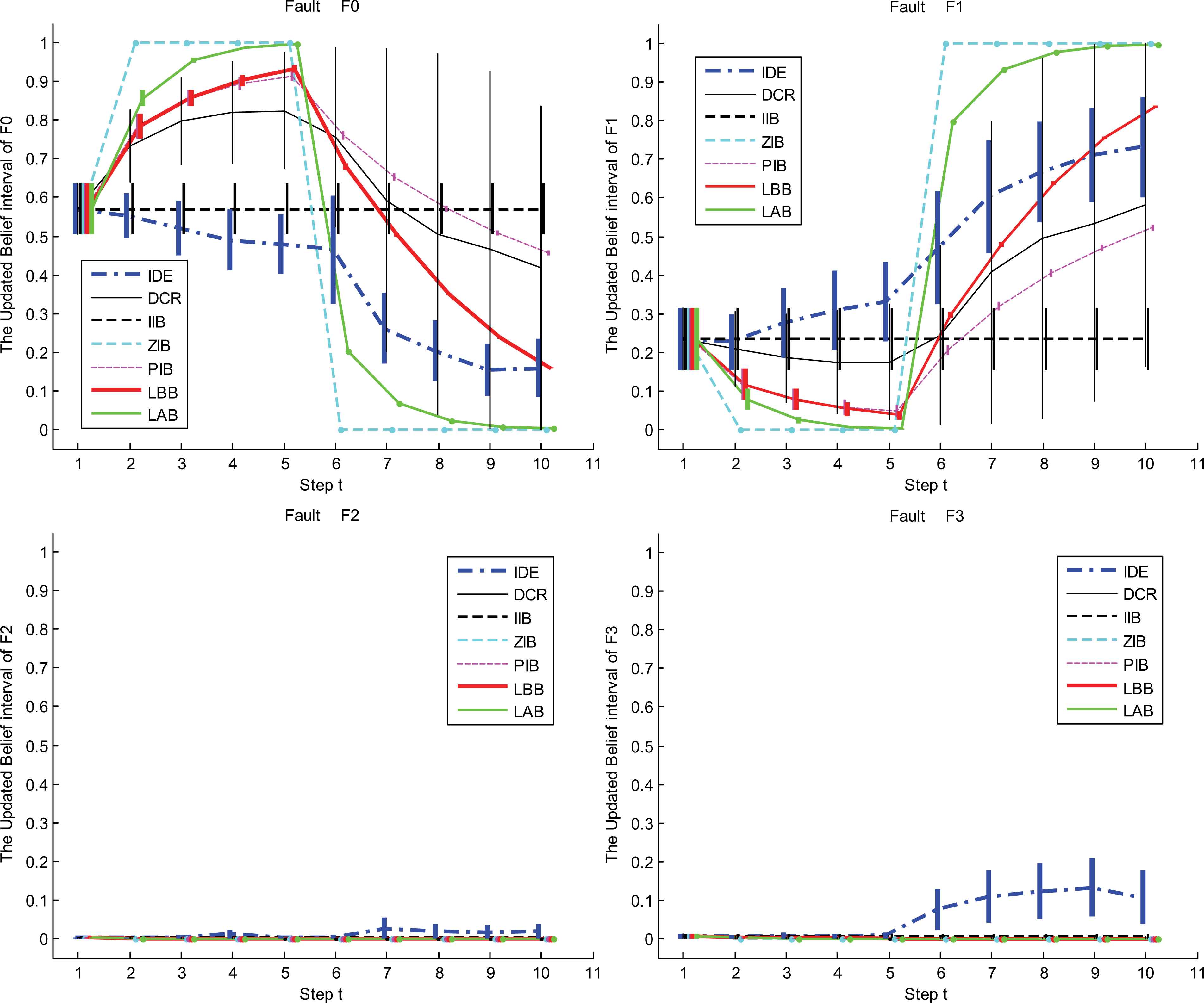

Fig.8 shows the updated results and Table 10 lists the corresponding performance indices. Contrary to what we have observed in the above experiments, the ZIB, in this experiment, returns to the best performance just as illustrated in experiment 1. But, distinctly, in the face of the different changes of the system states, the performance of the ZIB fluctuates and becomes unstable. The DCR is still inapplicable because of the same reason as in experiment 2. The IIB only relies on the historical evidence, and completely ignores the change of the system states from F₀ to F₁. In the PIB, {α_t,β_t} = {t/(t+1),1/(t+1)}, when t increases, β_t tends to 0, so the share of the incoming evidence in the updated result will be smaller and smaller. It leads to the slow speed of converging to the new state F₁ and bad decisions. On the contrary, the LAB still keeps good behaviors. The LBB can be interpreted as the tradeoff between the LAB and PIB.

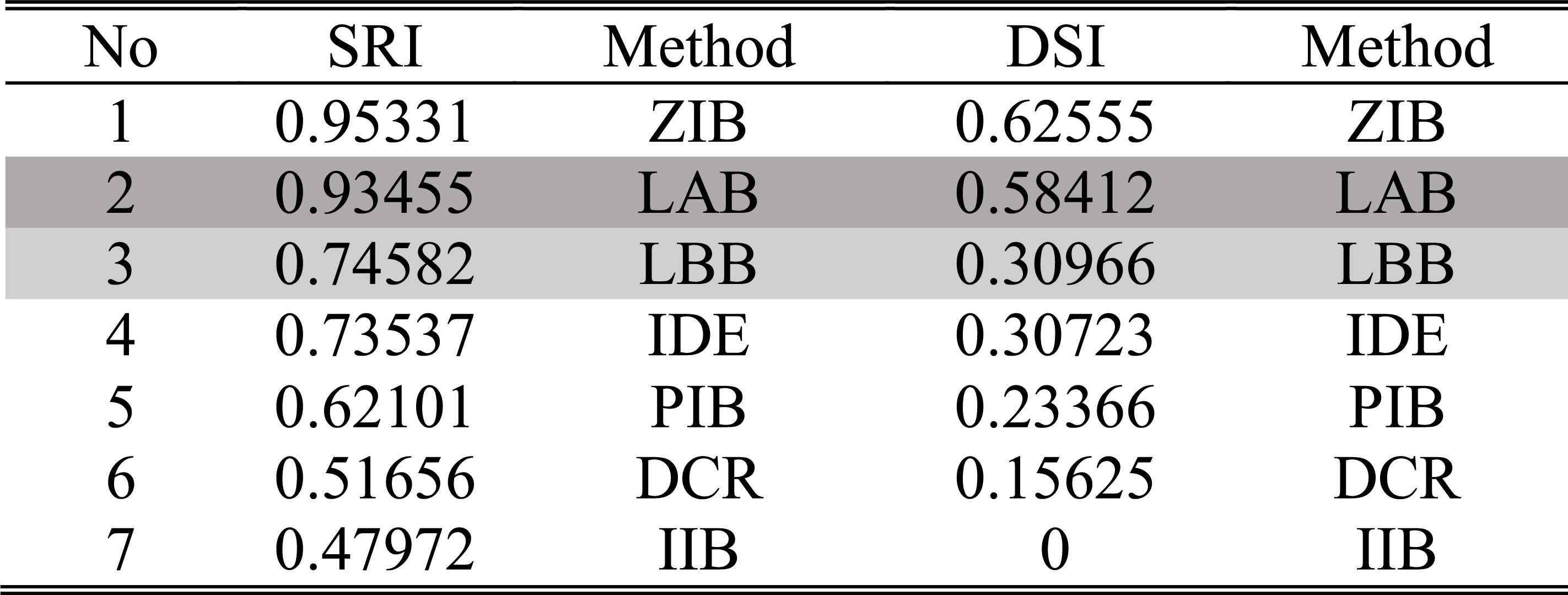

Table 10

The ordering of SRIs and DSIs of different methods in experiment 3

Experiment 4:

The rotor system is normal from the 1^st step to the 5^th step, but the fault “motor bracket loosening (F₁)” suddenly happens at the 6^th step and goes on until the 10^th step.

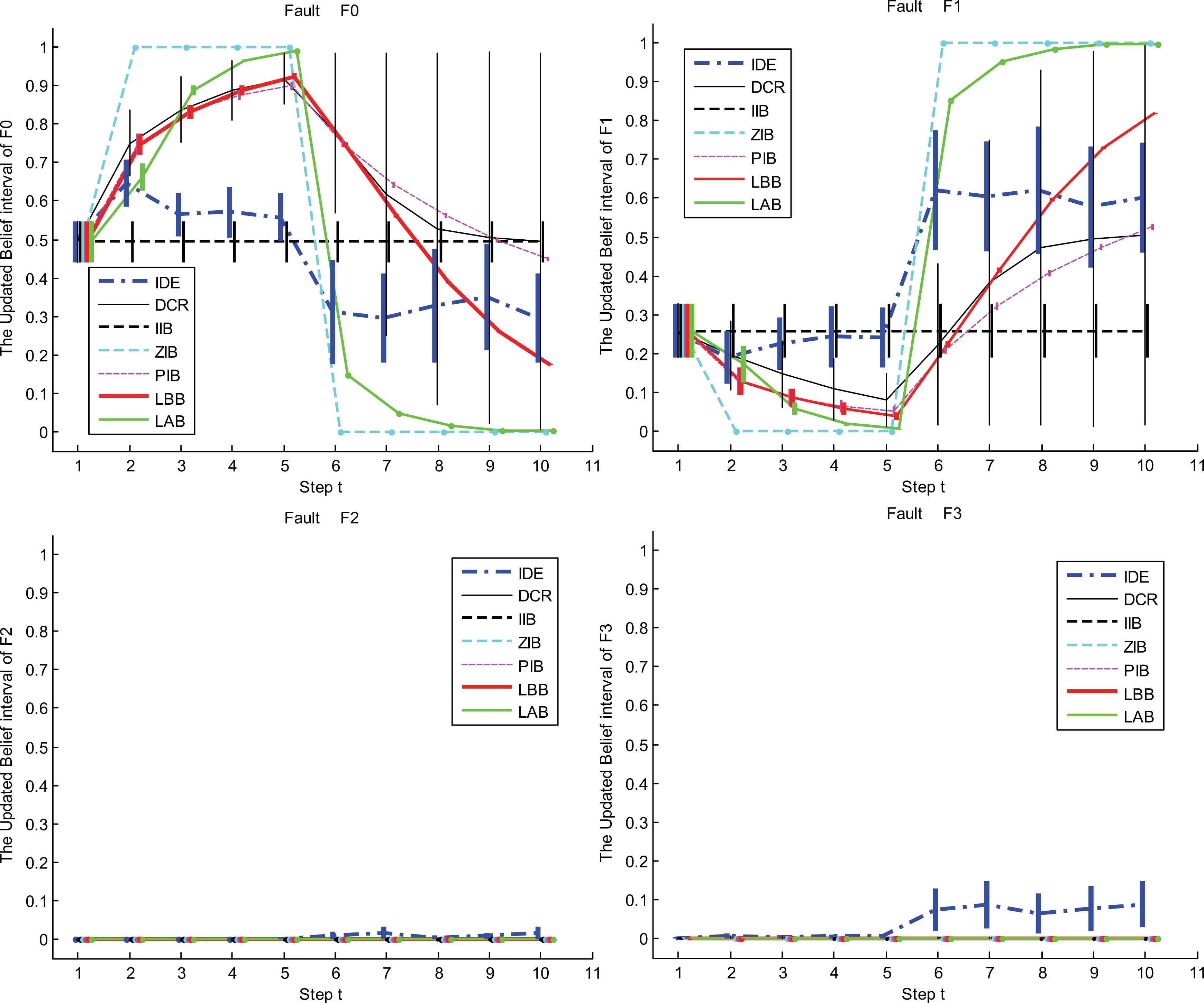

Fig.9 shows the updated results and Table 11 lists the corresponding performance indices. The performance of each method is similar with that in experiment 3. Obviously, compared with other methods, the performance of the LAB keeps stable.

Table 11

The ordering of SRIs and DSIs of different methods in experiment 4

Furthermore, we give the average value of performance indices of every method in three experiments as shown in Table 12.

Table 12

The ordering of average values of SRI and DSI in four experiments

It can be seen from this table that the LAB have the best comprehensive performance. Although the dynamic sensitivity of the ZIB is the same with that of the LAB, the absolutely wrong judgments that it makes in experiment 2 lead to the low static reliability. The IIB and DCR are almost inapplicable to dynamic diagnosis because they rarely adapt to the different changes of system states. In summary, the proposed LAB and LBB can deal with the typical changes of system states. Specifically speaking, in the initial operation stages, the monitored system is commonly stable and healthy. In this case, the LBB can be used to avoid some false-alarms caused by the intermittent or abrupt external disturbances as shown in experiment 2. With the increasing of the running time, if the reliability of system deteriorates, the LAB can respond to the disturbances and the abrupt or gradual faults rapidly and accurately shown in the last three experiments.

7. Conclusion

In this paper, a novel idea of evidence updating is introduced into dynamic/on-line fault diagnosis. Based on interval-valued belief structures, the new updating strategies for dynamic fault diagnosis are presented. The main contributions of the paper include: (1) The classical linear updating rule are extended to the framework of IBSs, which can be used to recursively fuse the “dissymmetric” and “dynamic” diagnosis evidence over time; (2) The LAB and LBB method can adaptively adjust the linear combination weights according to the similarity relationship between the incoming diagnosis evidence and the previous diagnosis evidence; (3)The static reliability and the dynamic sensitivity indices are designed to evaluate the performance of an updating strategy. (4) Finally, the typical fault experiments of machine rotor show the effectiveness of the proposed updating strategies.

The presented methods could be further investigated in several ways. First of all, the distance between two interval-valued structures is a basic tool for assessing the performance of IBSs-based classification algorithms. From the perspective of interval mathematics or interval computations^32–33, the distance between two interval-valued structures is actually the distance between two interval-valued vectors, in this case, the value of distance should be also an interval value, not be a point value as given in Definition 7 such that IBS can manifest its advantage of impreciseness control over BBA. Therefore, we can further consider the other alternative distances with interval values by using some interval metrics as given in Refs.32–33; Second, when prior diagnosis information is available, one can introduce on-line learning algorithm to optimize the parameter a in the similarity measure such that the updating procedure adapts to the changes of system state. Third, the evidence updating strategy should be easily applicable to other fields such as dynamic target recognition and expert systems but it needs to be validated by experimental studies or real world applications.

Acknowledgements

This work was supported by the NSFC (No. 61374123, 61433001, 61573076, 61573275), the Zhejiang Open Foundation of the Most Important Subjects and the Zhejiang Province Research Program Project of Commonweal Technology Application (No. 2016C31071)

Appendix A.

Proof of Lemma 1

Proof. Let m₁=([a₁^-,a₁⁺],[a₂^-,a₂⁺],…[a_N^-,a_N⁺]), m₂=([b₁^-,b₁⁺],[b₂^-,b₂⁺],…[b_N^-,b_N⁺]), m₃= ([c₁^-,c₁⁺], [c₂^-,c₂⁺],…[c_N^-,c_N⁺]) be three interval-valued vectors in Ω, also be three IBSs on the same frame of discernment Θ. By the use of Eqs. (8) and (9), their corresponding Pignistic probability functions can be calculated as

IBetPm1=([x1−,x1+],[x2−,x2+],…,[xn−,xn+])IBetPm2=([y1−,y1+],[y2−,y2+],…,[yn−,yn+]) IBetPm3=([z1−,z1+],[z2−,z2+],…,[zn−,zn+])

Then, IBetP_m₁, IBetP_m₂ and IBetP_m₃ are three interval-valued vectors in space Ω′. We must check that d in Definition 7 satisfies four axioms for (Ω′, d_IBetP) to be a metric space for any IBetP_m₁, IBetP_m₂, IBetP_m₃ ∈ Ω′:

M1:
Nonegativity: d(IBetP_m₁, IBetP_m₂) ≥ 0;
M2:
Nondegeneracy: d(IBetP_m₁,IBetP_m₂)=0 ⇔ IBetP_m₁ = IBetP_m₂;
M3:
Symmetry: d(IBetP_m₁, IBetP_m₂)=d(IBetP_m₂, IBetP_m₁);
M4:
Triangle inequality: d(IBetP_m₁, IBetP_m₂) ≤ d(IBetP_m₁, IBetP_m₃) + d(IBetP_m₃, IBetP_m₂), ∀IBetP_m₃ ∈ Ω′.

Since d(IBetPm1,IBetPm2)=14∑k=1n((xk−−yk−)2+(xk+−yk+)2) is the square root of the sum of the non-negative numbers (xk−−yk−)2 and (xk+−yk+)2, it certainly satisfies d(IBetP_m₁,IBetP_m₂) ≥ 0. Further, d(IBetP_m₁, IBetP_m₂)=0 is equivalent to (xk−−yk−)2=0 and (xk+−yk+)2=0 for each k, which means xk−=yk− and xk+=yk+ for each k, i.e., IBetP_m₁ = IBetP_m₂. This proves axiom M1 and M2.

Axiom M3 is obvious as (xk−−yk−)2=(yk−−xk−)2 and (xk+−yk+)2=(yk+−xk+)2 for all k, so that

d(IBetPm1,IBetPm2=14∑k=1n((xk−−yk−)2+(xk+−yk+)2)=14∑k=1n((yk−−xk−)2+(yk+−xk+)2)=d(IBetPm2,IBetPm1)

Finally, let’s prove axiom M 4,

(A.1)(d(IBetPm1,IBetPm3)+d(IBetPm3,IBetPm2))2 =d(IBetPm1,IBetPm3)2+d(IBetPm3,IBetPm2)2+ 2d(IBetPm1,IBetPm3)d(IBetPm3,IBetPm2)

and

d(IBetPm1,IBetPm3)2=14∑k=1n((xk−−zk−)2+(xk+−zk+)2) d(IBetPm3,IBetPm2)2=14∑k=1n((zk−−yk−)2+(zk+−yk+)2)d(IBetPm1,IBetPm3)d(IBetPm3,IBetPm2)= 14∑k=1n((xk−−zk−)2+(xk+−zk+)2)14∑k=1n((zk−−yk−)2+(zk+−yk+)2) ≥14∑k=1n((xk−−zk−)(zk−−yk−))+14∑k=1n((xk+−zk+)(zk+−yk+))

where the second part is the Cauchy-Schwartz inequality. By substituting the results for d(IBetP_m₁,IBetP_m₃)², d(IBetP_m₃,IBetP_m₂)², d(IBetP_m₁,IBetP_m₃)d(IBetP_m₃,IBetP_m₂) into (A1), we have

(d(IBetPm1,IBetPm3)+d(IBetPm3,IBetPm2))2 ≥14∑k=1n((xk−−zk−)2+(xk+−zk+)2)+ 14∑k=1n((zk−−yk−)2+(zk+−yk+)2) +2×14∑k=1n((xk−−zk−)(zk−−yk−))+ 2×14∑k=1n((xk+−zk+)(zk+−yk+)) =14∑k=1n((xk−−zk−)+(zk−−yk−))2+ 14∑k=1n((xk+−zk+)+(zk+−yk+))2 =14∑k=1n((xk−−yk−))2+14∑k=1n((xk+−yk+))2 =d(IBetPm1,IBetPm2)2

so that d(IBetP_m₁, IBetP_m₂) ≤ d(IBetP_m₁, IBetP_m₃) + d(IBetP_m₃, IBetP_m₂) as required. As a result, d is a metric distance on Ω′, then Ω′ is a metric space.

References

1.C Wen and X Xu, Multi-source uncertain information fusion theory and its application in fault diagnosis and reliability evaluation, Science Press, Beijing, 2012.

2.G Shafer, A mathematical theory of evidence, Princeton university press, Princeton, Vol. 1, 1976.

3.O Basir and X Yuan, Engine fault diagnosis based on multisensor information fusion using Dempster–Shafer evidence theory, Information Fusion, Vol. 8, No. 4, 2007, pp. 379-386.

4.Q Zhang, Q Hu, G Sun, X Si, and A Qin, Concurrent Fault Diagnosis for Rotating Machinery Based on Vibration Sensors, International Journal of Distributed Sensor Networks, 2013.

5.L Oukhellou, A Debiolles, T Denoeux, and P Aknin, Fault diagnosis in railway track circuits using Dempster–Shafer classifier fusion, Engineering Applications of Artificial Intelligence, Vol. 23, No. 1, 2010, pp. 117-128.

6.M Peng, K Chi, M Shen, and K Xie, Fault Diagnosis of Analog Circuits Using Systematic Tests Based on Data Fusion, Circuits, Systems, and Signal Processing, Vol. 32, No. 2, 2013, pp. 525-539.

7.H Luo, S Yang, X Hu, and X Hu, “Agent oriented intelligent fault diagnosis system using evidence theory”, Expert Systems with Applications, Vol. 39, No. 3, 2012, pp. 2524-2531.

8.L Lardon, A Punal, and JP Steyer, On-line diagnosis and uncertainty management using evidence theory-experimental illustration to anaerobic digestion processes, Journal of Process Control, Vol. 14, No. 7, 2004, pp. 747-763.

9.B Marhic, L Delahoche, C Solau, AM Jolly-Desodt, and V Ricquebourg, An evidential approach for detection of abnormal behaviour in the presence of unreliable sensors, Information Fusion, Vol. 13, No. 2, 2012, pp. 146-160.

10.X Xu, Z Zhou, and C Wen, Data Fusion Algorithm of Fault Diagnosis Considering Sensor Measurement Uncertainty, International Journal on Smart Sensing and Intelligent System, Vol. 6, No. 1, 2013, pp. 171-190.

11.C Wen, X Xu, and Z Li, Research on unified description and extension of combination rules of evidence based on random set theory, Chinese Journal of Electronics, Vol. 17, No. 2, 2008, pp. 279.

12.X Xu, H Feng, C Wen, and Z Wang, An information fusion method of fault diagnosis based on interval basic probability assignment, Chinese Journal of Electronics, Vol. 20, No. 2, 2011, pp. 255-260.

13.P Smets, About updating, Morgan Kaufmann Publishers Inc, in In Proceedings of the Seventh conference on Uncertainty in Artificial Intelligence (July 1991), pp. 378-385.

14.D Dubois and H Prade, Updating with belief functions, ordinal conditional functions and possibility measures, UAI, July 1990, pp. 311-330.

15.Y Wang, J Yang, D Xu, and K Chin, On the combination and normalization of interval-valued belief structures, Information Sciences, Vol. 177, No. 5, 2007, pp. 1230-1247.

16.Z Su, P Wang, X Yu, and Z Lv, Maximal confidence intervals of the interval-valued belief structure and applications, Information Sciences, Vol. 181, No. 9, 2011, pp. 1700-1721.

17.C Fu and S Yang, The conjunctive combination of interval-valued belief structures from dependent sources, International Journal of Approximate Reasoning, Vol. 53, No. 5, 2012, pp. 769-785.

18.G Shafer, Jeffrey’s rule of conditioning, Philosophy of Science, No. 48, 1981, pp. 337-362.

19.P Smets, The transferable belief model and random sets, International Journal of Intelligent Systems, Vol. 7, No. 1, 1992, pp. 37-46.

20.E Kulasekere, K Premaratne, D Dewasurendra, M Shyu, and P Bauer, Conditioning and updating evidence, International Journal of Approximate Reasoning, Vol. 36, No. 1, 2004, pp. 75-108.

21.W Jamrozik, Importance Discounting as a Technique of Expert Knowledge Incorporation into Diagnostic Decision-Making Process, Intelligent Systems in Technical and Medical Diagnostics, Springer, Berlin Heidelberg, 2014, pp. 175-185.

22.A Jousselme, D Grenier, and É Bossé, A new distance between two bodies of evidence, Information fusion, Vol. 2, No. 2, 2001, pp. 91-101.

23.P Smets and R Kennes, The transferable belief model, Artificial intelligence, Vol. 66, No. 2, 1994, pp. 191-234.

24.T Denoeux, Reasoning with imprecise belief structures, International Journal of Approximate Reasoning, Vol. 20, No. 1, 1999, pp. 79-111.

25.E Lee and Q Zhu, An interval Dempster-shafer approach, Computers and Mathematics with Applications, Vol. 24, No. 7, 1992, pp. 89-95.

26.R Santiago, B Bedregal, and B Acióly, Formal Aspects of Correctness and Optimality of Interval Computations, Formal Aspects of Computing, Vol. 18, No. 2, 2006, pp. 231-243.

27.A Niewiadomski, Interval-valued data structures and their application to e-learning, SOFSEM 2005: Theory and Practice of Computer Science, Springer, Berlin Heidelberg, 2005, pp. 403-407.

28.R Fagin and J Halpern, A new approach to updating beliefs, LN Kanal and JF Lemmer (editors), in Proc. Conf. UAI (1991), pp. 347-374.

29.A Sarabi-Jamab, B Araabi, and T Augustin, Information-based dissimilarity assessment in Dempster–Shafer theory, Knowledge-Based Systems, Vol. 54, 2013, pp. 114-127.

30.A Jousselme and P Maupin, Distances in evidence theory: Comprehensive survey and generalizations, International Journal of Approximate Reasoning, Vol. 53, No. 2, 2012, pp. 118-145.

31.H Guo, W Shi, and Y Deng, Evaluating sensor reliability in classification problems based on evidence theory, Systems, Man, and Cybernetics, Part B: Cybernetics, IEEE Transactions on, Vol. 36, No. 5, 2006, pp. 970-981.

32.F Santana and R Santiago, Interval metrics, topology and continuous functions, Computational & Applied Mathematics, Vol. 32, No. 3, 2013, pp. 459-470.

33.F Santana, F Santana, and R Santiago, Generalized Distance and an Example of Fuzzy Metric, Atlantis Press, in 2015 Conference of the International Fuzzy Systems Association and the European Society for Fuzzy Logic and Technology (IFSA-EUSFLAT-15) (2015), pp. 1401-1406.

Download article (PDF)

Next Article In Issue>

Journal: International Journal of Computational Intelligence Systems
Volume-Issue: 9 - 3
Pages: 396 - 415
Publication Date: 2016/06/01
ISSN (Online): 1875-6883
ISSN (Print): 1875-6891
DOI: 10.1080/18756891.2016.1175808 How to use a DOI?
Open Access: This is an open access article under the CC BY-NC license (http://creativecommons.org/licences/by-nc/4.0/).

Cite this article

ris enw bib

TY  - JOUR
AU  - Xiaobin Xu
AU  - Zhen Zhang
AU  - Dongling Xu
AU  - Yuwang Chen
PY  - 2016
DA  - 2016/06/01
TI  - Interval-valued Evidence Updating with Reliability and Sensitivity Analysis for Fault Diagnosis
JO  - International Journal of Computational Intelligence Systems
SP  - 396
EP  - 415
VL  - 9
IS  - 3
SN  - 1875-6883
UR  - https://doi.org/10.1080/18756891.2016.1175808
DO  - 10.1080/18756891.2016.1175808
ID  - Xu2016
ER  -

download .riscopy to clipboard

International Journal of Computational Intelligence Systems

Interval-valued Evidence Updating with Reliability and Sensitivity Analysis for Fault Diagnosis

1. Introduction

2. Review of relevant concepts

2.1. Basic of DST

2.2. Basic of IBS

Definition 115

Definition 2 15,

Definition 315

3. The Euclidean distance between IBSs

Definition 427

Definition 527

Definition 6

Definition 7

Lemma 1

4. The linear updating of IBS for dynamic fault diagnosis

4.1. The linear updating rule of interval-valued structures

Example 1

Definition 8. The extended linear updating rule of IBSs

4.2. Diagnosis procedure based on the linear updating rule of IBSs

4.3. The new methods for selecting linear combination weights

5. The static reliability and dynamic sensitivity indices for diagnosis

6. Experiments

6.1. Experiment settings

6.2. Experiment results

Experiment 1:

Experiment 2:

Experiment 3:

Experiment 4:

7. Conclusion

Acknowledgements

Appendix A.

Proof of Lemma 1

References

Cite this article

Definition 1¹⁵

Definition 2 ¹⁵,

Definition 3¹⁵

Definition 4²⁷

Definition 5²⁷
