New Framework for FCMs Using Dual Hesitant Fuzzy Sets with an Analysis of Risk Factors in Emergency Event

Zengwen Wang; Jian Wu; Xiaodi Liu; Harish Garg

doi:10.2991/ijcis.d.201015.001

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Volume 14, Issue 1, 2021, Pages 67 - 78

New Framework for FCMs Using Dual Hesitant Fuzzy Sets with an Analysis of Risk Factors in Emergency Event

Authors

Zengwen Wang¹^,, Jian Wu¹^,, Xiaodi Liu²^{, 3}^{, *}, Harish Garg⁴^,

¹Researching Center of Social Security, Wuhan University, Hubei, 430072, China

²School of Mathematics and Physics, Anhui University of Technology, Ma'anshan, 243002, China

³Key Laboratory of Multidisciplinary Management and Control of Complex Systems of Anhui Higher Education Institutes, Anhui University of Technology, Ma'anshan, 243002, China

⁴School of Mathematics, Thapar Institute of Engineering and Technology, Deemed University, Patiala, 147004, India

^*Corresponding author. Email: lxy1160@163.com

Corresponding Author

Xiaodi Liu

Received 2 July 2020, Accepted 11 October 2020, Available Online 24 October 2020.

DOI: 10.2991/ijcis.d.201015.001 How to use a DOI?
Keywords: Dual hesitant fuzzy sets; Fuzzy cognitive maps; Dual hesitant fuzzy cognitive maps; Similarity measure; Emergency decision-making
Abstract: As a kind of soft computing tool with strong knowledge representation and causal reasoning ability, fuzzy cognitive maps (FCMs) is a product of fuzzy logic and neural network. A limitation of the current FCMs method is its inability to model the uncertainty that is introduced into a complex system due to the hesitancy of people. Dual hesitant fuzzy sets (DHFSs), which considers the membership and nonmembership degrees by a set of possible values respectively, is an effective tool to model the hesitancy and epistemic uncertainty. Thus, a novel extension of FCMs model called dual hesitant fuzzy cognitive maps (DHFCMs) is proposed in this paper. Firstly, motivated by the idea of Technique of Order Preference Similarity to the Ideal Solution (TOPSIS) method, a new similarity measure based on dual hesitant fuzzy distance measure is put forward, and its properties are also discussed. Then, detailed procedure and algorithm for DHFCMs are specified. Moreover, the application steps of the proposed method are provided. Finally, a case study on the huge explosion at Tianjin Port in China in 2015 is given to illustrate the rationality and effectiveness of the proposed method.
Copyright: © 2021 The Authors. Published by Atlantis Press B.V.
Open Access: This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

1. INTRODUCTION

When the emergency events happen, they usually can cause casualties, economic losses, ecological damage, and serious social hazards [1,2]. The researches on emergency response have become one of the hotspots and frontier issues in the field of emergency management in domestic and overseas, and the types of emergency events are diverse (See Figure 1).

Many different emergency decision-making methods have been put forward to select the optimal alternative in response to the emergency event under different fuzzy uncertainty environment. Levy and Taji [3] provided a group analytic network process method to deal with hazards planning and emergency management with incomplete information. For evaluating emergency management, Zhang et al. [4] proposed a way of extended fuzzy multi-criteria group decision-making. In order to improve the efficiency of decision-making process, Yan et al. [5] put forward the improved fuzzy analytic hierarchy process method for nuclear reactor accident emergency decision-making problem. Considering the dynamic characteristic of emergency response, Wu et al. [6] put forward a dynamic decision-making method with probabilistic hesitant fuzzy information based on grey system theory (GST) for selecting the optimal emergency alternative. Based on regret theory, Liu et al. [7] proposed a new methodology for hesitant fuzzy emergency decision-making with unknown weight information. Existing researches mainly focus on emergency response and emergency management after emergency events. At the same time, cause analysis of emergency events is indispensable for emergency management: (1) it can clarify the risk factors of emergency events and provide theoretical reference for the prevention and early warning of similar emergencies in the future; (2) it can enhance the pertinence and effectiveness of relevant policies; (3) it can provide a theoretical basis for investigating the responsibility afterwards. In addition, through analyzing risk factors of emergency events, we can integrate social resources to provide effective early warning and improve the efficiency of emergency management. However, there are only a few pieces of literature on the cause analysis of emergency events. Stach et al. [8] pointed out that there are some difficulties in analyzing the causes of events by utilizing the Hidden Markov Model (HMM). The state transition probability sometimes is difficult to obtain because the HMM is only applicable to the systems with finite states. And the transition matrix between states is controlled by the probability set. On the basis of Bayesian method, Faubet and Oscar [9] provided a new model to identify the environmental factors that influence the recent migration. However, the Bayesian model must be constructed under an assumption that all attributes are mutually independent, and it is sensitive to the input data. Decision-Making Trial and Evaluation Laboratory (DEMATEL) method is a useful tool to identify the risk factors of events as well. Zhou et al. [10] proposed a DEMATEL method to analyze the risk factors in emergency management. Li et al. [11] put forward an evidential DEMATEL method to identify the cause factors in emergency management. But there are some drawbacks in DEMATEL method. For example, the hesitancy of experts is ignored and the criteria states are required to be linearly interactive. In order to overcome the shortcomings mentioned above, it is necessary to propose a new method to analyze the risk factors of emergency events.

As a useful soft computing tool to model complex systems, fuzzy cognitive maps (FCMs) integrates fuzzy logic and neural networks [12,13]. Since FCMs is proposed by Kosko [12], scholars have paid much attention to it, and it has been applied to various fields, such as decision-making [14–16], prediction of time series [8,17], risk management [18,19], medical diagnosis [20], simulation and prediction [21], and other fields [22–24]. At the same time, there are many theoretical studies on FCMs. On the one hand, some evolutionary models for FCMs have also been proposed. Miao et al. [25] proposed dynamic causal networks to quantify the concepts and the strength of causality between concepts in FCMs. Zhou et al. [26] presented fuzzy causal networks on the basis of the convergent features of FCMs. On the other hand, practical constraints of the real world hamper the widespread use of crisp values [16]. In the decision-making process, there are different sources of uncertainty [8,26]. To deal with the uncertainty, many different uncertain theories are proposed, such as fuzzy sets (FSs) [27,28], intuitionistic fuzzy sets (IFSs) [29,30], hesitant fuzzy sets (HFSs) [25,31,32], DHFSs [33], GST [34], hesitant fuzzy linguistic term sets [35,36], etc. [37,38]. Furthermore, several extensions of FCMs based on different uncertain theories have been presented for modeling complex systems. Iakovidis and Papageorgiou [13,39] proposed intuitionistic fuzzy cognitive maps (IFCMs), which combines IFSs and FCMs. Salmeron [40] proposed fuzzy grey cognitive maps (FGCMs) based on grey systems theory. Çoban and Onar [41] put forward an approach to FCMs under hesitant fuzzy linguistic environment called hesitant fuzzy linguistic cognitive maps (HFLCMs). Ghaderi et al. [42] and Liu et al. [43] proposed new FCMs called hesitant fuzzy cognitive maps (HFCMs), respectively. Although these extensions provide better modeling of uncertainty in knowledge representation, a certain source of uncertainty, i.e., the experts' hesitancy, is ignored. The HFCMs considers the experts' hesitancy, but it fails to reflect the nonmembership degrees of the concept, which is common in uncertain systems. To overcome the drawbacks mentioned above, a novel FCMs model under DHFSs environment, which integrates the advantages of IFCMs and HFCMs, is proposed in this paper. The reasons for choosing DHFSs theory are in the following: (1) DHFSs, whose membership and nonmembership degrees are represented by a set of possible values in [0, 1] respectively, is considered as a powerful tool to express uncertain information in the process of multi-attribute group decision-making [44]. (2) It can integrate the advantages of IFSs and HFSs to describe fuzzy uncertainty more accurately. (3) It can retain more decision-making information from a group of experts. Hence, DHFSs is used to represent the values of the initial state and the connection weight between concepts, and then a new FCMs model with dual hesitant fuzzy information is constructed in this paper.

In addition, the original operation rules for DHFSs will lead to an increase in the computational dimensions [32]. To overcome this drawback, this paper presents some novel operation rules for DHFSs. Then a novel approach to FCMs under DHFSs environment is presented. Besides, motivated by the idea of TOPSIS, a new similarity measure between two DHFSs A and B is proposed. In summary, the novelties of our work are as follows:

Similarity measure is one of the most useful tools to measure the similarity and correlation between two sets. The similarity measure proposed in this paper takes into account not only the distance between sets A and B but also the distance between sets A and BC (the complementary set of B).
As a novel extension of FCMs model, DHFCMs integrates the advantages of DHFSs and FCMs to deal with hesitancy and uncertainty during the evaluation process. Compared with the classical FCMs model, DHFCMs can handle the uncertainty in the human reasoning process more flexibly.
The proposed method allows us to deal with the hesitancy of experts in the assessment of the initial concept values and the causal relationship between concepts. It is also the first time that the DHFCMs and similarity measure between DHFSs are combined to analyze the risk factors in emergency events.

The remainder of this paper is organized as follows: In Section 2, some basic concepts related to DHFSs and FCMs are introduced. The DHFCMs model is constructed and its specific reasoning process is shown in Section 3. In Section 4, a case study on the huge explosion at Tianjin Port in China in 2015 and the comparative analysis with IFCMs are conducted. Section 5 ends the paper with some conclusions.

2. PRELIMINARIES

In this section, we review some basic concepts related to DHFSs and FCMs, and then introduce some preliminaries used throughout the paper.

2.1. Dual Hesitant Fuzzy Sets

Definition 1.

[32] Let X be a fixed set, then a DHFSs D on X is described as

D=x,hx,gx,x∈X(1)

in which hx and gx are two sets of some values in 0,1, denoting the possible membership degrees and nonmembership degrees of the element x∈X to the set D, respectively, with the conditions:

0≤γ,η≤1,0≤γ++η+≤1(2)

where γ∈hx, η∈gx. γ+∈h+x=∪γ∈hxmaxγ, η+∈g+x=∪η∈gxmaxη for all x∈X. For convenience, the pair dx=hx,gx is called a DHFE denoted by d=h,g, with the conditions: γ∈h, η∈g. γ+∈h+=∪γ∈hmaxγ, η+∈g+=∪η∈gmaxη, and 0≤γ,η≤1,0≤γ++η+≤1.

Definition 2.

[32] Let X be a fixed set, d=hd,gd,d1=hd1,gd1,d2=hd2,gd2 are three DHFEs, then the following operations are valid:

d1⊕d2=hd1⊕hd2,gd1⊗gd2 =∪γd1∈hd1,γd2∈hd2,ηd1∈gd1,ηd2∈gd2 γd1+γd2−γd1γd2,ηd1ηd2;
d1⊗d2=hd1⊗hd2,gd1⊕gd2 =∪γd1∈hd1,γd2∈hd2,ηd1∈gd1,ηd2∈gd2 γd1γd2,ηd1+ηd2−ηd1ηd2;
nd=∪γd∈hd,ηd∈gd1−1−γdn,ηdn;
dn=∪γd∈hd,ηd∈gdγdn,1−1−ηdn;
dc=gd,hd.

For a DHFS A=x,hAx,gAx|x∈X, let σ:1,2,⋯,n→1,2,⋯,n be a permutation satisfying hAσsx≥hAσs+1x for s=1,2,⋯,n−1, and hAσsx be the sth largest value in hAx; let σ:1,2,⋯,m→1,2,⋯,m be a permutation satisfying gAσtx≥gAσt+1x for t=1,2,⋯,m−1, and gAσtx be the tth largest value in gAx [45].

Definition 3.

[46] For a reference set X, let A=xi,dAxi|xi∈X be a DHFSs on X with dAxi=γAi1,γAi2,⋯,γAin,ηAi1,ηAi2,⋯,ηAim, i=1,2,⋯,k. Then the ordered DHFE is defined as follows:

dAσxi=γAi1σ1,γAi2σ2,⋯,γAinσn,ηAi1σ1,ηAi2σ2,⋯,ηAimσm(3)

The number of values in different DHFEs might be different. Assume #h=maxlhAxi,lhBxi and #g=maxlgAxi,lgBxi for each xi∈X, where lh and lg are the number of the elements in h and g, respectively. For two DHFSs A and B, if lhAxi≠lhBxi and lgAxi≠lgBxi, we can extend the shorter DHFE by adding any values to make the number of elements in two DHFEs equal. In terms of the pessimistic principle, the minimum value in it will be added while in the opposite case, the maximum value in it will be added [47]. In this paper, we add the minimum value into the shorter DHFE until it has the same length as the longer DHFE.

Distance measure is an important tool for indicating the proximity between two DHFSs [48,49]. For the convenience of calculation, Hamming distance between two DHFSs is defined as follows:

Definition 4.

[48,49] Let A and B be two DHFSs on X=x1,x2,⋯,xk. The Hamming distance dA,B between A and B is defined as follows:

dD−HFSA,B=12k∑i=1k 1#h∑s=1#h|hAσsxi−hBσsxi|+1#g∑t=1#g|gAσtxi−gBσtxi|, s=1,2,⋯,#h;t=1,2,⋯,#g. (4)

Proposition 1.

[48,49] Let A and B be two DHFSs on X=x1,x2,⋯,xk. dA,B is defined as the distance between A and B, if dA,B satisfies the following properties:

0≤dA,B≤1;
dA,B=0 if and only if A=B;
dA,B=dB,A;
Let C be a DHFSs, if A⊆B⊆C, then dA,B≤dA,C and dB,C≤dA,C.

2.2. Fuzzy Cognitive Maps

The FCMs is a fuzzy directed map consisting of directed edges and nodes called concepts. These nodes in FCMs can represent different concepts, such as characteristics, causes, variables, states, outputs, events of the system, etc. For instance, in risk factors analysis of emergency events, nodes can represent the risk factors and result of emergency events. A directed edge represents a causal relationship between two risk factors in emergency events. The causal relationship describes the effect of one variable over another. So, it takes shape the causal reasoning model for representing complex systems in graphical form. FCMs utilizes nodes and directed edges to represent the concepts of entities in the system and the casual relationship between nodes, respectively. And it can simulate the interaction between entities well. FCMs can indicate the dynamic behavior of the entire complex system and complete the prediction. It is widely used in practice due to its strong explanatory power, simple reasoning and the ability of handling feedback.

Definition 5.

FCMs is a four-tuple structure G=C,E,X,f, where C=C1,C2,⋯,Cn is a set of nodes, n is the number of nodes, E:Ci,Cj→ωij is a mapping, which is a reflection of the casual relationship between concepts, and X:Vi→xi is a mapping. Here, xit represents the state value of node Vi at time t. Xt=x1t,⋯,xnt represents the state of FCMs G at time t. fx is the threshold function, which ensures that the nodes values in each iteration are in the interval [0, 1].

Definition 6 (Concept node).

The nodes in the FCMs are called concept nodes, which can represent some concepts in the system such as entities, action, behaviors, causes, results, trends, etc. They are denoted as Cii=1,2,⋯,n, which represents the ith concept node in G.

Definition 7 (Weight).

In FCMs, a value denoted as ωijωij∈E in the interval [0, 1] is utilized to describe the degree of influence of Ci on Cj when the direct causal relationship between Ci and Cj exists.

In general, for a FCMs with n nodes, in order to ensure that the nodes values of each iteration are within the interval of [0, 1], a threshold function fx is required for mapping, and the value of each node at time t + 1 is calculated by the following formula:

xit+1=f∑j=1,i≠jnxit⋅ωij+xit(5)

The initial state of the FCMs is determined by the experts. Then through the iteration by Eq. (5), the system can be stabilized to a fixed point or limit cycle, thereby the iteration and the reasoning process should be stopped. Moreover, complex FCMs may also end up with a chaotic attractor [26].

3. AN APPROACH TO ANALYZE THE CAUSES FACTORS OF EMERGENCY EVENTS BASED ON DHFCMs

In this section, a novel similarity measure of DHFSs is proposed. Then, the DHFCMs model is constructed, and the specific decision process is given.

3.1. The Novel Operation Rules and Similarity Measure of DHFSs

At the beginning of this part, since original operation rules for DHFSs will lead to an increase in the computational dimensions, some new operation rules are proposed. Motivated by the idea of Ref. [51], we adjust the operation rules for DHFEs as follows:

Definition 8.

Let X be a fixed set. d1=hd1,gd1=γd1σ1,γd1σ2,⋯,γd1σ#h,ηd1σ1,ηd1σ2,⋯,ηd1σ#g and d2=hd2,gd2=γd2σ1,γd2σ2,⋯,γd2σ#h,ηd2σ1,ηd2σ2,⋯,ηd2σ#g are two DHFEs on X, where γdiσj and ηdiσ(j)(i=1,2;j=1,2,⋯,#hor#g) represent the jth largest values of membership and non-membership degree, respectively. The basic operation rules for DHFEs is defined as below:

d1⊕d2=∪γd1∈hd1,γd2∈hd2,ηd1∈gd1,ηd2∈gd2γd1σi+γd2σi−γd1σiγd2σi,ηd1σjηd2σj, i=1,2,⋯,#h;j=1,2,⋯,#g;
d1⊗d2=∪γd1∈hd1,γd2∈hd2,ηd1∈gd1,ηd2∈gd2γd1σiγd2σi,ηd1σj+ηd2σj−ηd1σjηd2σj, i=1,2,⋯,#h;j=1,2,⋯,#g;

Therefore, we can find that the dimensions of the derived DHFEs have not been increased, thus it calls for less calculation effort.

In Section 2.1, the Hamming distance measure of DHFSs is introduced. And motivated by the idea of TOPSIS method [48], the similarity measure based on Eq. (4) is defined as follows:

Definition 9.

Let X be a fixed set, and A=xi,dAxi|xi∈X and B=xi,dBxi|xi∈X are two DHFSs, where dAxi=γAi1σ1,γAi2σ2,⋯,γAinσ#h,ηAi1σ1,ηAi2σ2,⋯,ηAimσ#g and dBxi=γBi1σ1,γBi2σ2,⋯,γBinσ#h,ηBi1σ1,ηBi2σ2,⋯,ηBimσ#g represent the DHFEs in A and B, respectively, then the similarity measure between A and B is defined as

sA,B=dD−HFSA,BCdD−HFSA,B+dD−HFSA,BC(6)

Here, BC denotes the complementary set of B, and BC=xi,ηBi1σ1,ηBi2σ2,⋯,ηBimσ#g,γBi1σ1,γBi2σ2,⋯,γBinσ#h|xi∈X.

Example 1.

Let A=0.6,0.3,0.2,0.3,0.2,0.1, B={{0.5,0.4,0.2},{0.4,0.3,0.2}} and C=0.4,0.3,0.1,0.5,0.2,0.1 be three DHFEs, according to Eq. (4), we have

d(A,B)=12(13(|0.6−0.5|+|0.3−0.4|+|0.2−0.2|) +13(|0.3−0.4|+|0.2−0.3|+|0.1−0.2|)) =112

Similarly, the distance between A and C is dA,C=1/12.

It's found that dA,B=dA,C, which implies that we cannot determine whether B or C is more similar to A. Therefore, there is an urgent need to propose a new similarity measure to distinguish the difference between two DHFSs. By the proposed method, we obtain BC=0.4,0.3,0.2,0.5,0.4,0.2 and CC=0.5,0.2,0.1,0.4,0.3,0.1. Then, according to Eq. (4), we derive dA,BC=7/60 and dA,CC=1/12. Thus, according to Eq. (6), we derive that sA,B=7/12 and sA,C=1/2. Then

sA,B>sA,C

Thus, A is more similar to B than to C. The similarity measure proposed in this paper takes both the distance between A and B and the distance between A and BC into account, which has high degree of distinction.

Proposition 2.

The similarity degree between A=xi,dAxi|xi∈X and B=xi,dBxi|xi∈X is defined as sA,B, which satisfies the following properties:

0≤sA,B≤1, where sA,B=0 if and only if A=BC;
sA,B=1 if and only if A=B;
sA,B=sB,A;
If A⊆B⊆C,A,B,C∈X, then sA,C≤sA,B and sA,C≤sB,C.

Proof:

Since dD−HFSA,BC≥0 and dD−HFSA,B≥0, we then obtain 0≤sA,B≤1. If sA,B=0, then dD−HFSA,BC=0, i.e., B=AC, and vice versa.
sA,B=1 is equivalent to dD−HFSA,B=0, i.e., A=B;
Since B={xi,dB(xi)|xi∈X}={{γBi1,γBi2,⋯,γBin},{ηBi1,ηBi2,⋯,ηBim}}, we derive BC={{ηBi1,ηBi2,⋯,ηBim},{γBi1,γBi2,⋯,γBin}}. According to the operational laws mentioned above,
dD−HFS(A,BC)=12n∑i=1n(1n∑s=1n|hAσ(s)(xi)−gBσ(s)(xi)|+1n∑s=1n|gAσ(s)(xi)−hBσ(s)(xi)|)=12n∑i=1n(1n∑s=1n|hBσ(s)(xi)−gAσ(s)(xi)|+1n∑s=1n|gBσ(s)(xi)−hAσ(s)(xi)|)=dD−HFS(B,AC).

Then, sA,B=dD−HFSA,BCdD−HFSA,B+dD−HFSA,BC=dD−HFSB,ACdD−HFSB,A+dD−HFSB,AC=sB,A; Since A⊆B⊆C, we obtain dD−HFSA,B≤dD−HFSA,C and dD−HFSA,BC≥dD−HFSA,CC. Since fx=x1+x is a monotonically increasing function with respect to x, we derive
sA,C=dD−HFSA,CCdD−HFSA,C+dD−HFSA,CC ≤dD−HFSA,BCdD−HFSA,C+dD−HFSA,BC ≤dD−HFSA,BCdD−HFSA,B+dD−HFSA,BC =sA,B.

Similarly, sA,C≤sB,C, which completes the proof.

3.2. The Construction of DHFCMs and the Inference Process

In this section, a new extended model called DHFCMs, which combines the advantages of the FCMs and DHFSs, is proposed.

Definition 10.

DHFCMs is a four-tuple structure G=C,E,X,f, where C=C1,C2,⋯,Cn is a set of nodes, Ci=ch,cgi is a DHFE, n is the number of nodes, and E:Ci,Cj→ωij is a mapping, where ωij=ωh,ωgij is a DHFE and denotes the casual relationship between two concepts. X:Vi→xi is a mapping. Xt=x1t,⋯,xnt represents the state of FCMs G at time t where xit represents the state of node Vi at time t. fx is the threshold function, which ensures that the node values in each iteration are in [0, 1].

Definition 11 (Concept node).

The node in the DHFCMs is called a concept node, which can represent entities, actions, behaviors, causes, results, trends, and indicators in the system. It is denoted as CiCi=ch,cgi, which represents the ith concept node in G.

Definition 12 (Weight).

In DHFCMs, Ci and Cj are two different concept nodes in C, a DHFE ωijωij=ωh,ωgij∈E is used to describe the influence degree of Ci on Cj when a direct causal relationship between them exists. Here, ωijωij=ωh,ωgij∈E represents the weight between the concept nodes Ci and Cj.

A simple DHFCMs consisting of five nodes is illustrated in Figure 2. In DHFCMs, each node Ck is expressed in the context of DHFE Ck=ch,cgk. And, the edge linking two nodes Ci and Cj represents the causalities, and the connection weight ωij taking the form of DHFEs ωij=ωh,ωgij represents the influence degree of Ci on Cj.

Generally, for a DHFCMs model containing n nodes, in order to ensure that the node values in each iteration are in [0, 1], a threshold function f⋅ is required for mapping. The nodes value at time t + 1 is calculated as xit+1=fxit⊕∑j=1,i≠jnxit⊗ωij. Then the iteration formula of DHFCMs can be obtained as follows:

ch,cgi t+1=fch,cgi t⊕∑i≠jj∈Sch,cgi t⊗ωh,ωgij(7)

The threshold function f⋅ plays a role in forcing the uncertain system to converge to a steady state. Sometimes, the iteration is also stopped when the difference between two iterations is less than or equal to the given threshold. In this paper, we choose the threshold function as follows [39]:

fx=eλx−e−λxeλx+e−λx,λ>0(8)

To illustrate that the mapping results by f⋅ are still DHFEs, we have the following proposition:

Proposition 3.

In DHFCMs, let (ch,cg)it=({ch(1),ch(2),⋯,ch(n)},{cg(1),cg(2),⋯,cg(n)})it and ch,cgjt=(ch1,ch2,⋯,chn,cg1,cg2,⋯,cgn)jt be the state vectors of concept Ci and Cj at time t, respectively, and ωij represents the influence degree of Ci on Cj, then the new state vector ch,cgi t+1 of DHFCMs at time t + 1 can be expressed as a DHFE, and

ch,cgit+1=fcihσkt+1−∏i≠jj∈S1−cihσk⋅ωjihσkt −cihσkt⋅1−∏i≠jj∈S1−cihσk⋅ωjihσkt, cigσkt⋅∏i≠jj∈Scigσk+ωjigσk−cigσk⋅ωjigσkt, k=1,2,⋯,n.(9)

Proof:

By Definition 5, we obtain

ch,cgit+1=fch,cgit⊕∏i≠jj∈Sch,cgit⊗ωh,ωgij=fch,cgit⊕∑i≠jj∈Scih⋅ωjih,cig+ωjig−cig⋅ωjigt=fch,cgit⊕1−∏i≠jj∈S1−cih⋅ωjiht, ∏i≠jj∈Scig+ωjig−cig⋅ωjigt=fciht+1−∏i≠jj∈S1−cih⋅ωjiht, −ciht⋅1−∏i≠jj∈S1−cih⋅ωjiht cigt⋅∏i≠jj∈Scig+ωjig−cig⋅ωjigt=fcihσkt+1−∏i≠jj∈S1−cihσk⋅ωjihσkt −cihσkt⋅1−∏i≠jj∈S1−cihσk⋅ωjihσkt, cigσkt⋅∏i≠jj∈Scigσk+ωjigσk−cigσk⋅ωjigσkt, k=1,2,⋯,n.

Since fx=eλx−e−λxeλx+e−λx,λ>0, we obtain that the membership and nonmembership degrees of DHFE ch,cgi t+1 belong to the interval 0,1, respectively. Therefore, ch,cgi t+1 is still a DHFE, which completes the proof of Proposition 3.

The reasoning process of DHFCMs stops when the steady state is reached or the iteration value reaches the threshold. The final dual hesitant fuzzy vector shows the effect of the change in the value of each concept. After several iterations, the DHFCMs will reach one of the following states: (1) It converges to a fixed point of concept value, which is described as the dual hesitant fuzzy fixed-point attractor. (2) The state continues cycling between several fixed states, which is known as a dual hesitant fuzzy limit cycle. (3) A chaotic state may occur, which will be uninformative.

3.3. The Decision Steps of the Proposed Approach

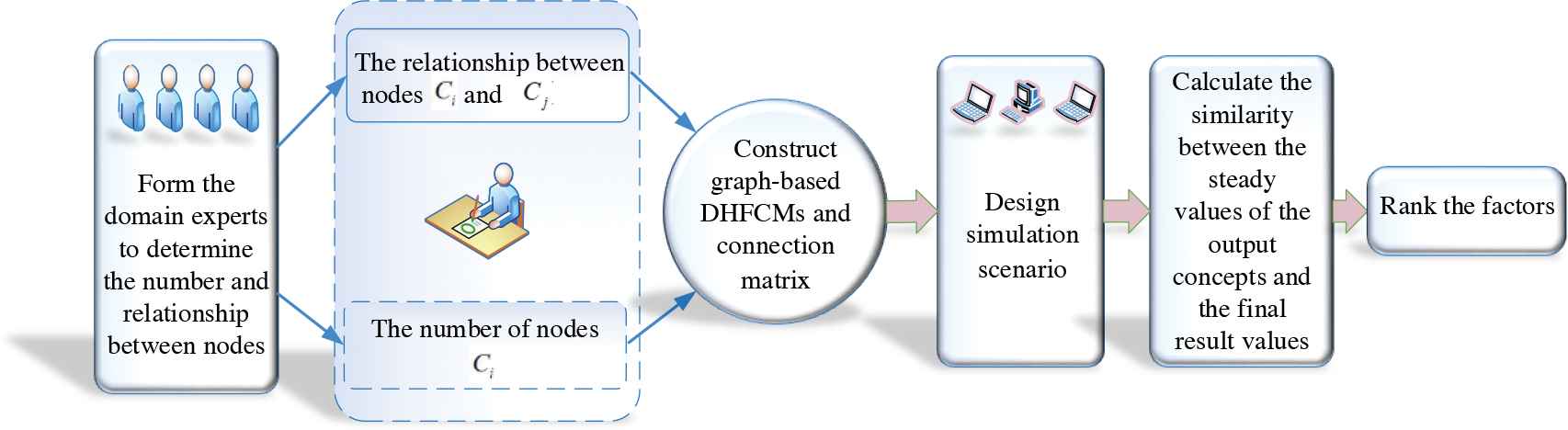

In this section, the application process of the proposed method is presented. Firstly, the domain experts are invited to determine the number and kind of nodes, which forms the DHFCMs model. Moreover, the influence of one node on another is determined in the light of experts' knowledge and experience, and the strength of influence is expressed as a DHFE. Therefore, a connection matrix, in which the elements represent the casual relationship or the strength of influence between concepts, is determined. The initial state with n+1 nodes, which denotes the initial value of each concept node, can be expressed as follows:

C0=C1,C2,⋯,Cn,R0(10)

Here, Ci0i=1,2,⋯,n and R0 represent the initial value of concepts and final result respectively. There are only two states, i.e., “activation” and “inactivation,” which can be expressed as DHFEs {{1}, {0}}, and {{0}, {1}}, respectively. Then, the novel concept values are obtained by Eq. (7). In this section, we extend FCMs to accommodate dual hesitant fuzzy environment, and integrate DHFCMs and dual hesitant fuzzy similarity measure to analyze the impact of risk factors on emergency events. Based on above analysis, a novel approach based on DHFCMs for modeling uncertainty of the emergency management system is presented as follows and the flowchart of DHFCMs is shown in Figure 3.

Step 1. Form a committee of domain experts to evaluate the risk factors of the emergency event. And the number and kind of nodes are determined through literature reviews and consultation of experts.

Step 2. The causal relationships between nodes are determined on the basis of the domain experts' knowledge and experience. Then, a connection matrix is obtained and the graph-based DHFCMs is constructed.

Step 3. Simulation scenario is designed. Then analyze the risk factors resulting in the emergency events.

Step 4. According to Eqs. (4) and (6), the similarity measure between the steady values of the cause factors and the final results is calculated, and the risk factors are ranked.

Step 5. End.

By handling hesitancy in the experts' evaluation of the causal relationships among initial concepts, DHFCMs can be used to derive the system's steady states and model the dynamic systems involving feedback. Based on DHFSs theory, the nodes can reflect the hesitancy of experts. And the connection weights between them expressed as DHFEs describes the effect of change in one node on another node. It's found that DHFCMs is more flexible tool in simulating the reality and has superiority over the existing ones. It's an extension of FCMs, IFCMs, and HFCMs. Moreover, it can represent the hesitancy of experts and deal with the uncertainty more flexibly than the FCMs, IFCMs, and HFCMs, and thus has potential for wider application.

4. A NUMERICAL EXAMPLE AND COMPARATIVE ANALYSIS

In this section, an illustrative example on the analysis of risk factors in the huge explosion at Tianjin Port is presented to demonstrate the application of the proposed approach. And the comparative analysis is conducted to illustrate the feasibility and superiority of the proposed method.

4.1. An Illustrative Example

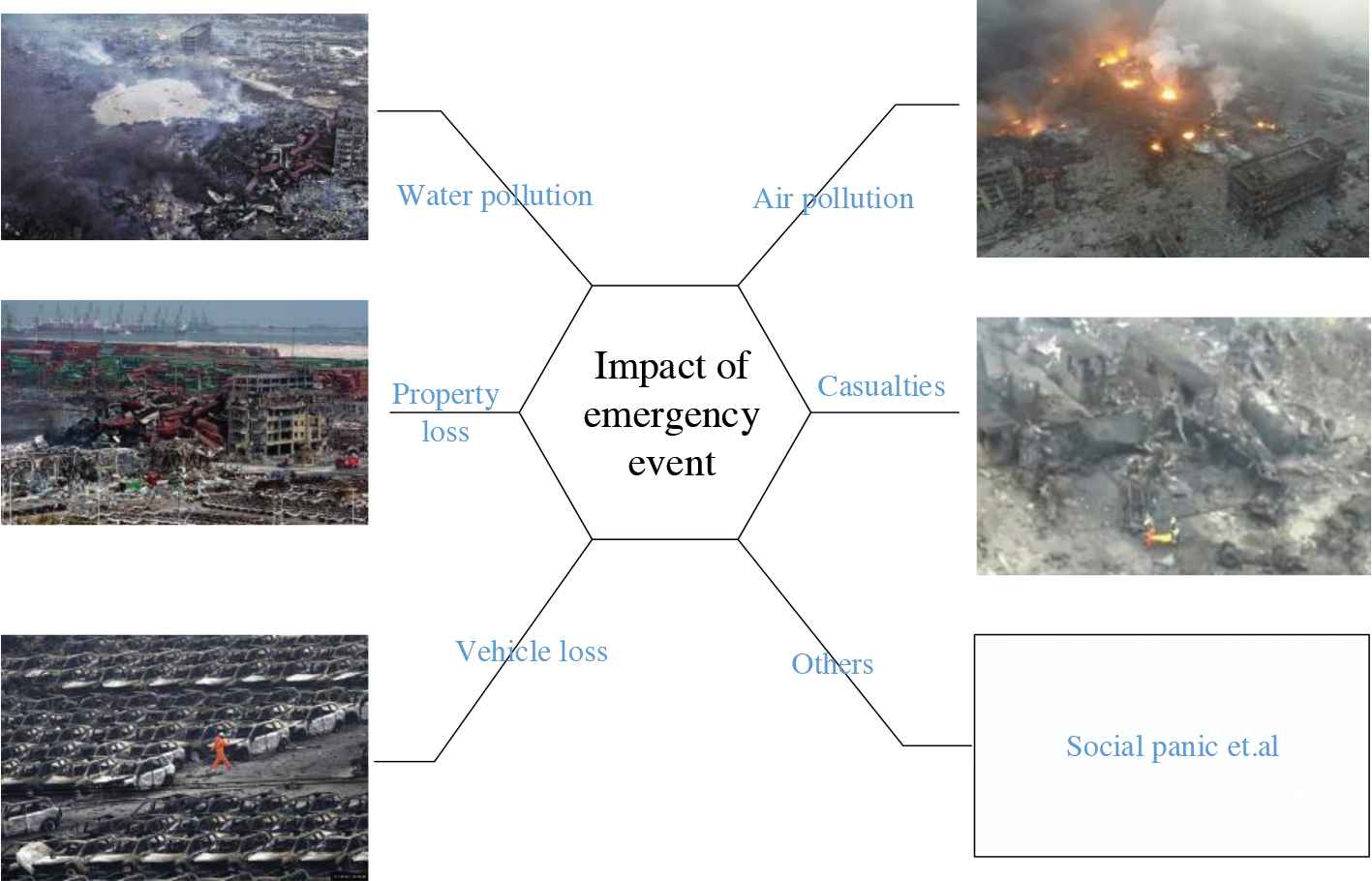

At 22:51 on August 12, 2015, a fire breaks out in the dangerous goods warehouse of Ruihai Company (Hereinafter referred to as “RH”) in the Binhai New Area of Tianjin, China, which then causes two violent explosions. The impact of the emergency event is huge and extensive (See Figure 4). It causes 165 deaths, 8 missing, 58 seriously injured, and 740 slightly injured. The direct economic loss is 6.866 billion yuan, and the surrounding air, water, and soil are all polluted to varying degrees.

To investigate responsibility and prevent similar emergency events occurring, the emergency management department needs to analyze the risk factors of the emergency events. We extract risk factors from the documents released by the Chinese government (hereinafter referred to as “DCG”)¹ and other papers [52–57]. The risk factors influencing emergency events are analyzed. Through experts' interviews, literature reviews and DCG, the risk factors are derived and shown in Table 1.

Factors	Sub-factors	Sources
Human factor	Personal professional ability factor C₁	[52,53]
	Limitations of personal cognitive ability C₂	[52,54]
	Personnel's neglect of danger C₃	[54,56,57]
Environment	Natural factors such as high temperature and dryness C₄	DCG
	Other uncertain environmental factors C₅	[52]
Technology	Ability to issue specific early warning procedures for potential hazards C₆	DCG
	Unsatisfactory storage of dangerous goods and overloading operation C₇	DCG
	Safety of rescue assistance during distribution and transportation C8	DCG
Maintenance management	Statistics and feedback on loss information and lack of information sharing mechanisms C9	DCG [55]
	Clear reporting and procedures for submitting information C10	DCG
	Lack of unified planning in factory C11	[56,58]
	Lack of reasonable organizational structure and a clear sense of responsibility C12	[56,58]
	Lack of factory emergency preparations C13	[52,54,57]
Final result	Emergency event R (i.e., the end result)

Table 1

The risk factors of the huge explosion at Tianjin Port.

According to the above analysis, the risk factors of the emergency event are determined by the proposed method. The specific process is shown as follows:

Step 1. Form a committee of domain experts and identify the risk factors represented by the nodes in DHFCMs. And the risk factors are shown in Table 1.

Step 2. Graph-based DHFCM model is constructed (See Figure 5).

Step 3. The causal relationship between nodes are identified based on the domain experts' knowledge and experience, and the connection matrix W is represented in the following:

W=ωij14×14(11)

where W is shown in Table 1 in the Appendix.

Step 4. Simulation scenario is designed. The initial state vector with 14 nodes are defined and shown in Table 2. Here, {{0},{1}} denoted as a DHFE indicates that the risk factor is not activated, whereas {{1},{0}} indicates that the risk factor is activated. For convenience, we set the parameter λ=1, and the threshold of the iteration result is 1×10−6. Then the stable values are reached and shown in Tables 3 and 4.

Nodes	Initial State Vector
C1	{{1}, {0}}
C2	{{1}, {0}}
C3	{{1}, {0}}
C4	{{0}, {1}}
C5	{{1}, {0}}
C6	{{0}, {1}}
C7	{{1}, {0}}
C8	{{0}, {1}}
C9	{{0}, {1}}
C10	{{1}, {0}}
C11	{{0}, {1}}
C12	{{1}, {0}}
C13	{{0}, {1}}
R	{{1}, {0}}

Table 2

Initial state vector C0 with 14 nodes.

Iterations k	k=1	k=2		Steady Values
C1	[0.4621, 0.4621, 0.4621]	[0.2612, 0.2757, 0.3059]	⋯	[0.0346, 0.0816, 0.1752]
C2	[0.4621, 0.4621, 0.4621]	[0.2621, 0.2736, 0.2851]	⋯	[0.0106, 0.0317, 0.0802]
C3	[0.4621, 0.4621, 0.4621]	[0.2938, 0.3106, 0.3493]	⋯	[0.0464, 0.1054, 0.2164]
C4	[0.1586, 0.1781, 0.2496]	[0.1437, 0.1601, 0.2181]	⋯	[0.0261, 0.0661, 0.1399]
C5	[0.4621, 0.4621, 0.4621]	[0.2800, 0.2952, 0.3141]	⋯	[0.0481, 0.1200, 0.2044]
C6	[0.2666, 0.3574, 0.4333]	[0.2544, 0.3340, 0.4050]	⋯	[0.0550, 0.1579, 0.3184]
C7	[0.4621, 0.4621, 0.4621]	[0.3640, 0.4026, 0.4293]	⋯	[0.1111, 0.2399, 0.3677]
C8	[0.3882, 0.4103, 0.4481]	[0.3485, 0.3705, 0.4126]	⋯	[0.1140, 0.2130, 0.3416]
C9	[0.1391, 0.1829, 0.2260]	[0.1770, 0.2297, 0.2848]	⋯	[0.0657, 0.1407, 0.2441]
C10	[0.4621, 0.4621, 0.4621]	[0.3024, 0.3189, 0.3584]	⋯	[0.0783, 0.1585, 0.2906]
C11	[0.2724, 0.2950, 0.3575]	[0.2687, 0.2954, 0.3532]	⋯	[0.1223, 0.1804, 0.2891]
C12	[0.4621, 0.4621, 0.4621]	[0.3340, 0.3611, 0.3931]	⋯	[0.0640, 0.1584, 0.2854]
C13	[0.2054, 0.2898, 0.3936]	[0.2345, 0.2956, 0.3706]	⋯	[0.0755, 0.1506, 0.2714]
R	[0.4621, 0.4621, 0.4621]	[0.4355, 0.4473, 0.4585]	⋯	[0.2001, 0.3373, 0.4360]

Table 3

The obtained membership's values (threshold is 1×10−6).

Iterations k	k=1	k=2		Steady Values
C1	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]
C2	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]
C3	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]
C4	[0.0997, 0.1489, 0.2402]	[0.0100, 0.0223, 0.0588]	⋯	[0, 0, 0]
C5	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]
C6	[0.0015, 0.0025, 0.0225]	[6.1e-8, 3.8e-7, 9.6e-5]	⋯	[0, 0, 0]
C7	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]
C8	[9.6e-05, 0.0003, 0.0073]	[8.2e-10, 9.3e-9, 1.4e-5]	⋯	[0, 0, 0]
C9	[0.0350, 0.0350, 0.1194]	[2.8e-5, 5.6e-5, 0.0021]	⋯	[0, 0, 0]
C10	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]
C11	[0.0150, 0.0300, 0.0898]	[1.9e-5, 9.6e-5, 0.0019]	⋯	[0, 0, 0]
C12	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]
C13	[0.0045, 0.00675, 0.0350]	[2.6e-6, 7.7e-6, 0.0004]	⋯	[0, 0, 0]
R	[0, 0, 0]	[0, 0, 0]	⋯	[0, 0, 0]

Table 4

The obtained non-membership's values (threshold is 1×10−6).

Step 5. Thus, according to Eqs. (4) and (6), the similarity between the steady values of risk factors and final result is calculated as follows:

sC1,R=0.6497; sC2,R=0.5629; sC3,R=0.6892; sC4,R=0.6193; sC5,R=0.6914; sC6,R=0.7729; sC7,R=0.8692; sC8,R=0.8434; sC9,R=0.7314; sC10,R=0.7709; sC11,R=0.7856; sC12,R=0.7609; sC13,R=0.7555;

Therefore,

sC7,R>sC8,R>sC11,R>sC6,R>sC10,R>sC12,R>sC13,R>sC9,R>sC5,R>sC3,R>sC1,R>sC4,R>sC2,R.

Step 6. End.

The results show that the main risk factors of the emergency event are unsatisfactory storage of dangerous goods and overloading operation, safety of rescue assistance during distribution and transportation, lack of unified planning in factory, etc. And the most pivotal cause factor of the huge explosion at Tianjin Port is C7 (unsatisfactory storage of dangerous goods and overloading operation). In this case, RH seriously violates the Tianjin City Master Planning and the Binhai New Area Controlled Detailed Planning, and does not meet the construction requirements of the dangerous goods yard yet. The other critical risk factors are C8 (safety of rescue assistance during distribution and transportation) and C11 (lack of unified planning in factory) in this emergency event. The safety management of transportation and loading and unloading operation is seriously insufficient. In the process of packing and handling nitrocellulose or other inflammable and explosive dangerous goods, there exists barbaric loading and unloading behaviors. The results obtained by our proposed method are consistent with that reported by the government. The report released by the government clearly points out that the main cause factors of the huge explosion at Tianjin Port are unqualified storage of dangerous goods, management confusion, personnel's negligence, lack of professional employees, emergency plans and sense of responsibility, etc.² Through above analysis, the following suggestions are given:

Enterprises should clarify the safety management requirements of hazardous chemicals, raise the level of safety supervision, and enhance the applicability and uniformity of safety management standards.
Enterprises need to carry out reasonable layout, vigorously strengthen the construction of emergency production teams for safety production, and establish full-time or part-time emergency rescue teams in high-risk. And thus, it can eventually improve the level of emergency command information management.
Enterprises need to strengthen the improvement of safety measures, update processes and equipment, and improve the stability and scientificity of the overall plan.

4.2. Comparative Analysis

As an extension of FCMs, the HFCMs model has been applied to investigate student accommodation problems [42]. However, it ignores the nonmembership degree in the decision-making process, while the proposed method takes the membership degree and nonmembership degree into account simultaneously in this paper. In such case, the HFCMs can be considered as a special case of the DHFCMs. And the comparison with HFCMs is omitted here. Moreover, Papageorgiou and Iakovidis [39] have compared the IFCMs model with the FCMs. Considering that the calculation rule for elements in DHFCMs is similar to that in IFCM-II model [39], this paper performs a comparison analysis between DHFCMs and IFCM-II model. In order to illustrate the difference between DHFCMs and IFCM, we use the same example of the huge explosion at Tianjin Port. The DHFCM model degrades to an IFCM model if both the membership degree and nonmembership degree are represented by a value, respectively. And the computational steps and results are shown as follows:

Step 1. In order to facilitate comparison, the DHFEs is transformed into an intuitionistic fuzzy number by separately calculating the average values of the membership degrees and the nonmembership degrees, and the results are shown in Table 2 in the Appendix.

Step 2. The iterative results by IFCM-II are shown in Table 5.

States	Initial Value	Steady Values of Membership Degree
C1	〈1,0〉	0.0987
C2	〈1,0〉	0.0380
C3	〈1,0〉	0.1276
C4	〈0,1〉	0.0792
C5	〈1,0〉	0.1316
C6	〈0,1〉	0.1905
C7	〈1,0〉	0.2653
C8	〈0,1〉	0.2453
C9	〈0,1〉	0.1604
C10	〈1,0〉	0.1907
C11	〈0,1〉	0.2029
C12	〈1,0〉	0.1808
C13	〈0,1〉	0.1774
R	〈1,0〉	0.3672

Table 5

The steady values of membership degree and nonmembership degree.

Step 3. According to Eqs. (4) and (6), the similarity measure between the steady values of risk factors and final result are calculated as follows:

sC1,R=0.6344; sC2,R=0.5517; sC3,R=0.6737; sC4,R=0.6079; sC5,R=0.6792;sC6,R=0.7594; sC7,R=0.8613; sC8,R=0.8341; sC9,R=0.7184; sC10,R=0.7597; sC11,R=0.7763; sC12,R=0.7462; sC13,R=0.7415;

Therefore,

sC7,R>sC8,R>sC11,R>sC10,R>sC6,R>sC12,R>sC13,R>sC9,R>sC5,R>sC3,R>sC1,R>sC4,R>sC2,R;

Step 4. End.

Through the comparison analysis, we can find that the most pivotal risk factors derived by these two methods are consistent, which illustrates the effectiveness and reliability of DHFCMs. However, the ranking order between risk factors C6 and C10 are different. Due to the limitations of the experts' knowledge and experience, it is often difficult to reach an agreement in the group decision-making process. DHFSs, which is an extension of IFSs, has more advantages in the expression of uncertainty. It can effectively deal with the hesitancy of experts and reflect different opinions of groups well. Thus, DHFCMs is better than IFCM-II in modeling the complex system and the decision results derived by the proposed method is more reasonable and reliable.

5. CONCLUSION

Aiming at the risk factors analysis of the emergency event, a novel decision-making analysis method based on DHFCMs, which combines the advantages of DHFSs and FCMs, is presented in this paper. In addition, motivated by the idea of TOPSIS, a new similarity measure, which is utilized to measure the correlation between risk factors and final results, is proposed. And the most pivotal risk factor affecting the final results is identified. It is worth mentioning that the results obtained are highly consistent with the findings in the Chinese government report about the emergency event of RH in the Binhai New Area of Tianjin, China. Meanwhile, a comparative analysis with IFCMs method is carried out to illustrate the rationality and superiority of the proposed approach.

However, as for the dual hesitant fuzzy distance measure, the decision-making result may be affected when some values are added into the shorter DHFE to make the length of the compared DHFEs equal. We will continue to study the distance measure under dual hesitant fuzzy environment in future research. Then, motivated by the social network analysis theory [36,59], we will study the fusion process of multi-FCMs based on trust relationship among decision-makers. In addition, linguistic assessment model is a useful tool for assessing fuzzy uncertainty information [60], and the FCMs based on linguistic assessment model will be discussed in the future. The consensus process in the group decision-making is very important [61,62], and the consensus reaching process based on FCMs would be investigated. Meanwhile, the proposed method will be used in other fields, such as medical diagnosis, risk prediction in the enterprise development, etc.

CONFLICTS OF INTEREST

The authors declared that they have no conflicts of interest to this work.

AUTHORS' CONTRIBUTIONS

Zengwen Wang designed the study, Jian Wu contributed to the study design, analyzed the data and took the lead in the manuscript writing. Xiaodi Liu supervised the study design and helped in the writing of the final draft of the manuscript. Harish Garg made critical revisions of the final manuscript. All authors read and approved the final manuscript.

ACKNOWLEDGMENTS

This work was also supported by the National Natural Science Foundation of China (Nos. 71601002 and 72074001), the Foundation for Young Talents in College of Anhui Province (No. gxyqZD2018033), the major project of Humanities and Social Sciences of Ministry of Education of China (No. 16JJD840008), the Open Fund of Key Laboratory of Anhui Higher Education Institutes (No. CS2020-02), the Fundamental Research Funds for the Central Universities (No. 2020AI017).

Footnotes

1

http://www.gov.cn/foot/2016-02/05/5039788/files/460731d8cb4c4488be3bb0c218f8b527.pdf

2

http://www.gov.cn/foot/2016-02/05/5039788/files/460731d8cb4c4488be3bb0c218f8b527.pdf

REFERENCES

1.Y. Liu, Z.P. Fan, and Y. Zhang, Risk decision analysis in emergency response: a method based on cumulative prospect theory, Comput. Oper. Res., Vol. 42, 2014, pp. 75-82.

2.Y. Liu, Z.P. Fan, Y. Yuan, and H. Li, An FTA-based method for risk decision-making in emergency response, Comput. Oper. Res., Vol. 42, 2014, pp. 49-57.

3.J.K. Levy and K. Taji, Group decision support for hazards planning and emergency management: a Group Analytic Network Process (GANP) approach, Math. Comput. Model., Vol. 46, 2007, pp. 906-917.

4.G.Q. Zhang, J. Ma, and J. Lu, Emergency management evaluation by a fuzzy multi-criteria group decision support system, Stoch. Environ. Res. Risk Assess., Vol. 23, 2009, pp. 517-527.

5.F. Yan, L.S. Chen, F. Zhang, and Y.F. Zhao, Application of improved FAHP for nuclear reactor accident emergency decision, Appl. Mech. Mater., Vol. 389, 2013, pp. 136-142.

6.J. Wu, X.D. Liu, Z.W. Wang, and S.T. Zhang, Dynamic emergency decision-making method with probabilistic hesitant fuzzy information based on GM(1, 1) and TOPSIS, IEEE Access, Vol. 7, 2019, pp. 7054-7066.

7.X.D. Liu, Z.W. Wang, and S.T. Zhang, A new methodology for hesitant fuzzy emergency decision making with unknown weight information, Complexity, Vol. 2018, 2018, pp. 1-12.

8.W. Stach, L.A. Kurgan, and W. Pedrycz, Numerical and linguistic prediction of time series with the use of fuzzy cognitive maps, IEEE Trans. Fuzzy Syst., Vol. 16, 2008, pp. 61-72.

9.P. Faubet and E. Oscar, A new Bayesian method to identify the environment factors that influence recent migration, Genetics, Vol. 178, 2008, pp. 1491-1504.

10.Q. Zhou, W. Huang, and Y. Zhang, Identifying critical success factors in emergency management using a fuzzy DEMATEL method, Saf. Sci., Vol. 49, 2011, pp. 243-252.

11.Y. Li, Y. Hu, X.G. Zhang, Y. Deng, and S. Mahadevan, An evidential DEMATEL method to identify critical success factors in emergency management, Appl. Soft Comput., Vol. 22, 2014, pp. 504-510.

12.B. Kosko, Fuzzy cognitive maps, Int. J. Man-Mach. Stud., Vol. 24, 1986, pp. 65-75.

13.I. Kang, S. Lee, and J. Choi, Using fuzzy cognitive map for the relationship management in airline service, Expert Syst. Appl., Vol. 26, 2004, pp. 545-555.

14.G.H. Tzeng, W.H. Chen, R. Yu, and M.L. Shih, Fuzzy decision maps: a generalization of the DEMATEL methods, Soft Comput., Vol. 14, 2010, pp. 1141-1150.

15.D.K. Iakovidis and E.I. Papageorgiou, Intuitionistic fuzzy cognitive maps for medical decision-making, IEEE Trans. Inf. Technol. Biomed., Vol. 15, 2011, pp. 100-107.

16.A. Baykasoglu and I. Gölcük, Development of a novel multiple-attribute decision-making model via fuzzy cognitive maps and hierarchical fuzzy TOPSIS, Inf. Sci., Vol. 301, 2015, pp. 75-98.

17.H.J. Song, C.Y. Miao, Z.Q. Shen, W. Roel, D.H. Maja, and C. Francky, Design of fuzzy cognitive maps using neural networks for predicting chaotic time series, Neural Netw., Vol. 23, 2010, pp. 1264-1275.

18.E.I. Papageorgiou, J. Subramanian, A. Karmegam, and N. Papandrianos, A risk management model for familial breast cancer: a new application using fuzzy cognitive map method, Comput. Methods Prog. Biomed., Vol. 122, 2015, pp. 123-135.

19.J. Subramanian, A. Karmegam, E. Papageorgiou, N. Papandrianos, and A. Vasukie, An integrated breast cancer risk assessment and management model based on fuzzy cognitive maps, Comput. Methods Prog. Biomed., Vol. 118, 2015, pp. 280-297.

20.E.I. Papageorgiou, C. Stylios, and P.P. Groumpos, Unsupervised learning techniques for fine-tuning fuzzy cognitive map causal links, Int. J. Hum. Comput. Stud., Vol. 64, 2006, pp. 727-743.

21.L.M. Fu, CAUSIM: a rule-based causal simulation system, Simulation, Vol. 56, 1991, pp. 251-256.

22.K. Osei-Bryson, Generating consistent subjective estimates of the magnitudes of causal relationships in fuzzy cognitive maps, Comput. Oper. Res., Vol. 31, 2004, pp. 1165-1175.

23.S. Lee and I. Han, Fuzzy cognitive map for the design of EDI controls, Inf. Manag., Vol. 37, 2000, pp. 37-50.

24.X.D. Liu, Z.W. Wang, S.T. Zhang, and J.S. Liu, Analysis of influencing factors in emergency management based on an integrated methodology, Adapt. Behav., Vol. 27, 2019, pp. 331-345.

25.Y. Miao, Z.Q. Liu, C.K. Siew, and C.Y. Miao, Dynamical cognitive network- an extension of fuzzy cognitive map, IEEE Trans. Fuzzy Syst., Vol. 9, 2001, pp. 760-770.

26.S. Zhou, Z.Q. Liu, and J.Y. Zhang, Fuzzy causal networks: general model, inference, and convergence, IEEE Trans. Fuzzy Syst., Vol. 14, 2006, pp. 412-420.

27.L.A. Zadeh, Fuzzy sets, Inf. Control, Vol. 8, 1965, pp. 338-353.

28.X.D. Liu, Z.W. Wang, and A. Hetzler, HFMADM method based on nondimensionalization and its application in the evaluation of inclusive growth, J. Bus. Econ. Manag., Vol. 18, 2017, pp. 726-744.

29.K. Atanassov, Intuitionistic fuzzy sets, Fuzzy Sets Syst., Vol. 20, 1986, pp. 87-96.

30.H. Garg and K. Kumar, An advanced study on the similarity measures of intuitionistic fuzzy sets based on the set pair analysis theory and their application in decision making, Soft Comput., Vol. 22, 2018, pp. 4959-4970.

31.V. Torra, Hesitant fuzzy sets, Int. J. Intell. Syst., Vol. 25, 2010, pp. 529-539.

32.X.D. Liu, Z.W. Wang, S.T. Zhang, and A. Hetzler, CRM-based dynamic decision-making with hesitant fuzzy information for the evaluation of rangelands, Technol. Econ. Dev. Econ., Vol. 24, 2018, pp. 1979-2002.

33.B. Zhu, Z. Xu, and M.M. Xia, Dual hesitant fuzzy sets, J. Appl. Math., Vol. 2012, 2012, pp. 1-13.

34.J.L. Deng, Introduction to grey system theory, J. Grey Syst., Vol. 1, 1989, pp. 1-24.

35.Z. Zhang, W.Y. Yu, L. Martinez, and Y. Gao, Managing multigranular unbalanced hesitant fuzzy linguistic information in multiattribute large-scale group decision making: a linguistic distribution-based approach, IEEE Trans. Fuzzy Syst., 2019.

36.Z. Zhang, Y. Gao, and Z.L. Li, Consensus reaching for social network group decision making by considering leadership and bounded confidence, Knowl. Based Syst., Vol. 204, 2020. 106240

37.H. Garg and R. Arora, Distance and similarity measures for dual hesitant fuzzy soft sets and their applications in multi-criteria decision making problem, Int. J. Uncertain. Quantification, Vol. 7, 2017, pp. 229-248.

38.H. Garg and K. Kumar, Some aggregation operators for linguistic intuitionistic fuzzy set and its application to group decision-making process using the set pair analysis, Arab. J. Sci. Eng., Vol. 43, 2018, pp. 3213-3227.

39.E.I. Papageorgiou and D.K. Iakovidis, Intuitionistic fuzzy cognitive maps, IEEE Trans. Fuzzy Syst., Vol. 21, 2013, pp. 342-354.

40.J.L. Salmeron, Modeling grey uncertainty with fuzzy grey cognitive maps, Expert Syst. Appl., Vol. 37, 2010, pp. 7581-7588.

41.V. Çoban and S.A. Onar, Analysis of solar energy generation capacity using hesitant fuzzy cognitive maps, Int. J. Comput. Intell. Syst., Vol. 10, 2017, pp. 1149-1167.

42.H. Ghaderi, H. Gitinavard, S.M. Mousavi, and B. Vahdani, A hesitant fuzzy cognitive mapping approach with risk preferences for student accommodation problems, Int. J. Appl. Manag. Sci., Vol. 9, 2017, pp. 253-293.

43.X.D. Liu, Z.W. Wang, S.T. Zhang, and J.S. Liu, A novel approach to fuzzy cognitive map based on hesitant fuzzy sets for modeling risk impact on electric power system, Int. J. Comput. Intell. Syst., Vol. 12, 2019, pp. 842-854.

44.S.H. Yang and Y.B. Ju, A GRA method for investment alternative selection under dual hesitant fuzzy environment with incomplete weight information, J. Intell. Fuzzy Syst., Vol. 28, 2015, pp. 1533-1543.

45.J. Ye, Correlation coefficient of dual hesitant fuzzy sets and its application to multiple attribute decision-making, Appl. Math. Model., Vol. 38, 2014, pp. 659-666.

46.L. Wang, S. Xu, Q. Wang, and M. Ni, Distance and similarity measures of dual hesitant fuzzy sets with their applications to multiple attribute decision-making, in International Conference on Progress in Informatics and Computing (Shanghai, China), 2014, pp. 88-92.

47.L. Wang, M.F. Ni, and L. Zhu, Correlation measures of dual hesitant fuzzy sets, J. Appl. Math., Vol. 2013, 2013. 593739

48.P. Singh, Distance and similarity measures for multiple-attribute decision making with dual hesitant fuzzy sets, Comput. Appl. Math., Vol. 36, 2017, pp. 111-126.

49.Z. Su, Z.S. Xu, H.F. Liu, and S.S. Liu, Distance and similarity measures for dual hesitant fuzzy sets and their applications in pattern recognition, J. Intell. Fuzzy Syst., Vol. 29, 2015, pp. 731-745.

50.H.C. Liao, Z.S. Xu, and M.M. Xia, Multiplicative consistency of hesitant fuzzy preference relation and its application in group decision making, Int. J. Inf. Technol. Decis. Making, Vol. 13, 2014, pp. 47-76.

51.C.L. Hwang and K. Yoon, Multiple Attribute Decision Making: Methods and Applications, Springer, Berlin, Germany, 1981.

52.X.R. Ye and Z.Y. Zhang, Theory and Practice of Crisis Management for Electric Power System, Southwestern University of Finance and Economics Press, Chengdu, China, 2006.

53.K. Wada, T. Yoshikawa, T. Hayashi, and Y. Aizawa, Emergency response technical work at Fukushima Dai-ichi nuclear power plant: occupational health challenges posed by the nuclear disaster, Occup. Environ. Med., Vol. 69, 2012, pp. 599-602.

54.T. Ohnishi, The disaster at Japan's Fukushima Dai-ichi nuclear power plant after the March 11, 2011 earthquake and tsunami, and the resulting spread of radioisotope contamination, Radiat. Res., Vol. 177, 2012, pp. 1-14.

55.A.L. Davidson, Key Performance Indicators in Humanitarian Logistics, Massachusetts Institute of Technology, Cambridge, MA, USA, 2006. Master of Engineering in Logistics Thesis

56.J. Choi and S. Lee, Managing a crisis: a framing analysis of press releases dealing with the Fukushima nuclear power station crisis, Public Relat. Rev., Vol. 43, 2017, pp. 1016-1024.

57.N.I. Voropai, D.N. Efimov, P.V. Etingov, and D.A. Panasetsky, Smart emergency control in electric power systems, IFAC Proc. Vol., Vol. 44, 2011, pp. 1658-1664.

58.N.I. Voropai, D.N. Efimov, and I.B. Yadykin, Innovative technologies for operation and emergency control in electric power systems of Russia, IFAC Proc. Vol., Vol. 46, 2013, pp. 245-250.

59.Z. Zhang, X.Y. Kou, W.Y. Yu, and Y. Gao, Consistency improvement for fuzzy preference relations with self-confidence: an application in two-sided matching decision making, J. Oper. Res. Soc., 2020, pp. 1-14.

60.H.J. Zhang, J. Xiao, Y.C. Dong, F. Chiclana, and E. Herrera-Viedma, Personalized individual semantics-based approach for large scale failure mode and effect analysis with incomplete preference information, IISE Trans., Vol. 52, 2020, pp. 1275-1296.

61.H.J. Zhang, S.H. Zhao, G. Kou, C.C. Li, Y.C. Dong, and E. Herrera-Viedma, An overview on feedback mechanisms with minimum adjustment or cost in consensus reaching in group decision making: research paradigms and challenges, Inf. Fusion, Vol. 60, 2020, pp. 65-79.

62.B.W. Zhang, Y.C. Dong, H.J. Zhang, and W. Pedrycz, Consensus mechanism with maximum-return modifications and minimum-cost feedback: a perspective of game theory, Eur. J. Oper. Res., Vol. 287, 2020, pp. 546-559.

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Journal: International Journal of Computational Intelligence Systems
Volume-Issue: 14 - 1
Pages: 67 - 78
Publication Date: 2020/10/24
ISSN (Online): 1875-6883
ISSN (Print): 1875-6891
DOI: 10.2991/ijcis.d.201015.001 How to use a DOI?
Open Access: This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

Cite this article

ris enw bib

TY  - JOUR
AU  - Zengwen Wang
AU  - Jian Wu
AU  - Xiaodi Liu
AU  - Harish Garg
PY  - 2020
DA  - 2020/10/24
TI  - New Framework for FCMs Using Dual Hesitant Fuzzy Sets with an Analysis of Risk Factors in Emergency Event
JO  - International Journal of Computational Intelligence Systems
SP  - 67
EP  - 78
VL  - 14
IS  - 1
SN  - 1875-6883
UR  - https://doi.org/10.2991/ijcis.d.201015.001
DO  - 10.2991/ijcis.d.201015.001
ID  - Wang2020
ER  -

download .riscopy to clipboard
