Deep Visual Analytics (DVA): Applications, Challenges and Future Directions

Md Rafiqul Islam; Shanjita Akter; Md Rakybuzzaman Ratan; Abu Raihan M. Kamal; Guandong Xu

doi:10.2991/hcis.k.210704.003

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Volume 1, Issue 1-2, June 2021, Pages 3 - 17

Deep Visual Analytics (DVA): Applications, Challenges and Future Directions

Authors

Md Rafiqul Islam¹^{, *}, Shanjita Akter², Md Rakybuzzaman Ratan², Abu Raihan M. Kamal², Guandong Xu¹

¹Advanced Analytics Institute (AAI), University of Technology Sydney (UTS), Australia

²Department of Computer Science & Engineering, Islamic University of Technology (IUT), Bangladesh

^*Corresponding author. Email: MdRafiqul.Islam-1@student.uts.edu.au

Corresponding Author

Md Rafiqul Islam

Received 11 May 2021, Accepted 25 June 2021, Available Online 22 July 2021.

DOI: 10.2991/hcis.k.210704.003 How to use a DOI?
Keywords: Deep visual analytics; visual analytics; visual interactive system; deep learning; machine learning
Abstract: Visual interactive system (VIS) has been received significant attention for solving various complex problems. However, designing and implementing a novel VIS with the large scale of data is a challenging task. While existing studies have applied various visual analytics (VA) to analyze and visualize insightful information, deep visual analytics (DVA) have considered as a promising technique to provide input evidences and explain system results. In this study, we present several deep learning (DL) techniques for analyzing data with visualization, which summarizes the state-of-the-art review on (i) big data analysis, (ii) cognitive and perception science, (iii) customer behavior analysis, (iv) natural language processing, (v) recommended system, (vi) healthcare analysis, (vii) fintech ecosystem, and (viii) tourism management. We present open research challenges for emerging DVA in the visualization community. We also highlight some key themes from the existing literature that may help to explore for future study. Thus, our goal is to help readers and researchers in DL and VA to understand key aspects in designing VIS for analysing data.
Copyright: © 2021 The Authors. Publishing services by Atlantis Press International B.V.
Open Access: This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

1. INTRODUCTION

We are living in the age of data science (DS), whereas Artificial Intelligence (AI) plays a fundamental role for solving various problems, such as fraud detection, behavior analysis, mental health detection, anomaly detection, natural language processing (NLP) etc. [42]. While most of these tasks seem simple to humans, they are extremely difficult for computer algorithms to solve because there is no systematic explanation of how to solve them. For example, human can quickly determine whether a picture contains a dog, however, it’s difficult to say how they arrived at this conclusion. There are various approaches such as VA, data mining, data management, data fusion, machine learning, and other methods have been considered on findings of these solutions [107]. Particularly, VA foster the worthwhile assessment, correction and rapid improvement of big data with meaningful interactive visualization (IV).

Nowadays, the uses of massive amounts of data are rapidly increasing in many applications. The analysis of these data are grimy, irreconcilable and complex [44]. As a result vast amounts of time and money are often lost. To address these data issues, new advancement such as VA has proven increasingly efficient and effectiveness to visualize potential insights in many applications in the past years [41]. For example, Mandal et al. [86] proposeda novel VIS for discovering knowledge and hidden opportunities from massive and complex data. The model automatically learn to bridge the information gap by employing more intelligent in the analysis process, and dynamic volumes of information through visual representations and interaction techniques.

In the existing literature, several researchers explored the VA by focusing on specific aspects, such as its definition, scope, and processes. For example, Keim et al. [59] analyzed the contrasts between VA and information visualization (InfoVis) from several aspects, including data analysis, perception and cognition, and human-computer interaction (HCI). Caban and Gotz [11] introduced efficient audits of VA approaches which have been proposed to explore complex clinical data. While some of these existing studies have emerged, they are deemed to offer the concept of VA rather than DVA. However, DVA is an advanced development to more facilitate in visual interfaces, which are flourishing the interactive graphical presentation. Additionally, it plays an important role to make a better way of data processing, utilizing, and visualizing insightful information.

Several existing surveys partially touch the surface of our area of interest such as visualization contributes to a better understanding of DL [149], visualization of DL in computer vision [112], visualization for better understaning of ML models [81]; the state-of-the-art predictive VA [82]; interactive machine learning [108]; interpretable ML [74]; and surveys of multidimensional visualization techniques [80,120]. Similar to our focus, a survey on VA for DL is presented by Hohman et al. [44]. The following are the main points of their survey: (1) why should various aspects of a DL model be visualised?, (2) who uses DL visualisation?, (3) what to visualise in DL?, (4) how to visualise DL?, and (5) when will the visualisation phase take place during the process of developing and training a network? However, our paper looks at DVA categorised by the main tasks and subtask in the various applications, as well as the methods used (CNNVis [78], RNNVis [88], ActiVis [55], DGViz [72], and so on). Furthermore, rather than focusing on the more general viewpoint of how to use existing DVA, we concentrate on how those techniques complement for solving the above tasks.

In this paper, we provide the state-of-the-art review on some most significant domains, and identify the opportunities with DVA. We also explore numerous fields with and without VA, expressed various challenges, and proposed multiple research directions according to the conducted analysis. Furthermore, this article upholds a complete picture of DVA to explore future research by examining the related research in innumerable applications. It gives an in-depth understanding of ‘what is DVA’, ‘how DVA is applied in numerous application domains’ and ‘what are the challenges and opportunities of DVA research’. In summary, the goal of this paper is to analyze the DVA strengths, limitations and propose approaches to mitigate the identified limitations.

The paper is organized as follows: Section 2 present a comprehensive overview of DVA followed by the detail discussion on the state-of-the-art DVA, applications, challenges and future directions in Section 3–6. Finally, the conclusion is presented in Section 7.

2. DEEP VISUAL ANALYTICS

Visual analytics (VA), a relatively new dimension that has seen rapid growth and considerable interest due to its state-of-the-art success in various sectors, has evolved into deep visual analytics (DVA). While VA attempts to visually represent a dataset with the aims of potentially obtaining some insights, DVA covers the more time-consuming tasks of formulating, refining, and validating theories about the phenomenon underlying the results. Usually, it consists of two major parts such as 1) data visualization which is an emerging field in the current situation [50,152], 2) DL which adds more insights, excels at knowledge communication, and discovering strategies by applying encoding techniques to transfer abstract data into meaningful representation [30]. Figure 1 shows an interactive clinical prediction visualization system, whereas DL brings an extra power to predict clinical risks. Hence, DVA’s ability to change visualisations interactively and pose complex on-the-fly identified queries is crucial.

2.1. Why Deep Learning for Visual Analytics

There are various domains where VA has been proposed to help model developers to build, debug, and precipitate the experimental process to improve performances [65,122,141]. For example, analyzing medical images [128], explaining decisions made by medical imaging models [155], feature extraction from imaginary instances which are helpful for designing and planning [157]. However, it is required to monitor during the training phase, distinguishing mis-sorted instances and testing the well-known data instances to improve performance [13,106]. Therefore, the advanced development of DL based VA provides a better solutions to enhance the model development process for engineers and researchers, improve overall performance, accuracy and speed up the debugging.

Deep visual analytics is an extended part of the visualization field. It can rather be seen as an integral approach to make decision, combining visualization with DL models, human factors and data analysis [144]. Both visualization and DL helps to get deeper insights from multivariate sectors and enhance further development of human-centered tools using advanced technologies [51]. Nowadays, DL models are most useful for decision making as well as providing as many accurate predictions as possible [42].

It is persistently using for decision-making tasks [94]. Thus, the most significant reason behind DVA is to provide a better understanding of the properties of the input data and visualizing their demonstration [109]. Additionally, to more readily work with interpretability and explainability [74,89], interactive DVA solutions have been proposed to help various user groups interpret models using an IV [2,43].

2.2. Difference Between Visual Analytics and Deep Visual Analytics

The overarching driving vision of VA is turning up day by day to an emerging and flourishing field with new research discipline and ideas. Many research efforts have been processing their analysis in VA. But, there are very few systematic reviews which shape this area with advanced technology and polishing the existing works and current progress. Although some research works have explored DL in VA, there are enough space to resolve various problems in the existing works. Table 1 present various key representative works in visual and DVA. Thus, this survey aims to provide a detailed overview of current research on DL-based VA in order to recognise open problems in different fields, the core concept of DVA, specify the challenges, and point out future directions along this dimension. From existing research works, it has been cleared that DVA are much more interpretable, explainable and scalable for decision making, comparing model performance, debugging, and feature extracting. DVA focuses on the experimental process rather than theoretical explanation.

Year	References	Big data analysis	Cognitive and perception science	Customer behavior analysis	Natural language processing	Recommended system	Healthcare analysis	Fintech ecosystem	Tourism management	Publication venue
2021	Mandal et al., (2021) [86]	✓								DCN
	Krak et al., (2021) [63]		✓							RASTORE
	Wang et al., (2021) [135]				✓					arXiv
2020	Chang et al., (2020) [14]		✓						✓	TM
	Li et al., (2020) [72]						✓			JMIR
	Mubarak et al., (2020) [91]	✓								WOL
	Qian et al., (2020) [103]					✓				arXiv
	Shin et al., (2020) [115]	✓								MIS
	Wang et al., (2020) [134]	✓								IEEE APVIS
	Zeng et al., (2020) [151]	✓								IEEE VCG
	A. Leite et al., (2020) [1]			✓						CGF
2019	Vellido et al., (2019) [127]						✓			NCA
	Ku et al., (2019) [64]								✓	HICSS
	Aupetit et al., (2019) [5]		✓							IEEE VIS
	Zang et al., (2019) [154]		✓						✓	TM
	Yang et al., (2019) [143]						✓			IEEE Access
	Hu et al., (2019) [46]					✓				HFCS
	Hohman et al., (2019) [43]	✓								IEEE VCG
	Park et al., (2019) [43]				✓					IEEE VCG
	Yue, Xuanwu, (2019) [146]							✓		PhD diss
	Singh, (2019) [118]			✓						IJAIS
2018	Kwon et al., (2018) [66]						✓			IEEE VIS
	Cashman et al., (2018) [12]	✓								IEEE CGA
	Garcia et al., (2018) [34]	✓								CG
	Peixinho et al., (2018) [100]				✓					CGIP
	Choo et al., (2018) [19]		✓							IEEE CGA
	Yue et al., (2018) [147]							✓		IEEE VCG
2017	Liu et al., (2017) [76]			✓						IEEE ITS
	Pezzotti et al., (2017) [101]	✓								IEEE VCG
	Wongsuphasawat et al., (2017) [141]	✓								IEEE VCG
	Samek et al., (2017) [110]	✓	✓		✓					arXiv
	Leite et al., (2017) [70]			✓						IEEE VCG

Table 1

Overview of key representative works in visual and deep visual analytics

In recent years, very few surveys have been conducted their research work in DVA and presented their exploration into diverse dimensions. For example, Hohman et al. [42] presented a comprehensive review of DVA and explained the significance of this field. To extend the knowledge of DVA, they explained why, how, what, where and when exploring DVA. Li et al. [72] explored their high quality works on the field of medical sector using DVA approach. Another research work showed DVA in various applications [14,64,76,91,103]. These research works are influential in this area and their survey flourished the DVA in a more noteworthy way. With the constant advent of novel research works, it has been perspicuous that DVA are much more comprehensive and suitable and a new inclusive framework for better understanding of these dimensions. Given the rising popularity and potential of DL applied in the VA provides high scientific and practical values which help to enhance the model performance.

2.3. Impact of Deep Visual Analytics

With the advanced visualization modules, such as deep visual analytics (DVA), the visual analytics (VA) researchers have developed intuitive and immersive user interfaces. Such DVA systems offer users a thorough understanding of a model and hints on how to troubleshoot and develop it. In the recent years, several studies have been conducted, where DVA has proven their effective and noteworthy impact in many fields, especially in big data analysis [115], human cognitive and perception science [154], analyze healthcare systems [72], and tourism management system [14]. In addition, DVA has the greatest impact of synthesizing information, deriving insights from massive, ambiguous, unstructured, unexpected patterns, decision making, and communicating assessment for action [59]. For example, CNNVis [81] isa good example ofa VA framework for understanding CNN models and diagnosing them. ActiVis [55] uses several organised views, such as a matrix view and an embedding view, to provide a visual exploratory overview of a given DL model. ReVACNN [20] provides realtime model steering capabilities during training, and interactively selecting data items for a subsequent mini-batch in the training process. Besides, DVA was investigated in the medical sector by Li et al. [72], which improved model efficiency and paved the way for interactive, interpretable, and reliable clinical risk predictions.

Overall, DVA’s impact is determined by its ability to include advanced visualisation and interaction capabilities. However, several research issues such as how to efficiently loop humans into the analysis process and how to increase the applicability of DL techniques have not been thoroughly explored. Hence, research has shown that DVA is more effective, impactful, and most of the DVA tools attract more attention to validate the performance of deep models as well as rapidly spreading their effectiveness on multivariate sectors and also provide visual interactivity to DL experts.

3. DEEP LEARNING TECHNIQUES FOR VISUAL ANALYTICS: STATE-OF-THE-ART

In this section, several popular DL techniques such as Recurrent Neural Network (RNN), Convolutional Neural Network (CNN), Long Short Term Memory (LSTM), Deep Neural Networks (DNNs), Generative Adversarial Network (GAN), Artificial Neural Network (ANN), Deep Generative Networks (DGNs), Deep Belief Network (DBN) and Graph Convolutional Network (GCN) are discussed. However, since DL is rapidly expanding, many new networks and architectures emerge every few months, which is beyond the reach of this article. Table 2 summarises the DL techniques, their key points, and the most representative works. We also included the list of popular DVA framework in Table 3.

References	RNN	CNN	LSTM	DNNs	GAN	ANN	DGNs	DBN	GCN	Main Purpose
Li et al. (2020) [72]	✓									Clinical data visualization
Ku et al. (2019) [64]	✓									Exploration of hotel review and responses
Kwon et al. (2018) [66]	✓									Analysis of E-medical record
Spinner et al. (2019) [121]						✓				ML explainability and interactivity
Pexinho et al. (2018) [100]		✓								Virtual analytics approaches
Wongsuphasawat et al. (2017) [141]		✓								Visualized data flow graphs
Kahng et al. (2017) [55]		✓		✓						Visualized large scale deep learning models
Yang et al. (2019) [143]								✓		Medical data analysis
Chang et al. (2020) [14]		✓								Analysis hotel review and responses
Mubarak et al. (2020) [91]			✓							Analysis learner’s learning behavior
Ding et al. (2017) [29]	✓									To visualize and interpret neural machine translation
Karpathy et al. (2015) [58]	✓		✓							To provide an analysis of recurrent networks
Li et al., (2019) [71]		✓								Simulate human recognition
Zintgraf et al. (2017) [157]					✓					Analysis prediction differences
Mahendran et al. (2016) [84]	✓									Utilize natural pre-language
Zintgraf et al. (2016) [158]		✓		✓						Analyze how DCNNs make decisions
Bilal et al. (2017) [9]		✓								Analyze CNN’s sensitivity and improve structure
Zeng et al. (2017) [150]		✓								Proposed a visualization system called CNNComparator
Liu et al. (2017) [77]		✓								Analyze training process of DGM
Montavon et al. (2018) [89]				✓						Analyzed interpretation of DNN
Dibia et al. (2019) [28]	✓									Analyzed sequence modeling
Ming et al. (2017) [88]	✓									Hidden state exploration
Shen et al. (2020) [113]	✓									Visually explored model behavior
Liu et al. (2017) [81]		✓								Explored CNNVis to analyze information
Gou et al. (2020) [38]		✓								Improve traffic light detection
Zeiler et al. (2014) [148]		✓								Analysis neural network
Chung et al. (2016) [20]		✓								Information analysis during training process
Liu et al. (2018) [75]			✓	✓						Discover vagueness of words
Strobelt et al. (2017) [122]			✓							Hidden state analysiss
Evermann et al. (2017) [32]			✓							Intelligent business process analysis
Sutskever et al. (2014) [124]		✓								Translated long sentence
Wang et al. (2019) [131]				✓						Interpreting and diagnosis DNN models
Wang et al. (2020) [134]				✓						Visual analytics approach (SCANViz)
Wang et al.(2018) [133]					✓					Interactive visualization approach
Kwon et al. (2019) [67]							✓			Proposed DGM model
Hajnayeb et al. (2011) [40]						✓				Fault diagnosis
Rauber et al. (2016) [105]		✓				✓				Analyze hidden activities
Ingram et al. (2008) [47]								✓		Visualized multi-dimensional scaling
Bro et al. (2014) [10]								✓		Analysis principal components
Jin et al. (2020) [54]									✓	Visualize graph network
Kipf et al. (2016) [61]									✓	Semi-supervised classification on GCN
Zhang et al. (2020) [153]								✓		Visualization hybrid model

Table 2

List of popular deep learning techniques for visual interactive system

Framework	Main purpose	References
DGViz	Develop clinical prediction system	[72]
Analytical	Analysis hotel review and response	[64]
RetainVis	Electronic medical record analysis	[66]
ExplAIner	Interactive and explainable ML	[121]
Augmentation	Analysis VA approaches	[100]
VizML	Recommended system	[46]
ActiVis	Analysis neural network models	[55]
Spring MVC	Medical data analysis	[143]
AutoVis	Information management	[137]
Data2Vis	Generalized automatic data visualization	[28]
V-Awake	Sleep prediction	[35]
ReVACNN	Real time model configuration & steering	[20]
CNNVis	Diagnosis deep CNN	[78]
RNNVis	Analyze hidden memories	[88]
LSTMVis	Understanding hidden state dynamics	[122]
ScanViz	Analysis neural network	[134]
VSRivers	Traffic congestion exploration, surveillance, and forecasting	[68]
Dqnviz	Deep q-network analyze	[132]
AirViz	Analyze air pollution propagation	[26]
ConfusionFlow	Temporal analysis	[41]
GANViz	Understand adversarial game	[133]
GNNVis	Prediction of error diagnosis	[54]
Dodrio	Natural language processing	[135]

Table 3

List of popular deep visual analytics framework

3.1. Recurrent Neural Network (RNN)

RNN is one of the most significant DL models that is used to utilizes the sequential information in the network. It is well suited for sequence modeling techniques related to the time variations [28]. Several existing researchers have used the VA method to expose the RNN attention for all data instances, as well as their temporal locations in sequences and variable attribution at each value stage. For example, Li et al. [72] introduced an RNN-based VA scheme to analyse clinical threats, which takes medical event embeddings and time encoding vectors as inputs and integrates medical domain awareness by attending to a subgraph of the entire clinical information diagram. Kwon et al. [66] applied RNN based DVA system on electronic medical reports which examine patients’ record, diagnoses, medications, and other various events to predict the present and future states of patients. Ming & Cao [88] provided a VA system for viewing and analyzing RNN models for NLP tasks and described the function of individual hidden state units based on their required response to input texts. Shen et al. [113] proposed an RNN-based VA structure that provides users to examine model activities at the global and person levels, as well as giving an analysis to disclose the model process.

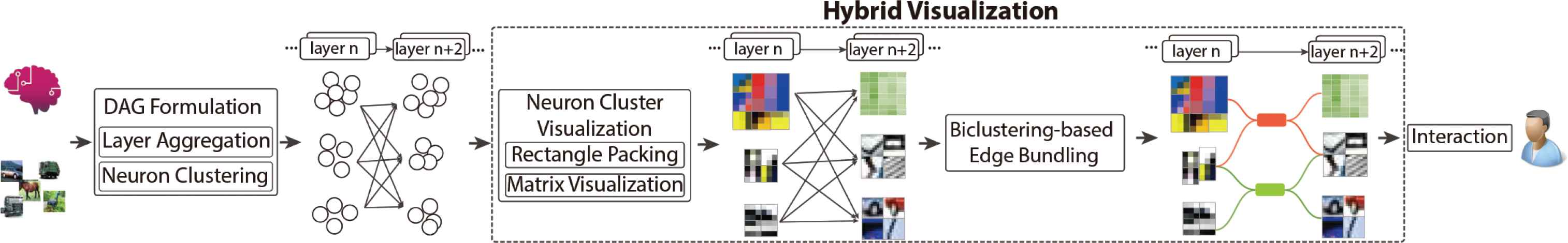

3.2. Convolutional Neural Network (CNNs)

CNNs have performed and provided major improvements over conventional methods in many tasks such as image processing, object detection, video classification etc. In addition, CNNs have also been used extract robust feature in deep reinforcement learning representations, help decision making process, and enhance the human level performance in intelligent tasks [96]. Currently, CNNs with visualization focuses on analyzing a snapshot of a CNN model in the training process, which is useful for conducting on a regular basis. For example, Liu et al. [78,81] proposed a VIS named as CNNVis to better understand, diagnose and refine CNNs as shown in Figure 2. This tool is very much effective to analyze bugging infor- mation at different granularities. Moreover, CNNVis supports the analysis of multiple facts of each neuron. Gou et al. [38] proposed a VIS to concern CNN based detectors which thoroughly evaluate the performance of accuracy and robustness. Zeiler & Fergus [148] explored a number ways and proposed CNN models to demonstrate impressive classification performance on the ImageNet benchmark. Chung et al. [20] introduced a VIS named as ReVACNN which visualize and monitor the underlying process of CNN. Their system provides an opportunity of visualizing detailed information about the model during the training process and support dynamic user interactions with the model in real time.

3.3. Long Short Term Memory (LSTM)

LSTM networks have become increasingly popular, which are well-suited for processing, classifying, and making predictions based on dataset. Recently, it provides exceptional and outstanding results in analyzing and visualizing area. For instance, Strobelt et al. [122] presented a comprehensive VA tool named LSTMVis. It reconnoiters the hidden state dynamics of a RNN. It provides a user preference to select an input phrase and find similar phrases in the dataset that demonstrate similar hidden state patterns. Furthermore, Evermann et al. [32] described the application of LSTMVis to understand a trained model for a business process intelligence dataset. Sutskever et al. [124] propose LSTM as a multilayered system to map the input sequence to a vector of a fixed dimensionality and very effective for translating the input sentence. Their analysis proved that LSTM translates any long sentence correctly. Similar to this work, Cho et al. [18] proposed an LSTM-like RNN framework to map sentences into vectors and back, but their main emphasis was on incorporating their neural network into an SMT scheme.

3.4. Deep Neural Networks (DNNs)

DNN is an interactive DL algorithm which has high computational efficiency compared to traditional iterative optimization algorithms. The outstanding performance of these models have been considerably successful which are used for real time resource allocation, task processing of natural language and many more. Researchers strive to understand the performance of a VIS system, where DNN have demonstrated sophisticated contribution in solving problems across a wide range of applications. For example, Liu et al. [75] attempted to computationally identify the vague terms using DNN. They also explored visualization to identify dimensions, the vagueness of natural language, and knowledge discovery. Wang et al. [131] demonstrated the prospect of interpreting and diagnosing DNN models through interactive data explorations. In an another studies, they demonstrated a VIS model named as SCANViz, which interprets the symbol concept captured by DNN [134]. Kahng et al. [55] proposed an VIS with DNN called ACTIVis which support both interpretation strategies for visualization and comparison of multiple instances and subsets.

3.5. Generative Adversarial Network (GANs)

Over the last few years, GANs have shown remarkable results in visualizing real data [4]. It usually extracts features from a target data set and creates new data items that are identical to those in the target data set. Despite the fact that few VIS resources have been proposed to assist domain experts in understanding, interpreting, and evaluating GANs, there are a number of difficulties in understanding and training GANs. There are some VIS have designed to understand the training statistics of general neural nets. For example, Wang et al. [133] designed and developed a new VIS named GANViz that helps domain experts to understand, interpret, and evaluate GANs. Similarly, for general generative models, Kahng et al. [56] proposed a powerful visualisation method to explain the overall training process and diagnose possible training failures.

3.6. Artificial Neural Network (ANN)

Several intuitive and interactive user interfaces with advanced visualisation modules have recently been developed by the visualization experts. Additionally, ANN currently achieve state-of-the-art results for improving the interpretability of DL models in visualization. Moreover a growing number of papers concerning interactive Visualization using DL, that supports advanced interactive visual capabilities in TensorBoard. For example, using basic toolkits, sophisticated algorithmic methods, and interactive visual interfaces, Spinner et al. [121] offers a detailed review of recent studies concerning the interpretability and explainability of DL. Hajnayeb et al. [40] proposed ANN based feature selection method to diagnose different types of faults in a gearbox. Rauber et al. [105] proposed a visualization system that provides the hidden activities of ANN models. They enabled the inspection of relationships between neurons, classes, and similarity between them.

3.7. Deep Generative Networks (DGNs)

Several methods have been proposed in recent years to demonstrate the working mechanisms where DL models offer a solution to the important problem of unsupervised, semi-supervised, and supervised learning [81]. Among the various DL models, there are very few studies have proposed, designed and developed visualization tools based on DGNs. It is observed that DGNs are more complex to train than others such as CNNs and require more expertise, experience, and know-how (CNNs). For example, Liu et al. [77] developed a new VA method for better understanding and diagnosing of a DGN’s training phase. They assist experts in comprehending the overall training phase and extracting a vast volume of time series data that reflects training dynamics [67].

3.8. Deep Belief Network (DBN)

Various techniques have been proposed for visualising multi-dimensional data. For instance, principal component analysis (PCA) [10], Multi-dimensional scaling (MDS) [47], and least-square projection (LSP) [99] that project high dimensional data on a lower-dimensional space are used to reduce the dimensions of data before visualisation. In addition, scatter plot matrix [31], parallel coordinates [15] are also directly used to visualize multi-dimensional data. Recently, researchers are using DBN to visualise data and view it in web browsers in order to improve usability and interactivity. For example, Zhang et al. [153] suggested a hybrid model with a prediction and visualisation module. The prediction module is trained on historical icing data, while the visualisation module displays temperature and humidity distributions.

3.9. Graph Convolutional Networks (GCNs)

Several existing visualization studies have been conducted on CNNs and RNNs. However, very few research has been conducted on GCNs, where graph analytics have adopted a modern breakthrough in recent years. Similar to CNNs and RNNs, GCNs operate in a black box with information concealed from model developers, and have made considerable progress in various area [54]. For example, GCNs applies the convolutional operation from natural images to graphs and performs semi-supervised learning to classify nodes [61]. The Graph Attention Network (GAT) model integrates the attention mechanism, which is widely used in NLP, and dynamically assigns weights to different neighbours to increase model performance [126].

4. APPLICATIONS OF DEEP VISUAL ANALYTICS

There are many applications of DVA such as big data analysis, cognitive and perception science, tourism management, recommended system, natural language processing, healthcare analysis, customer behavior analysis and fintech ecosystem. Figure 3 shows major applications of DVA. In the following section, we describe state-of-the-art DVA for different applications.

4.1. Big Data Analysis

In the field of big data, the volume of data is increasing and fetching new challenges such as (i) confusing variety of big data technologies, (ii) complexity of managing data quality, and (iii) accuracy of real-time data visualization. The use of advanced analytic might be influenced by their great impacts. The VA for Big data have advanced led to the generation of tremendous structured and unstructured data from multiple data sources that cannot be processed through conventional analytics tools. In recent years, there are many studies are focused on visualization techniques for exploring the field of Big data which has been achieved. For example, in 2015, according to Simpao et al. [117], the systematic use of data combined with quantitative and qualitative analysis can be used to improve quality and efficiency, forecast risk, provide clinical decision support, and manage resources. Moran et al. [90] explored the role of records management to support the efficient use of information visualization (IV) and VA to meet the challenges associated with the analysis of Big Data [83].

4.2. Cognitive and Perception Science

Perception is the ability to capture, process, and figure out the information, whereas cognitive process makes it conceivable to interpret our surroundings and receive throughout sensory organs, make the information sector more prominent and efficacious. Perception and cognitive science are especially suited for modeling the interactions of users with visualization modeling. Existing studies have presented the greatest exploration, that empirical and theoretical research focus to the complex interrelations between perception and cognition. For example, Potter [102] explores conceptual short term memory concepts for identifying the interrelationship between perception and cognition. Hollan and Edwin [45] proposed distributed cognition as a new scope for exploring HCI as well as suggesting some new opportunities [16]. From the aforementioned studies, it has been observed that perception and cognitive science provide diverse challenges such as (i) human computer interaction, (ii) information analytics, and (iii) big data analysis. However, recent studies focused on DVA has achieved a great attention for exploring the issues in perception and cognitive science. For example, Green et al., [39] discuss and evaluate various VA methods and show how to bring perception and cognition-based new approaches to visualization design. Their findings show a new human cognition model, which is more precise, productive, and capable to deal with new challenges. William [138] showed a cognitive approach in learning and instruction sectors with visualization. Their findings identified some instructional strategies, visual cognitive process with perception, and absorption of new data. Their analysis explained how visualization and cognitive approach enhanced the instruction and learning strategies.

4.3. Customer Behavior Analysis

Understanding customer behavior is an important aspect of determining the most successful marketing plan and, therefore, quite elemental about providing a marketing strategy [52]. It involves with an individual or an organization, as well as the procedures involved in determining the requisite products, experiences or even ideas that can satisfy customer demands and their effects on consumers’ purchasing pattern. In order to develop a pro-active determination of customer behaviors, organizations blend psychological, social and anthropological aspects of customer behaviors to settle at the most effective approach to customer strategic positioning. For example, Wassouf and Alkhatib [136], introduced a new wave of customer relationship management strategies using big data analysis which described customer behavior and understanding their needs. Kalaivani and Sumathi [57] proposed a factor based analysis model named FBPCA (factor based principal component analysis) which forecasted customer behavior. They proved that their proposed factor based model provides the best accuracy to the existing models. Although existing studies focused on traditional visualization techniques, it has been observed that, DVA for customer relationship management turned into a significant sector where various models applied to analyze customer’s social data and solved diverse challenges such as (i) vast amounts of dataset, (ii) factor based prediction technique, (iii) progressive data driven approach, and (iv) data mining technique to discover patterns. To address these issues, Khade & Anindita [60] applied visualization techniques for performing customer behavior analysis to explore the biggest challenge of identifying hidden information through the vast amount of data. Yaeli and Bak [142] presented mobile indoor location system to analyze customer behavior and described significant challenges by applying visualization technique. They exemplified the insights of customer behaviors and describe how to gain behavioral insight from indoor location data.

4.4. Tourism Management

Tourism is one of the leading sectors which brings tremendous opportunities for enhancing economic growth. It is also one of the significant sources of employment. Several studies have presented the greatest exploration of the tourism management sector, suggest various strategies to enrich the tourism sector more deeply while advanced technology brings the biggest blast in the tourism industry [53]. For example, Li and Huang [73] demonstrated the concept of smart tourism and applying the concept in China’s tourism information services which strengthen their tourism sector. Vu and Gang [129] proposed pattern mining technique which is introduced to discover profitable travel patterns. Miah and Gammack [87] demonstrated a method for analyzing vast amounts of unstructured tourists’ data, enhancing the existing strategies and exploring the tourism sector more profoundly. However, from the aforementioned studies it has been observed that advanced technology makes the travel industry area more effective, upgrade efficiency just as intelligently dealt with.

In recent years, DVA escalating the field of tourism sector which has a greatest impact in our economic growth. For example, Cheng and Edwards [17] examineda vast amount of tourism related social media data by applying a comprehensive VA approach, especially in China. Their research analysis has focused on data visualization for representing data rather than any analytical process. Furthermore, Qin et al. [104] proposed efficient approaches for data visualization and given visualization specification, which then produce visualizations with the primary target to be efficient and scalable at an interactive speed. Hang and Chun [14] analyzed hotel reviews using advanced technologies such as VA and deep learning based natural language processing. Their visualization results can improve the performance of the proposed demonstration and provide insights into response strategies, which show the greatest contribution in the tourism sector.

4.5. Fintech Ecosystem

Fintech is a set of technological solutions that start with digital payments for e-commerce and online transactions [62]. The term Fintech (Financial Technology) refers to the revolution in financial services through the use of technology to make financial services more effective in the following areas, such as banking, insurance, or capital markets [93,111]. Fintech turns the financial sectors into an emerging field. As per industry report, interests in the Fintech area raised with a more noteworthy reach, for example, more than USD 50 billion have been globally invested in Fintech firms since 2010 [119].

Several researchers have explored the theoretical knowledge of the Fintech ecosystem and mitigate diverse challenges that are faced when exploring this field. For example, Varga [125] introduced a new opportunities in financial services and explained how VA serves better innovation in the financial sector. Muthukannan and Priyadharshini [92] characterized fintech as heterogeneous, non-liner, dynamic and complex. Lee & Shin [69] introduced the historical view of the fintech ecosystem and discussed the challenges. They also developed a high-level architectural view of this sector. Moreover, Mamonov and Stanislav [85] provided a forecasting IT enabled value propositions across the Fintech startups. They analyzed VA plays a significant role to flourish the financial service market more prominently.

Although several traditional methods have explored the field of fintech ecosystem, DVA systems have explored more. Several researchers have provided their efforts by exploring DVA in Fintech ecosystem. For example, Basole and Patel [6] provided various insights into the structure of the fintech ecosystem using data driven visualization techniques. Their visualizations and analyses use a static perspective and proposed accurate insights by using both “updated” data sets and interactive visualizations. In an another works, they proposed an interactive tool which is useful to analyze inter-firm relationships in business ecosystems. They acknowledged DVA is an effective way to portray the complex inter-firm relationships.

4.6. Healthcare Analysis

Healthcare analysis is important to improve in patient care quality, where clinical data, diagnosis, and business management are all examined in existing research. It offers a mix of financial and administrative details, as well as information that can help with patient care, better services, and process improvements. When paired with business intelligence suites and data visualisation software, health-care analysis allows managers to work more efficiently by delivering real-time data to support decisions and provide actionable insights. For example, in 2018, Beam & Kohane [7] described an algorithmic model that provides a patient potential solution with evaluating the patient’s personal history, family details, genomics sequences, medications, activity on social media and many more. In 2017, Bhardwaj & Nambiar et al. [8] tried to figure out the first step in this industry and have helped to facilitate the transition to patient and evidence-orientated care by using ML and big data analysis. In 2019, Arwinder Dhillon & Ashima Singh et al. [27] showed how to use ML models to analyse different statistical techniques and advanced algorithms to more accurately predict the outcomes of healthcare data.

However, several recent studies focused on visualization technique for exploring the field of healthcare analysis [3,21,130]. For example, in 2016, Gotz et al. [37] reviews several visualization challenges unique to the healthcare discipline by enabling systems that promise to use ever-improving data-driven evidence help doctors to make more precise diagnoses, institutions identify at-risk patients for intervention, clinicians develop more personalized treatment plans. In 2013, Shneiderman & Plaisant et al. [116] explain a video demonstrating to aid medical professionals in analysing millions of patient records by creating EventFlow, a powerful data visualisation tool. In 2017, Darwish et al. [22] provided a state-of-the-art and distance analysis of different levels integration elements, reviewing various current CloudIoT-Health proposals.

4.7. Natural Language Interfaces

Natural language interfaces (NLIs) are considering as a promising way for analyzing data with visualization [95]. It is gaining popularity because it helps to improve the usability of visualization systems. These interfaces respond to user queries by either creating a new visualization and/or by highlighting answers within an existing VIS. Existing studies have provided several NLIs based VIS that use well structured commands to specify visualization. For example, NLIs based VIS such as articulate [123], ConveRSE [48] that supports people to explore how NL affects in the incorporating of digital assistants and recommendation system. DataTone [33] uses to manage ambiguity to let people specify visual response through NL queries and to develop the useful NLIs for data visualization. FlowSense [145] allows user to write query and visualization components to specify system functionality. However, it has been observed that recent study on NLIs with deep learning based VIS provide more opportunity to ask questions in generating the desired visualizations. For example, Lin et al. [79] and Han et al. [114] explored and visualized attentions by annotating on the sentences. Park et al. [98] presented SANVis, a DVA system, to understand the attention mechanism of transformer in NLP scenarios.

4.8. Recommended System

The recommendation system deals with a vast amount of data, used for filtering the most significant information which collected from the user preference, interest, and other factors. Nowadays most recommended systems (RS) are utilized for solving massive dataset problems in multiple areas such as e-commerce, entertainment, and social media [36,140]. In addition, RS serve as a critical tool for enhancing user experience and promoting services for online platforms. For example, Davidson [24] explored that 80% of movies watched on Netflix came from user recommendations, while 60% of video clicks on YouTube came from page recommendations. Zhang and Shuai [156] explored recent research efforts on DL-based RS and stated that DL-based RS is flourishing day by day. Da’u and Salim [23], review DL-based RS to analyze existing research works and provide the exploited DL models.

5. CHALLENGES

Visual analytics (VA) is an application oriented discipline where DL techniques have built significant advancements and its research venues being in the limelight. From the existing studies, it is observed that with the acute development of DVA, many complex problems have been solved in the application of perception and cognitive science, information management, tourism sector, statistical analysis, knowledge discovery, financial analysis and medical sector. Additionally, DVA can be assessed based on their final outputs without the understanding of how they get to these decisions. However, several application domains are practically untouched by DVA because of their challenging nature or the lack of data availability. Therefore, in the following, we outline key insights into their challenges for doing future research using DVA.

•
Data scalability: The list of popular dataset is provided in Table 4. From the existing study it is observed that exploration of vast and complex data sets are becoming increasingly difficult due to the explosion of data. However, there is an increasing mismatch between data size/complexity and humans’ capacity to explore and interact with it, making scalability a key DVA challenge.
•
Human computer interactions: According to current research, developing a VISinteractive Visual interface is important that reduces the gap between the human’s cognitive model of what they want to achieve and the computer’s understanding of the human’s task.
•
Evaluation: Human information discourse constitutes a challenge for evaluating the utility, effectiveness, and trustworthiness of DVA applications. During the analysis process, data uncertainty may arise which mislead decision making and analysis results. This is the most significant evaluation criteria.
•
Unstructured and unlabeled data: Unstructured and unlabeled data from heterogeneous sources reduce the accuracy, causes data loss and generates wrong patterns.
•
Unexpected pattern: Uncertain and misleading data are responsible for generating unexpected patterns which diminish the outcome’s accuracy.

Data-set	Problem tackled	No. of instances	No. of classes	References
Flickr YFCC 100M	Tourism management	35,356 photos and 103 scenes	10	Zhang et al. (2019) [154]
TripAdvisor	Tourism management	113,685 review and response	2	Chang et al. (2020) [14]
ClustMe	Computer perception	1437	6	Aupetit et al. (2019) [5]
EHR	Healthcare analysis	2216	6	Li et al. (2020) [72]
TripAdvisor	Tourism management	91,051 reviews and 70,397 responses	3	Ku et al. (2019) [64]
HIRA-NPS	Healthcare analysis	1400000	10	Kwon et al. (2018) [66]
CAN	Tourism management	12958 frames	2	Liu et al. (2017) [76]
IMDB movies	Recommendation system	3201 records	15	Wongsuphasawat et al. (2015) [139]
Bird strikes	Recommendation system	10,000 records	14	Wongsuphasawat et al. (2015) [139]
FlyDelay	Recommendation system	99527	6	Luo et al. (2018) [83]
NIST 2004	Neural Machine Translation	1.25M pairs sentences (Chinese & English)	27.93M & 34.51M	Ding et al. (2017) [29]
Leo Tolstoy’s War and Peace	Visualizing RNN	300,000 characters	WP-87, LK-101	Karpathy et al. (2015) [58]
COBRA	Visualizing DNN	100 HIV patients & 70 individuals	3D	Zintgraf et al. (2017) [157]
ImageNet	Visual Recognition Challenge	14 million images	20,000	Deng et al. (2009) [25]
ILSVRC-2012	Visualizing CNN	1,000 classes	512	Oquab et al. (2014) [97]
Cora (Network dataset)	Visualizing GAT	2708 nodes & 5429 edges	7	Velickovic et al. (2017) [126]
Citeseer (Network dataset)	Visualizing GAT	3327 nodes & 4732 edges	6	Velickovic et al. (2017) [126]
Pubmed (Network dataset)	Visualizing GAT	19717 nodes & 44338 edges	3	Velickovic et al. (2017) [126]
PPI (Interaction dataset)	Visualizing GAT	24 graphs	3	Velickovic et al. (2017) [126]

Table 4

List of popular data sets

6. FUTURE DIRECTIONS

In this article, various existing key efforts have been carried out related to the use of DVA from different perspectives. However, there are still enough spaces that need to be discussed. Therefore, several potential future research directions are summarised as follows:

•
Explainable visualization system: Explainable visualisation has pushed the state-of-the-art in deep learning to new heights, and humans now rely on explainable visualisation techniques more than ever before. DVA has had a significant influence on a number of long-standing issues, such as computer vision, speech recognition and synthesis, and NLP. As humans rely on explainable VA, it will be able to interpret their decisions and control over their internal processes for various high-impact tasks.
•
Adverse behavior identification: Adverse behavior identification, the process of understanding and monitoring with the help of interactive visualization, is very important for business authority to solve real-world problem. Many researchers have applied pattern mining techniques in diverse sectors and achieved the expected outcome [49]. However, with the advanced development of DVA, exploring and visualizing adverse behavior will give more adequacy, especially in data analysis. To advance pattern exploration, we need to involve advanced technique for exploring adverse behavior of users. Thus, DVA can explore the erroneous behavior, particularly in tourism and customer behavior analysis sector.
•
Visual sentiment analysis: Sentiments are emotions and feelings that are sometimes expressed through opinions, likes & dislikes, and symbols. It can be expressed through text, images, audio, and videos. Several researches have done for analysis of sentiments, however, not much work is carried out pertaining to visual sentiment analysis. Additionally, lot of traditional techniques such as CNN, RNN, SVM, RF, PCA etc. are applied for solving various issues and challenges encountered in sentiment analysis, very few works have done using DVA. Thus, advanced development of DVA has numerous advantages which can play a significant role in analysing sentiments from visual data.
•
Risk management: Overseeing and communicating risks have become crucial tasks, when analysing numerous data-sets. Visualizing several risk factors could help to accurately predict data and control the cascade of false data. Moreover, DVA has demonstrated to be very effective and promising, which can play a significant role in assessing risks and identify fraud activities. With the advanced development of DVA, we would be able to contemplate the impact of various risks, interventions and correction techniques on a large scale, to better understand their impact on numerous sectors.
•
Multi-task learning: In many DL tasks, from computer vision to NLP, multi-task learning have seen very good progress. In recent years, several researchers have applied multi-task learning to visualise data with DN framework and found that it outperforms over single task learning. The benefits of using DNN-based multi-task learning are threefold: (1) learning several tasks at once prevents overfitting by generalising hidden representations; (2) auxiliary task provides interpretable performance for explaining the visualization outcomes; (3) multi-task provides implicit data augmentation to alleviate the sparsity problem. Thus, we can use multitask learning for cross domain recommendation in addition to adding side tasks.
•
Miscellaneous applications: This article surveys the several state-of-the-art techniques in DVA. In addition, to handle various challenges in the applications described in the previous section, DVA are briefly discussed. However, there are several miscellaneous applications as shown in Figure 4 that need to be address by DVA.

7. CONCLUSION

Designing and implementing a novel VIS based on DVA is a fast-growing field of research combining strengths from scientific analytics, visual analytics, statistical analytics, information and knowledge discovery, and data management etc. In this paper, we have investigated the existing works on DVA towards the following key dimensions: (i) big data analysis, (ii) cognitive and perception science, (iii) customer behavior analysis, (iv) natural language processing, (v) recommended system, (vi) healthcare analysis, (vii) fintech ecosystem, and (viii) tourism management. We have investigated the limitations of these works and identified the open research challenges in all eight dimensions. Also, we have proposed several research dimensions focused on DVA. We believe this study will help to enhance the current landscape of DVA development to target the various problems.

In summary, by reviewing related research in different application, this study has drawn a complete figure of DVA in order to coordinate future exploration. The state-of-the-art DL techniques and implementations of VIS in various application can solve any issues between the challenges of discovering information in broad and complex data sets.

CONFLICTS OF INTEREST

The authors declare that they have no conflicts of interest.

AUTHORS’ CONTRIBUTION

All authors are equally contributed to write, edit and revise the manuscript.

Footnotes

Peer review under responsibility of KEO (Henan) Education Technology Co. Ltd

REFERENCES

[1]RA Leite, T Gschwandtner, S Miksch, E Gstrein, and J Kuntner, NEVA: visual analytics to identify fraudulent networks, Computer Graphics Forum, Vol. 39, 2020, pp. 344-359.

[2]M Abadi, A Agarwal, P Barham, E Brevdo, Z Chen, C Citro, et al., Tensorflow: large-scale machine learning on heterogeneous distributed systems, 2016. arXiv preprint arXiv: 1603.04467,

[3]SS Abdullah, N Rostamzadeh, K Sedig, AX Garg, and E McArthur, Multiple regression analysis and frequent itemset mining of electronic medical records: a visual analytics approach using VISA_M3R3, Data, Vol. 5, 2020, pp. 33.

[4]H Arnout, J Kehrer, J Bronner, and T Runkler, Visual evaluation of generative adversarial networks for time series data, 2019. arXiv preprint arXiv: 2001.00062,

[5]M Aupetit, M Sedlmair, MM Abbas, A Baggag, and H Bensmail, Toward perception-based evaluation of clustering techniques for visual analytics, IEEE, in 2019 IEEE Visualization Conference (VIS) (Vancouver, BC, Canada, 2019), pp. 141-145.

[6]RC Basole and SS Patel, Transformation through unbundling: visualizing the global finTech ecosystem, Service Science, Vol. 10, 2018, pp. 379-396.

[7]AL Beam and IS Kohane, Big data and machine learning in health care, JAMA, Vol. 319, 2018, pp. 1317-1318.

[8]R Bhardwaj, AR Nambiar, and D Dutta, A study of machine learning in healthcare, IEEE, in 2017 IEEE 41st Annual Computer Software and Applications Conference (COMPSAC) (Turin, Italy, 2017), pp. 236-241.

[9]A Bilal, A Jourabloo, M Ye, X Liu, and L Ren, Do convolutional neural networks learn class hierarchy?, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2017, pp. 152-162.

[10]R Bro and AK Smilde, Principal component analysis, Analytical methods, Vol. 6, 2014, pp. 2812-2831.

[11]JJ Caban and D Gotz, Visual analytics in healthcare – opportunities and research challenges, J. Am. Med. Inform. Assoc., Vol. 22, 2015, pp. 260-262.

[12]D Cashman, G Patterson, A Mosca, N Watts, S Robinson, and R Chang, RNNbow: visualizing learning via backpropagation gradients in RNNs, IEEE Computer Graphics and Applications, Vol. 38, 2018, pp. 39-50.

[13]J Chae, S Gao, A Ramanathan, CA Steed, and G Tourassi, Visualization for classification in deep neural networks, Oak Ridge National Lab (ORNL), Oak Ridge, TN, USA, 2017. Technical Report

[14]YC Chang, CH Ku, and CH Chen, Using deep learning and visual analytics to explore hotel reviews and responses, Tourism Management, Vol. 80, 2020. 104129.

[15]H Chen, H Li, Y Fang, and Y Chen, Anisotropic parallel coordinates with adjustment based on distribution features, Journal of Visualization, Vol. 19, 2016, pp. 327-335.

[16]Y Chen, JE Argentinis, and G Weber, IBM watson: how cognitive computing can be applied to big data challenges in life sciences research, Clinical Therapeutics, Vol. 38, 2016, pp. 688-701.

[17]M Cheng and D Edwards, Social media in tourism: a visual analytic approach, Current Issues in Tourism, Vol. 18, 2015, pp. 1080-1087.

[18]K Cho, B Van Merriënboer, C Gulcehre, D Bahdanau, F Bougares, H Schwenk, et al., Learning phrase representations using RNN encoder-decoder for statistical machine translation, 2014. arXiv preprint arXiv: 1406.1078,

[19]J Choo and S Liu, Visual analytics for explainable deep learning, IEEE Computer Graphics and Applications, Vol. 38, 2018, pp. 84-92.

[20]S Chung, S Suh, C Park, K Kang, J Choo, and BC Kwon, ReVACNN: Real-time visual analytics for convolutional neural network, in ACM SIGKDD Workshop on Interactive Data Exploration and Analytics (IDEA) (San Francisco, USA, 2016), pp. 7.

[21]Y Chung, N Bagheri, JA Salinas-Perez, K Smurthwaite, E Walsh, MA Furst, et al., Role of visual analytics in supporting mental healthcare systems research and policy: a systematic scoping review, International Journal of Information Management, Vol. 50, 2020, pp. 17-27.

[22]A Darwish, AE Hassanien, M Elhoseny, AK Sangaiah, and K Muhammad, The impact of the hybrid platform of internet of things and cloud computing on healthcare systems: opportunities, challenges, and open problems, Journal of Ambient Intelligence and Humanized Computing, Vol. 10, 2019, pp. 4151-4166.

[23]A Da’u and N Salim, Recommendation system based on deep learning methods: a systematic review and new directions, Artificial Intelligence Review, Vol. 53, 2019, pp. 2709-2748.

[24]J Davidson, B Liebald, J Liu, P Nandy, T Van Vleet, U Gargi, et al., The YouTube video recommendation system, Proceedings of the fourth ACM Conference on Recommender Systems, 2010, pp. 293-296.

[25]J Deng, W Dong, R Socher, LJ Li, K Li, and L Fei-Fei, Imagenet: a large-scale hierarchical image database, IEEE, in 2009 IEEE Conference on Computer Vision and Pattern Recognition (Miami, FL, USA, 2009), pp. 248-255.

[26]Z Deng, D Weng, J Chen, R Liu, Z Wang, J Bao, et al., AirVis: visual analytics of air pollution propagation, IEEE Transactions on Visualization and Computer Graphics, Vol. 26, 2019, pp. 800-810.

[27]A Dhillon and A Singh, Machine learning in healthcare data analysis: a survey, Journal of Biology and Today’s World, Vol. 8, 2019, pp. 1-10.

[28]V Dibia and Ç Demiralp, Data2Vis: automatic generation of data visualizations using sequence-to-sequence recurrent neural networks, IEEE Computer Graphics and Applications, Vol. 39, 2019, pp. 33-46.

[29]Y Ding, Y Liu, H Luan, and M Sun, Visualizing and understanding neural machine translation, Association for Computational Linguistics, in Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers) (Vancouver, Canada, 2017), pp. 1150-1159.

[30]S Dong, P Wang, and K Abbas, A survey on deep learning and its applications, Computer Science Review, Vol. 40, 2021. 100379.

[31]N Elmqvist, P Dragicevic, and JD Fekete, Rolling the dice: multidimensional visual exploration using scatterplot matrix navigation, IEEE transactions on Visualization and Computer Graphics, Vol. 14, 2008, pp. 1539-1148.

[32]J Evermann, JR Rehse, and P Fettke, Predicting process behaviour using deep learning, Decision Support Systems, Vol. 100, 2017, pp. 129-140.

[33]T Gao, M Dontcheva, E Adar, Z Liu, and KG Karahalios, Datatone: managing ambiguity in natural language interfaces for data visualization, ACM, in Proceedings of the 28th Annual ACM Symposium on User Interface Software & Technology (New York, NY, United States, 2015), pp. 489-500.

[34]R Garcia, AC Telea, BC da Silva, J Tørresen, and JLD Comba, A task-and-technique centered survey on visual analytics for deep learning model engineering, Computers & Graphics, Vol. 77, 2018, pp. 30-49.

[35]HG Caballero, M Westenberg, B Gebre, and J van Wijk, V-awake: a visual analytics approach for correcting sleep predictions from deep learning models, Computer Graphics Forum, Vol. 38, 2019, pp. 1-12.

[36]CA Gomez-Uribe and N Hunt, The netflix recommender system: algorithms, business value, and innovation, ACM Transactions on Management Information Systems, Vol. 6, 2015, pp. 1-19.

[37]D Gotz and D Borland, Data-driven healthcare: challenges and opportunities for interactive visualization, IEEE Computer Graphics and Applications, Vol. 36, 2016, pp. 90-96.

[38]L Gou, L Zou, N Li, M Hofmann, AK Shekar, A Wendt, et al., VATLD: a Visual Analytics system to assess, understand and improve Traffic Light Detection, IEEE Transactions on Visualization and Computer Graphics, Vol. 27, 2020, pp. 261-271.

[39]TM Green, W Ribarsky, and B Fisher, Visual analytics for complex concepts using a human cognition model, IEEE, in 2008 IEEE Symposium on Visual Analytics Science and Technology (Columbus, OH, USA, 2008), pp. 91-98.

[40]A Hajnayeb, A Ghasemloonia, SE Khadem, and MH Moradi, Application and comparison of an ANN-based feature selection method and the genetic algorithm in gearbox fault diagnosis, Expert Systems with Applications, Vol. 38, 2011, pp. 10205-10209.

[41]A Hinterreiter, P Ruch, H Stitz, M Ennemoser, J Bernard, H Strobelt, et al., ConfusionFlow: a model-agnostic visualization for temporal analysis of classifier confusion, IEEE Transactions on Visualization and Computer Graphics, 2020.

[42]F Hohman, M Kahng, R Pienta, and DH Chau, Visual analytics in deep learning: an interrogative survey for the next frontiers, IEEE Transactions on Visualization and Computer Graphics, Vol. 25, 2018, pp. 2674-2693.

[43]F Hohman, H Park, C Robinson, and DHP Chau, SUMMIT: scaling deep learning interpretability by visualizing activation and attribution summarizations, IEEE Transactions on Visualization and Computer Graphics, Vol. 26, 2019, pp. 1096-1106.

[44]F Hohman, K Wongsuphasawat, MB Kery, and K Patel, Understanding and visualizing data iteration in machine learning, ACM, in Proceedings of the 2020 CHI Conference on Human Factors in Computing Systems (New York, NY, United States, 2020), pp. 1-13.

[45]J Hollan, E Hutchins, and D Kirsh, Distributed cognition: toward a new foundation for human-computer interaction research, ACM Transactions on Computer-Human Interaction, Vol. 7, 2000, pp. 174-196.

[46]K Hu, MA Bakker, S Li, T Kraska, and C Hidalgo, VizML: a machine learning approach to visualization recommendation, in Proceedings of the 2019 CHI Conference on Human Factors in Computing Systems (Glasgow, Scotland, UK, 2019), pp. 1-12.

[47]S Ingram, T Munzner, and M Olano, Glimmer: multilevel MDS on the GPU, IEEE Transactions on Visualization and Computer Graphics, Vol. 15, 2008, pp. 249-261.

[48]A Iovine, F Narducci, and G Semeraro, Conversational recommender systems and natural language: a study through the converse framework, Decision Support Systems, Vol. 131, 2020. 113250.

[49]MR Islam, S Liu, R Biddle, I Razzak, X Wang, P Tilocca, et al., Discovering dynamic adverse behavior of policyholders in the life insurance industry, Technological Forecasting and Social Change, Vol. 163, 2021. 120486.

[50]MR Islam, S Liu, I Razzak, MA Kabir, X Wang, and G Xu, MHIVis: visual analytics for exploring mental illness of policyholders in life insurance industry, IEEE, in 2020 7th International Conference on Behavioral, Economic, and Socio-Cultural Computing (BESC) (Bournemouth, United Kingdom, 2020), pp. 1-4.

[51]MR Islam, S Liu, X Wang, and G Xu, Deep learning for misinformation detection on online social networks: a survey and new perspectives, Social Network Analysis and Mining, Vol. 10, 2020, pp. 82.

[52]MR Islam, I Razzak, X Wang, P Tilocca, and G Xu, UCBVis: understanding customer behavior sequences with visual interactive system, IEEE, in 2021 International Joint Conference on Neural Networks (IJCNN) (China, 2021).

[53]MT Islam, MR Islam, S Akter, and M Kawser, Designing dashboard for exploring tourist hotspots in Bangladesh, IEEE, in 2020 23rd International Conference on Computer and Information Technology (ICCIT) (Dhaka, Bangladesh, 2020), pp. 1-6.

[54]Z Jin, Y Wang, Q Wang, Y Ming, T Ma, and H Qu, GNNVis: a visual analytics approach for prediction error diagnosis of graph neural networks, 2020. arXiv preprint arXiv: 2011.11048,

[55]M Kahng, PY Andrews, A Kalro, and DH Chau, ActiVis: visual exploration of industry-scale deep neural network models, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2017, pp. 88-97.

[56]M Kahng, N Thorat, DH Chau, FB Viégas, and M Wattenberg, GAN Lab: understanding complex deep generative models using interactive visual experimentation, IEEE Transactions on Visualization and Computer Graphics, Vol. 25, 2018, pp. 310-320.

[57]D Kalaivani and P Sumathi, Factor based prediction model for customer behavior analysis, International Journal of System Assurance Engineering and Management, Vol. 10, 2019, pp. 519-524.

[58]A Karpathy, J Johnson, and L Fei-Fei, Visualizing and understanding recurrent networks, 2015. arXiv preprint arXiv: 1506.02078,

[59]D Keim, G Andrienko, JD Fekete, C Görg, J Kohlhammer, and G Melançon, Visual analytics: definition, process, and challenges, A Kerren, JT Stasko, JD Fekete, and C North (editors), Information visualization, Springer, Berlin, Heidelberg, 2008, pp. 154-175.

[60]AA Khade, Performing customer behavior analysis using big data analytics, Procedia Computer Science, Vol. 79, 2016, pp. 986-992.

[61]TN Kipf and M Welling, Semi-supervised classification with graph convolutional networks, 2016. arXiv preprint arXiv: 1609.02907,

[62]S Ko, I Cho, S Afzal, C Yau, J Chae, A Malik, et al., A survey on visual analysis approaches for financial data, Computer Graphics Forum, Vol. 35, 2016, pp. 599-617.

[63]IV Krak, OV Barmak, and E Manziuk, Visual analytics to build a machine learning model, Research Advancements in Smart Technology, Optimization, and Renewable Energy, IGI Global, Hershey, Pennsylvania, 2021, pp. 313-329.

[64]CH Ku, YC Chang, Y Wang, CH Chen, and SH Hsiao, Artificial intelligence and visual analytics: a deep-learning approach to analyze hotel reviews & responses, in Proceedings of the 52nd Hawaii International Conference on System Sciences (Maui, Hawaii, USA, 2019).

[65]T Kulesza, M Burnett, WK Wong, and S Stumpf, Principles of explanatory debugging to personalize interactive machine learning, ACM, in Proceedings of the 20th International Conference on Intelligent User Interfaces (New York, NY, United States, 2015), pp. 126-137.

[66]BC Kwon, MJ Choi, JT Kim, E Choi, YB Kim, S Kwon, J Sun, and J Choo, RetainVis: visual analytics with interpretable and interactive recurrent neural networks on electronic medical records, IEEE Transactions on Visualization and Computer Graphics, Vol. 25, 2018, pp. 299-309.

[67]OH Kwon and KL Ma, A deep generative model for graph layout, IEEE Transactions on Visualization and Computer Graphics, Vol. 26, 2019, pp. 665-675.

[68]C Lee, Y Kim, S Jin, D Kim, R Maciejewski, D Ebert, et al., A visual analytics system for exploring, monitoring, and forecasting road traffic congestion, IEEE Transactions on Visualization and Computer Graphics, Vol. 26, 2020, pp. 3133-3146.

[69]I Lee and YJ Shin, Fintech: ecosystem, business models, investment decisions, and challenges, Business Horizons, Vol. 61, 2018, pp. 35-46.

[70]RA Leite, T Gschwandtner, S Miksch, S Kriglstein, M Pohl, E Gstrein, et al., EVA: visual analytics to identify fraudulent events, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2017, pp. 330-339.

[71]H Li, Y Tian, K Mueller, and X Chen, Beyond saliency: understanding convolutional neural networks from saliency prediction on layer– wise relevance propagation, Image and Vision Computing, Vol. 83, 2019, pp. 70-86.

[72]R Li, C Yin, S Yang, B Qian, and P Zhang, Marrying medical domain knowledge with deep learning on electronic health records: a deep visual analytics approach, Journal of Medical Internet Research, Vol. 22, 2020. e20645.

[73]Y Li, C Hu, C Huang, and L Duan, The concept of smart tourism in the context of tourism information services, Tourism Management, Vol. 58, 2017, pp. 293-300.

[74]ZC Lipton, The mythos of model interpretability: in machine learning, the concept of interpretability is both important and slippery, Queue, Vol. 16, 2018, pp. 31-57.

[75]F Liu, NL Fella, and K Liao, Modeling language vagueness in privacy policies using deep neural networks, 2018. arXiv preprint arXiv: 1805.10393,

[76]H Liu, T Taniguchi, Y Tanaka, K Takenaka, and T Bando, Visualization of driving behavior based on hidden feature extraction by using deep learning, IEEE Transactions on Intelligent Transportation Systems, Vol. 18, 2017, pp. 2477-2489.

[77]M Liu, J Shi, K Cao, J Zhu, and S Liu, Analyzing the training processes of deep generative models, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2017, pp. 77-87.

[78]M Liu, J Shi, Z Li, C Li, J Zhu, and S Liu, Towards better analysis of deep convolutional neural networks, IEEE Transactions on Visualization and Computer Graphics, Vol. 23, 2016, pp. 91-100.

[79]S Liu, PT Bremer, JJ Thiagarajan, V Srikumar, B Wang, Y Livnat, et al., Visual exploration of semantic relationships in neural word embeddings, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2018, pp. 553-562.

[80]S Liu, D Maljovec, B Wang, PT Bremer, and V Pascucci, Visualizing high-dimensional data: advances in the past decade, IEEE Transactions on Visualization and Computer Graphics, Vol. 23, 2016, pp. 1249-1268.

[81]S Liu, X Wang, M Liu, and J Zhu, Towards better analysis of machine learning models: a visual analytics perspective, Visual Informatics, Vol. 1, 2017, pp. 48-56.

[82]Y Lu, R Garcia, B Hansen, M Gleicher, and R Maciejewski, The state-of-the-art in predictive visual analytics, Computer Graphics Forum, Vol. 36, 2017, pp. 539-562.

[83]Y Luo, X Qin, N Tang, and G Li, DeepEye: towards automatic data visualization, IEEE, in 2018 IEEE 34th international conference on data engineering (ICDE) (Paris, France, 2018), pp. 101-112.

[84]A Mahendran and A Vedaldi, Visualizing deep convolutional neural networks using natural pre-images, International Journal of Computer Vision, Vol. 120, 2016, pp. 233-255.

[85]S Mamonov, The role of information technology in fintech innovation: insights from the european fintech ecosystem, in Proceedings of the 54th Hawaii International Conference on System Sciences (Kauai, Hawaii, USA, 2021), pp. 5036.

[86]A Mandal, A Sinaeepourfard, and SK Naskar, VDA: deep learning based visual data analysis in integrated edge to cloud computing environment, ACM, in Adjunct Proceedings of the 2021 International Conference on Distributed Computing and Networking (New York, NY, United States, 2021), pp. 7-12.

[87]SJ Miah, HQ Vu, J Gammack, and M McGrath, A big data analytics method for tourist behaviour analysis, Information & Management, Vol. 54, 2017, pp. 771-785.

[88]Y Ming, S Cao, R Zhang, Z Li, Y Chen, Y Song, et al., Understanding hidden memories of recurrent neural networks, IEEE, in 2017 IEEE Conference on Visual Analytics Science and Technology (VAST) (Phoenix, AZ, USA, 2017), pp. 13-24.

[89]G Montavon, W Samek, and KR Müller, Methods for interpreting and understanding deep neural networks, Digital Signal Processing, Vol. 73, 2018, pp. 1-15.

[90]A Moran, V Gadepally, M Hubbell, and J Kepner, Improving big data visual analytics with interactive virtual reality, IEEE, in 2015 IEEE high performance extreme computing conference (HPEC) (Waltham, MA, USA, 2015), pp. 1-6.

[91]AA Mubarak, H Cao, W Zhang, and W Zhang, Visual analytics of video-clickstream data and prediction of learners’ performance using deep learning models in MOOCs’ courses, Computer Applications in Engineering Education, Vol. 29, 2020, pp. 710-732.

[92]P Muthukannan, B Tan, D Gozman, and L Johnson, The emergence of a fintech ecosystem: a case study of the vizag fintech valley in India, Information & Management, Vol. 57, 2020. 103385.

[93]YW Ng and H Qu, TrendFocus: visualization of trends in financial news with indicator sets, IEEE, in 2014 International Conference on Big Data and Smart Computing (BIGCOMP) (Bangkok, Thailand, 2014), pp. 7-12.

[94]A Nguyen, J Yosinski, and J Clune, Multifaceted feature visualization: uncovering the different types of features learned by each neuron in deep neural networks, 2016. arXiv preprint arXiv: 1602.03616,

[95]J Obeid and E Hoque, Chart-to-text: generating natural language descriptions for charts by adapting the transformer model, 2020. arXiv preprint arXiv: 2010.09142,

[96]J Oh, X Guo, H Lee, R Lewis, and S Singh, Action-conditional video prediction using deep networks in atari games, 2015. arXiv preprint arXiv: 1507.08750,

[97]M Oquab, L Bottou, I Laptev, and J Sivic, Learning and transferring mid-level image representations using convolutional neural networks, IEEE, in 2014 IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (Columbus, OH, USA, 2014), pp. 1717-1724.

[98]C Park, I Na, Y Jo, S Shin, J Yoo, BC Kwon, et al., SANVis: visual analytics for understanding self-attention networks, IEEE, in 2019 IEEE Visualization Conference (VIS) (Vancouver, BC, Canada, 2019), pp. 146-150.

[99]FV Paulovich, LG Nonato, R Minghim, and H Levkowitz, Least square projection: a fast high-precision multidimensional projection technique and its application to document mapping, IEEE Transactions on Visualization and Computer Graphics, Vol. 14, 2008, pp. 564-575.

[100]AZ Peixinho, BC Benato, LG Nonato, and AX Falcão, Delaunay triangulation data augmentation guided by visual analytics for deep learning, IEEE, in 2018 31st SIBGRAPI Conference on Graphics, Patterns and Images (SIBGRAPI) (Parana, Brazil, 2018), pp. 384-391.

[101]N Pezzotti, T Höllt, J Van Gemert, BPF Lelieveldt, E Eisemann, and A Vilanova, DeepEyes: progressive visual analytics for designing deep neural networks, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2017, pp. 98-108.

[102]MC Potter, Conceptual short term memory in perception and thought, Frontiers in Psychology, Vol. 3, 2012, pp. 113.

[103]X Qian, RA Rossi, F Du, S Kim, E Koh, S Malik, TY Lee, and J Chan, Ml-based visualization recommendation: Learning to recommend visualizations from data, 2020. arXiv preprint arXiv: 2009.12316,

[104]X Qin, Y Luo, N Tang, and G Li, Making data visualization more efficient and effective: a survey, The VLDB Journal, Vol. 29, 2020, pp. 93-117.

[105]PE Rauber, SG Fadel, AX Falcao, and AC Telea, Visualizing the hidden activity of artificial neural networks, IEEE Transactions on Visualization and Computer Graphics, Vol. 23, 2016, pp. 101-110.

[106]X Rong and E Adar, Visual tools for debugging neural language models, in Proceedings of ICML Workshop on Visualization for Deep Learning (New York, USA, 2016).

[107]D Sacha, M Kraus, DA Keim, and M Chen, VIS4ML: an ontology for visual analytics assisted machine learning, IEEE Transactions on Visualization and Computer Graphics, Vol. 25, 2018, pp. 385-395.

[108]D Sacha, M Sedlmair, L Zhang, JA Lee, D Weiskopf, S North, et al., Human-centered machine learning through interactive visualization, Computational Intelligence and Machine Learning, in Proceedings of the 24th European Symposium on Artificial Neural Networks (Bruges, Belgium, 2016).

[109]W Samek, A Binder, G Montavon, S Lapuschkin, and KR Müller, Evaluating the visualization of what a deep neural network has learned, IEEE Transactions on Neural Networks and Learning Systems, Vol. 28, 2016, pp. 2660-2673.

[110]W Samek, T Wiegand, and KR Müller, Explainable artificial intelligence: understanding, visualizing and interpreting deep learning models, 2017. arXiv preprint arXiv: 1708.08296,

[111]P Schueffel, Taming the beast: a scientific definition of fintech, Journal of Innovation Management, Vol. 4, 2016, pp. 32-54.

[112]C Seifert, A Aamir, A Balagopalan, D Jain, A Sharma, S Grottel, et al., Visualizations of deep neural networks in computer vision: a survey, T Cerquitelli, D Quercia, and F Pasquale (editors), Transparent Data Mining for Big and Small Data, Springer, Cham, 2017, pp. 123-144.

[113]Q Shen, Y Wu, Y Jiang, W Zeng, AKH Lau, A Vianova, et al., Visual interpretation of recurrent neural network on multi-dimensional time-series forecast, IEEE, in 2020 IEEE Pacific Visualization Symposium (PacificVis) (Tianjin, China, 2020), pp. 61-70.

[114]H Shi, J Gao, X Ren, H Xu, X Liang, Z Li, and JT Kwok, Sparsebert: rethinking the importance analysis in self-attention, 2021. arXiv preprint arXiv: 2102.12871,

[115]D Shin, S He, GM Lee, AB Whinston, S Cetintas, and KC Lee, Enhancing social media analysis with visual data analytics: a deep learning approach, MIS Quarterly, Vol. 44, 2020, pp. 1459-1492.

[116]B Shneiderman, C Plaisant, and BW Hesse, Improving healthcare with interactive visualization, Computer, Vol. 46, 2013, pp. 58-66.

[117]AF Simpao, L Ahumada, and MA Rehman, Big data and visual analytics in anaesthesia and health care, British Journal of Anaesthesia, Vol. 115, 2015, pp. 350-356.

[118]K Singh and P Best, Anti-money laundering: using data visualization to identify suspicious activity, International Journal of Accounting Information Systems, Vol. 34, 2019. 100418.

[119]J Skan, J Dickerson, and L Gagliardi, Fintech and the evolving landscape: landing points for the industry, Accenture, 2016. available at: https://www.accenture.com/t20160427T053810__w__/us-en/_acnmedia/PDF-15/Accenture-Fintech-Evolving-Landscape.pdf (accessed 15 January, 2017).

[120]COS Sorzano, J Vargas, and AP Montano, A survey of dimensionality reduction techniques, 2014. arXiv preprint arXiv: 1403.2877,

[121]T Spinner, U Schlegel, H Schäfer, and M El-Assady, expIAIner: a visual analytics framework for interactive and explainable machine learning, IEEE Transactions on Visualization and Computer Graphics, Vol. 26, 2019, pp. 1064-1074.

[122]H Strobelt, S Gehrmann, H Pfister, and AM Rush, LSTMVis: a tool for visual analysis of hidden state dynamics in recurrent neural networks, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2017, pp. 667-676.

[123]Y Sun, J Leigh, A Johnson, and S Lee, Articulate: a semi-automated model for translating natural language queries into meaningful visualizations, Springer, in International Symposium on Smart Graphics (Berlin, Heidelberg, 2010), pp. 184-195.

[124]I Sutskever, O Vinyals, and QV Le, Sequence to sequence learning with neural networks, 2014. arXiv preprint arXiv: 1409.3215,

[125]D Varga, Fintech, the new era of financial services, Vezetéstudomány-Budapest Management Review, Vol. 48, 2017, pp. 22-32.

[126]P Veličković, G Cucurull, A Casanova, A Romero, P Lio, and Y Bengio, Graph attention networks, 2017. arXiv preprint arXiv: 1710.10903,

[127]A Vellido, The importance of interpretability and visualization in machine learning for applications in medicine and health care, Neural Computing and Applications, Vol. 32, 2019, pp. 18069-18083.

[128]T von Landesberger, S Bremm, M Kirschner, S Wesarg, and A Kuijper, Visual analytics for model-based medical image segmentation: opportunities and challenges, Expert Systems with Applications, Vol. 40, 2013, pp. 4934-4943.

[129]HQ Vu, G Li, and R Law, Discovering highly profitable travel patterns by high-utility pattern mining, Tourism Management, Vol. 77, 2020. 104008.

[130]EI Walsh, Y Chung, N Cherbuin, and L Salvador-Carulla, Experts’ perceptions on the use of visual analytics for complex mental healthcare planning: an exploratory study, BMC Medical Research Methodology, Vol. 20, 2020, pp. 110.

[131]J Wang, Interpreting and diagnosing deep learning models: a visual analytics approach, The Ohio State University, Columbus, Ohio, 2019. Ph.D. Thesis.

[132]J Wang, L Gou, HW Shen, and H Yang, DQNViz: a visual analytics approach to understand deep Q-networks, IEEE Transactions on Visualization and Computer Graphics, Vol. 25, 2018, pp. 288-298.

[133]J Wang, L Gou, H Yang, and HW Shen, GANViz: a visual analytics approach to understand the adversarial game, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2018, pp. 1905-1917.

[134]J Wang, W Zhang, and H Yang, SCANViz: interpreting the symbol-concept association captured by deep neural networks through visual analytics, IEEE, in 2020 IEEE Pacific Visualization Symposium (PacificVis) (Tianjin, China, 2020), pp. 51-60.

[135]ZJ Wang, R Turko, and DH Chau, Dodrio: exploring transformer models with interactive visualization, 2021. arXiv preprint arXiv: 2103.14625,

[136]WN Wassouf, R Alkhatib, K Salloum, and S Balloul, Predictive analytics using big data for increased customer loyalty: syriatel telecom company case study, Journal of Big Data, Vol. 7, 2020, pp. 29.

[137]G Wills and L Wilkinson, AutoVis: automatic visualization, Information Visualization, Vol. 9, 2010, pp. 47-69.

[138]W Winn, Visualization in learning and instruction: a cognitive approach, Educational Communication and Technology Journal, Vol. 30, 1982, pp. 3-25.

[139]K Wongsuphasawat, D Moritz, A Anand, J Mackinlay, B Howe, and J Heer, Voyager: exploratory analysis via faceted browsing of visualization recommendations, IEEE Transactions on Visualization and Computer Graphics, Vol. 22, 2015, pp. 649-658.

[140]K Wongsuphasawat, D Moritz, A Anand, J Mackinlay, B Howe, and J Heer, Towards a general-purpose query language for visualization recommendation, Proceedings of the Workshop on Human-In-the-Loop Data Analytics, California, San Francisco, New York, NY, United States, 2016, pp. 1-6.

[141]K Wongsuphasawat, D Smilkov, J Wexler, J Wilson, D Mané, D Fritz, et al., Visualizing dataflow graphs of deep learning models in tensorflow, IEEE Transactions on Visualization and Computer Graphics, Vol. 24, 2017, pp. 1-12.

[142]A Yaeli, P Bak, G Feigenblat, S Nadler, H Roitman, G Saadoun, et al., Understanding customer behavior using indoor location analysis and visualization, IBM Journal of Research and Development, Vol. 58, 2014, pp. 3:1-3:12.

[143]Y Yang and T Chen, Analysis and visualization implementation of medical big data resource sharing mechanism based on deep learning, IEEE Access, Vol. 7, 2019, pp. 156077-156088.

[144]J Yosinski, J Clune, A Nguyen, T Fuchs, and H Lipson, Understanding neural networks through deep visualization, 2015. arXiv preprint arXiv: 1506.06579,

[145]B Yu and CT Silva, FlowSense: a natural language interface for visual data exploration within a dataflow system, IEEE Transactions on Visualization and Computer Graphics, Vol. 26, 2019, pp. 1-11.

[146]X Yue, Financial intelligence and strategy extraction via visual analysis approaches, The Hong Kong University of Science and Technology, Hong Kong, 2019. Ph.D. Thesis,

[147]X Yue, X Shu, X Zhu, X Du, Z Yu, D Papadopoulos, et al., BiTexTract: interactive visualization for extracting bitcoin exchange intelligence, IEEE Transactions on Visualization and Computer Graphics, Vol. 25, 2018, pp. 162-171.

[148]MD Zeiler and R Fergus, Visualizing and understanding convolutional networks, Springer, in European Conference on Computer Vision (Cham, 2014), pp. 818-833.

[149]H Zeng, Towards better understanding of deep learning with visualization, The Hong Kong University of Science and Technology, Hong Kong, 2016.

[150]H Zeng, H Haleem, X Plantaz, N Cao, and H Qu, CNNcomparator: comparative analytics of convolutional neural networks, 2017. arXiv preprint arXiv: 1710.05285,

[151]W Zeng, C Lin, J Lin, J Jiang, J Xia, C Turkay, et al., Revisiting the modifiable areal unit problem in deep traffic prediction with visual analytics, IEEE Transactions on Visualization and Computer Graphics, Vol. 27, 2020, pp. 839-848.

[152]J Zerafa, MR Islam, MA Kabir, and G Xu, ExTraVis: exploration of traffic incidents using a visual interactive system, IEEE, in 2021 The 25th International Conference on Information Visualisation (IV) (Sydney, Australia, 2021).

[153]C Zhang, Qw Gong, and K Koyamada, Visual analytics and prediction system based on deep belief networks for icing monitoring data of overhead power transmission lines, Journal of Visualization, Vol. 23, 2020, pp. 1087-1100.

[154]K Zhang, Y Chen, and C Li, Discovering the tourists’ behaviors and perceptions in a tourism destination by analyzing photos’ visual content with a computer deep learning model: the case of Beijing, Tourism Management, Vol. 75, 2019, pp. 595-608.

[155]S Zhang and D Metaxas, Large-scale medical image analytics: recent methodologies, applications and future directions, Vol. 33, 2016, pp. 98-101.

[156]S Zhang, L Yao, A Sun, and Y Tay, Deep learning based recommender system: A survey and new perspectives, ACM Computing Surveys (CSUR), Vol. 52, 2019, pp. 1-38.

[157]LM Zintgraf, TS Cohen, T Adel, and M Welling, Visualizing deep neural network decisions: Prediction difference analysis, 2017. arXiv preprint arXiv: 1702.04595,

[158]LM Zintgraf, TS Cohen, and M Welling, A new method to visualize deep neural networks, 2016. arXiv preprint arXiv: 1603.02518,

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Journal: Human-Centric Intelligent Systems
Volume-Issue: 1 - 1-2
Pages: 3 - 17
Publication Date: 2021/07/22
ISSN (Online): 2667-1336
DOI: 10.2991/hcis.k.210704.003 How to use a DOI?
Open Access: This is an open access article distributed under the CC BY-NC 4.0 license (http://creativecommons.org/licenses/by-nc/4.0/).

Cite this article

ris enw bib

TY  - JOUR
AU  - Md Rafiqul Islam
AU  - Shanjita Akter
AU  - Md Rakybuzzaman Ratan
AU  - Abu Raihan M. Kamal
AU  - Guandong Xu
PY  - 2021
DA  - 2021/07/22
TI  - Deep Visual Analytics (DVA): Applications, Challenges and Future Directions
JO  - Human-Centric Intelligent Systems
SP  - 3
EP  - 17
VL  - 1
IS  - 1-2
SN  - 2667-1336
UR  - https://doi.org/10.2991/hcis.k.210704.003
DO  - 10.2991/hcis.k.210704.003
ID  - Islam2021
ER  -

download .riscopy to clipboard
