1. INTRODUCTION

The clinical course of patients undergoing allogeneic hematopoietic stem cells transplant (allo-HSCT) is frequently complicated by several conditions affecting the gastro-intestinal (GI) tract. GI complications (GICs) represent the major cause of morbidity and mortality after allo-HSCT [1]. The global incidence of GICs is probably underestimated, because of their high variability and complexity. Further, when evaluating symptoms arising from the GI system, the differential diagnosis may be challenging, as different conditions such as graft-versus-host disease (GVHD), infections, drug toxicity and acute exacerbation of previous GI diseases may overlap. Diagnostic assessment is often a challenge, due to the complexity of clinical settings in which several conditions can affect the same patient or produce non-specific signs and symptoms (i.e., diarrhea and abdominal pain) [2–4]. GVHD represents the main cause of non-relapse mortality (NRM) in patients undergoing allo-HSCT and requires a prompt diagnosis and therapeutic intervention. Nevertheless, different conditions other than GVHD affecting the GI system cause significant morbidity for patients undergoing allo-HSCT. The use of chemo-radiotherapy and prolonged antibiotic treatment may lead to mucosal damage in the GI apparatus, with loss of oral and intestinal microbiota diversity. The global incidence of mucositis in patients undergoing allo-HSCT ranges usually between 60% and 100%. Total body irradiation (TBI), alkylating agents and methotrexate are particularly toxic for the GI mucosa. Mucositis is responsible for severe pain and extensive ulcers, and the damage of the protective mucosal barrier results in the dissemination of pathogens, leading to high risk of bacterial dissemination and sepsis [5–7]. The tissue damage consequent to the preparatory regimen, in association with severe and prolonged thrombocytopenia, may promote GI bleeding, which represents a rare but severe complication after allo-HSCT [8]; on the contrary, ischemic GI complications are less common but even more challenging [9].

Prolonged neutropenia and immunosuppressive drugs increase the risk of GI infections: it is estimated that up to 40% of patients undergoing allo-HSCT develops bacterial, viral or fungal GI infections [10].

In the present study, we have retrospectively evaluated GICs in 122 consecutive patients receiving allo-HSCT in the last 5 years, by using a clinical algorithm, based on a systematic interdisciplinary approach, supported by a dedicated endoscopic service. The secondary goal was to focus onto the differential diagnosis between GVHD and the other GI conditions, based on a standardized quick endoscopic/histological assessment. For this purpose, we have also calculated the diagnostic accuracy of this approach for the GI-GVHD.

2. MATERIALS AND METHODS

2.1. Patients

Since January 2015 an interdisciplinary approach for post-transplant GICs was implemented at our institution, with a dedicated GI endoscopic unit, to promptly diagnose GICs following allo-HCST. We included in the analysis patients who received allo-HSCT for different hematological diseases from January 2015 to August 2019.

During the pre-transplant phase, we have recorded and analyzed the following data:

• •

  Age at diagnosis, gender, infective and immunity state related to hepatotropic viruses [HBV, HCV, HIV, Cytomegalovirus (CMV)], AB0/Rh status of blood group.

• •

  Pre-existing co-morbidities with particular interest in gastroenterological conditions, such as chronic hepatitis, diabetes and metabolic syndrome, inflammatory bowel diseases (IBD), iron overload.

• •

  HSCT-comorbidity index (CI) and the European society for Blood and Marrow Transplantation (EBMT) risk score.

• •

  Hematological disease and disease status before allo-HSCT.

• •

  Conditioning regimen categorized according to EBMT criteria.

• •

  Donors’ features, including human leukocyte antigen (HLA) compatibility and stem cell (SC) source [bone marrow (BM), peripheral blood (PBSC), cord blood (CSC)].

• •

  GVHD prophylaxis.

Patients were monitored for GI symptoms, from the day of transplant up to day 100. An esophago-gastro-duodenoscopy (EGDS) was performed in all patients with persistent (>6 days) upper digestive tract symptoms. A rectal-sigmoid-colonoscopy (RSCS) was performed in case of lower GI symptoms, such as persistent diarrhea with or without hematochezia.

Endoscopic tests were considered “positive” and eventually suspicious of acute GVHD when moderate/severe oedema and hyperaemia and/or erosions/ulcerations and/or areas of disepitelization or atrophy were detected (Figure 1). Random biopsies on apparently healthy mucosa or lesion-guided biopsies were performed during every endoscopic procedure, and histological evaluation of paraffin-embedded tissue sections was performed by an experienced pathologist. The diagnostic assessment of GVHD was conducted in accordance with Shulman criteria [11]. Standard tissue staining or more sophisticated immune staining were set up, to research pathogen antigens or cytoplasmatic inclusions.

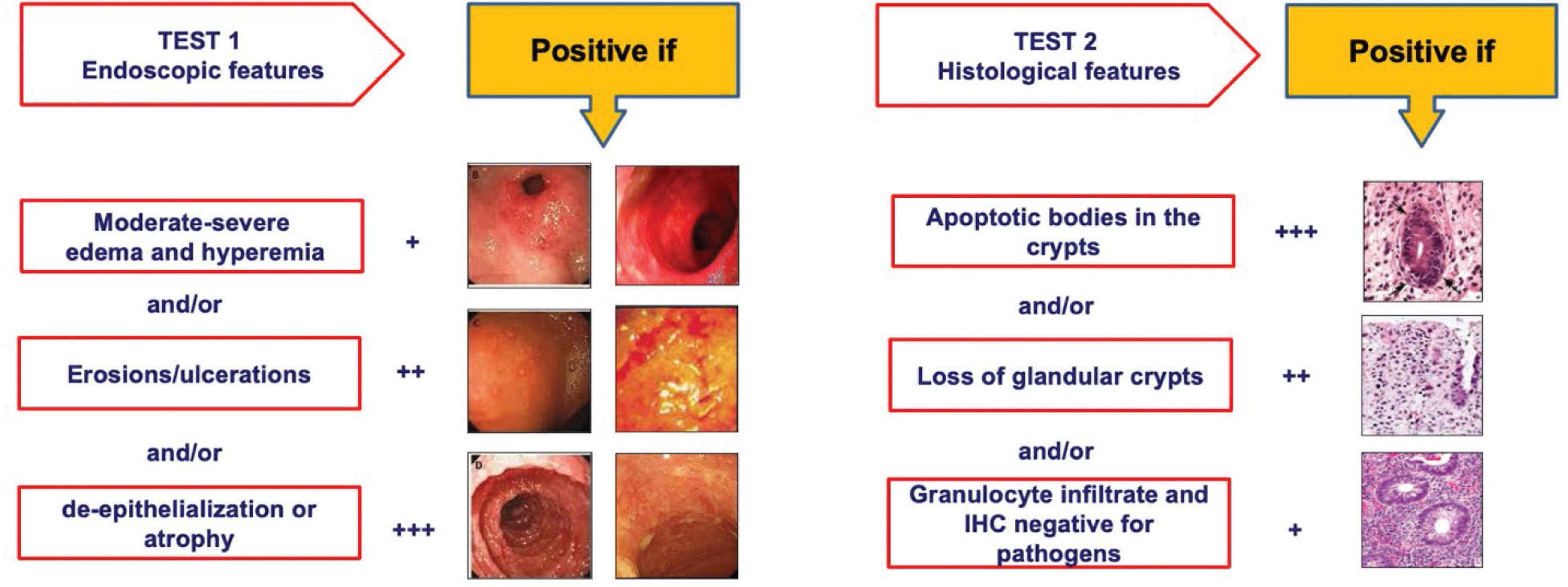

Figure 1

Endoscopic and histological features considered suspicious, suggestive or compatible with the diagnosis of GVHD.

Stool cultures for bacterial, parasite and virus infections were carried out to exclude Clostridium difficile (CD), Campylobacter, Yersinia, Pathogen E. Coli, CMV, adenovirus, norovirus, herpes viruses, Giardia and Cryptosporidium. Biochemical tests that explored liver, pancreatic and intestinal functions were performed twice weekly.

Based on the results of the above-mentioned examinations, the clinical diagnosis was categorized as follows:

• •

  Mucositis of superior digestive tract, mainly the most severe forms, classified with grade 3–4, according to the WHO criteria.

• •

  Mucositis of inferior digestive tract with the same criteria above mentioned.

• •

  Infectious complications: bacterial, viral, or parasitic agents, detected by specific cultures or toxin detection and, seldom, through endoscopic/histological procedures.

• •

  Vascular complications such as digestive hemorrhages and ischemic events.

• •

  Acute GVHD (aGVHD): “upper” for gastroduodenal localization; “lower” for intestinal localization and “mixed or diffuse” type when generalized in the whole digestive tract. aGVHD was classified according to the MAGIC criteria [12].

3. RESULTS

3.3. Diagnostic Reliability of Endoscopic and Histological Procedures to Discriminate GVHD from other Transplant Complications

Thirty-four patients with a suspicion of GI-GVHD were evaluated by endoscopy. Nine of them, presenting with both upper and lower symptoms, underwent EGDS + RSCS plus biopsies; 26 patients with predominantly upper symptoms were investigated exclusively with EGDS, while 17 patients with mainly lower symptoms underwent RSCS only. We compared data emerged from endoscopic and histological procedures with “a posteriori diagnosis” of GVHD based on the comprehensive analysis according to MAGIC criteria taking into account the cutaneous and hepatic localizations of the disease and an eventual post-mortem diagnostic ascertainment. With this approach, we retrospectively re-evaluated all patients’ characteristics, particularly those for whom an apoptotic cryptitis was not found in the intestinal biopsies, even though other lesions such as a loss of glandular crypts or a granulocyte infiltrate were detected, with a probable or possible but not certain diagnosis of GVHD [11]. In total, 24 patients underwent both (upper and lower) endoscopic procedures, with a definitive diagnosis of GI-GVHD.

Figure 2 shows that among patients investigated with EGDS, 18 of 26 had an ascertained diagnosis of GVHD. Upper endoscopy resulted indicative of a possible GVHD in 21 patients with an absolute sensitivity (100%) but a poor specificity (30%); thus, this test showed a bad concordance with the final diagnosis. Histological assessment showed a probable or compatible picture for GVHD in 10 patients. The sensitivity was 60% and specificity 70% while the concordance with definitive diagnosis, (calculated with Coen’s K), was 0.42. Regarding lower GI tract evaluation, endoscopy showed mucosal lesions suggestive of GVHD in 11 of 17 patients of whom 14 received after a confirmed diagnosis of GVHD. Thus, the sensitivity and specificity of lower endoscopy were 80 and 100%, respectively, and its concordance with the diagnosis was 0.56. Finally, histological evaluation on rectal biopsies demonstrated a sensitivity of 80% and specificity of 100% [positive predictive value (PPV) 100%, negative predictive value (NPV) 60%] and a good concordance with the final diagnosis (concordance of 0.68) (Table 4). Overall, it appears that there is a clear role of biopsy procedures, performed even on healthy mucosa. Moreover, rectal biopsy proved to be the most reliable test (Table 5).

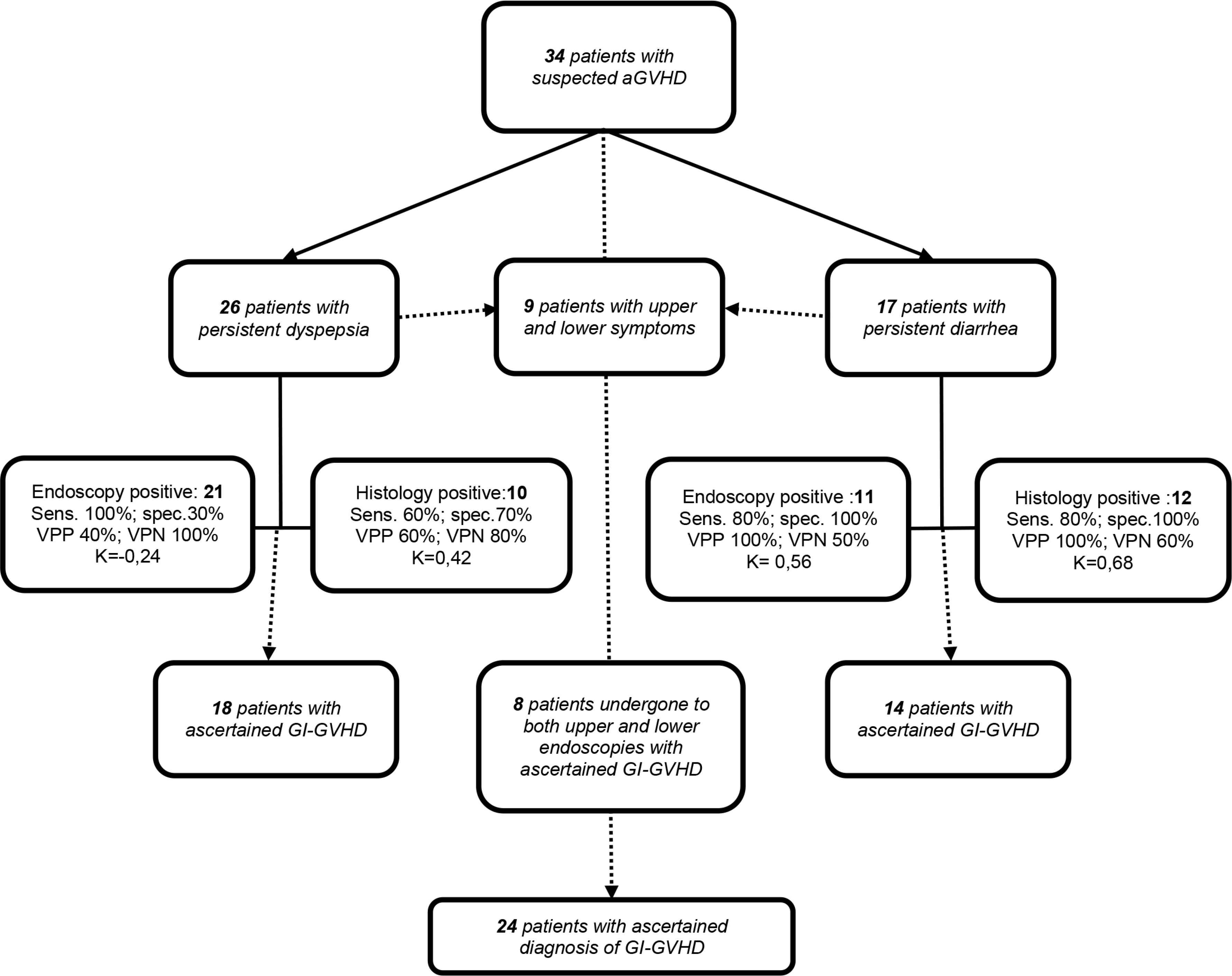

Figure 2

Flow-chart of patients undergoing the endoscopic/histological procedures upon suspicion of GI-GVHD. PPV, positive predictive value; NPV, negative predictive value; K of Cohen for concordance; GI-GVHD, gastro-intestinal-graft versus host disease.

	Sensitivity	Specificity	PPV	NPV	K	Concordance
Esophagus-gastro-duodenoscopy	1.0 (0.8–1.0)	0.3 (0.1–0.5)	0.4 (0.2–0.6)	1.0 (0.8–1.0)	0.24	Low
“Upper” histology	0.6 (0.4–0.8)	0.7 (0.6–0.9)	0.6 (0.4–0.7)	0.8 (0.6–0.9)	0.42	Moderate
Rectum-sigmoidoscopy	0.8 (0.5–0.9)	1.0 (0.7–1.0)	1.0 (0.8–1.0)	0.5 (0.3–0.7)	0.56	Moderate
“Intestinal” histology	0.8 (0.6–0.9)	1.0 (0.8–1.0)	1.0 (0.8–1.0)	0.6 (0.3–0.8)	0.68	Good

(95% CI); K di Cohen: <0.01 = null; 0.01–0.20 = poor; 0.21–0.40 = minor; 0.41–0.60 = moderate; 0.61–0.80 = high; 0.81–1.00 = excellent. PPV, positive predictive value; NPV, negative predictive value.

Table 4

Reliability measures of endoscopic and histological investigations for the diagnosis of acute gastro-intestinal-graft versus host disease (GI-GVHD)

Patients	Disease	Conditioning regimen	SC source	Donor status	Symptoms	EGDS/Histology	Colon/Histology	Overall Grade* of GVHD	Treatment	Outcome
61F	MDS; EBMT score: 3	BU-FLU (RIC); Prophylaxis: CSA-CC	BM	Haplo CMV+	Diarrhea (HV)	Negative/Negative	Positive/Positive	3	1° line: Steroid ld	Died of sepsis
B-Rh neg									2° line: ECP + Vedolizumab
59F	CML; EBMT score: 4	BU-FLU (MAC); Prophylaxis: CSA-MTX	BM	Sibling CMV+	Anorexia; malabsorption; skin rash (stage 2)	Positive/Positive	Positive/Positive	2	Steroid ld	Alive
A-Rh pos
59F	AML; EBMT score: 5	BU-FLU (MAC); Prophylaxis: CSA-MTX	PBSC	Unrelated CMV–	Vomiting; diarrhea (HV); skin rash (stage 3)	Positive/Positive	Negative/Positive	3	1°line: Steroid ld	Died of GVHD
0-Rh pos									2°line: ECP + Steroid
57M	AML; EBMT score: 3	TT BU-FLU (MAC); Prophylaxis: CSA-CC	PBSC	Haplo CMV–	Anorexia; diarrhea; malabsorption	Positive/Negative	Negative/Negative	–	–	Died of respiratory failure
A-Rh pos
54F	ALL; EBMT score: 3	TT BU-FLU (MAC); Prophylaxis: CSA-CC	BM	Haplo CMV+	Vomiting, diarrhea (HV); skin rash (stage 2)	Positive/Positive (plus CMV)	Positive/Positive	4	1° line: Steroid	Died of sepsis
A-Rh pos									2° line: Ruxolitinib
63M	AML; EBMT score: 4	BU-FLU (RIC); Prophylaxis: CSA-CC	BM/PBSC	Haplo CMV+	Vomiting, diarrhea (HV)	Negative/Positive	Negative/Negative	4	1° line: ECP + Steroid	Died of GVHD
0-Rh neg									2° line: Ruxolitinib
66M	AML; EBMT score: 3	BU-FLU (MAC); Prophylaxis: CSA-MTX	PBMC	Unrelated CMV+	Anorexia, nausea; jaundice (stage 3)	Positive/Negative	Positive/Positive	4	1° line: ECP + Steroid	Died for GVHD
B-Rh pos									2° line: ECP + Steroid + Vedolizumab + Etanercept
20M	ALL; EBMT score: 1	CY-TBI (MAC); Prophylaxis: CSA-MTX	BM	Sibling CMV+	Vomiting, skin rash (stage 2)	Positive/Negative	Positive/Positive	3	1° line: Topic	Alive
AB-Rh neg									2° line: Topic
48F	AML; EBMT score 3	TT-BU-FLU (MAC) Prophylaxis: CSA-MTX	PBMC	Unrelated CMV+	Anorexia, skin rash (stage 1)	Positive/Positive	Negative/Positive	3	1° line: ECP + Steroid	Alive
0-Rh pos									2° line: ECP + Steroid

*

MAGIC consortium criteria.

MDS, myelodysplastic syndrome; AML, acute myeloid leukemia; CML, chronic myeloid leukemia; ALL acute lymphoid leukemia; BU-FLU, Busulfan-Fludarabine; CSA, cyclosporine A; CC, cyclophosphamide; MTX, Methotrexate; TT, Thiotepa; MAC, myeloablative conditioning; RIC, reduced-intensity conditioning; HV, high volume; Steroid ld, steroid low dose; ECP, extracorporeal photopheresis.

Table 5

Patients who underwent both upper and lower endoscopic and histological investigations for the suspicion of gastro-intestinal-graft versus host disease (GI-GVHD)

4. DISCUSSION

Allo-HSCT has the potential to cure malignant (e.g., leukemias, lymphomas) and non-malignant disorders (e.g., hemoglobinopathies), but it is associated with relevant GI toxicity, particularly in the early period post-transplantation. Several conditions emerged as risk factors capable of influencing morbidity and mortality, among which are the conditioning regimen (e.g., chemotherapy, myeloablative therapy, radiation), status of the underlying cancer and severity of GVHD [1,2].

It has been estimated that GICs can substantially affect the prognosis of allo-HSCT in terms of morbidity and 100-day post-HSCT mortality [1,2,13,14].

In our experience, GICs occurred in a large percentage of patients (77%); almost all these patients developed mucositis and subsequent liver impairment. The mucositis, a clear expression of drug’s toxicity, could play a role in the pathogenesis of acute liver impairment too. In fact, in a multivariate analysis, a diffuse mucositis emerged as a variable independently associated to veno-occlusive disease (VOD) (p = 0.01; OR 6.7; 95% CI 1.52–29.7) in our cohort of patients. Mucositis deeply affects morbidity and early non-relapse-mortality (NRM); it can also affect the quality of life and prolong the hospitalization with a significant economic impact [15]. The MAC regimen represents a recognized risk factor for mucositis. In fact, severe mucositis (WHO grades 3–4) occurred in approximately two-thirds of patients who underwent myeloablative conditioning for HCT [16].

Acute GVHD is a common complication of allo-HSCT. The GI tract is involved in many of the patients who usually present with diarrhea and abdominal pain, but may also manifest nausea, vomiting, and anorexia. In our experience, aGI-GVHD occurred in 29% of patients after an allo-HSCT with a grade >2 in around 16% of the cases, and an associated mortality rate of about 29% of these cases. The confirmation of GVHD diagnosis often requires pathologic evaluation of tissue obtained by endoscopic biopsies. Opportunistic infections of the GI tract, principally those due to CMV, may mimic an acute GI-GVHD or they can overlap and bring out a diagnosis of GI-GVHD, hence the importance of selective microbiological staining for pathogens on the biopsy specimen.

Few studies investigating the role of endoscopic/histological evaluations in the ascertainment of GI-GVHD, have been reported. All agree on the conclusion that many of the cases of acute GI-GVHD can be identified by rectal biopsy. However, a negative rectal biopsy does not rule out the diagnosis, as the negative predictive value was not absolute [17–20].

In our population, the commonly recognized histological markers of GVHD were the cryptitis with apoptotic bodies and/or loss of glandular crypts and/or granulocyte infiltrate without an immunohistochemistry positive for pathogens [11,21].

The performance of the endoscopic-driven pathological evaluation in our population was in line with the above-mentioned studies. In our experience, rectal biopsy showed higher sensitivity and specificity than a biopsy of the upper GI tract. However, considering specifically the patients who underwent both investigations (upper and lower endoscopies), a biopsy collection guided by symptoms allowed a better diagnostic confidence; in fact, for patients who had a prevalent upper symptom, the gastric and duodenal biopsies had a NPV higher than 80%. Thus, we would recommend starting with upper or lower endoscopy according to symptoms and eventually switch to the other evaluation if no mucosal lesions are detected.

Specialists from many disciplines should be involved in the management of the patient who undergoes HSCT, mainly in the allogeneic setting; moreover, a close coordination between the different disciplines is mandatory, particularly in the challenging setting of GICs. In our center, we have set up a multidisciplinary “haemato-gastro” team with a shared standardized path, aimed to quickly support the diagnostic suspicion of GVHD and to accelerate the start of treatment. This approach achieved a significant improvement in diagnosis and in the timely management of patients with GICs after allo-HSCT. We recognize that our experience is limited to a little cohort of patients so far, and it is not empowered for statistical analysis at this point. However, the first results of the present study reporting an example of a gastroenterology teamwork dedicated to patients undergoing allo-HSCT are encouraging. In our vision, a multidisciplinary approach including an aggressive GI assessment with endoscopic and histological evaluation could allow a prompt GVHD diagnosis and treatment, which might improve patient outcome. Furthermore, GI complications following allo-HSCT represent a constellation of clinical entities including GVHD, endothelial damage, and infections. A thorough GI assessment might help in distinguishing such diverse complications, thus leading to a tailored treatment.

CONFLICTS OF INTEREST

The authors declare they have no conflicts of interest.

AUTHORS’ CONTRIBUTION

GT, MP, GM, IS and AO contributed to the design of the study. GT, MP, FS, LM and GG contributed to the implementation of the research. GT, MP and AF analyzed the data. GT, MP, FS and AO wrote the manuscript. AO, LM and AB reviewed the manuscript. GT, MP, GM, IS, AO, MVD, FM, LD, MM and EB were involved in clinical management of the patients.

DISCLOSURES

No conflict of interest for any of the authors. The authors did not receive any financial support. All the authors designed the study, contributed patients, helped to collect patient information, performed statistical analysis, and wrote the paper.
