Culture

Samples of rat tail artery were dissected under sterile conditions, cleaned of fat and cut into strips of 4–5 mm at room temperature. Under sterile conditions, strips of rat tail artery were transferred to dishes containing 5 ml of culturing medium containing DMEM/Ham’s F12 1:1 plus 100 μl/ml of penicillin, 100 μg/ml of streptomycin, 5 ml of fetal calf serum and 500 μl of L-Glutamine. A maximum of 3–4 strips of rat tail artery were placed in each dish and put into water jacketed incubator at 37 °C and 5% CO₂ in air. All chemical were purchased from Sigma, except DMEM from Invitrogen, UK.

Statistics

All analysis was performed using Microcal Origin 8.0 (Massachusetts, USA). Quantification of calcium records from confocal imaging were made by measuring the peak amplitude, frequency and duration of calcium transients. A minimum of 3–5 animals were used for each series of experiments. The results are given as percentage of control value unless otherwise stated. Values are given as means ± SEM, and n is number of vessels or cells.

Live morphology of cultured and fresh endothelial cells

Confocal imaging showed 2-dimensional images in X–Y and Y–Z projections of the monolayer of the ECs of the rat tail artery which was obtained by taking a series of optical sections in z direction. ECs were flat, spindle shaped, lying in the groove of the basal lamina (Fig. 1A). The length of the ECs was 54 ± 1.7 μm and the width 6.5 ± 0.2 μm (n = 27 cells, 7 vessels). Figure 1B shows that ECs after 72 h of culture retained their morphology. Like fresh endothelium, cultured cells were spindle shaped, tightly packed with overlapping edges. The length of the cultured ECs was 55 ± 1.2 μm and the width 6.9 ± 0.5 μm (n = 31 cells, 5 vessels).

Figure 1

Live morphology of fresh and cultured endothelial cells loaded with Fluo-4. A: 2-Dimensional confocal images of intact ECs in X–Y (i), (ii) and Y–Z (iii) projections observed using ×60 objective. X–Y (i) & (ii) images show that ECs are spindle shaped, tightly packed with overlapping edges; Y–Z (iii) image shows that ECs are indeed present as a monolayer sitting in the grooves of the basal lamina. C, D, E: X–Y images of the cultured ECs in the presence of histamine (10 μM), bradykinin (1 μM) and carbachol (10 μM) after 72 h, loaded with Fluo-4 showing large inter-endothelial gaps, cells of irregular shapes producing thin long processes.

In order to characterize any changes in morphology of endothelial cell in the presence of histamine 10 μM, bradykinin 1 μM and carbachol 10 μM, the intact strips of rat tail artery were cultured for 3 days. We observed interendothelial gaps, cells of irregular shapes and size and thin long processes produced by individual ECs making contacts with several other cells in their vicinity as shown in Fig. 1C and D, E n = 5 vessels. It was not possible to measure the length or width of endothelial cells due to their bizarre shape.

Effects of carbachol, histamine and bradykinin on Ca²⁺ signaling of intact endothelial cells

Firstly, the responsiveness of intact endothelial cells to three different concentrations of CCh (0.1, 1, 10 μM), histamine (1, 10, 100 μM) and bradykinin (0.1, 0.5, 1 μM) were studied, using ×20 objective. This allowed observing Ca²⁺ events in a large number of cells in the field of observation. The results show that the maximal concentrations of bradykinin and histamine produced Ca²⁺ signaling only in small number of cells 7–8% n = 7 vessels while all cells in the field of observation were responding to CCh (Movie 1). In contrast, upon culture endothelial cells responded well to stimulation with bradykinin and histamine (Fig. 3) even with a minimal concentration used i.e. (0.1 & 1 μM) respectively. Despite the culture of intact endothelium, normal calcium signaling on application of CCh was observed.

Each of the agonists produced complex Ca²⁺ signaling consisting of initial fast followed by sustained component with Ca²⁺ oscillations superimposing it (Figs. 2 and 3). Since intact fresh endothelial cells were responding poorly to histamine and BK tested by the subsequent application of CCh, therefore in the later experiments CCh was used to investigate the spatial and temporal characteristics of Ca²⁺ signaling in intact endothelial cells. In preliminary experiments using ×20 objective I have found that the number of cells responding to CCh was dependent on the concentration of CCh (Fig. 2D). The response attained from 10 μM CCh was maximal and reproducible after every 5 min washout with kreb’s solution.

Figure 2

Effects of increasing concentrations of bradykinin, histamine and CCh on Ca²⁺ signaling in endothelial cells. A(i), B(i), C: Graphical records of Ca²⁺ transients induced by three different concentrations of bradykinin (0.1 μM, 0.5 μM & 1 μM), histamine (1 μM, 10 μM, 100 μM) and carbachol (0.1 μM, 1 μM, 10 μM). Ca²⁺ puffs were observed with low concentration of CCh (0.1 μM) however typical Ca²⁺ transient with maximal concentration of each agonist consists of initial phasic component followed by the sustained component superimposed by the Ca²⁺ oscillations. D: Bar chart shows percentage of endothelial cells responding to increasing concentrations of CCh.

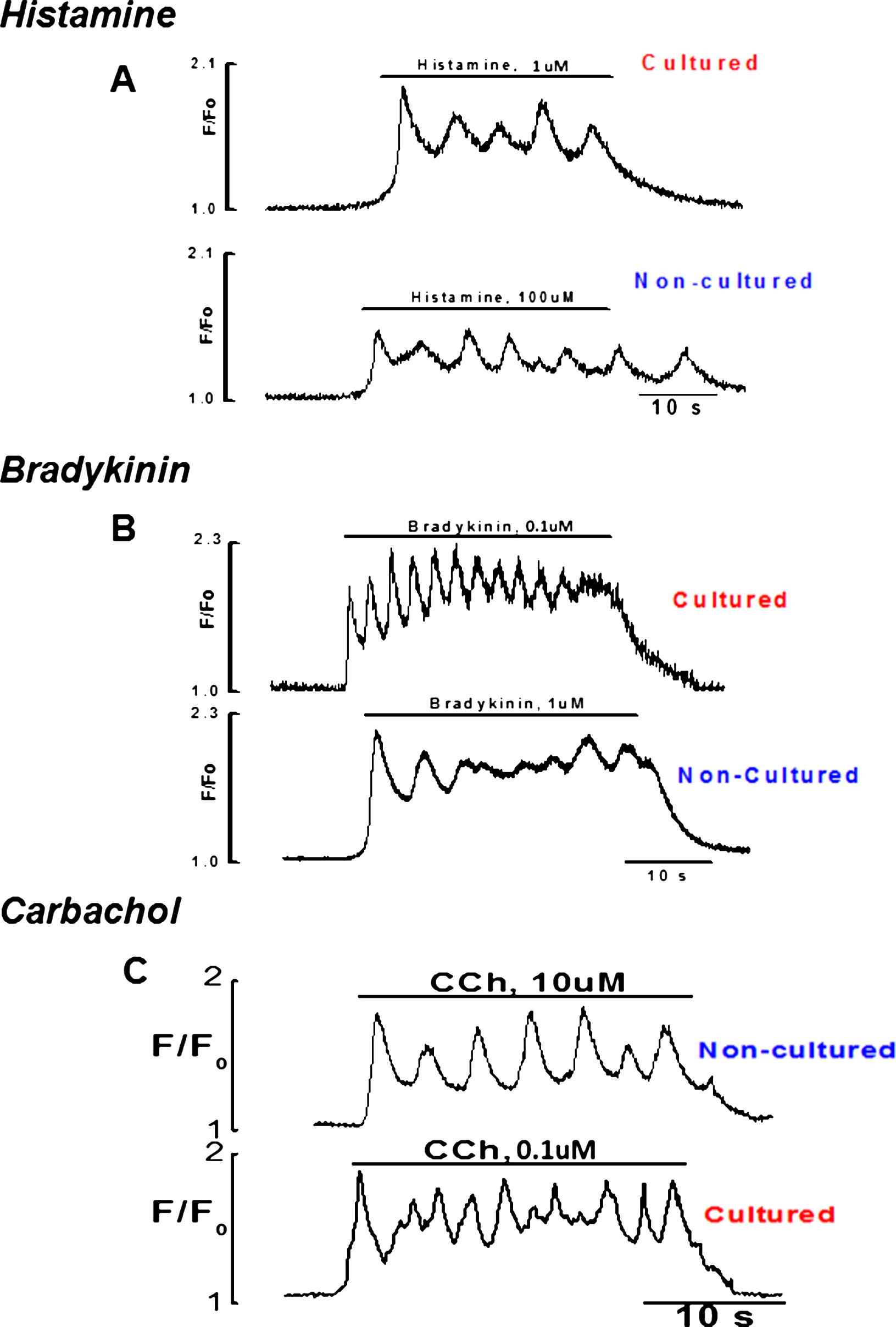

Figure 3

Graphical records of cultured and fresh endothelial cells to stimulation with minimal and maximal concentrations of histamine, bradykinin and CCh respectively.

Temporal and spatial characteristics of Ca²⁺ signaling in endothelial cells evoked by different concentration of CCh

Endothelial cells of the intact rat tail artery were not spontaneously active. However when stimulated by CCh, depending on concentrations some cells responded with localized Ca²⁺ events i.e. Ca²⁺ puffs and some with global Ca²⁺ events i.e. Ca²⁺ waves/Ca²⁺ oscillations. Figure 2D shows that the number of cells which did not respond to CCh was: 38% for 0.1 μM, 9% for 1 μM and only 1% did not respond to 10 μM of CCh. Ca²⁺ puffs were evoked in 18% and 14% of cells when stimulated by low concentrations of CCh (0.1 μM and 1 μM, respectively). Ca²⁺ waves and oscillations were evoked by all concentrations of CCh. However, the number of cells responding with global Ca²⁺ signaling was dependent on concentration of CCh: 0.1 μM (20% of cells), 1 μM (65% of cells) and 10 μM (99% of cells).

To demonstrate the homogeneity of Ca²⁺ release in response to non-agonist mediated triggers, addition of CPA (20 μM) to Ca²⁺ free solution produced a transient elevation of intracellular Ca²⁺ caused by Ca²⁺ leak from the ER (Fig. 4). After application of CPA for 20 min in Ca²⁺ free solution the ER was fully depleted which was tested by the lack of any response to the application of CCh. Addition of 2 mM Ca²⁺ caused large sustained rise of [Ca²⁺]_i. Subsequent application of CCh(10 μM) produced a typical Ca²⁺ transient.

Figure 4

Effects of addition of Ca²⁺(2 mM) and CCh(10 μM) to CPA(20 μM) depleted ECs. CPA in 0Ca²⁺ produced transient elevation of [Ca²⁺]_i and fully depleted the store in 20 min. Addition of 2 mM Ca²⁺ produced a large rise of [Ca²⁺]_i. Addition of CCh in the presence of Ca²⁺ produced the typical Ca²⁺ transient.

Ca²⁺ puffs

Ca²⁺ puffs induced by low concentrations i.e. 0.1 and 1 μM of CCh, originated from one or two discharging sites located at the ends of the endothelial cells (18 cells) and main part of the body (4 cells). The initiation sites located at the ends of the cells were elongated (8/13) and those located in the perinuclear region were circular (5/13) in shape. The average diameter of the circular sites was 1.9 ± 0.4 μm. The width of the elongated sites was 1.6 ± 0.1 μm and the length varied between 2 and 6 μm (n = 13cells, 3 vessels). Ca²⁺ puffs were non-propagative and recorded only in the discharging site. They were not detected several microns away from the discharging site (Fig. 5A and B). Typical examples of Ca²⁺ puffs triggered by 0.1 μM CCh in several endothelial cells of same preparation are shown in Fig. 5 and movie 2. The amplitude, duration and frequency of Ca²⁺ puffs showed large variability not only among different cells (Fig. 5C) but also for different sites of the same cell.

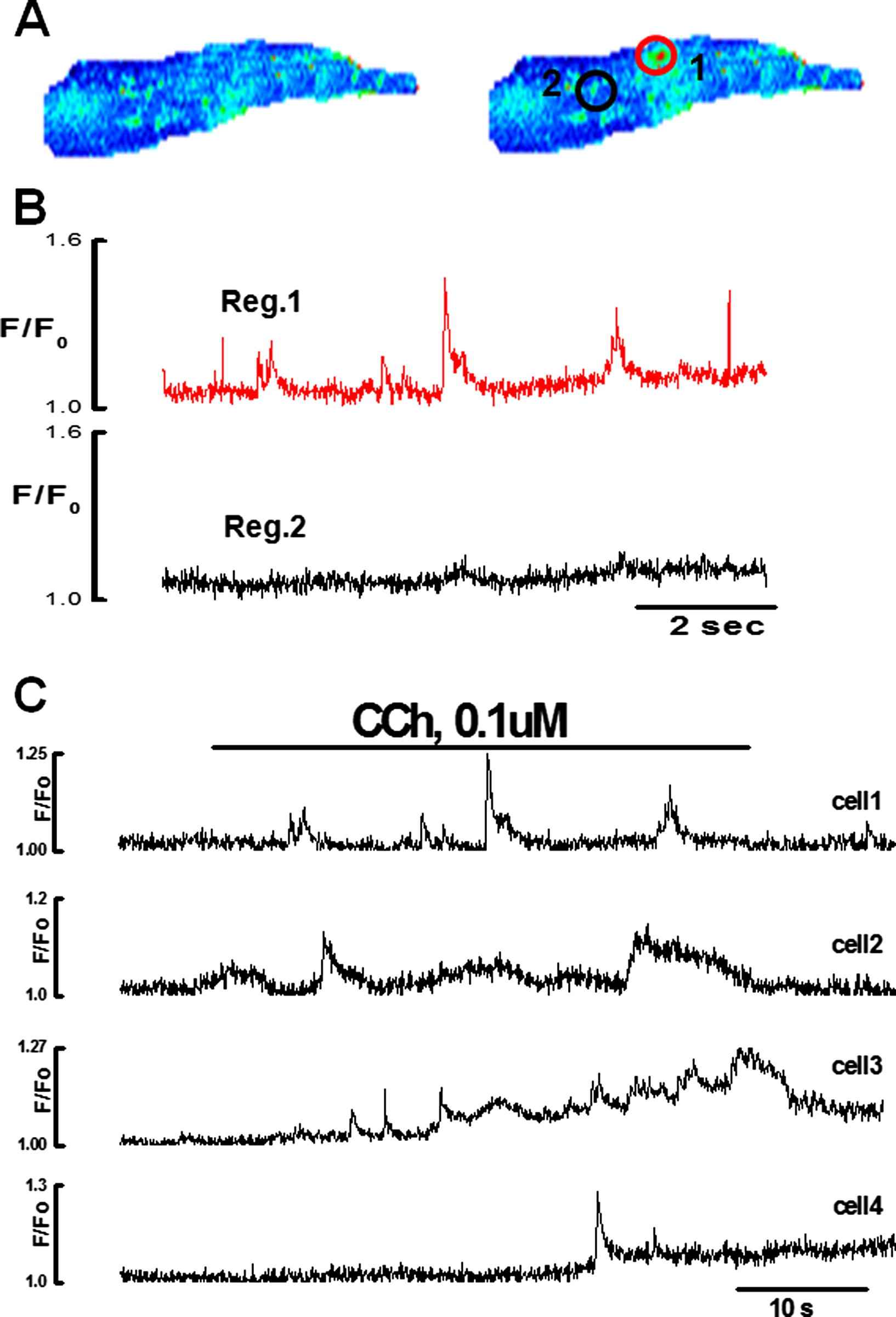

Figure 5

Ca²⁺ puffs induced by the low concentration of CCh in the intact endothelial cell n = 9. A:X–Y pseudo color images of endothelial cell in the absence (i) and the presence of 0.1 μM CCh showing one active discharging site located in the perinuclear region of the cell. B: Graph showing Ca²⁺ puffs in region 1. No activity recorded in the region 2 C: Patterns of the Ca²⁺ puffs evoked by 0.1 μM CCh recorded from discharging sites of the four different endothelial cells showing a large variability in the amplitude, duration and frequency among different cells.(For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)

Functional testing of Ca²⁺ puffs and transient was done by using a putative activator of the ryanodine receptor channels caffeine (2–5 mM) and 2-APB. In these experiments ryanodine had no effect on CCh induced Ca²⁺ puffs or transient (Fig. 6). However, 2-APB (50 μM) abolished CCh induced Ca²⁺ puffs and transient. The data suggest that the ECs of the rat tail artery do not have functional RyRs channels and indeed IP₃Rs are responsible for the observed Ca²⁺ events.

Figure 6

Effect of caffeine (5 mM) and 2-APB (50 μM) on Ca²⁺ puffs and transient induced by 0.1 & 10 μM CCh, n = 8 respectively. Application of caffeine or ryanodine had no effect on Ca²⁺ signal in endothelial cells; however, 2APB for 30 min blocked the Ca²⁺ puffs and transient.

Ca²⁺ waves

Ca²⁺ transient induce by CCh in the ECs was complex and consisted of the initial fast component followed by sustained component superimposed by Ca²⁺ oscillations both in fresh and cultured endothelial cells (Figs. 2, 3 and 7). The initial component always appeared as a propagating Ca²⁺ wave (Movie 3). Ca²⁺ waves were regenerative and were normally initiated by one or both ends of the cell and propagated across the cell at a speed of 14–44 μm/s (n = 20 cells, 4 vessels) in different directions (Movies 3 and 4). There was no difference observed in the speed of wave propagation in cultured endothelium. Ca²⁺ wave was preceded by slow rise of Ca²⁺ (called pacemaker) which upon reaching a threshold produced a fast upstroke. Average value for time to peak of the initial phasic component was 1.24 ± 0.2 s (n = 20 cells, 4 vessels).

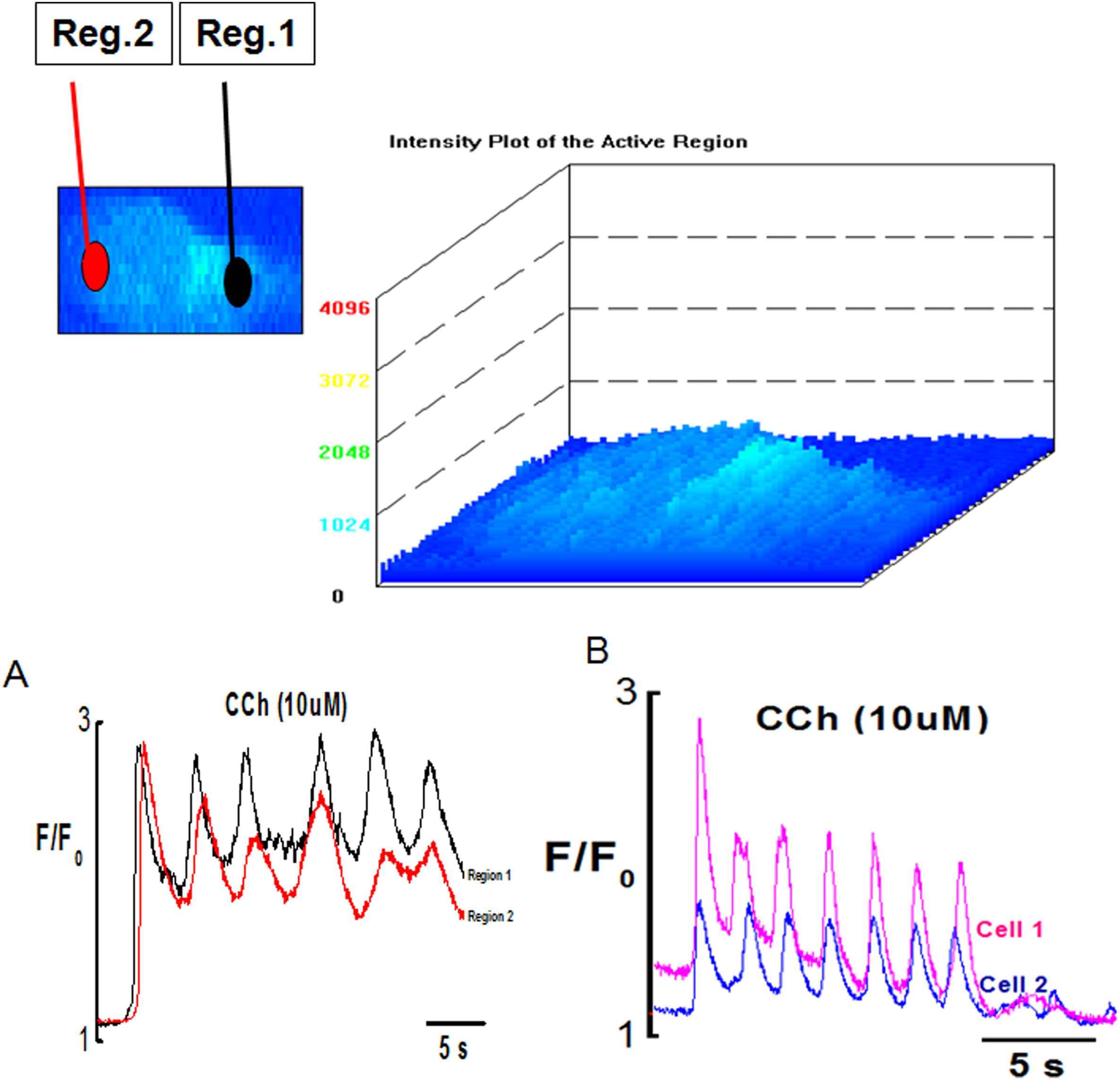

Figure 7

Surface plot of Ca²⁺ oscillations in endothelial cells induced by CCh (10 μM). (A) Graph showing synchronized Ca²⁺ wave and oscillations in Reg.1 and Reg. 2 of the endothelial cell (B) synchronized Ca²⁺ waves and oscillations between two different cells of same preparation.

Technical advantages

The main advantage of this method was that it eliminated completely possible effects of collagenases or trypsin while cells remained in their in situ position. There was no tissue manipulation and tissue was quickly obtained. This method enabled to study large number of endothelial cells from each specimen in a short period of time. The employed technique allowed to study interactions between the components of the vessel wall.

Ca²⁺ signaling

The experiments conducted demonstrate that the response and pattern of Ca²⁺ signaling in fresh endothelial cells differs profoundly from that in the cultured cells. With intact fresh endothelial cells in situ, the majority responded to CCh in the observed field. On the other hand 6–7% of the cells in the observed field responded to bradykinin and histamine. Interestingly, I have also noted that the cells responded poorly to bradykinin and histamine and subsequent application of CCh in poorly responding cells produced a maximal response. This observation is in agreement to previous study of¹⁵ which suggested entirely heterogenous population of cells in rat aorta. In this study, population of cells responding to different agonist was observed; however, due to receptor diversity, a set population of cells responded either to one or more than one agonist. The receptors on a set of cell population can either be up or downregulated depending on a particular physiological or a pathological state. We observed a multitude of Ca²⁺ signaling patterns, such as Ca²⁺ puffs, Ca²⁺ oscillations and well-maintained plateau phases, which reflected activation of Ca²⁺ entry mechanisms.

Upon culture, the heterogeneity of Ca²⁺ signaling in response to CCh, histamine and bradykinin was lost. All cells in the field of observation responded equally and maximally to each of the agonist used. This was a very important observation which discourages the use of cultured endothelial cells for research purposes. Similar observations were made by²⁶ when comparing freshly isolated and cultured bovine endothelial cells. The point to ponder is that cultured endothelial cells should be used cautiously and carefully. Further studies are required to identify changes at the biochemical level in culture condition. This might explain the heterogenous observations made while investigating the identity of store operated channels in cultured endothelial cells from various sources.^20,28,29

Spatial and temporal Characteristics of Calcium signaling in intact endothelium

Our experiments show that the pattern of Ca²⁺ signaling varied profoundly from cell to cell. The processes were more sensitive to agonist stimulation. They were the preferential initiation sites for Ca²⁺ signaling in intact endothelial cells of rat tail artery. The intracellular Ca²⁺ rise and rate of wave propagation were always faster at the initiation sites either at the processes or in the cell body. This higher sensitivity of initiation sites could be due to the aggregation of Ca²⁺ release channels, presence of more sensitive Ca²⁺ release channels or the presence of modulatory factors that increase IP₃ sensitivity such as Ca²⁺.^6,5

The intracellular Ca²⁺ in endothelial cells could produce Ca²⁺ puffs only or spread as a wave to the rest of the cell depending on channels recruitment. Ca²⁺ puffs were recorded only in the discharging site stimulated with low CCh concentration suggesting very limited Ca²⁺ diffusion. This limited diffusion could be due to strong buffering as seen in other cell types.^30,1 Propagating Ca²⁺ wave therefore require the co-ordinated release of Ca²⁺ from the store. Diffusion characteristics of Ca²⁺ or IP₃ and agonist concentration are responsible for this temporal delay that reflects variation in speed of wave propagation in different cells as has been suggested in previous studies.^2,18,25

The speed of wave propagation increased with increase in agonist concentration. Similar findings were observed in other cell types.^11,13,16,19 Calcium wave was regenerative and involved IP₃ receptors^7,9,27 Pretreatment of endothelial cells for 30 min in ryanodine (50 μM) had little or no effect on CCh induced Ca²⁺ puffs and Ca²⁺ transient suggesting the absence of functional ryanodine receptors (Fig. 6).

Sustained component of Ca²⁺ transient was superimposed by Ca²⁺ oscillations. The frequency of Ca²⁺ oscillations was variable and concentration dependent; increased frequency with increase in agonist concentration seen in other cell types.^22–24 It has been shown that these Ca²⁺ oscillations are produced as a result of interplay between Ca²⁺ release and reuptake by the ER and Ca²⁺ influx through CCE channels¹⁸ however the focus of the present study is on heterogenous responses observed between cultured and fresh endothelium by using three agonist with detailed spatial and temporal Ca²⁺ signal characteristics.
