Carotid–femoral pulse wave velocity in obese children and adolescents: The potential bias of tape distance measuring

Kristian Nebelin Hvidt; Michael Hecht Olsen; Jens-Christian Holm; Hans Ibsen

doi:10.1016/j.artres.2013.09.003

<Previous Article In Issue

Download article (PDF)

Volume 7, Issue 3-4, September 2013, Pages 234 - 237

Carotid–femoral pulse wave velocity in obese children and adolescents: The potential bias of tape distance measuring

Authors

Kristian Nebelin Hvidt^a^{, b}^{, *}, Michael Hecht Olsen^c^{, d}, Jens-Christian Holm^b, Hans Ibsen^a

^aDivision of Cardiology, Department of Medicine, Copenhagen University Hospital Holbæk, Smedelundsgade 60, Holbæk 4300, Denmark

^bThe Children’s Obesity Clinic, Department of Paediatrics, Copenhagen University Hospital Holbæk, Smedelundsgade 60, Holbæk 4300, Denmark

^cCardiovascular and Metabolic Preventive Clinic, Department of Endocrinology, Odense University Hospital, Sdr. Boulevard 29, 5000 Odense C, Denmark

^dHypertension in Africa Research Team (HART), School for Physiology, Nutrition and Consumer Sciences, North-West University, Potchefstroom, South Africa

^*Corresponding author. Division of Cardiology, Department of Medicine, Copenhagen University Hospital Holbæk, Smedelundsgade 60, 4300 Holbæk, Denmark. Tel.: +45 59 48 40 73. E-mail addresses: krhv@regionsjaelland.dk (K.N. Hvidt), mho@dadlnet.dk (M.H. Olsen), jhom@regionsjaelland.dk (J.-C. Holm), hib@regionsjaelland.dk (H. Ibsen).

Corresponding Author

Kristian Nebelin Hvidt

Received 11 July 2013, Revised 19 August 2013, Accepted 6 September 2013, Available Online 3 October 2013.

DOI: 10.1016/j.artres.2013.09.003 How to use a DOI?
Keywords: Adolescence; Aortic stiffness; Children; Methodology; Obesity; Pulse wave velocity
Abstract: Background: The recommendation for carotid–femoral pulse wave velocity (cfPWV) is to use a calliper to measure the aortic length as a straight line. In adults, it has been shown that tape follows the body contours potentially making the distance longer – ultimately a higher cfPWV – interpreted as a higher aortic stiffness. Our objective was to investigate to what extent a tape measurement is influenced by abdominal obesity in children and adolescents.

Methods: In a cross-sectional design, 100 obese patients with age 10–18 years were compared to 50 healthy control individuals. CfPWV was measured by applanation tonometry. The aortic length was determined with tape and a calliper (distance-tape and distance-calliper). The bias of the tape measurements was calculated as distance-tape minus distance-calliper.

Results: The bias of the tape measurements (mean ± SD) was significant in both the obese (Δ 14.6 ± 11.2 mm, P < 0.0001) and the control group (Δ 5.7 ± 5.8 mm, P < 0.0001), and showed a linear relationship with waist-height ratio in the obese group (obese: β = 96.9, CI: 75.3–118.5, P < 0.0001). Likewise, cfPWV was significantly higher when tape was used for the distance measurements in both groups (P values <0.0001). In multiple regression, however, cfPWV for both tape and calliper were significantly lower in the obese compared to the control group (P values <0.01).

Conclusions: The bias of the tape measurements was related to the degree of abdominal obesity. Our results emphasize the importance of the use of a calliper when evaluating cfPWV in obese children and adolescents.
Copyright: © 2013 Association for Research into Arterial Structure and Physiology. Published by Elsevier B.V. All rights reserved.
Open Access: This is an open access article distributed under the CC BY-NC license.

Background

The expert consensus report¹ on carotid–femoral pulse wave velocity (cfPWV) emphasizes the use of an infantometer (calliper) to measure the aortic length as a straight line. As shown in adult, tape follows the body contours potentially making the distance longer than the correct straight line – ultimately giving a higher cfPWV – interpreted as higher aortic stiffness.² Studies with divergent results on cfPWV in obese children and adolescents using tape measurements have been.^3–5 A potential bias in respect to the distance measure might affect the interpretation of obesity’s association with arterial stiffness.

Aim

The objective was to investigate to what extent the length of a tape distance measurement is influenced by abdominal obesity.

Methods

In a cross-sectional study, 104 obese patients were compared to 50 healthy control individuals. The main publication of the study population is in.⁶ ClinicalTrials.org NCT01310088.

CfPWV was measured by applanation tonometry with the SphygmoCor 9.0 device (AtCor Medical, Australia) using the intersecting tangents algorithm according to recommendations.¹ With stretch resistant tape and a calliper the aortic length was determined consecutively as 80% of the distance from the common carotid artery to the femoral artery (distance-tape and distance-calliper). From the same transit time cfPWV-tape and cfPWV-calliper were calculated and reported as mean of at least two measurements.

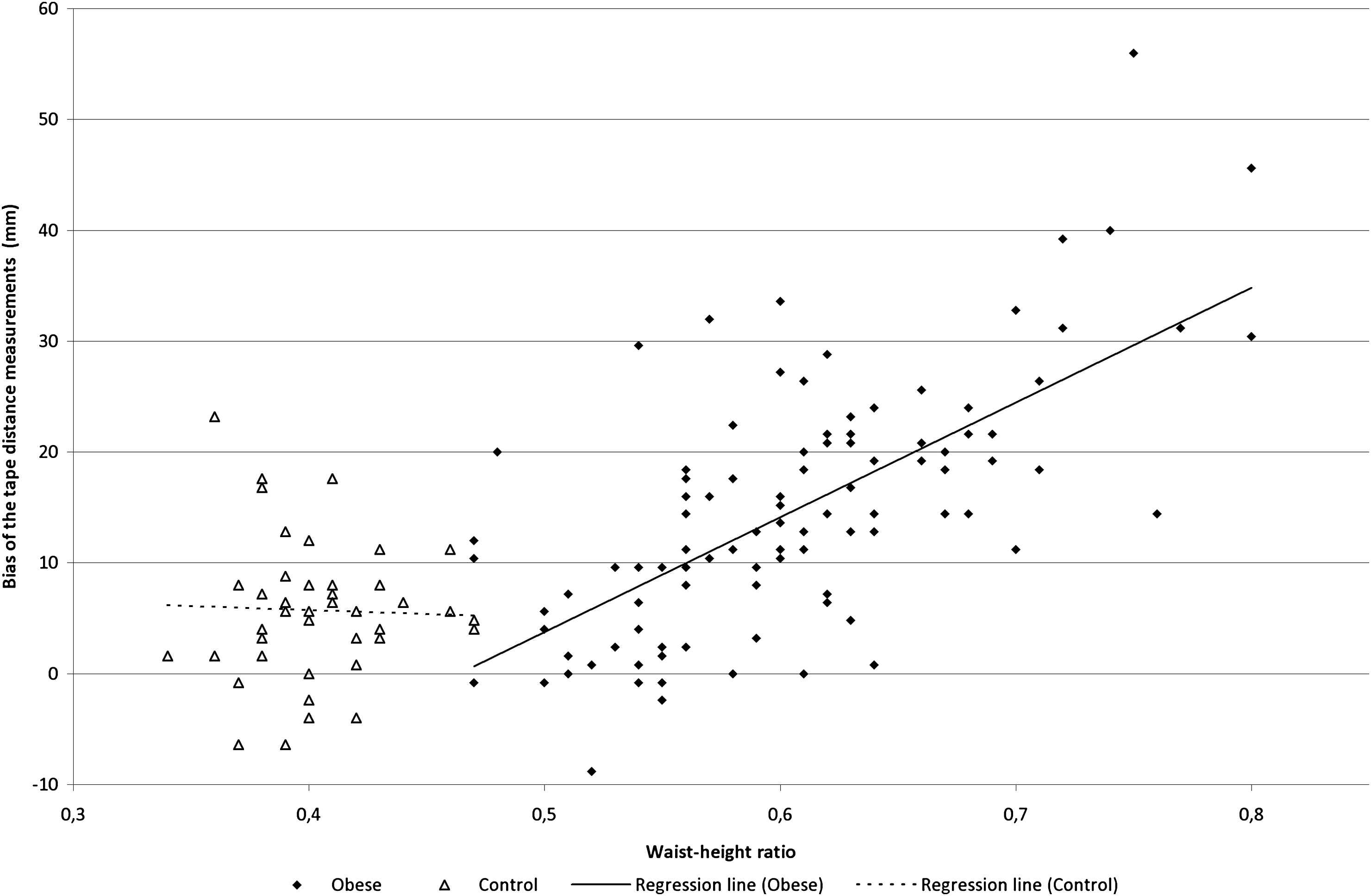

Statistical significance was an α-level below 0.05 on 2-sided tests. Comparisons in Table 1 were made with unpaired t tests, Wilcoxon rank sum tests or Chi-squared test. The systematic difference (bias) of the tape distance measurements was calculated as distance-tape minus distance-calliper and plotted against waist-height ratio (Fig. 1). Also, the potential bias of the distance measures and the resulting cfPWV were tested with paired t tests. In multiple regression analysis, the relationship between cfPWV-tape and obese status were adjusted for age, gender, mean arterial pressure and heart rate. Results of multiple regression of cfPWV-calliper are reported in.⁶ β coefficients for group status (obese vs. control, 95% confidents limits (CI)) were reported.

Variable	Obese group N = 104	Control group N = 50	P value

	Mean ± SD or median (IQR)	Mean ± SD or median (IQR)
Male/female (N/N)	50/54	23/27	0.81
Age (years)	12.6 (11.4–15.0)	13.2 (11.7–14.9)	0.44
Height (cm)	159.9 ± 11.9	163.2 ± 12.1	0.11
Weight (kg)	66.9 (57.7–90.9)	50.7 (41.3–58.4)	<0.0001
BMI z score	2.76 ± 0.68	0.08 ± 0.84	<0.0001
Waist (cm)	94.8 (85.3–107.5)	66.4 (62.7–69.6)	<0.0001
Waist/height ratio	0.60 (0.56–0.64)	0.40 (0.38–0.42)	<0.0001
Brachial systolic BP (mmHg)	110.9 ± 8.51	107.7 ± 8.0	0.026
Brachial diastolic BP (mmHg)	61.8 ± 5.7	59.1 ± 5.3	0.004
Heart rate (bpm)	66.6 ± 9.5	63.4 ± 10.0	0.055
CfPWV-tape (m/s)	4.98 ± 0.60	5.16 ± 0.66	0.092
CfPWV-calliper (m/s)	4.83 ± 0.57	5.10 ± 0.65	0.008
Distance-tape (mm)	461.5 ± 50.0	451.5 ± 44.8	0.23
Distance–calliper (mm)	446.9 ± 44.5	445.8 ± 43.5	0.89
Transit time (seconds)	88.5 ± 12.3	82.6 ± 12.1	0.006

Results are reported as mean ± standard deviation (SD) or median (interquartile range) (IQR). With exceptions of cfPWV-tape and distance-tape, all variables in the table are published in.⁶

Table 1

Basic and hemodynamic characteristics.

Results

Table 1 lists the basic and hemodynamic characteristics of the two groups. While no differences were found in gender, age and height; anthropometrics were significantly higher in the obese when compared to the control group according to the design of the study. Brachial blood pressures (BP) were significantly higher in the obese group.

Although no significant differences in the distance measures were found between the obese and the control group, the bias of the tape distance measurements (mean ± SD) were significant in both the obese (Δ 14.6 mm ± 11.2 mm, P < 0.0001) and the control group (Δ 5.7 mm ± 5.8 mm, P < 0.0001). Also, a linear relationship was found between the bias of the tape measurements and waist-height ratio in the obese group, while no relation was found for the control group (Fig. 1).

The two different types of cfPWV lead to different conclusions since cfPWV-calliper was lower in the obese group, whereas no difference was found in cfPWV-tape between the two groups. Also, systematic differences were found for cfPWV using tape and calliper in the obese (Δ 0.15 ± 0.11 m/s, P < 0.0001) and the control group (Δ 0.06 ± 0.06 m/s, P < 0.0001). However, in multiple regression analyses, both cfPWV-tape (β = −0.25, 85% CI: −0.44–0.06, P = 0.009) and cfPWV-calliper (β = −0.34, 95% CI: −0.53–0.15, P = 0.0004) were significantly lower in the obese group.

Conclusion

The main finding was that the magnitude of the bias of the tape distance measurements was related to the extent of abdominal obesity. However, the bias was significant in both the obese and the control group. To the best of our knowledge, the present paper is the first to investigate this intuitive bias in obese children and adolescents. However, Sakuragi et al.⁴ found a significant association between cfPWV and abdominal girth. Wildman et al.⁷ held the tape measure above the surface of the body parallel to the plane of the examination table in order to reduce the influence of body contours on the distance measure. Whereas Zebekakis et al.⁸ discussed the potential overestimation of the length of the carotid–femoral segment artificially affecting the cfPWV measurement.

The most precise aortic distance measure, using the common carotid and femoral arteries as reference points, has been established in adults.⁹ Recently, we found that the recommended distance measurement for adults lead to the same distance measure when evaluated in relation to height in both the obese and the control group.⁶ In agreement with studies in adults,² we found that tape distance measuring results in a bias when comparing obese with normal weighted children and adolescents.

In conclusion, the bias of the tape distance measurements was related to the degree of abdominal obesity. Our results emphasize the importance of the use of a calliper when evaluating cfPWV in obese individuals in order to avoid a systematic bias potentially leading to an overestimation of cfPWV in obese children and adolescents.

Financial disclosure

The corresponding author received LEO Pharma’s Travel Grant during data collection of the present study.

Conflict of interest

All authors declare that there is no conflict of interests in respect to executing, analysing or reporting this research project.

Acknowledgements

We would like to thank The Health Sciences Research Foundation of Region Zealand, The Danish Heart Foundation, Kathrine og Vigo Skovgaards Fond, Det Medicinske Selskab i København and Edith og Henrik Henriksens Mindelegat for financial support. Furthermore, the research activities of the present study are part of The Danish Childhood Obesity Biobank (ClinicalTrials.gov ID-no.: NCT00928473), TARGET, BIOCHILD and DanORC.

Abbreviations

BMI: body mass index

BP: blood pressure

cfPWV: carotid–femoral pulse wave velocity

References

1.LM Van Bortel, S Laurent, P Boutouyrie, P Chowienczyk, JK Cruickshank, T De Backer, et al., Expert consensus document on the measurement of aortic stiffness in daily practice using carotid-femoral pulse wave velocity, J Hypertens, Vol. 30, 2012, pp. 445-8.

2.N Levi-Marpillat, G Desamericq, S Akakpo, H Affes-Ayadi, A-I Tropeano, S Millasseau, et al., Crucial importance of using a sliding calliper to measure distance for carotid-femoral pulse wave velocity assessment, J Hypertens, Vol. 31, 2013, pp. 940-5.

3.E Lurbe, I Torro, C Garcia-Vicent, J Alvarez, JA Fernández-Fornoso, and J Redon, Blood pressure and obesity exert independent influences on pulse wave velocity in youth, Hypertension, Vol. 60, 2012, pp. 550-5.

4.S Sakuragi, K Abhayaratna, KJ Gravenmaker, C O’Reilly, W Srikusalanukul, MM Budge, et al., Influence of adiposity and physical activity on arterial stiffness in healthy children: the lifestyle of our kids study, Hypertension, Vol. 53, 2009, pp. 611-6.

5.K Arnberg, A Larnkjær, KF Michaelsen, and C Mølgaard, Central adiposity and protein intake are associated with arterial stiffness in overweight children, J Nutr, Vol. 142, 2012, pp. 878-85.

6.KN Hvidt, MH Olsen, JC Holm, and H Ibsen, Aortic stiffness in obese children and adolescents: comparison of two distance measures of carotid-femoral pulse wave velocity, Artery Res, 2013.

7.RP Wildman, RH Mackey, A Bostom, T Thompson, and K Sutton-Tyrrell, Measures of obesity are associated with vascular stiffness in young and older adults, Hypertension, Vol. 42, 2003, pp. 468-73.

8.PE Zebekakis, T Nawrot, L Thijs, EJ Balkestein, J Van der Heijden-Spek, LM Van Bortel, et al., Obesity is associated with increased arterial stiffness from adolescence until old age, J Hypertens, Vol. 23, 2005, pp. 1839-46.

9.S a M Huybrechts, DG Devos, SJ Vermeersch, D Mahieu, E Achten, TLM De Backer, et al., Carotid to femoral pulse wave velocity: a comparison of real travelled aortic path lengths determined by MRI and superficial measurements, J Hypertens, Vol. 29, 2011, pp. 1577-82.
