Noninvasive evaluation of varying pulse pressures in vivo using brachial sphymomanometry, applanation tonometry, and Pulse Wave Ultrasound Manometry

Ronny X. Li; Ada Ip; Elena Sanz-Miralles; Elisa E. Konofagou

doi:10.1016/j.artres.2017.02.002

<Previous Article In Issue

Download article (PDF)

Next Article In Issue>

Volume 18, Issue C, June 2017, Pages 22 - 28

Noninvasive evaluation of varying pulse pressures in vivo using brachial sphymomanometry, applanation tonometry, and Pulse Wave Ultrasound Manometry

Authors

Ronny X. Li^a, Ada Ip^a, Elena Sanz-Miralles^b, Elisa E. Konofagou^a^{, c}^{, *}

^aUltrasound and Elasticity Imaging Laboratory, Department of Biomedical Engineering, Columbia University, New York, NY, USA

^bDepartment of Dental Medicine, Columbia University Medical Center, New York, NY, USA

^cDepartment of Radiology, Columbia University Medical Center, New York, NY, USA

^*Corresponding author. Ultrasound and Elasticity Imaging Laboratory, Columbia University, 630 W 168th St., Physicians & Surgeons 19-418, New York, NY 10032, USA. Fax: +1 212 342 1648. E-mail address: ek2191@columbia.edu (E.E. Konofagou).

Corresponding Author

Elisa E. Konofagou

Received 29 November 2016, Accepted 7 February 2017, Available Online 10 March 2017.

DOI: 10.1016/j.artres.2017.02.002 How to use a DOI?
Keywords: Abdominal aorta; Blood pressure; Central pulse pressure; Elastography; Hypertension; Pulse wave imaging; Pulse wave velocity; Ultrasound imaging
Abstract: The routine assessment and monitoring of hypertension may benefit from the evaluation of arterial pulse pressure (PP) at more central locations (e.g. the aorta) rather solely at the brachial artery. Pulse Wave Ultrasound Manometry (PWUM) was previously developed by our group to provide direct, noninvasive aortic PP measurements using ultrasound elasticity imaging. Using PWUM, radial applanation tonometry, and brachial sphygmomanometry, this study investigated the feasibility of noninvasively obtaining direct PP measurements at multiple arterial locations in normotensive, pre-hypertensive, and hypertensive human subjects. Two-way ANOVA indicated a significantly higher aortic PP in the hypertensive subjects, while radial and brachial PP were not significantly different among the subject groups. No strong correlation (r² < 0.45) was observed between aortic and radial/brachial PP in normal and pre-hypertensive subjects, suggesting that increases in PP throughout the arterial tree may not be uniform in relatively compliant arteries. However, there was a relatively strong positive correlation between aortic PP and both radial and brachial PP in hypertensive subjects (r² = 0.68 and 0.87, respectively). PWUM provides a low-cost, non-invasive, and direct means of measuring the pulse pressure in large central arteries such as the aorta. When used in conjunction with peripheral measurement devices, PWUM allows for the routine screening of hypertension and monitoring of BP-lowering drugs based on the PP from multiple arterial sites.
Copyright: © 2017 Association for Research into Arterial Structure and Physiology. Published by Elsevier B.V. All rights reserved.
Open Access: This is an open access article distributed under the CC BY-NC license.

Introduction

Hypertension is a highly prevalent cardiovascular risk condition that affects nearly 1 billion people globally,¹ increasing the risk of heart disease and stroke by 3–4 times.² In current clinical practice, the diagnosis and monitoring of hypertension is based on peripheral blood pressure measurements taken from the brachial artery using a sphygmomanometer. However, the central blood pressure (CBP) near the heart (i.e. in large arteries such as the aorta) has been recognized to play a key role in the pathogenesis of cardiovascular disease.^3–5 The distending pressure in the large elastic arteries is a key determinant of the degenerative changes that characterize accelerated aging and hypertension.⁶ Furthermore, it has been demonstrated that different anti-hypertensive pharmacological treatments may have different effects on CBP reduction while maintaining similar brachial BP reduction.^6,7 These findings support the need to account for CBP during hypertension treatment and monitoring.

Pulse pressure (PP), defined as the difference between the systolic and diastolic blood pressures (i.e. the pressure increase required to generate a pulse), has been recognized by several studies as a significant predictor of all-cause cardiovascular mortality and morbidity.^3,8,9 PP arises from the interaction of cardiac ejection (stroke volume) and the properties of the arterial circulation. An increased stiffness of the large arteries leads to an increase in PP due to a reduction in arterial compliance and increased speed of wave reflections.¹⁰ The PP in peripheral arteries is commonly assessed using cuff sphygmomanometry at the brachial site and applanation tonometry at the radial site.¹¹ However, the PP in large arteries remains challenging to measure clinically, as the only method to obtain a direct measurement of central PP in the clinic is by way of a highly invasive arterial catheter. Many longitudinal clinical research studies^3,12–16 have employed radial applanation tonometry with a generalized transfer function to derive central PP in large populations of patients. However, an indirect method may not be used for evaluation on an individual case-by-case basis.

Pulse Wave Ultrasound Manometry (PWUM) was previously developed by our group¹⁷ as a noninvasive, easy-to-use central PP measurement technique based on the regional pulse wave propagation characteristics obtained using ultrasound elasticity imaging. Initial feasibility studies have demonstrated the reproducibility (∼11% average intra-subject variability) of the method and its high correlation (0.94 < r² < 0.98) with the aortic PP waveforms obtained using radial applanation tonometry and a generalized transfer function in healthy, normotensive subjects. A block diagram of the PWUM technique on a normal human aorta is shown in Fig. 1. Aortic wall displacements and pulse wave velocity (PWV) are estimated using our established Pulse Wave Imaging (PWI) technique,^18–25 and the incremental distension curve is obtained by subtracting the posterior wall displacements from anterior wall displacements at the central scan line to avoid angle artifacts. The theoretical basis for PWUM is formed by combining the Laplace Law²⁶ and the Modified Moens–Korteweg Equation,^27–29 thus relating an incremental change in fluid pressure (dP) to the PWV, incremental distension (dR), fluid density (ρ), Poisson’s ratio (ν), and lumen radius (R).

While PWUM has been tested in healthy, normotensive subjects,¹⁷ it has not yet been used to evaluate patients with elevated blood pressure. This study aims to evaluate the feasibility of a more complete assessment of PP variation throughout the arterial tree by performing direct measurement of PP at three arterial sites using three different instruments – a sphygmomanometer cuff for the left brachial artery, an applanation tonometer for the left radial artery, and PWUM for the infrarenal abdominal aorta.

Methods & study design

Study design

This study was approved by the Institutional Review Board (IRB) of Columbia University. Outpatients visiting the Dental Clinic at Columbia University Medical Center for routine dental exams were recruited. Patients who provided informed consent to participate in the study were instructed to lie in the supine position for the duration of the exam. Three brachial blood pressure measurements were performed on the left arm over a 15-minute period using a clinically recommended³⁰ automatic digital blood pressure monitor (HEM-705CP, Omron Corp., Kyoto, Japan). The first measurement was excluded, and the average of the latter two was used to classify each subject as pre-hypertensive (systolic blood pressure between 120 mmHg and 139 mmHg) or hypertensive (systolic blood pressure >140 mmHg) based on the American Heart Association (AHA) recommendation for blood pressure categorization.³¹

Brachial PP was calculated as the difference between the systolic and diastolic pressures. Because blood pressure is known to fluctuate throughout the day,³² it was important to perform all measurements as concurrently as possible. In between each brachial cuff measurement, PWUM and radial applanation tonometry were performed to obtain the pulse pressure waveform in the aorta and left radial artery, respectively. Only the subjects who exhibited a clear, unobstructed acoustic window of an infrarenal abdominal aortic segment were included in this study. This resulted in N = 9 pre-hypertensive (5 M, 4 F, mean age 37.8 ± 8.4 y.o.) and N = 5 hypertensive (3 M, 2 F, mean age 54.2 ± 3.1 y.o.) subjects. N = 5 normal subjects (3 M, 2 F, mean age 27.2 ± 3.2 y.o.) were also recruited for comparison, yielding a total subject population of N = 19.

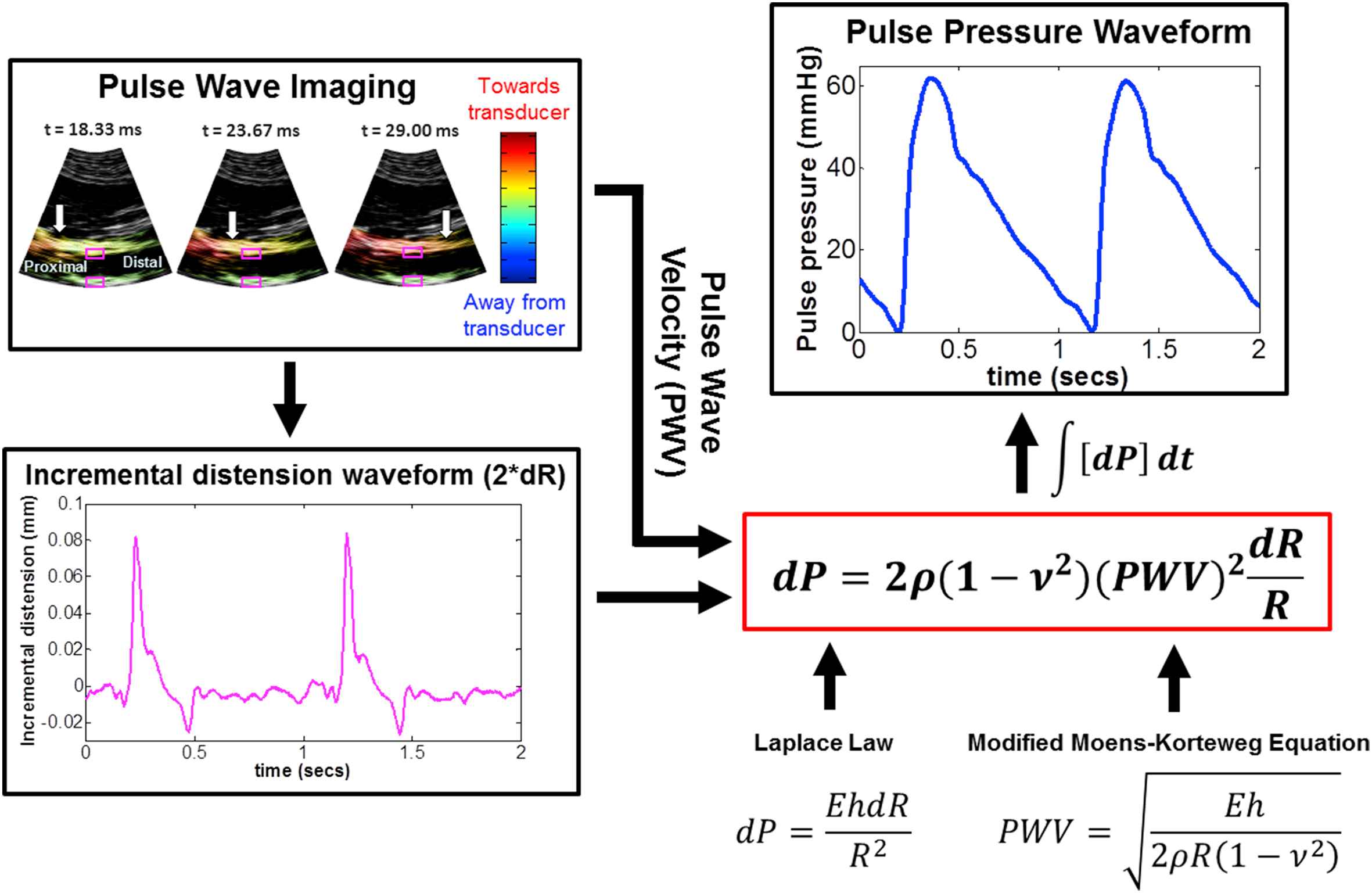

PWUM

The infrarenal abdominal aorta of each subject was scanned in the longitudinal (i.e. long-axis) view using a SonixTOUCH system (Analogic Corp., Peabody, MA, USA) and a 3.3 MHz curvilinear array transducer, as shown in Fig. 2. Because the pulse wave travels at a high velocity (∼4–12 m/s in human abdominal aortas^19,20), a high frame rate was warranted to adequately track its propagation.³³ The imaging depth was adjusted to the minimum depth so as to visualize both the anterior and posterior aortic walls, and the lateral resolution was reduced to between 19 and 25 scan lines over the field of view. This resulted in imaging depths of 7–12 cm and frame rates of 222–351 Hz, which corresponded to maximum measurable PWVs³³ of ∼14.9–23.3 m/s. RF frames were acquired over 2-second intervals during which the subject was required to perform breath holding in order to minimize rigid motion. One additional RF frame was acquired at a high line density (180) to provide a reference frame for accurate manual segmentation of the aortic walls. All RF signals were digitized at a sampling frequency of 40 MHz, and 5–7 acquisitions were performed for each subject in order to average the measurements over multiple cardiac cycles.

The incremental (i.e. inter-frame) axial displacements were estimated offline using a 1-D normalized cross correlation-based motion estimation method³⁴ on the RF signals with a 1.5 mm window size and 95% overlap. Due to its close proximity to the spine, the posterior aortic wall exhibited minimal motion in vivo. Manual segmentation of the anterior wall was performed on the high line density reference frame, generating a wall trace that was mapped onto the first frame of the RF sequence and automatically updated based on the inter-frame displacements to track the wall throughout the sequence.³⁵ The displacements at each point along the dynamic trace were mapped over time, generating a 2-D image depicting the spatio-temporal variation of the pulse wave propagation. Waveform tracking was performed by automatically identifying the 50% upstroke³³ of each displacement waveform on the spatio-temporal map, and PWV was estimated via linear regression of the 50% upstroke markers. The incremental distension curve was obtained at the central scan line and inserted along with the PWV into the PWUM framework (Fig. 1) to arrive at the aortic PP waveform.

Radial applanation tonometry

An applanation tonometry system was assembled and calibrated for the purpose of this study by connecting a SPT-301 noninvasive pulse tonometer to the input channel of a PCU-2000 pressure control unit (Millar Instruments, Houston, TX, USA). The output channel of the control unit was connected to a USB digital I/O device (NI USB-6501, National Instruments Corp, Austin, TX, USA) for data acquisition. The I/O device was controlled by a MATLAB GUI (MathWorks, Natick, MA, USA) that displayed and saved the tonometer signal in real-time on the SonixTouch scanner. Once the pulse in the left radial artery was located by palpation, the tonometer was placed on the top of the artery to record 20 s of radial pressure waveforms.

For each subject, radial and aortic pulse pressures were calculated from the respective waveforms as the amplitude difference between the peak and the beginning of the upstroke (i.e. foot), and averaged over 5–10 cardiac cycles.

Statistical analysis

Due to unequal sample sizes, two-way ANOVA was performed using the Bonferroni method to evaluate statistical significance among the three subject groups.

Results

PWI yielded aortic PWV measurements of 5.00 ± 0.59 m/s, 7.37 ± 1.50 m/s, and 11.69 ± 2.72 m/s in the normotensive, pre-hypertensive, and hypertensive subject groups, respectively. Since PWV is a regional functional index of arterial stiffness over a certain arterial length,³⁶ the significantly higher PWV of the hypertensive group (p < 0.01) suggests that the aortas of the hypertensive subjects were stiffer than those of the normotensive and pre-hypertensive subjects.

Figure 3 shows the radial and aortic pulse pressure waveforms over one full cardiac cycle for (a) a normal subject (F, 23 y.o., brachial BP 113/70) in which radial PP > aortic PP, (b) a pre-hypertensive subject (M, 51 y.o., brachial BP 136/87) in which radial PP ≈ aortic PP, and (c) a hypertensive subject (M, 60 y.o., brachial BP 153/91) in which radial PP ≈ aortic PP. Note the difference in the amplitude scale of the waveforms, which were manually aligned by the foot (i.e. beginning of the upstroke). In each case, the times corresponding to the peak of the forward wave, reflected wave, and dicrotic notch in the radial PP waveform are indicated by blue lines and labels.

In the normal and pre-hypertensive cases, the peak of the radial forward wave correlates with an inflection point in the aortic waveform representing the beginning of the augmentation pressure, which is commonly observed in the aorta when the forward and reflected waves merge during late systole.³⁷ By contrast, the greater separation between the forward and reflected peaks at the radial site indicates that the reflected wave merges with the forward wave during diastole. Also, the amplitude of the radial reflected wave is greater in the pre-hypertensive case compared to the normal case.

The radial waveform in the hypertensive case closely resembles the aortic waveform in the normal and pre-hypertensive cases – the peak of the forward wave appears as an inflection point rather than a relative maximum, suggesting that the higher velocity of the radial reflected wave in the hypertensive case has caused it to merge with the forward wave in late systole.³⁸ In the aortic waveform, the inflection point corresponding to the radial forward peak is followed by a decrease in pressure rather than the increase seen in the normal and pre-hypertensive cases. This suggests that the reflected wave in the aorta of the hypertensive case may be merging with the forward wave in early diastole rather than late systole.³⁷

The bar graphs in Fig. 4 show the blood pressure measurements (brachial systolic, brachial diastolic, brachial PP, aortic PP measured by PWUM, and radial PP measured by applanation tonometry) averaged across each of the three subject groups. For each of the five pressure measurements, statistical significance among the subject groups was determined using two-way ANOVA (^*** denotes p < 0.001, ^** denotes 0.001 < p < 0.01, and ^* denotes 0.01 < p < 0.05). Bonferroni’s multiple comparisons test revealed that a significantly higher PP in the hypertensive group was detected only at the aortic site by PWUM, whereas the radial and brachial PPs were not significantly different among the three subject groups.

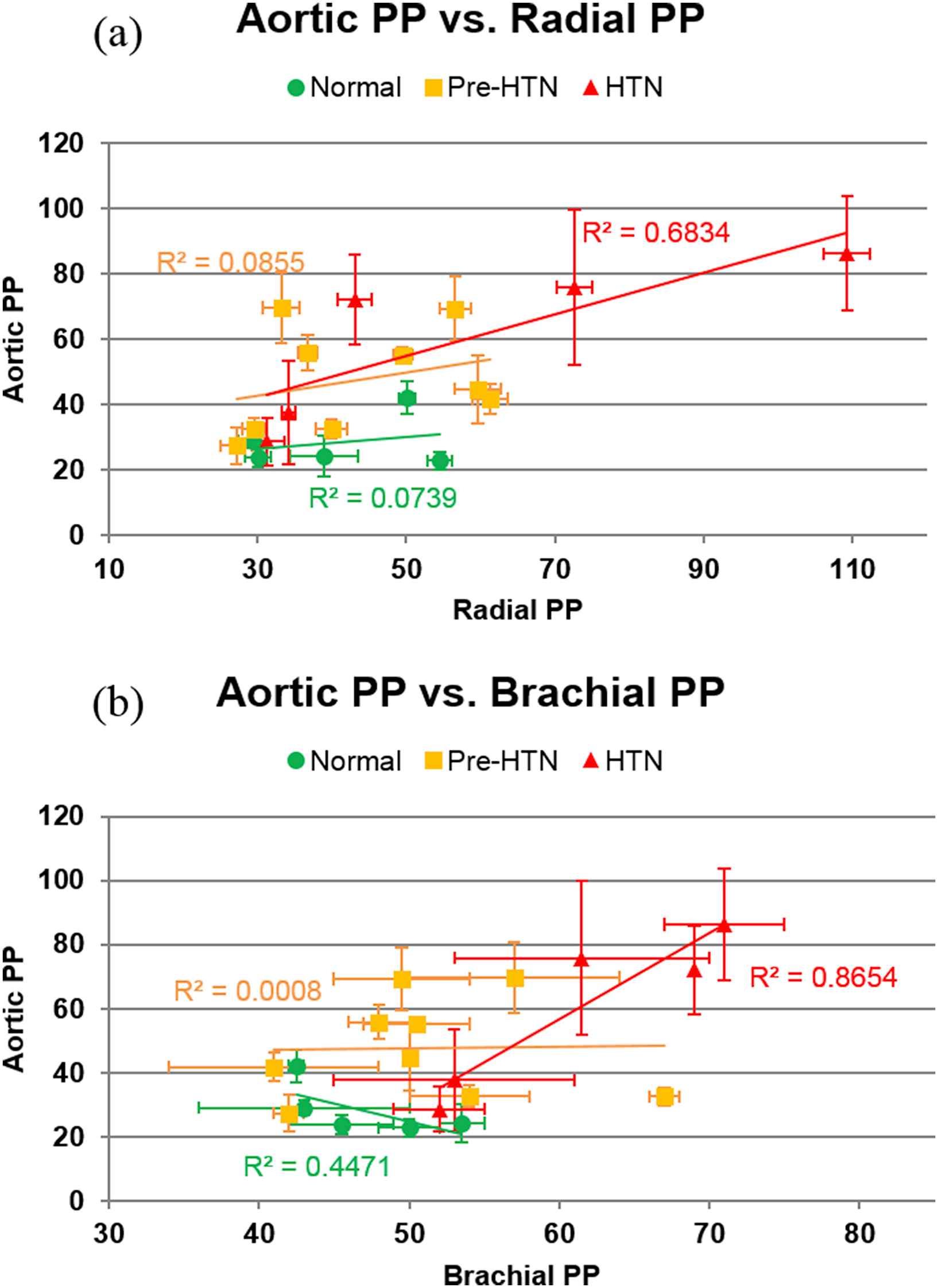

The aortic PP vs. (a) radial and (b) brachial PP for all subjects is shown in Fig. 5. While no strong correlation was observed in normal and pre-hypertensive subjects, there was a relatively strong positive correlation between aortic PP and both radial and brachial PP in hypertensive subjects (r² = 0.68 and 0.86, respectively).

Discussion

In this study, the aortic PP measured by PWUM was compared to the peripheral PPs measured using radial applanation tonometry and brachial cuff sphygmomanometry. It is important to note that due to the small sample sizes present in this study, the objective was not to establish definitive relationships in PP among different subject groups, but rather to evaluate the feasibility of noninvasively obtaining direct measurements of PP at different arterial locations. The authors acknowledge that larger sample sizes may affect the results of this study.

Due to the lack of ground-truth PPs, the measurements were compared relative to each other using correlations. Significantly higher (p < 0.01) PP in hypertensive subjects was detected at the aorta by PWUM but not in the case of the brachial and radial arteries (Fig. 4). This suggests that changes in overall blood pressure may occur in the central arteries before they are apparent at peripheral sites,^7,39 further stressing the importance of routine CBP evaluation.

While the subjects represented three distinct blood pressure levels, they also represented three distinct age groups. The pre-hypertensives were significantly older (p < 0.05) than the normals, and the hypertensives were significantly older (p < 0.01) than the pre-hypertensives. Thus, the effects of aging are also reflected in the PP variations at the three arterial sites. The metabolic and biochemical factors behind age-dependent arterial stiffening are well established.⁴⁰ Stiffening of the central arteries will result in changes in both the wave reflection patterns and arrival times of the reflected waves at the measurement site.⁴¹ This can be either burdensome, if the reflected wave adds to the main systolic pressure peak, or beneficial, if the reflected wave arrives at late systole or early diastole.⁴² If the reflected wave does not augment the main systolic pressure peak, an increase in PP will not be observed, which tends to be the case in younger, more elastic arteries exhibiting lower PWV and hence lower reflection amplitudes.⁴¹ This phenomenon is evident from the results within the pre-hypertensive group in this study – the four subjects who exhibited aortic PP > 50 mmHg were significantly older (42.0 ± 5.7 y.o.) than the five subjects with aortic PP < 50 mmHg (33.4 ± 6.9 y.o.).

Figure 3 depicts the non-uniformity of the PP waveform at different arterial sites. The arrival of the reflected wave caused an amplification of the PP in the normal and pre-hypertensive aortas (Fig. 3a and b, respectively) as well as in the hypertensive radial artery (Fig. 3c), but not in the hypertensive aorta. This appears to contradict the notion that in older, hypertensive individuals, the reflected wave tends to arrive at the ascending aorta during early systole, resulting in an even greater increase in PP.^37,43 However, the aforementioned studies have investigated central PP using either a generalized transfer function to derive the PP at the ascending aorta,^44,45 or cardiac catheterization at the aortic root.⁴⁶ Since this study represents the first non-invasive, direct measurements of PP in the abdominal aortas of pre-hypertensive and hypertensive subjects, it is possible that in some hypertensive cases (such as the one shown in Fig. 3c), the arrival of the reflected wave at the abdominal aorta may not always cause pressure amplification.

In the normal and pre-hypertensive groups, no strong correlation (r² < 0.45) was observed between the aortic and peripheral PPs, while in the hypertensive group, a relatively strong correlation was observed between aortic PP and both peripheral PPs (r² = 0.68 for the radial, r² = 0.87 for the brachial). A combination of prolonged peripheral hypertension and age-related arterial stiffening may have resulted in the positive relationship between radial, brachial, and aortic PP in the hypertensive group. However, it is worth noting that two of the hypertensive subjects exhibited PPs within the normal and pre-hypertensive range at all three arterial sites despite exhibiting systolic brachial pressures >140 mmHg. This is attributed to the increased diastolic brachial pressure in these subjects, which can serve as its own cardiovascular risk factor.¹⁵ The lack of correlation between aortic and peripheral PPs in the normal and pre-hypertensive groups indicates that PP elevation throughout the arterial tree may not be uniform in relatively compliant arteries.

From a physiological perspective, the mechanical integrity of the aortic wall is mainly determined by its matrix constituents, namely elastin, collagen, and smooth muscle.^26,27 Elastin is highly distensible and load-bearing at low pressures, while collagen is 1000 times stiffer and load-bearing at high pressures.²⁶ As the PP rises, the increased intraluminal pressure exerts a greater force on the wall, engaging more collagen fibers and causing a reduction in arterial compliance. However, the arterial compliance is also dependent on the vessel size, which may explain the non-uniformity of PP measurements at the three different sites investigated in this study.

PWUM relies on fundamental physical assumptions that are inherent to the validity of the Laplace law and the Moens–Korteweg equation used in this study. These assumptions include a cylindrical geometry and the linear elasticity of the arterial wall. The linear elasticity assumption denotes that the distension and pressure waveforms have temporal variations that are in-phase. This is a commonly accepted hypothesis⁴⁷ relying on the fact that the nonlinear behavior of the arterial wall in vitro starts to prevail at higher deformation than the physiological one.⁴⁸ However, it is unclear how well this translates to human arteries in vivo, as the nonlinear behavior of the arterial wall may infer to a more complex relationship between distension and pressure.^49,50

Conclusion

PWUM is a technique that can be used to measure the PP in any artery accessible by ultrasound (e.g. carotid, brachial, etc.). We have selected the abdominal aorta for all PWUM studies to date due to its clinical significance and the fact that it is impossible to directly access with other noninvasive methods such as brachial sphymomanometry or applanation tonometry. Future studies are aimed at applying the PWUM method at other imaging sites such as the carotid and brachial arteries.

Conflict of interest statement

The authors certify that they have no affiliations with or involvement in any organization or entity with any financial interest, or non-financial interest in the subject matter or materials discussed in this manuscript.

Acknowledgments

This work was supported in part by NIH R01-HL098830. The authors would also like to thank Jonathan Vappou, Ph.D., and Jianwen Luo, Ph.D., both previously at Columbia University and currently at CNRS-Strasbourg University, France, and Tsinghua University, China, respectively, for helpful discussions.

References

1.CM McEniery, JR Cockcroft, MJ Roman, SS Franklin, and IB Wilkinson, Central blood pressure: current evidence and clinical importance, Eur Heart J, Vol. 35, No. 26, 2014, pp. 1719-25.

2.TJ Wang and RS Vasan, Epidemiology of uncontrolled hypertension in the United States, Circulation, Vol. 112, No. 11, 2005, pp. 1651-62.

3.ME Safar, J Blacher, B Pannier, AP Guerin, SJ Marchais, PM Guyonvarc’h, et al., Central pulse pressure and mortality in end-stage renal disease, Hypertension, Vol. 39, No. 3, 2002, pp. 735-8.

4.R Pini, MC Cavallini, V Palmieri, N Marchionni, M Di Bari, RB Devereux, et al., Central but not brachial blood pressure predicts cardiovascular events in an unselected geriatric population: the ICARe Dicomano Study, J Am Coll Cardiol, Vol. 51, No. 25, 2008, pp. 2432-9.

5.MJ Roman, PM Okin, JR Kizer, ET Lee, BV Howard, and RB Devereux, Relations of central and brachial blood pressure to left ventricular hypertrophy and geometry: the Strong Heart Study, J Hypertens, Vol. 28, No. 2, 2010, pp. 384-8.

6.E Agabiti-Rosei, G Mancia, MF O’Rourke, MJ Roman, ME Safar, H Smulyan, et al., Central blood pressure measurements and antihypertensive therapy: a consensus document, Hypertension, Vol. 50, No. 1, 2007, pp. 154-60.

7.B Williams, PS Lacy, SM Thom, K Cruickshank, A Stanton, D Collier, et al., Differential impact of blood pressure-lowering drugs on central aortic pressure and clinical outcomes: principal results of the Conduit Artery Function Evaluation (CAFE) study, Circulation, Vol. 113, No. 9, 2006, pp. 1213-25.

8.P Boutouyrie, C Bussy, D Hayoz, J Hengstler, N Dartois, B Laloux, et al., Local pulse pressure and regression of arterial wall hypertrophy during long-term antihypertensive treatment, Circulation, Vol. 101, No. 22, 2000, pp. 2601-6.

9.AM Dart and BA Kingwell, Pulse pressure–a review of mechanisms and clinical relevance, J Am Coll Cardiol, Vol. 37, No. 4, 2001, pp. 975-84.

10.SE Greenwald, Pulse pressure and arterial elasticity, QJM, Vol. 95, No. 2, 2002, pp. 107-12.

11.J Filipovsky, V Svobodova, and L Pecen, Reproducibility of radial pulse wave analysis in healthy subjects, J Hypertens, Vol. 18, No. 8, 2000, pp. 1033-40.

12.CH Chen, E Nevo, B Fetics, PH Pak, FC Yin, WL Maughan, et al., Estimation of central aortic pressure waveform by mathematical transformation of radial tonometry pressure. Validation of generalized transfer function, Circulation, Vol. 95, No. 7, 1997, pp. 1827-36.

13.L Trudeau, Central blood pressure as an index of antihypertensive control: determinants and potential value, Can J Cardiol, Vol. 30, No. 5 Suppl, 2014, pp. S23-8.

14.K Takazawa, H Kobayashi, N Shindo, N Tanaka, and A Yamashina, Relationship between radial and central arterial pulse wave and evaluation of central aortic pressure using the radial arterial pulse wave, Hypertens Res, Vol. 30, No. 3, 2007, pp. 219-28.

15.K Takazawa, H Kobayashi, I Kojima, A Aizawa, M Kinoh, Y Sugo, et al., Estimation of central aortic systolic pressure using late systolic inflection of radial artery pulse and its application to vasodilator therapy, J Hypertens, Vol. 30, No. 5, 2012, pp. 908-16.

16.BF Osmanski, G Montaldo, and M Tanter, Out-of-plane Doppler imaging based on ultrafast plane wave imaging, IEEE Trans Ultrason Ferroelectr Freq Control, Vol. 62, No. 4, 2015, pp. 625-36.

17.J Vappou, J Luo, K Okajima, M Di Tullio, and EE Konofagou, Non-invasive measurement of local pulse pressure by pulse wave-based ultrasound manometry (PWUM), Physiol Meas, Vol. 32, No. 10, 2011, pp. 1653-62.

18.J Luo, RX Li, and EE Konofagou, Pulse wave imaging of the human carotid artery: an in vivo feasibility study, IEEE Trans Ultrason Ferroelectr Freq Control, Vol. 59, No. 1, 2012, pp. 174-81.

19.RX Li, J Luo, SK Balaram, FA Chaudhry, D Shahmirzadi, and EE Konofagou, Pulse wave imaging in normal, hypertensive and aneurysmal human aortas in vivo: a feasibility study, Phys Med Biol, Vol. 58, No. 13, 2013, pp. 4549-62.

20.J Vappou, J Luo, and EE Konofagou, Pulse wave imaging for noninvasive and quantitative measurement of arterial stiffness in vivo, Am J Hypertens, Vol. 23, No. 4, 2010, pp. 393-8.

21.J Vappou, J Luo, K Okajima, M Di Tullio, and EE Konofagou, Aortic pulse wave velocity measured by pulse wave imaging (PWI): a comparison with applanation tonometry, Artery Res, Vol. 5, No. 2, 2011, pp. 65-71.

22.K Fujikura, J Luo, V Gamarnik, M Pernot, R Fukumoto, MD Tilson 3rd, et al., A novel noninvasive technique for pulse-wave imaging and characterization of clinically-significant vascular mechanical properties in vivo, Ultrason Imaging, Vol. 29, No. 3, 2007, pp. 137-54.

23.J Luo, K Fujikura, LS Tyrie, MD Tilson, and EE Konfagou, Pulse wave imaging of normal and aneurysmal abdominal aortas in vivo, IEEE Trans Med Imaging, Vol. 28, No. 4, 2009, pp. 477-86.

24.SD Nandlall, MP Goldklang, A Kalashian, NA Dangra, JM D’Armiento, and EE Konofagou, Monitoring and staging abdominal aortic aneurysm disease with pulse wave imaging, Ultrasound Med Biol, Vol. 40, No. 10, 2014, pp. 2404-14.

25.D Shahmirzadi, P Narayanan, RX Li, WW Qaqish, and EE Konofagou, Mapping the longitudinal wall stiffness heterogeneities within intact canine aortas using Pulse Wave Imaging (PWI) ex vivo, J Biomech, Vol. 46, No. 11, 2013, pp. 1866-74.

26.YC Fung and YCB Fung, Biomechanics: circulation, 2nd ed., Springer, New York; London, 1997.

27.WW Nichols and MF O’Rourke, McDonald in DABfia McDonald’s blood flow in arteries: theoretic, experimental and clinical principles, 5th ed., Hodder Arnold, London, 2005.

28.A Moens, Die Pulskurve, Leiden, Netherlands, 1878.

29.D Korteweg, Uber die Fortpflanzungsgeschwindigkeit des Schalles in Elastiischen Rohren, Ann Phys Chem, Vol. 5, 1878, pp. 52-537.

30.G Parati, GS Stergiou, R Asmar, G Bilo, P de Leeuw, Y Imai, et al., European Society of Hypertension practice guidelines for home blood pressure monitoring, J Hum Hypertens, Vol. 24, No. 12, 2010, pp. 779-85.

31.TG Pickering, JE Hall, LJ Appel, BE Falkner, JW Graves, MN Hill, et al., Recommendations for blood pressure measurement in humans: an AHA scientific statement from the council on high blood pressure research professional and public education subcommittee, J Clin Hypertens (Greenwich), Vol. 7, No. 2, 2005, pp. 102-9.

32.T Tsukamoto, Y Kitano, and S Kuno, Blood pressure fluctuation and hypertension in patients with Parkinson’s disease, Brain Behav, Vol. 3, No. 6, 2013, pp. 710-4.

33.RX Li, WW Qaqish, and E Konofagou, Performance assessment of Pulse Wave Imaging using conventional ultrasound in canine aortas ex vivo and normal human arteries in vivo, Artery Res, Vol. 9, 2015.

34.J Luo and E Konofagou, A fast normalized cross-correlation calculation method for motion estimation, IEEE Trans Ultrason Ferroelectr Freq Control, Vol. 57, No. 6, 2010, pp. 1347-57.

35.WN Lee, CM Ingrassia, SD Fung-Kee-Fung, KD Costa, JW Holmes, and EE Konofagou, Theoretical quality assessment of myocardial elastography with in vivo validation, IEEE Trans Ultrason Ferroelectr Freq Control, Vol. 54, No. 11, 2007, pp. 2233-45.

36.JL Cavalcante, JA Lima, A Redheuil, and MH Al-Mallah, Aortic stiffness: current understanding and future directions, J Am Coll Cardiol, Vol. 57, No. 14, 2011, pp. 1511-22.

37.NA Shirwany and MH Zou, Arterial stiffness: a brief review, Acta Pharmacol Sin, Vol. 31, No. 10, 2010, pp. 1267-76.

38.IB Wilkinson, IR Hall, H MacCallum, IS Mackenzie, CM McEniery, BJ van der Arend, et al., Pulse-wave analysis: clinical evaluation of a noninvasive, widely applicable method for assessing endothelial function, Arterioscler Thromb Vasc Biol, Vol. 22, No. 1, 2002, pp. 147-52.

39.G Jondeau, P Boutouyrie, P Lacolley, B Laloux, O Dubourg, JP Bourdarias, et al., Central pulse pressure is a major determinant of ascending aorta dilation in Marfan syndrome, Circulation, Vol. 99, No. 20, 1999, pp. 2677-81.

40.Z Sun, Aging, arterial stiffness, and hypertension, Hypertension, Vol. 65, No. 2, 2015, pp. 252-6.

41.RA Bleasdale, KH Parker, and CJ Jones, Chasing the wave. Unfashionable but important new concepts in arterial wave travel, Am J Physiol Heart Circ Physiol, Vol. 284, No. 6, 2003, pp. H1879-85.

42.AP Avolio, M Butlin, and A Walsh, Arterial blood pressure measurement and pulse wave analysis–their role in enhancing cardiovascular assessment, Physiol Meas, Vol. 31, No. 1, 2009, pp. R1-47.

43.WW Nichols, Clinical measurement of arterial stiffness obtained from noninvasive pressure waveforms, Am J Hypertens, Vol. 18, No. 1 Pt 2, 2005, pp. 3S-10S.

44.JH Kang, DI Lee, S Kim, SW Kim, SI Im, JO Na, et al., A comparison between central blood pressure values obtained by the Gaon system and the SphygmoCor system, Hypertens Res, Vol. 35, No. 3, 2012, pp. 329-33.

45.MT Savage, CJ Ferro, SJ Pinder, and CR Tomson, Reproducibility of derived central arterial waveforms in patients with chronic renal failure, Clin Sci (Lond), Vol. 103, No. 1, 2002, pp. 59-65.

46.EG Philippe, JL Hebert, C Coirault, K Zamani, Y Lecarpentier, and D Chemla, A comparison between systolic aortic root pressure and finger blood pressure, Chest, Vol. 113, No. 6, 1998, pp. 1466-74.

47.LM Van Bortel, EJ Balkestein, JJ van der Heijden-Spek, FH Vanmolkot, JA Staessen, JA Kragten, et al., Non-invasive assessment of local arterial pulse pressure: comparison of applanation tonometry and echo-tracking, J Hypertens, Vol. 19, No. 6, 2001, pp. 1037-44.

48.YC Fung, Biomechanics: mechanical properties of living tissues, 2nd ed., Springer-Verlag, New York; London, 1993.

49.M Couade, M Pernot, C Prada, E Messas, J Emmerich, P Bruneval, et al., Quantitative assessment of arterial wall biomechanical properties using shear wave imaging, Ultrasound Med Biol, Vol. 36, No. 10, 2010, pp. 1662-76.

50.JM Meinders and AP Hoeks, Simultaneous assessment of diameter and pressure waveforms in the carotid artery, Ultrasound Med Biol, Vol. 30, No. 2, 2004, pp. 147-54.
